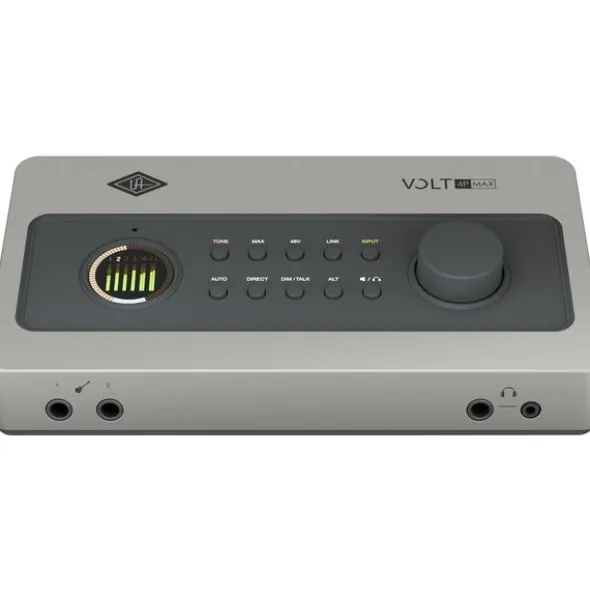

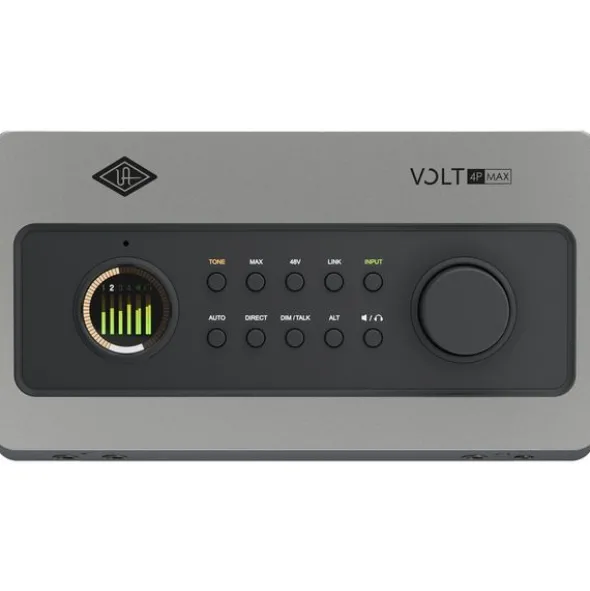

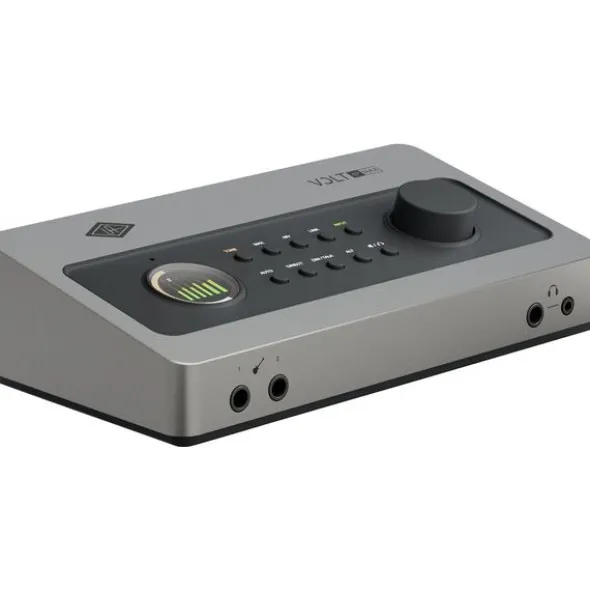

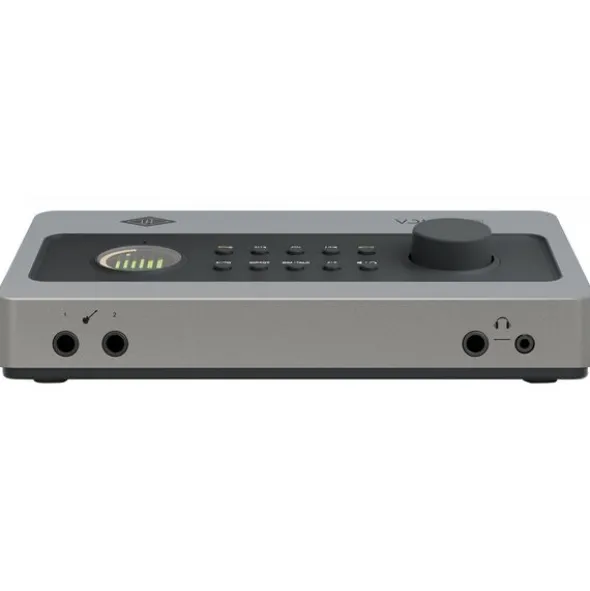

Universal Audio Volt 4P Max

12 x 6 USB 2.0 Audio Interface

• 32 bit / 192 KHz
• Tone-shaping preamp with 60 dB gain and three character modes (Warmth / Focus / Shine) for the sound of classic analogue microphone preamps
• Smart display
• Auto gain and clip protection
• Max Compression (real-time compression with 6 presets based on the 1176 and LA-2A, accessible at the touch of a button)
• Built-in talkback microphone
• Speaker switching
• Compatible with the UAD Console app and the LUNA Digital Audio Workstation
• Built-in loopback function for podcasting, streaming and content creation
• +48 V phantom power for condenser microphones
• USB bus-powered
• Compatible with macOS 12 or later, Windows 10 64-bit Edition or later, and iPadOS / iOS 16 or later
• Dimensions (W x D x H): 216 x 115 x 54 mm
• Weight: 0.7 kg

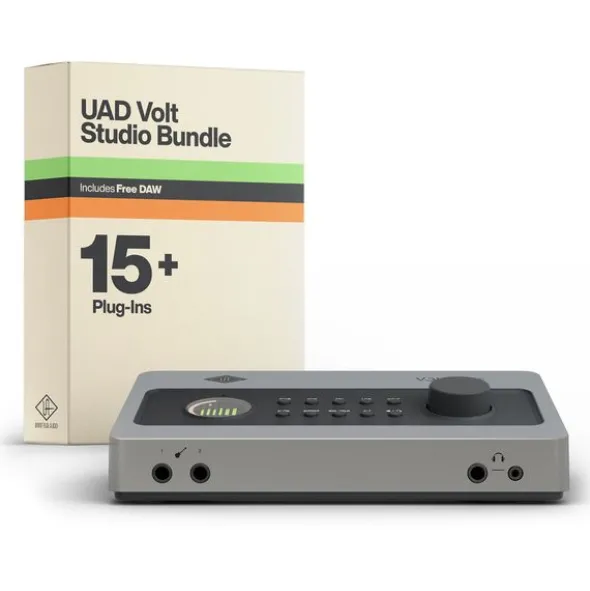

• Includes UAD Volt Studio bundle

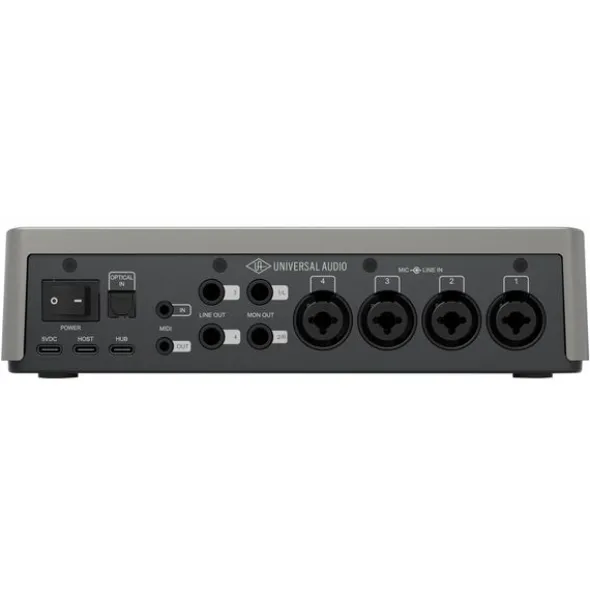

Connections

• 4 x microphone/line combo inputs: XLR / 6.3 mm jack
• 2 x Hi-Z instrument inputs: 6.3 mm jack
• 4x line output: 6.3 mm jack
• 2 x stereo headphone outputs: 6.3 mm jack
• Optical S/PDIF / ADAT input
• MIDI input and output: 3.5 mm mini-jack
• 3 x USB-C

Disponível desdeOutubro 2026

número de artigo653440

unidade de venda1peça(s)

Recording / Playback Channels12×6

Number of Mic Inputs4

Number of Line Inputs4

Instrument Inputs2

Number of Line Outs4

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors1

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB-C

MIDI interfaceYes

Word Clock0

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits32 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version2.0

Connection FormatUSB port Type C

Zero latency monitoringYes
