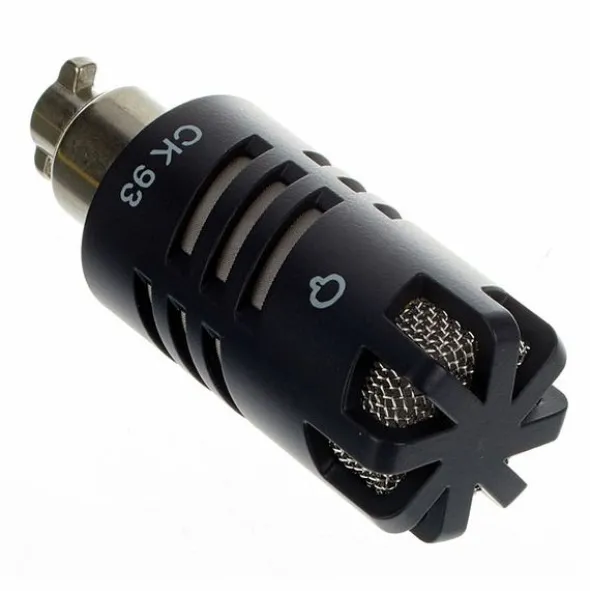

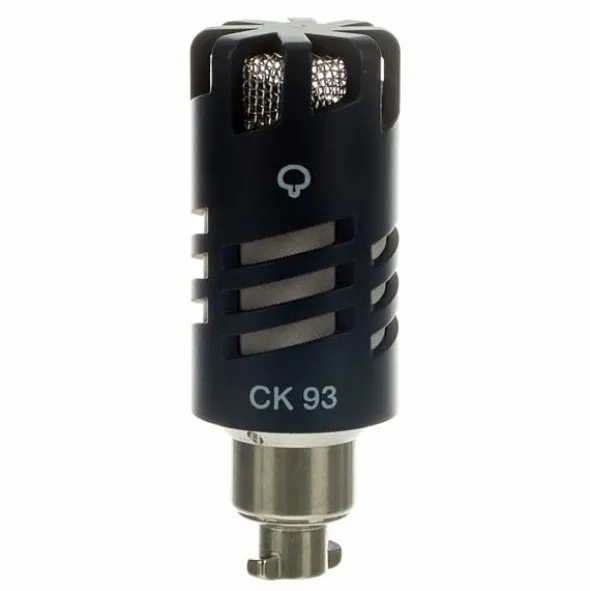

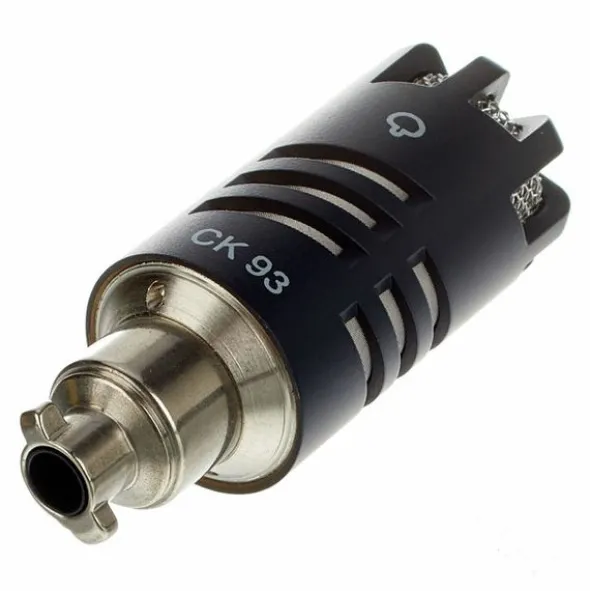

AKG CK 93

Condenser Microphone Capsule (modular)

Similar to the CK 91 but reaches a greater attenuation of 120° off-axis sounds. The high directivity is optimized by the flat frequency curve.

• For AKG SE 300 B
• Very homogeneous hyper-cardioid polar pattern and good, frequency independent off-axis attenuation
• Directional characteristic: Hyper-Cardioid
• Frequency range: 20-20,000 Hz
• Open circuit sensitivity: 10 mV / Pa (-40 dBV)
• Peak SPL: 132/142 dB (k = 1%)
• Equivalent SPL (CCIR 468-3): 28 dB
• Equivalent SPL: 17 dB-A
• Signal / noise ratio (A-weighted): 77 dB
• Supply voltage via SE 300B
• Current consumption via SE 300B
• Connector: Bayonet
• Surface: Dark grey
• Dimensions: 19 Ø x 36/51 mm
• Net weight: 35 g

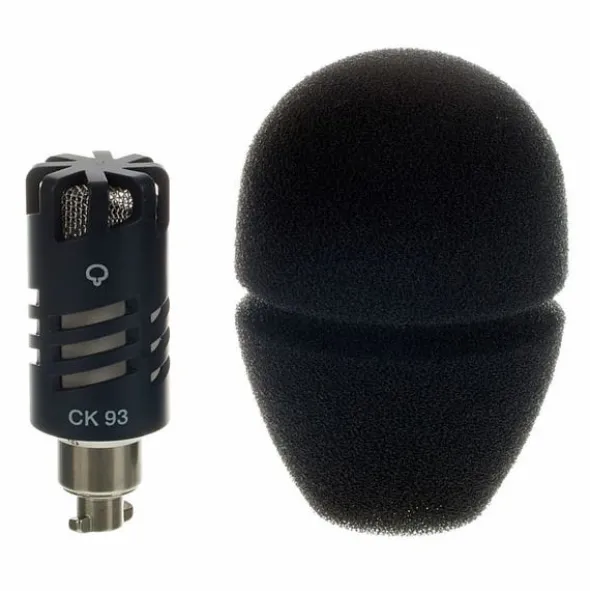

• Including windscreen
