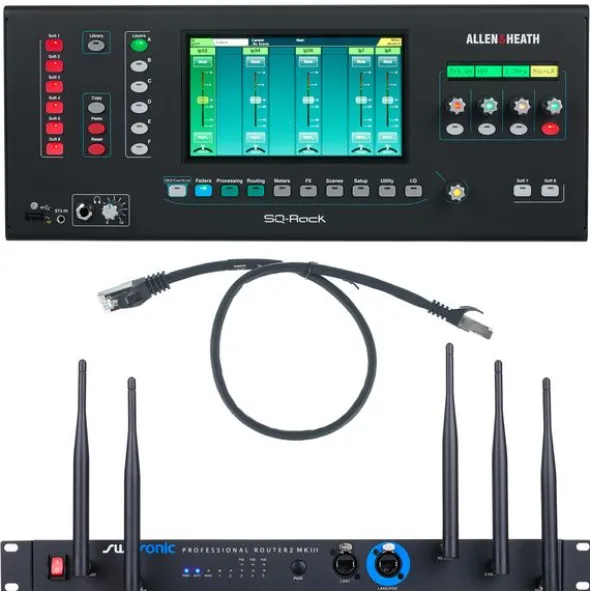

Allen & Heath SQ Rack Router Bundle

Bundle offer comprising

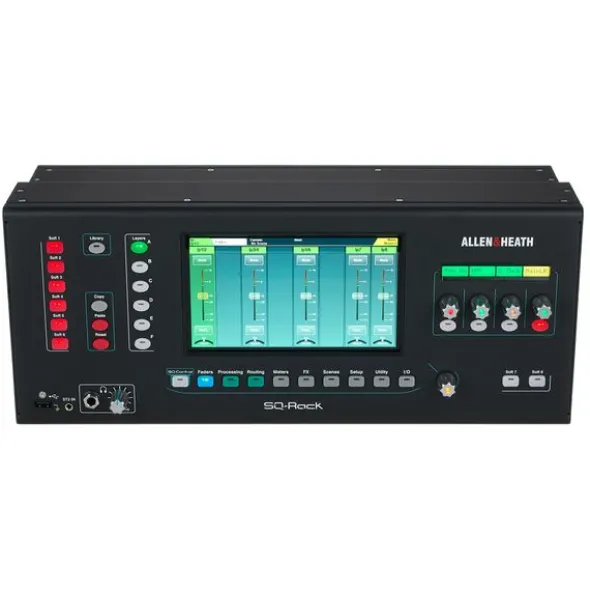

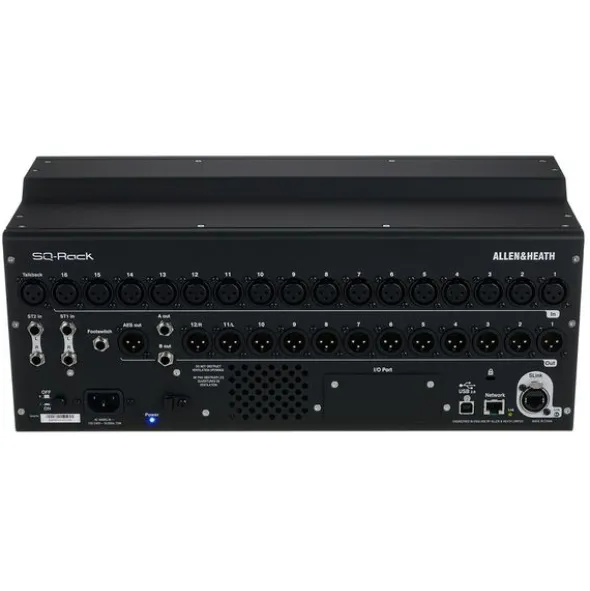

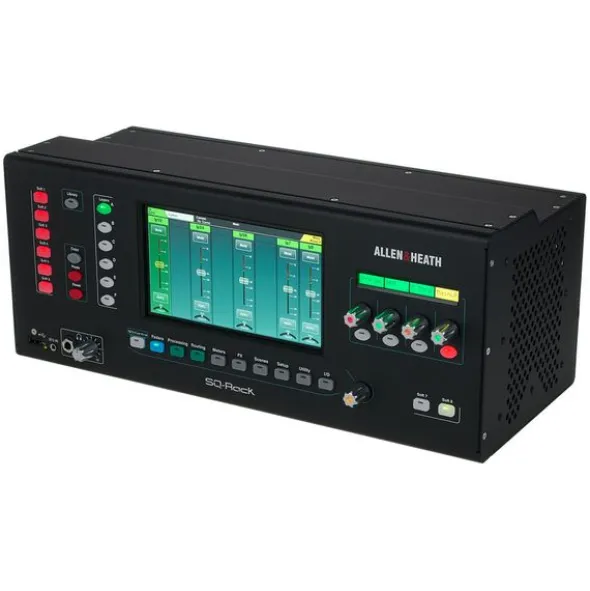

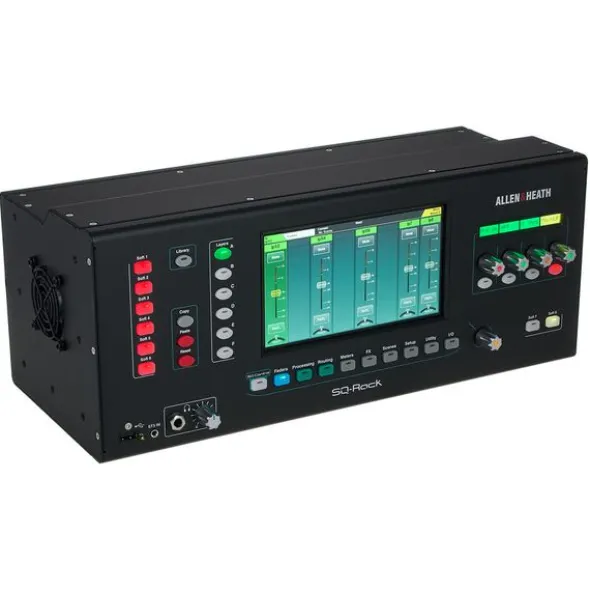

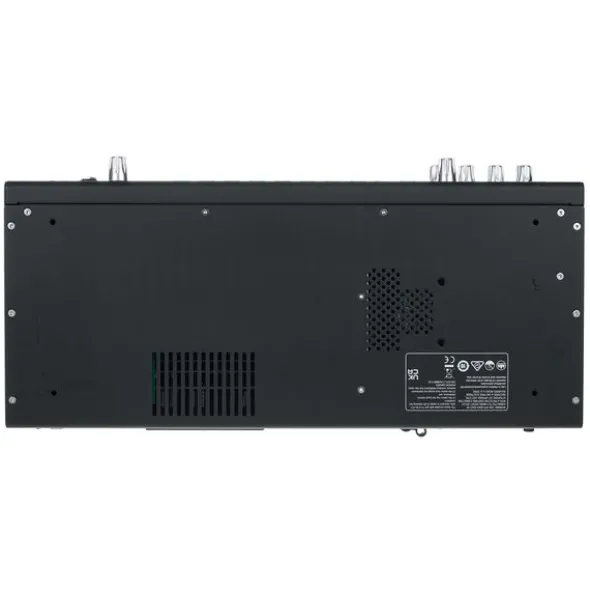

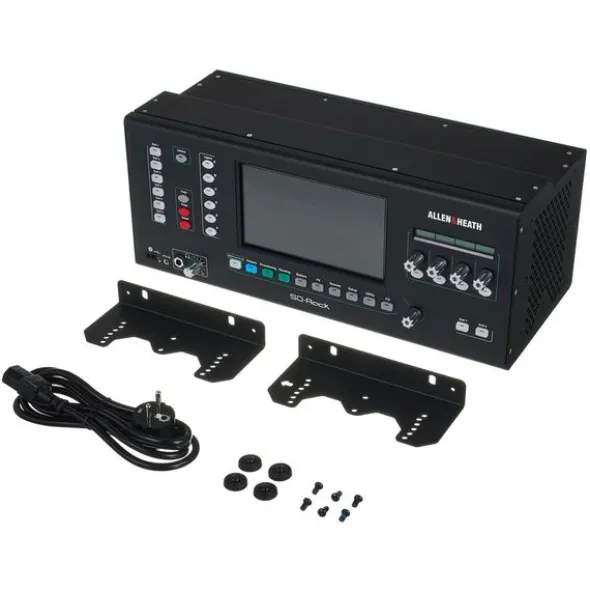

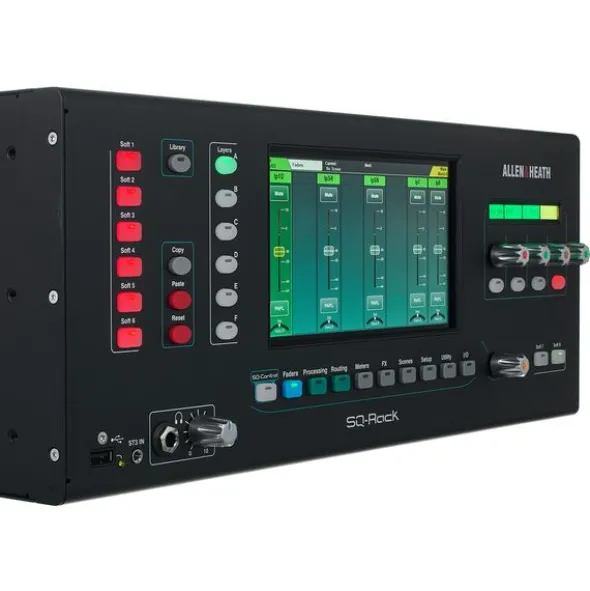

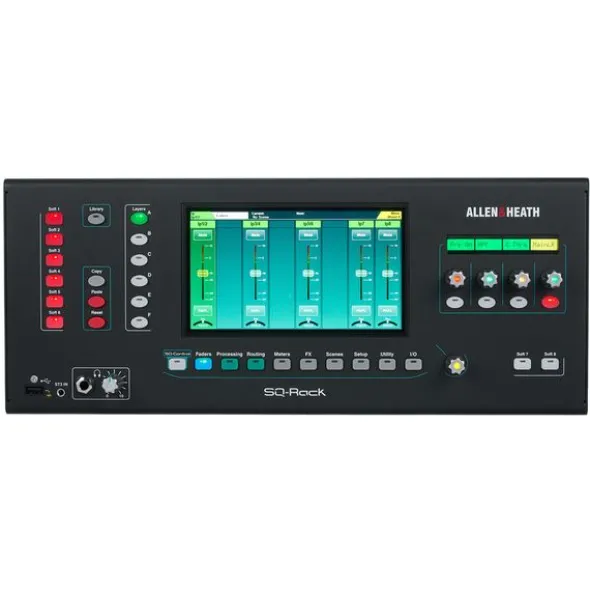

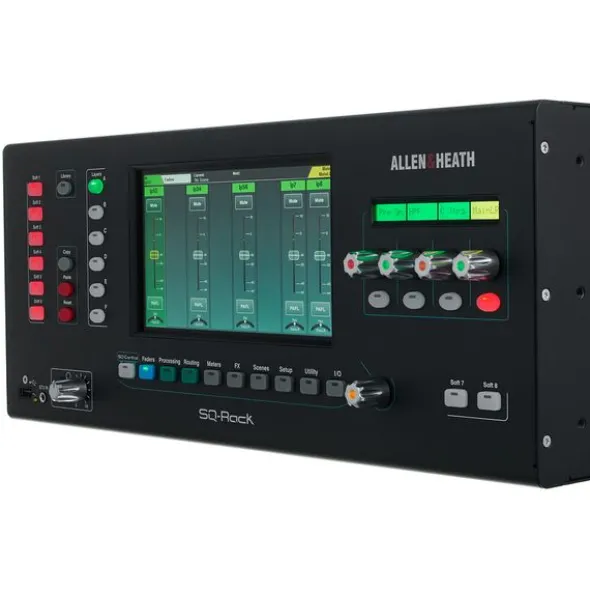

Allen & Heath SQ Rack

48-Channel Digital Mixing Console

• 96 kHz FPGA core signal processing: latency 0.7 ms
• 7″ Multi-touch screen
• 12 Stereo mixes – perfect for in-ear monitoring setups
• 3 Matrix
• 8 FX engines
• Hands control: 8 Softkeys
• 4 Soft rotaries
• SQ-Rack Apps: SQ-MixPad, SQ4You, SQ-Control
• 128 x 128 SLink connection for remote audio networking
• 64 x 64 channel I/O connection for audio networking
• 32 x 32 channel USB audio interface
• SQ-Drive for direct recording to USB stick

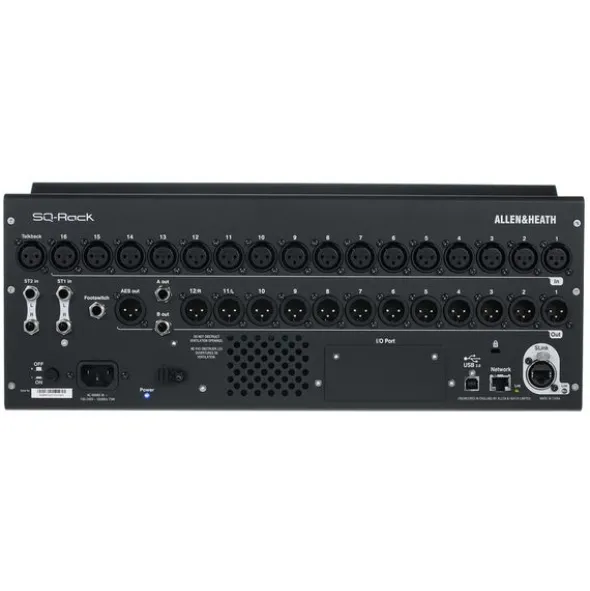

• 17 Mono XLR inputs: 1 Talkback
• 2x 6.3 mm TRS jack stereo inputs
• 3.5 mm Stereo input
• 1 XLR Talkback mic input
• 6.3 mm footswitch
• 12 XLR outputs
• 2 x 6.3 mm TRS outputs
• AES XLR output
• 6.3 mm headphone output
• I/O port for option expansion cards: Dante/Madi/Waves/SLink
• Multi-position 19″ rack ears
• 4 U installation height
• Dimensions: 430 x 214 x 173 mm
• Weight: 5.8 kg

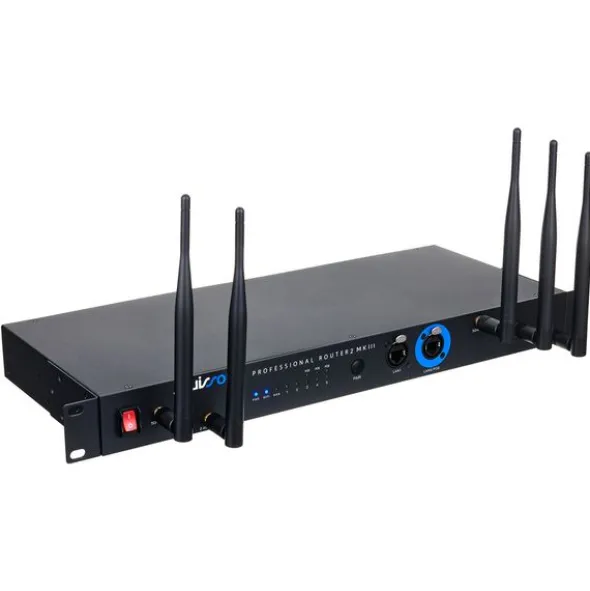

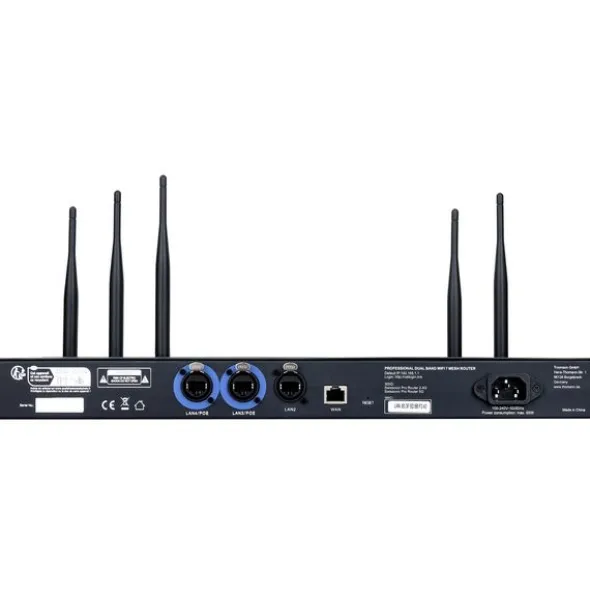

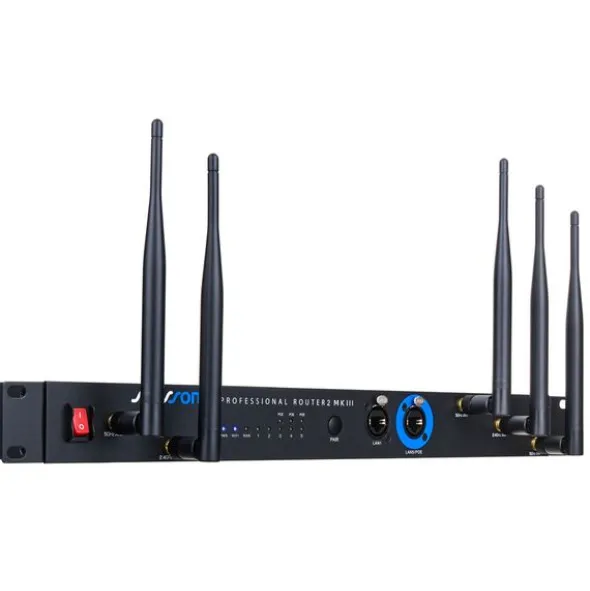

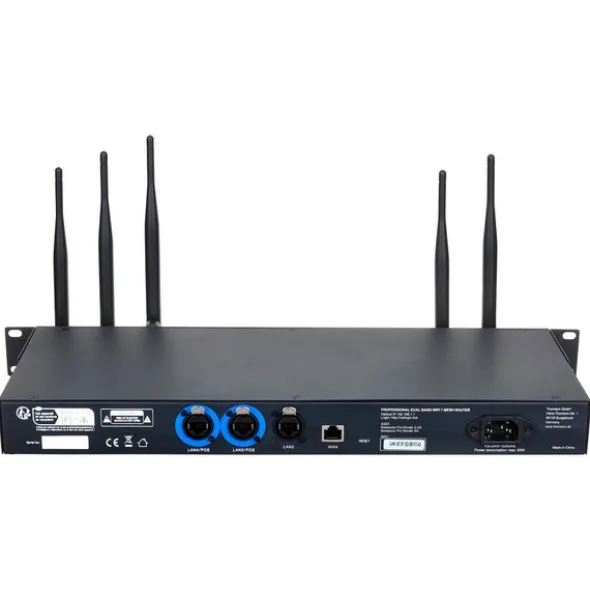

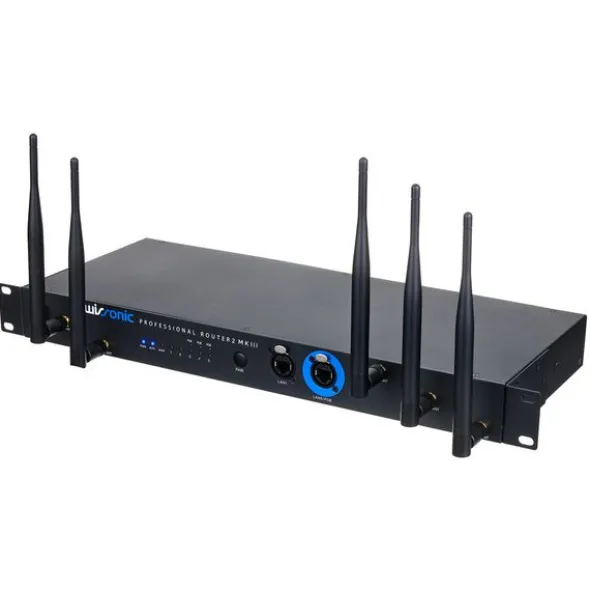

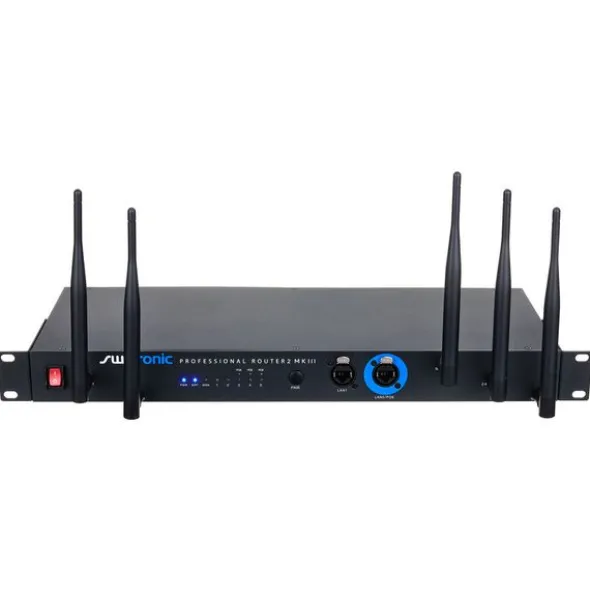

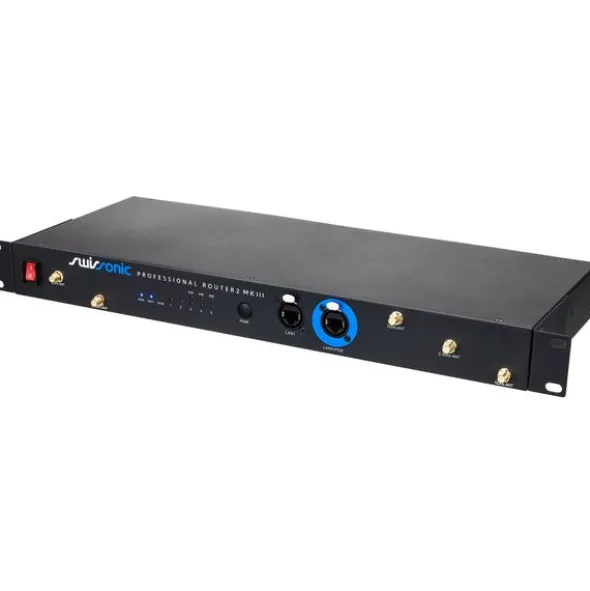

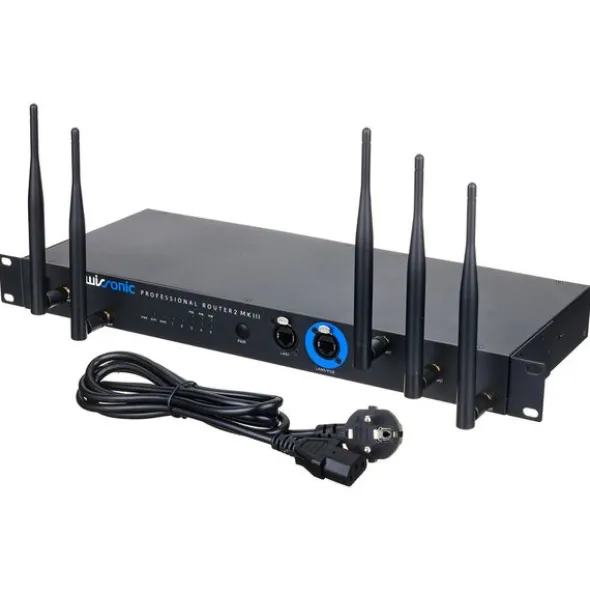

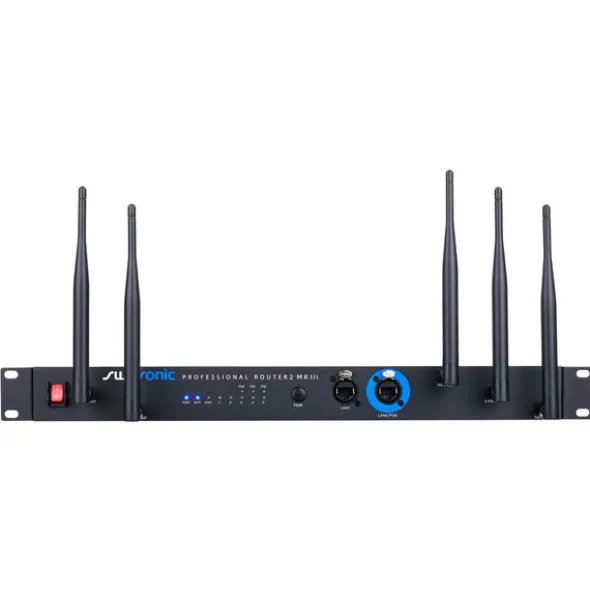

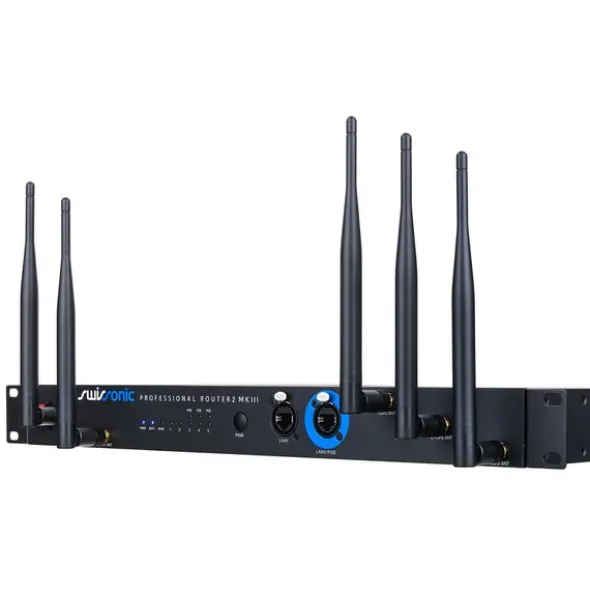

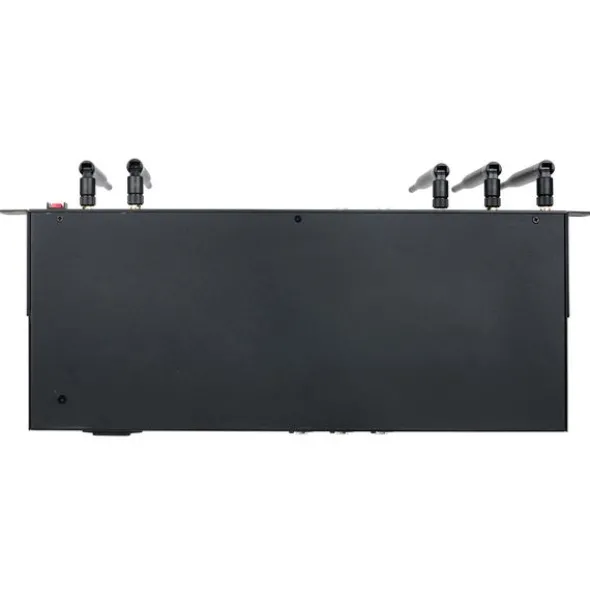

Swissonic Professional Router 2 MKIII

Wireless Dual Band Router WiFi 7 (2.4 und 5 GHz)

• Detachable antennas
• 1 x WAN-Port
• 2 x LAN Port (1000 Mbps)
• 3 x POE+ (power over ethernet) LAN Port (1000 Mbps)
• Lockable Neutrik Ethercon RJ45 connector
• WIFI standards: IEEE 802.11b/g/n/a/ac/ax/be
• Wi-Fi data throughput: up to 688 Mbps (2.4 GHz), up to 2882 Mbps (5 GHz)
• Features: Parental controls, QoS, IPTV, website blocking, IPv4 / IPv6, mesh network
• Inetgrated power supply
• Dimensions (W x H x D, excluding mains plug and antennas): 483 x 44 x 176 mm
• Installation size: 19″ / 1U
• Weight: 2.4 kg

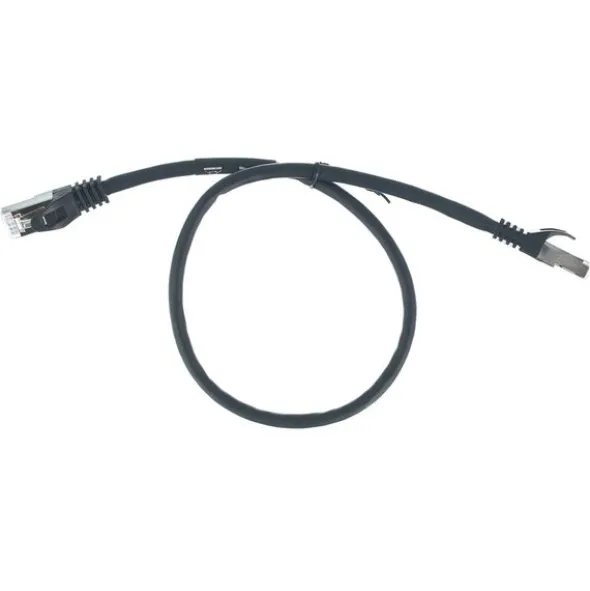

pro snake CAT6A Patch Cable 0.5m

CAt6A Patch Cable

• Length: 0.5 m
• Shielding: S/FTP
• Four x two AWG26
• Up to 500 MHz for 10 GBase-T Ethernet
• RJ45 plug / RJ45 plug with gold-plated precision plug contacts
• Exterior diameter: 6.0 mm
• Sheath: Halogen-free (LSZH)
• Weight: 0.02 kg
• Colour: Black

Disponível desdeAbril 2026

número de artigo642563

unidade de venda1peça(s)

Max.number of input channels17

Microphone Inputs17

Analog Line Inputs17

Analog Line Outputs12

Analog in/ out with plug-in card expandableNo

Digital InputsUSB

Digital OutputsAES, USB

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderNo

Computer interfaceUSB, Ethernet

MIDI-interfaceNo

User InterfacePhysical/remote

Number of faders0

DSP Input channels48

DSP Output Channels12

Busses12

Number of Microphone Inputs17

Number of Mono Line Inputs4

Number of Stereo Line Inputs3

Physical outputs12

Digital stagebox connectionS-Link

EthernetEthernet

HotspotNo

Special Features7″ Touchscreen

Multitrack RecordYes

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDMultitrack

Recorder FormatWAV/MP3

RTAYes

FX Processor8

31 Band EQ13

Delay InputYes

Delay OutputYes

Matrix3

DCA/VCA Groups8

MIDI InterfaceNo

Sample rate96 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATNo

Digital SPDIFNo

Digital AES3/ASESEBYes

Digital MADIOptional

Digital DanteOptional

110V capableYes

CaseNo

19″ RackmountYes

Height173 mm

Width430 mm

Depth214 mm

Weight5,8 kg
