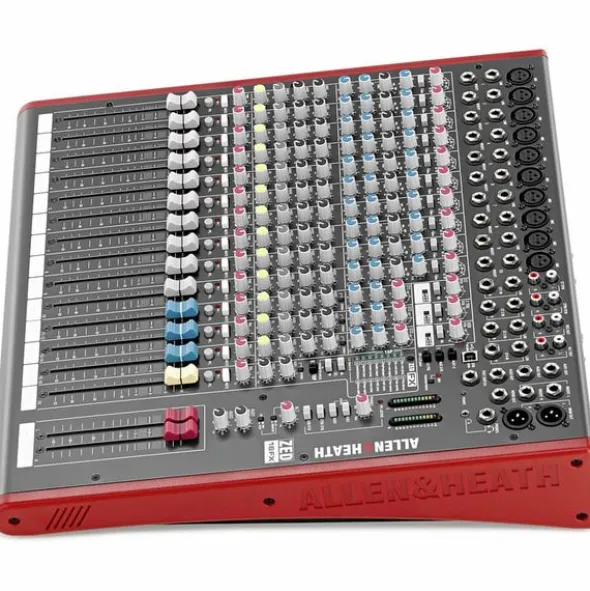

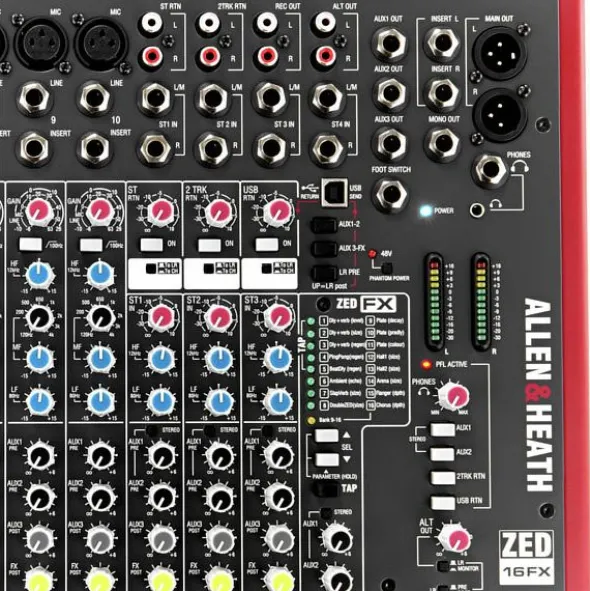

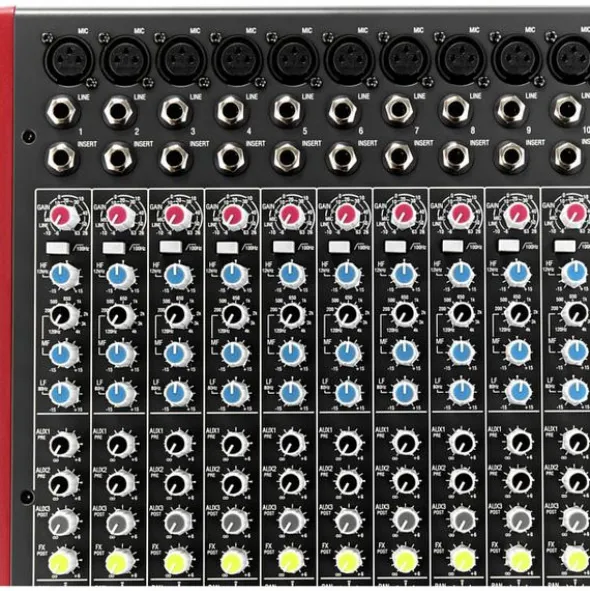

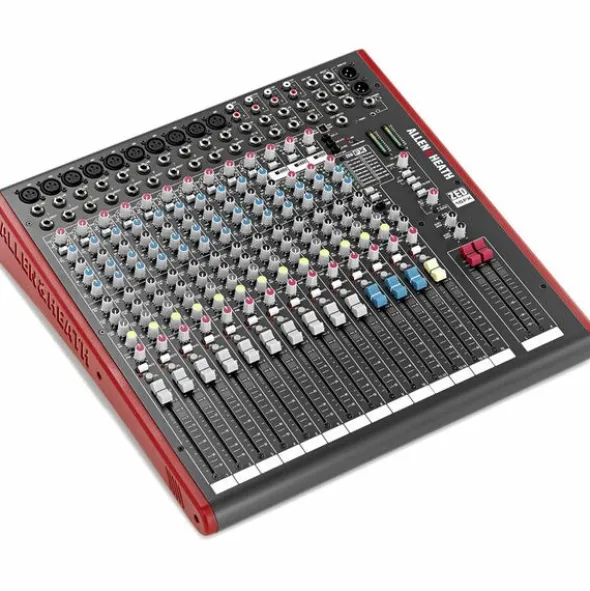

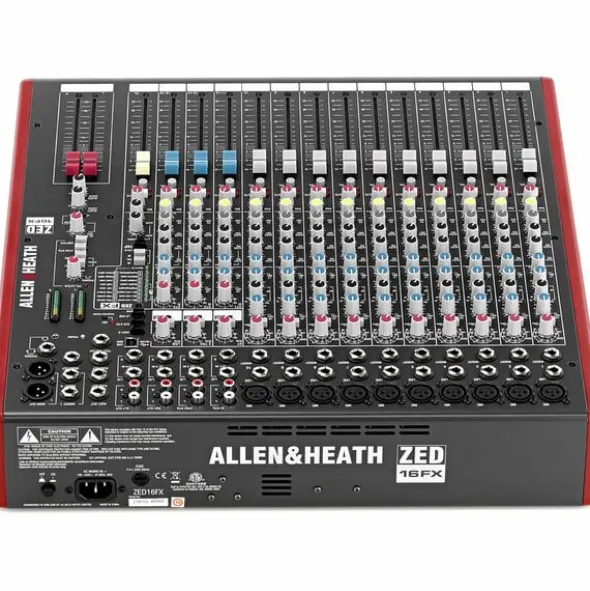

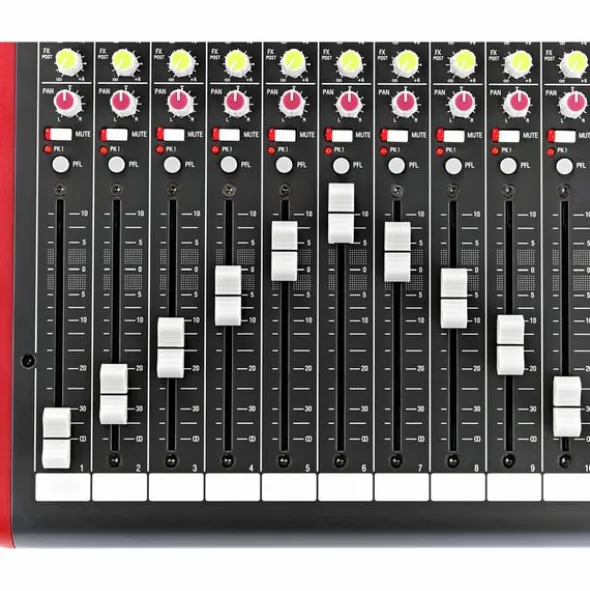

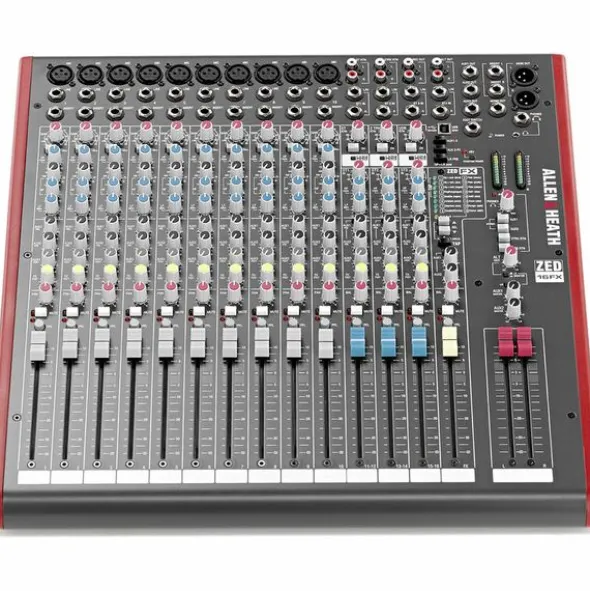

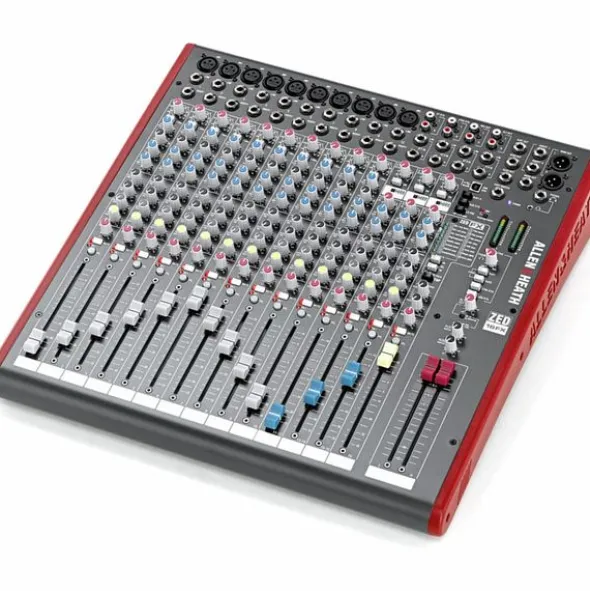

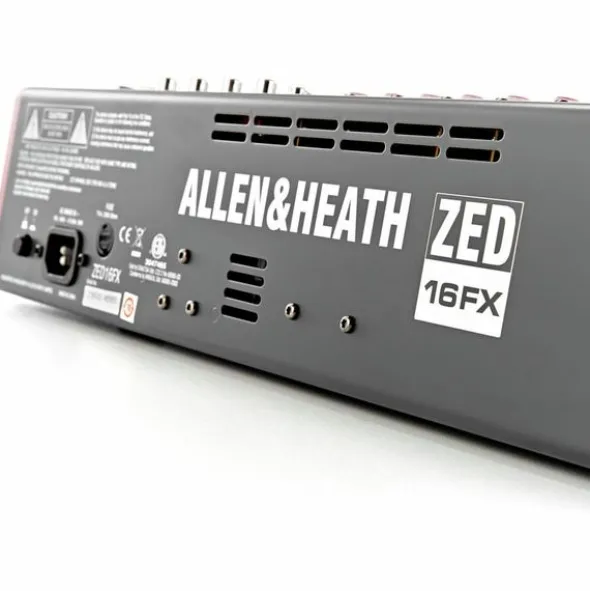

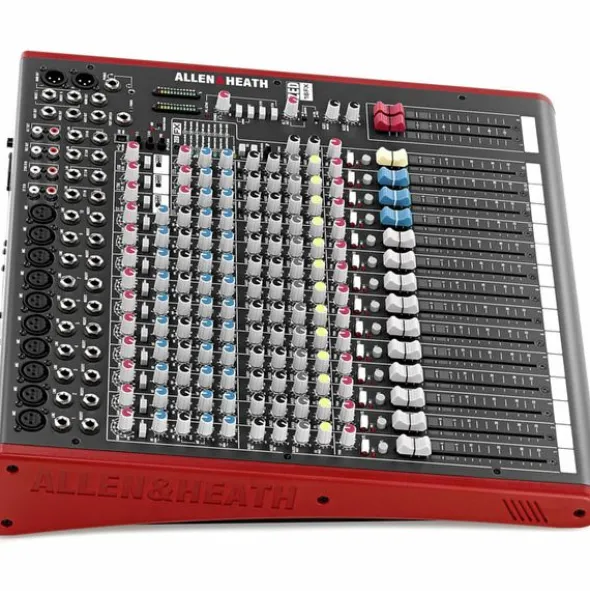

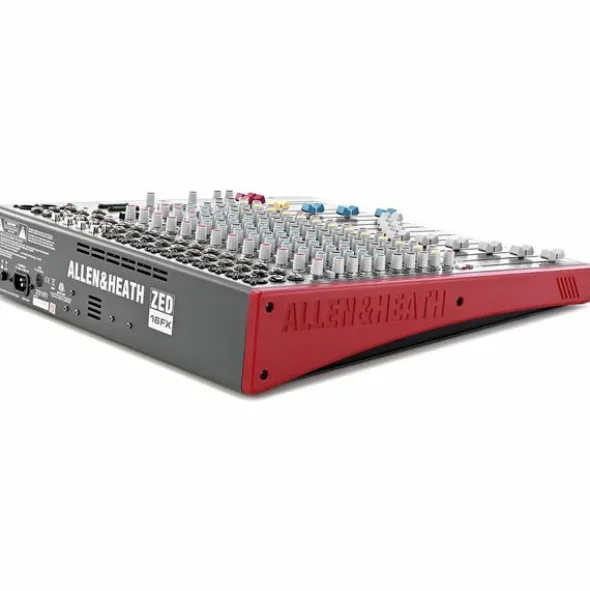

Allen & Heath ZED-16FX

Small Mixer

• 10 Mic / line inputs
• 3 Dual stereo inputs
• DuoPre TM preamp with 69 dB gain range
• 3 Aux sends
• 1 FX send
• USB send and return
• Insert per channel
• High pass filter
• Mute per channel
• Built-in effects unit with 16 presets
• Tap delay and editable parameters
• Stereo return
• 2-Track return
• 6.3 mm Headphone connections
• Stereo record output
• Alternative stereo output
• Mono Sum of the LR output

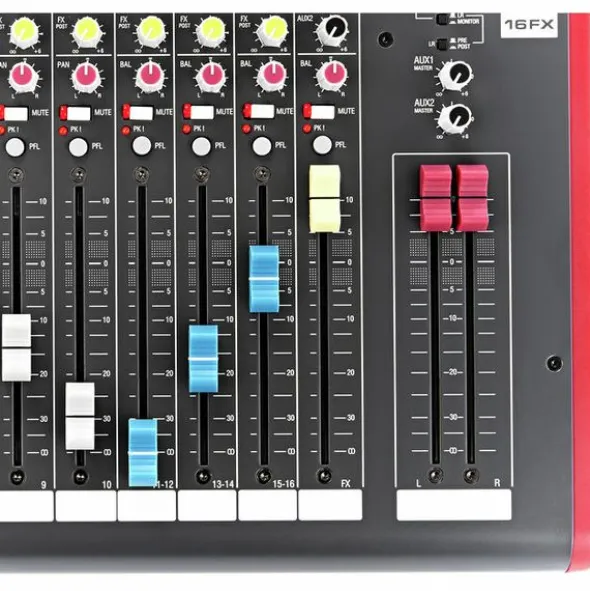

• Master LR
• 12-Segment LR displays
• Master control for Aux 1 & 2
• Dimensions (W x D x H): 464 x 450 x 98 mm
• Weight: 8.5 kg
• Suitable rack mount: Art.279395 (not included)

Disponível desdeAbril 2012

número de artigo278186

unidade de venda1peça(s)

Simultaneous channels14

Mic-In10

Mono Line-in10

Stereo-In4

Hi-Z Input0

Phantom Power48 V

Master OutXLR

Aux Ways3

max. Pre Aux Channels2

PC InterfaceUSB-B

Audio Interface Input2

Audio Interface Output2

Multitrack-RecordingNo

USB/SD Direct RecordNo

Rec Out (Analog)Yes

Low CutYes

InsertsYes

Direct OutNo

ParametricYes

CompressorNo

PanoramaYes

PFLYes

FX Processor1

USB PlaybackNo

Bluetooth PlaybackNo

Lamp connectionNo

FootswitchSwitch

MatrixmixerNo

BagNo

Zones0

19″ RackmountOptional

Width464 mm

Depth465 mm

Height98 mm

Weight8,5 kg

Parallel usable Channels14

Mic Ins10

Mono Line Ins10

Stereo Ins4

Number of Pre Aux max.2

InsertYes

Effect Processor1

USB PlayNo

Bluetooth PlayNo

Lamp ConnectorNo

Foot SwitchSwitch

Rackmount279395
