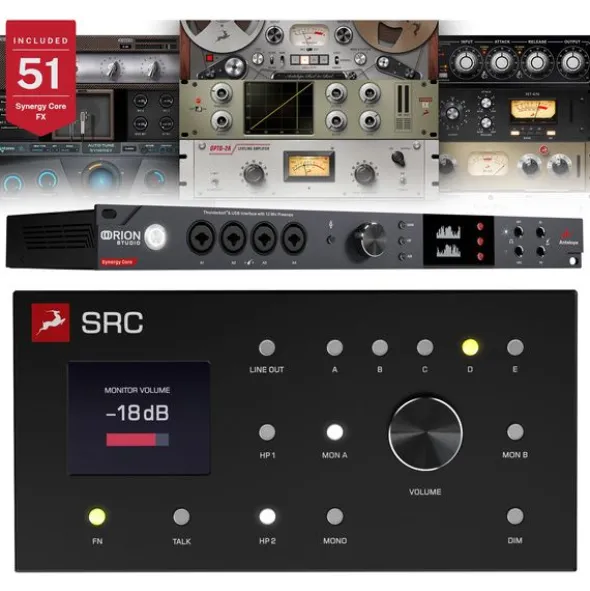

Antelope Orion Studio SC Stereo Bundle

Bundle offer comprising

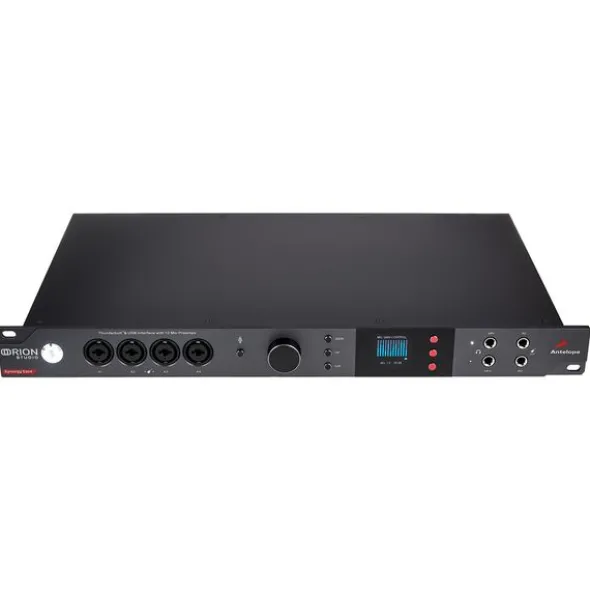

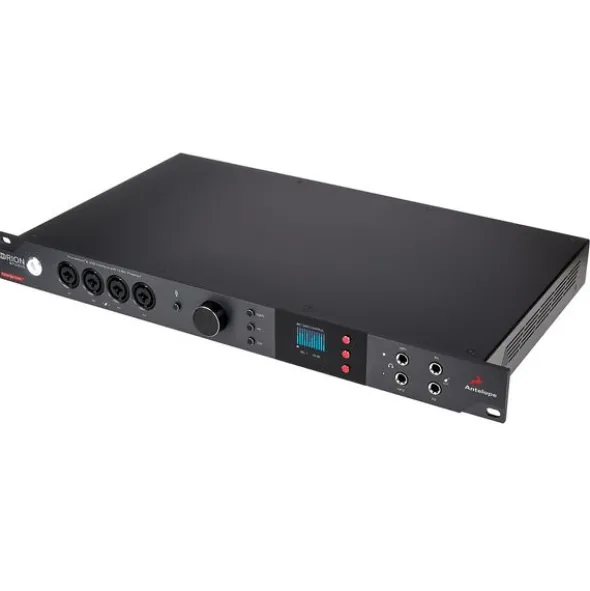

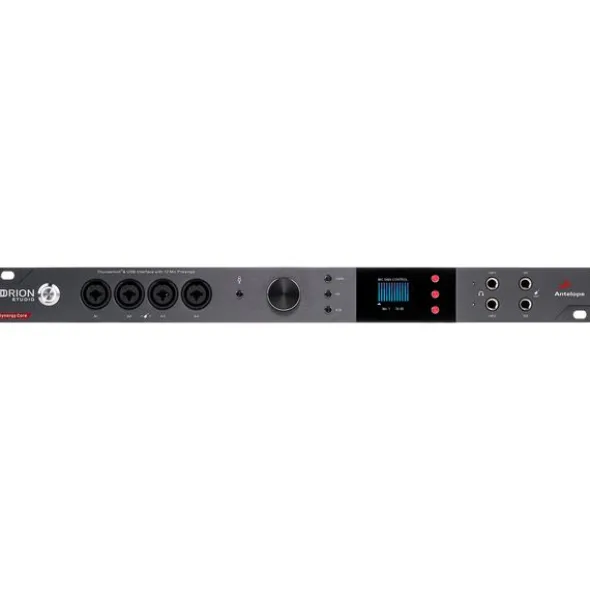

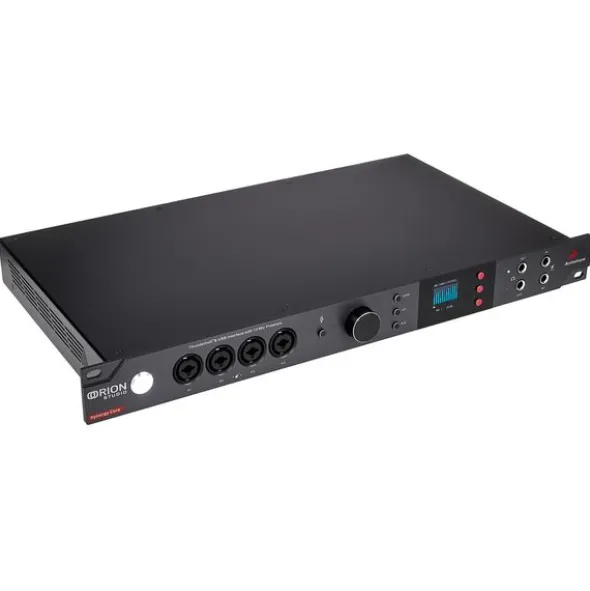

Antelope Orion Studio Synergy Core

32-Channel Thunderbolt 3 and USB 2.0 Audio Interface

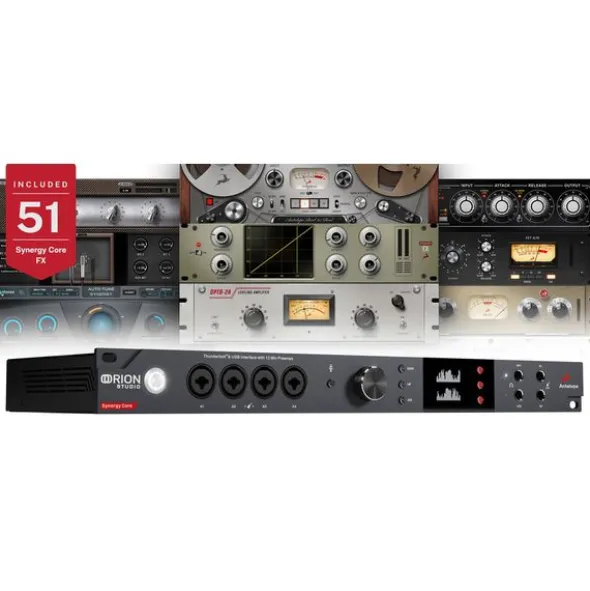

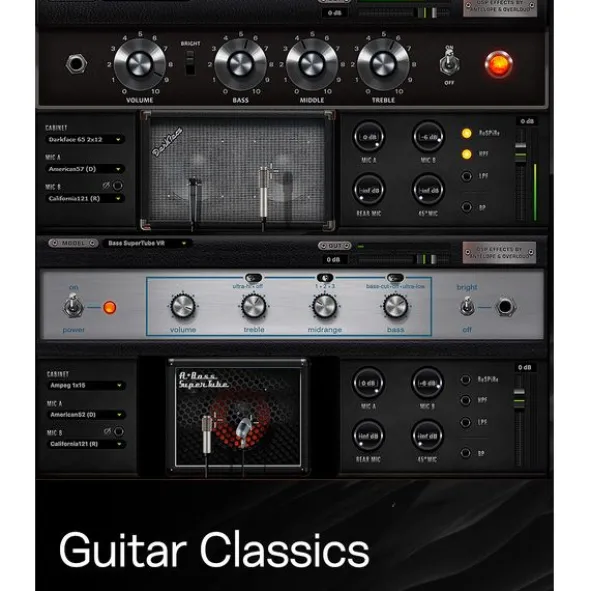

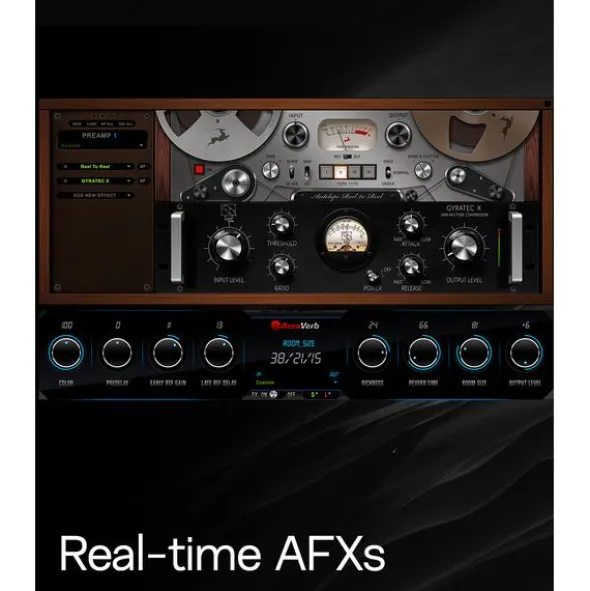

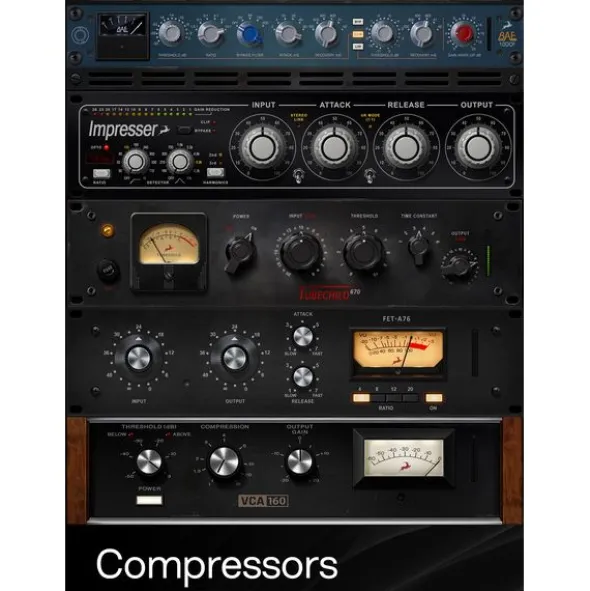

• Includes 51 studio effects
• 2 FPGA + 6 DSP chips for real-time processing of effects
• Antelope 64-bit acoustically focused clocking

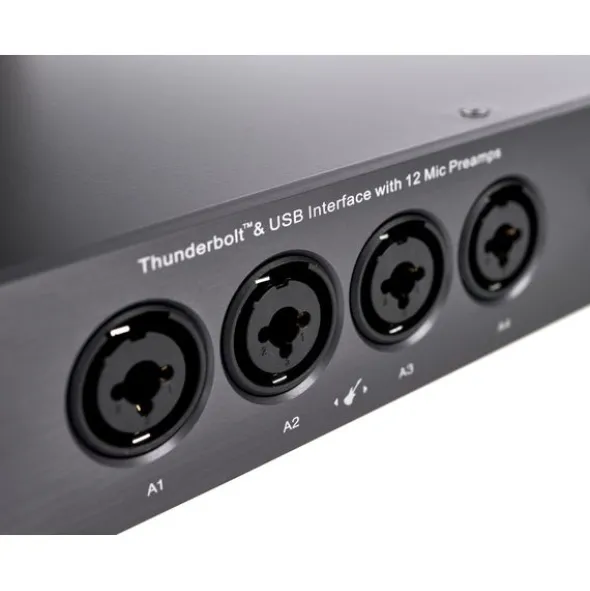

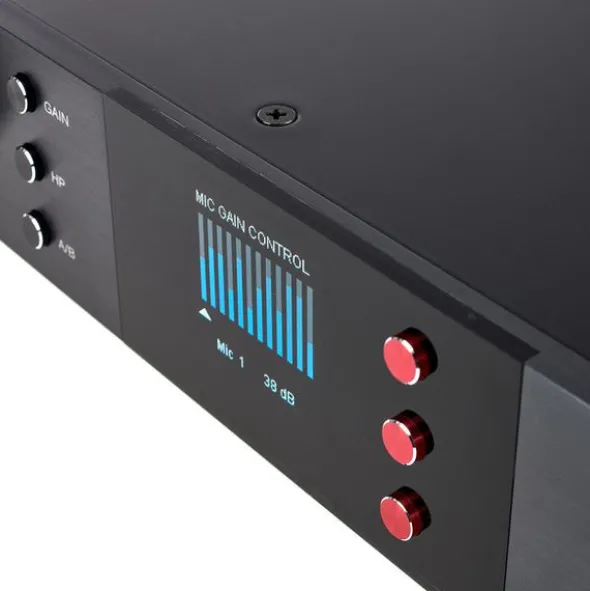

• 12 discrete mic preamps with up to 75 dB gain and +48 V phantom power
• Direct-In mode to allow the preamp circuits to be bypassed
• Surround and Immersive Audio, Dolby Atmos-capable speaker calibration, and monitoring functionality (update via Antelope Launcher required)
• Integrated Room Analysis & Correction tool for speaker and room calibration
• 4 Hi-Z inputs
• 2 stereo monitoring outputs with 130 dB dynamic range (can be operated in parallel or in A/B mode)
• 2 independent stereo headphone outputs with individual mixes and low-latency effect monitoring
• 2 ReAmp outputs

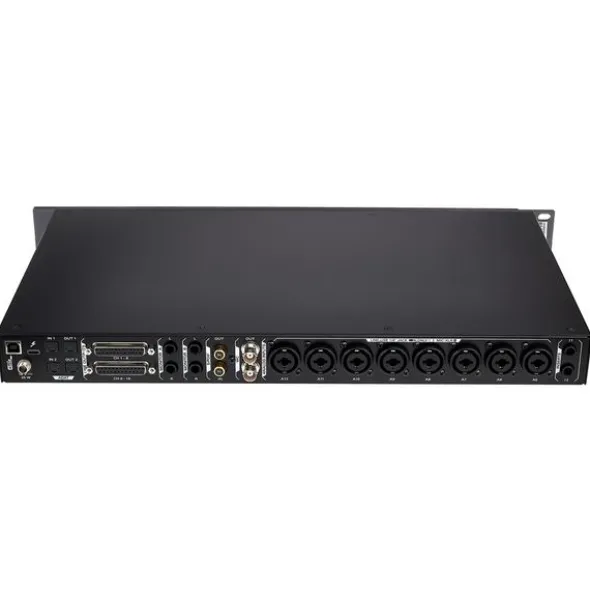

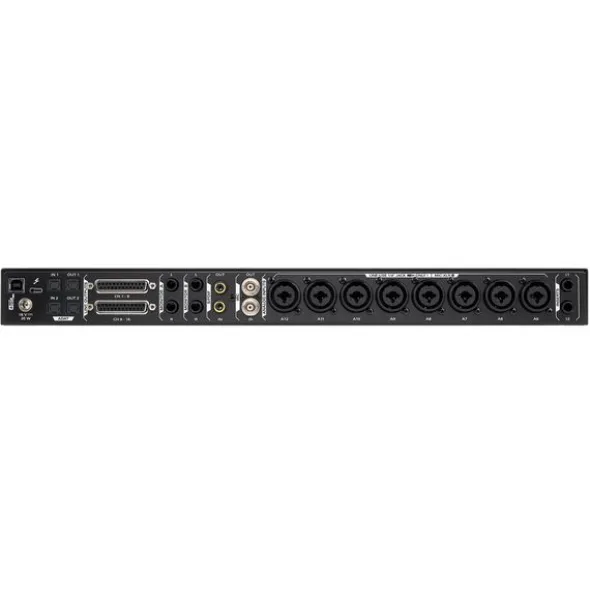

• 16 line outputs via DB25
• Analogue inserts for inputs 1 and 2 (6.3 mm TRS)
• S/P-DIF input/output (2 x RCA)
• 2 ADAT inputs/outputs
• DC-coupled inputs and outputs allow the transmission and reception of CV / Gate signals
• Word clock I/O
• Dual Stream mode for simultaneous operation of USB and Thunderbolt connections
• Integrated talkback function with configurable inputs and outputs
• Extensive software control panel with flexible audio routing
• User-friendly monitoring and session presets
• Standalone operation possible with active routing and effects
• Compatible with the Antelope Audio MRC multi-channel remote control (art. 569148)
• System requirements: Windows 10 (64-bit) / OS X 10.12 or higher (10.14 Mojave recommended)
• Dimensions (W x D x H): 483 x 220 x 44 mm
• Weight: 3.1 kg

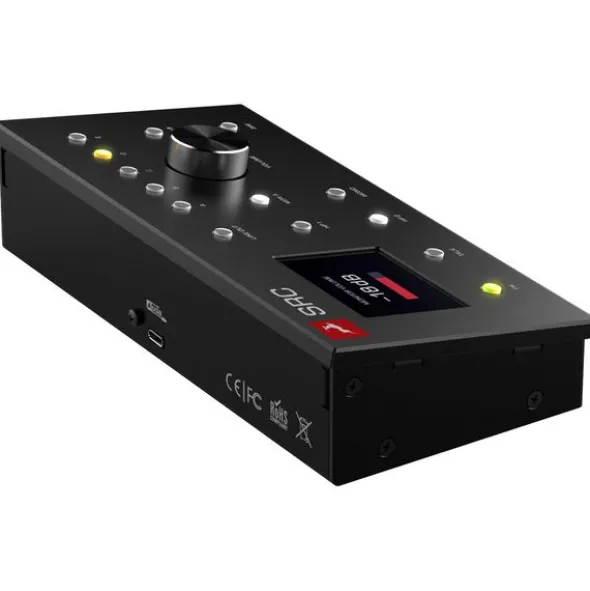

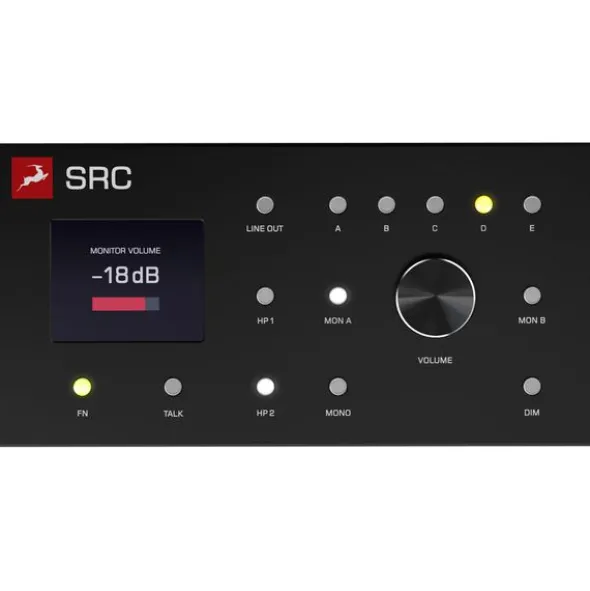

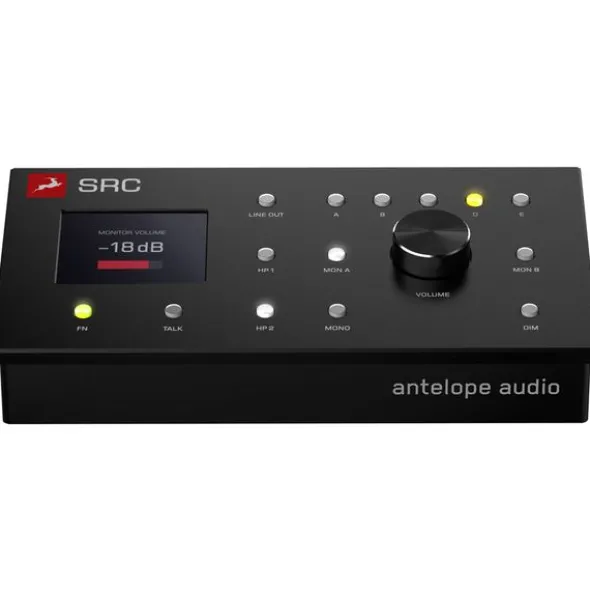

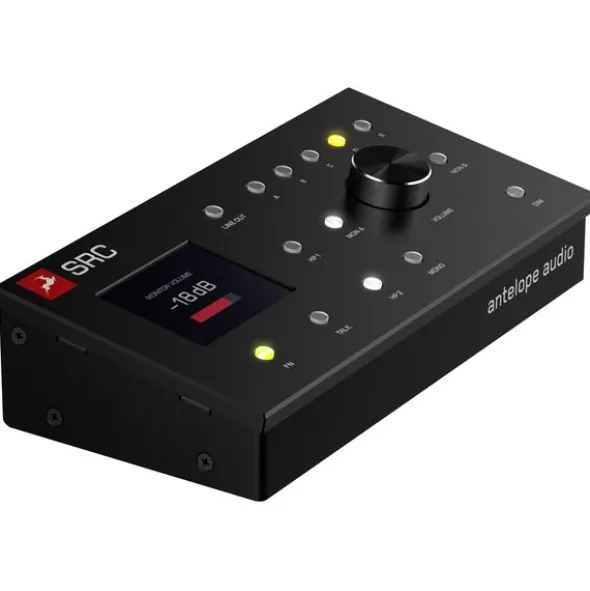

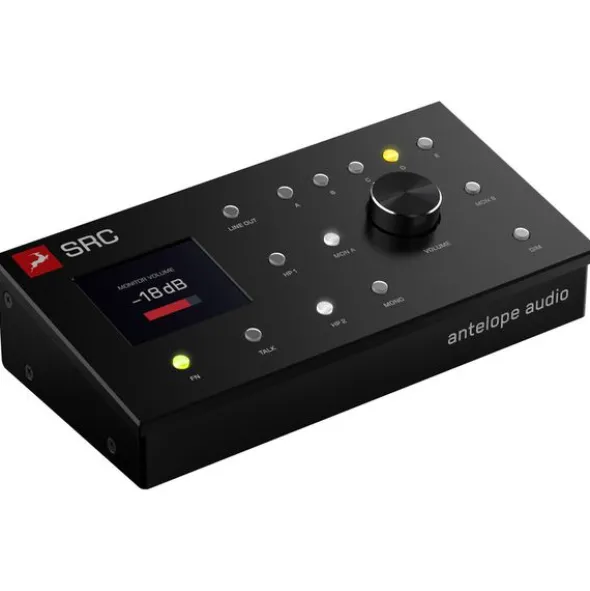

Antelope SRC

USB Remote Control Unit

• Stereo remote control for Antelope Orion Studio Synergy Core
• Bus-powered
• Multifunctional volume control via central rotary control
• Support for stereo and 2.1 calibration
• Five preset buttons to call up customised settings
• Monitor selection buttons (MON A / MON B) for easy switching between the reference monitors
• Headphone selection buttons (HP1 / HP2) with separate control
• Line Out and buttons for selecting multiple sources (A-E)
• Mono, dim and talkback function
• Freely assignable function key (FN)

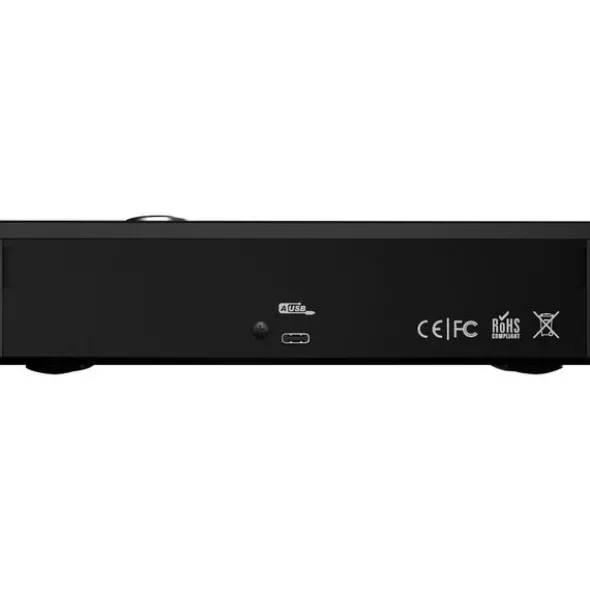

• Plug-and-play compatibility via USB-C
• Colour display
• Desktop design
• Robust metal housing
• Dimensions (W x H x D): 252 x 84 x 157 mm
• Weight: 0.7 kg
• Includes USB-C cable and USB adapter type-C to type-A

Disponível desdeMarço 2025

número de artigo614939

unidade de venda1peça(s)

Number of Mic Inputs12

Number of Line Inputs12

Instrument Inputs4

Number of Line Outs20

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors2

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width483 mm

Depth220 mm

Height44 mm

Connection FormatUSB port Type B

Recording / Playback Channels64×64

Number of Instrument Inputs4

Number of Line Outputs20

AES/EBU Connectors0

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm483 mm

Depth in mm220 mm

Height in mm44 mm

Included in deliveryPower Supply, USB-A to USB-B Cable

Zero latency monitoringYes
