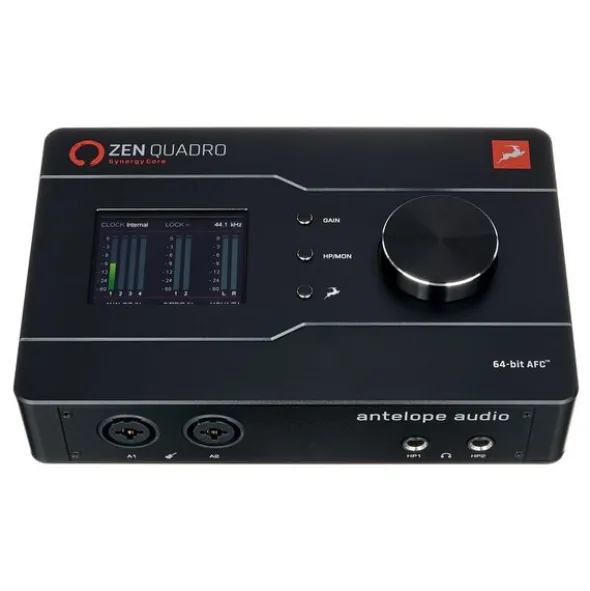

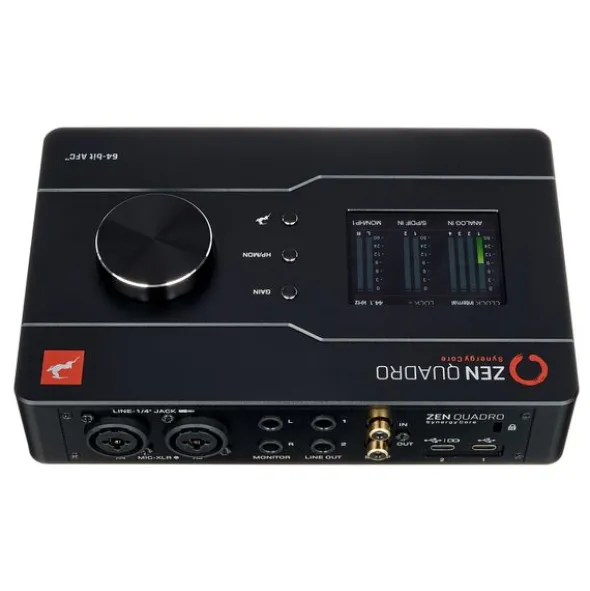

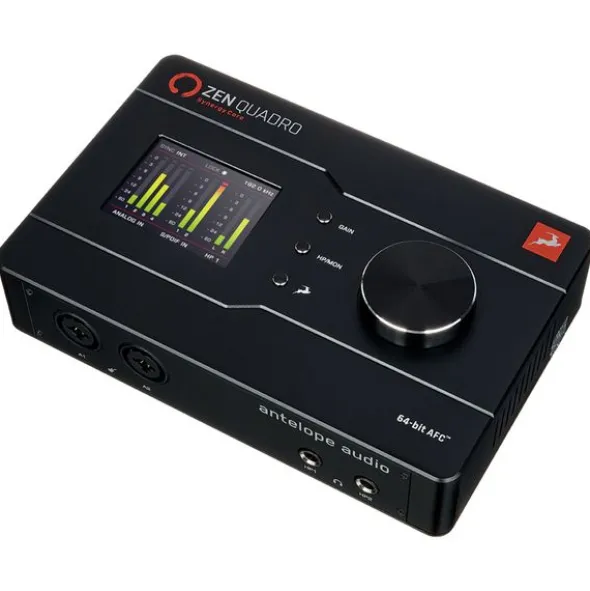

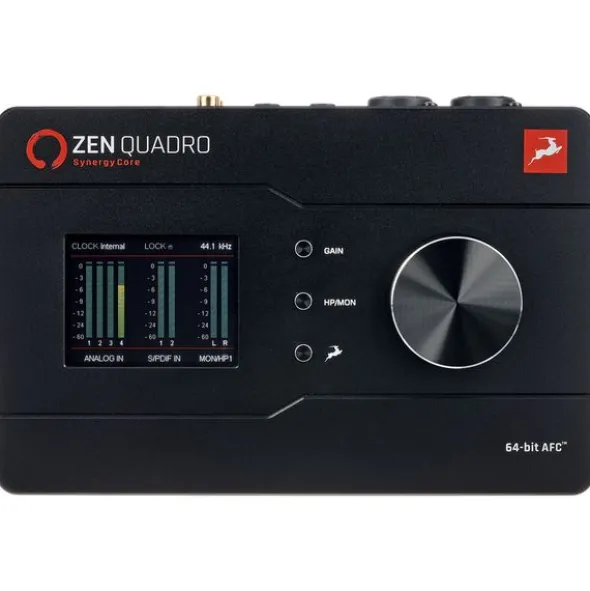

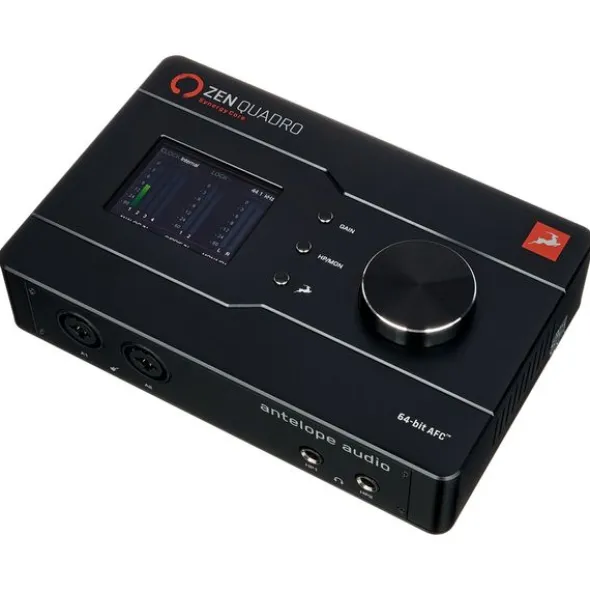

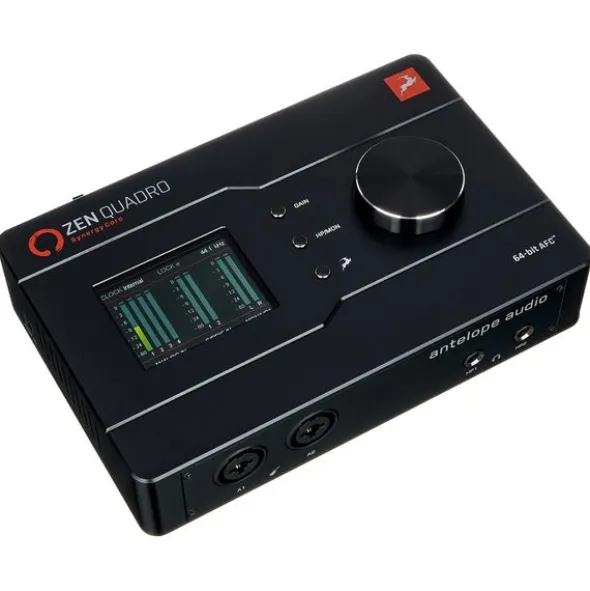

Antelope Zen Quadro Synergy Core

14 x 10 dual USB-C audio interface with Synergy Core real-time effects

• AD/DA conversion: 24 bit / 192 kHz
• Dynamic range: Up to 130 dB
• 4 discrete, ultra-linear 6-transistor preamps with 75 dB gain
• Input sensitivity: -128 dBu (A-weighted)
• Dual USB-C: Supports simultaneous playback and recording with two systems (2 x computer or 1 x computer and 1 x mobile device)
• Synergy Core real-time FX platform with FPGA and DSP chips (for up to 48 mono effects at once)
• 64-bit Acoustically Focused Clocking technology (AFC) and jitter management
• DC-coupled analogue inputs and outputs
• Loopback function
• 48 V phantom power
• Bus-powered
• Supports standalone operation
• Dimensions (W x H x D): 210 x 58 x 136 mm
• Weight: Approx. 0.9 kg
• Includes software bundle with 37 Synergy Core real-time effects, USB-C cable, and USB-C to USB-A adapter

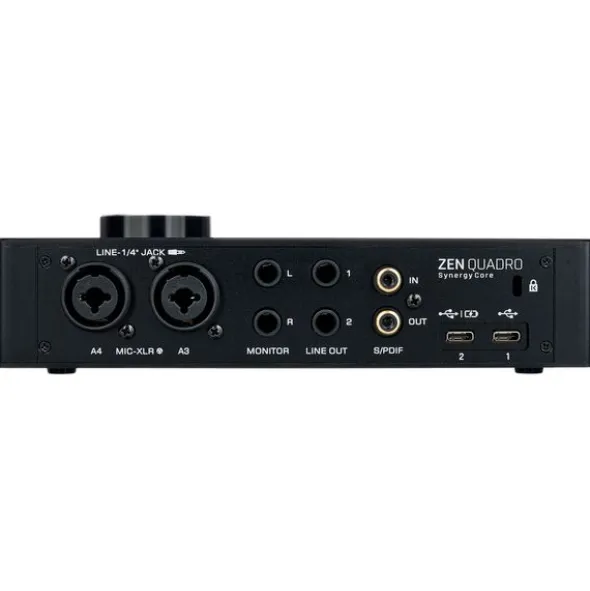

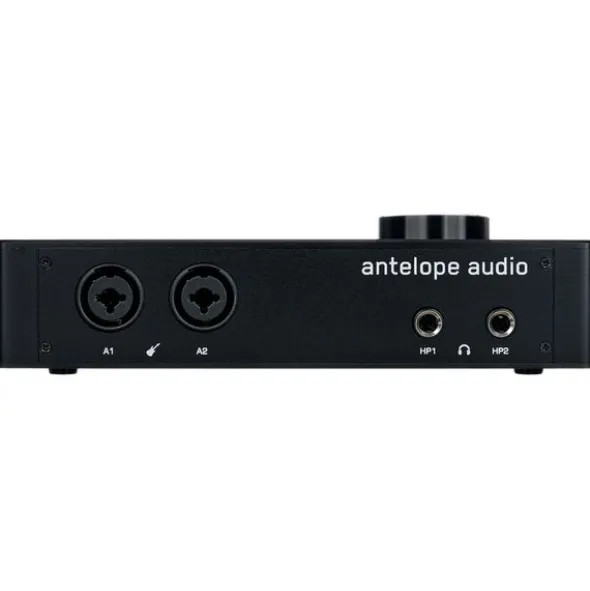

Connections

• 2 x mic/line/Hi-Z combo inputs (XLR/jack)
• 2 x mic/line combo inputs (XLR/jack)
• 2 x monitor outputs (6.3 mm jack)
• 2 x line outputs (6.3 mm jack)
• 2 x stereo headphone outputs (6.3 mm jack)
• 1 x optical ADAT input with up to 8 channels @ 44.1 / 48 kHz (supports SMUX)
• 1 x S/PDIF 2-channel input and 1 x S/PDIF 2-channel output (cinch)

Disponível desdeMaio 2024

número de artigo591213

unidade de venda1peça(s)

Recording / Playback Channels14×10

Number of Mic Inputs4

Number of Line Inputs4

Instrument Inputs2

Number of Line Outs4

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors1

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB-C

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version2.0

Width210 mm

Depth136 mm

Height58 mm

Connection FormatUSB port Type C

Included in deliveryUSB-C Cable, USB-A to USB-C Adaptor

Zero latency monitoringYes
