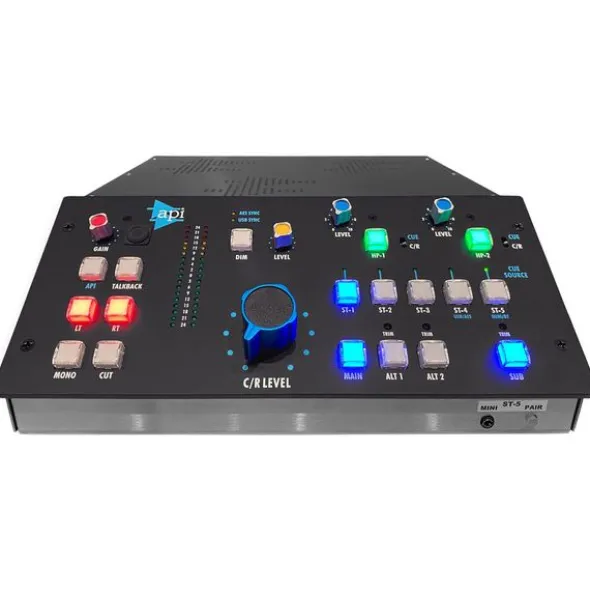

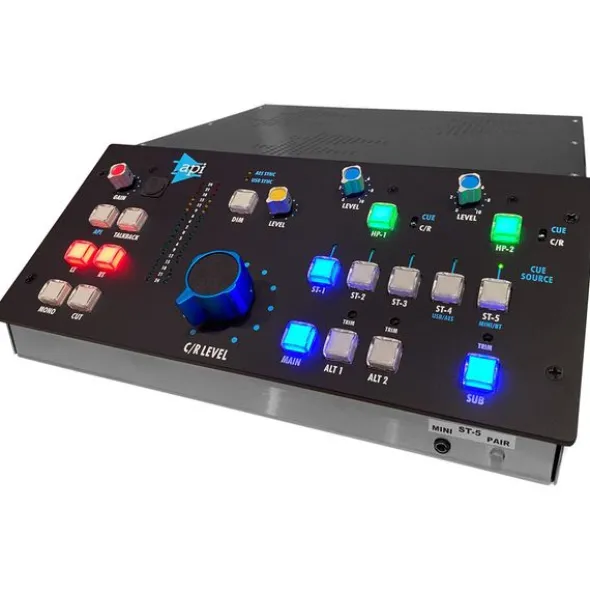

API Audio MC531 Monitor Controller

Active Monitor Controller

• For connection of up to 3 monitor pairs
• Integrated talkback microphone
• Mute, mono and DIM function for all stereo outputs
• 18 Segment LED meter
• Bluetooth connectivity
• API 2510 operational amplifier for all inputs

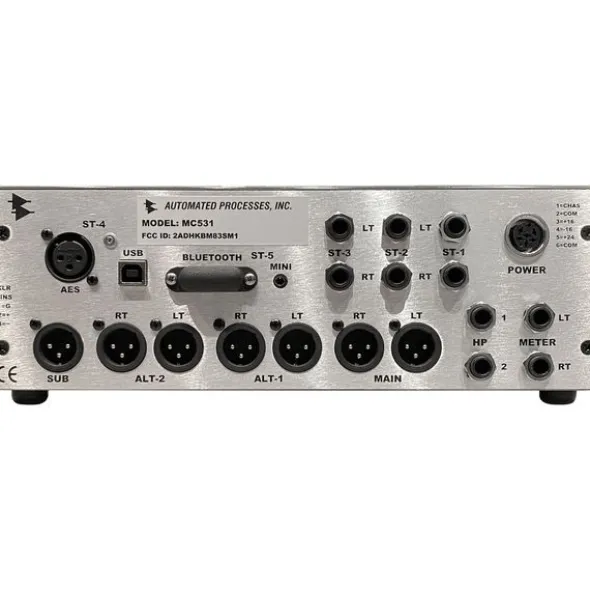

• 3 Stereo line inputs: 6x jack 6.3 mm balanced
• 2 Line inputs: 3.5 mm mini-jack stereo (front and rear)
• Digital input switchable between AES3 XLR and USB
• 3 Stereo line outputs: 6x XLR balanced
• 1 Line output for subwoofer: XLR mono
• 2 Stereo headphone outputs: 6.3 mm jack
• Balanced level meter output for connection to an external meter system
• Dimensions (W x D x H): 27.94 x 32.39 x 10.16 cm
• Weight: approx. 3.86 kg
• Incl. external power supply unit
