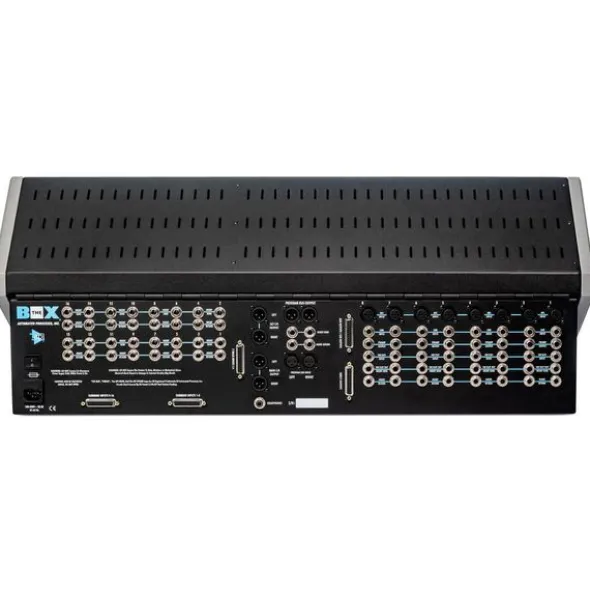

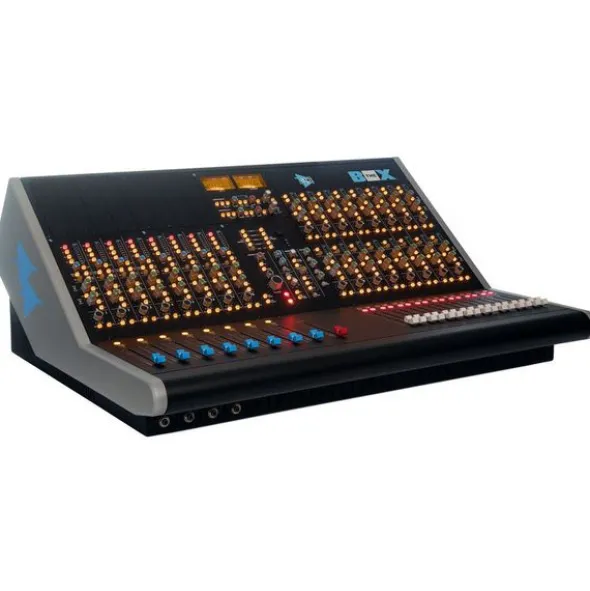

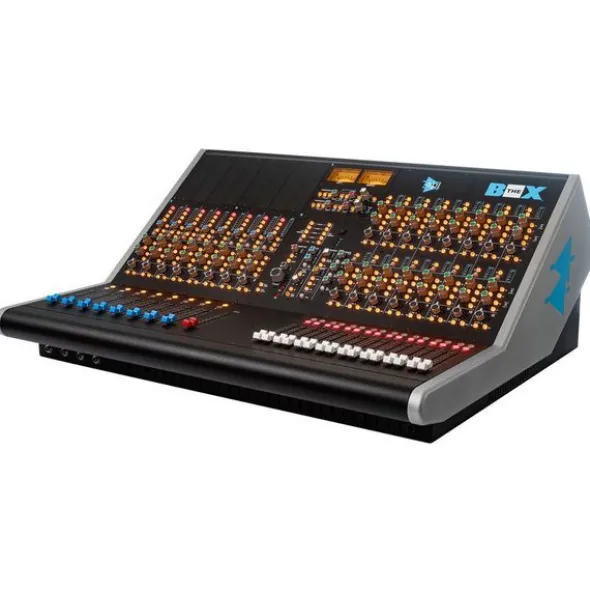

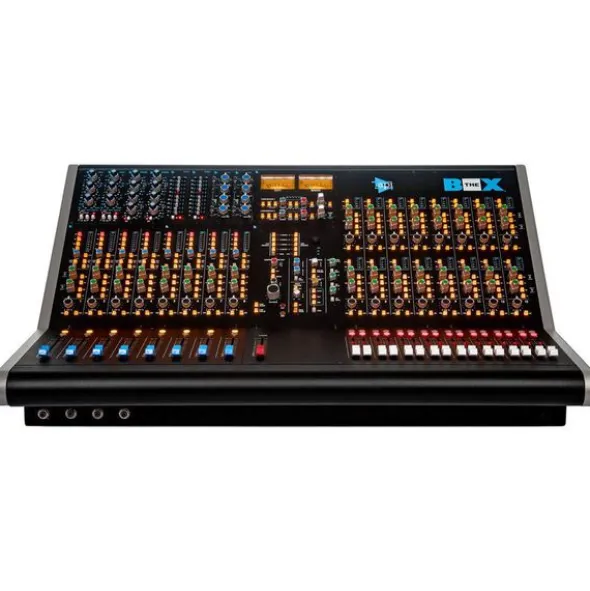

API Audio The Box II

Project Recording and Mixing Console

• 8 Input channels with microphone preamps
• 8 x 500 module module bays (one per input channel)
• Direct Out on each input channel
• Integrated stereo bus compressor assignable to the program bus or input channel 1-4
• Instrument input to channel 1-4
• Sum channels: 16 (24 during the mix)
• 0dB bypass switch for each sum channel
• 4-Segment LED meter on each summing channel
• Two VU meters
• Stereo program bus with masterfader
• Insert and external input
• 2 x Stereo and 2 x mono aux-sends / bus
• Stereo cue send / bus as well as headphone system
• PFL, AFL and solo-in-place mode with stereo solo bus
• Monitor section supports two monitor systems
• Talkback
• Line input: max. +28 dBu (+34 dBu w / PAD)
• Microphone input: +30 dB to +65 dB (+10 dB to +45 dB w / PAD)
• Instrument input: +11 dB to +46 dB
• Pad: 20 dB microphone, -6 dB line
• Direct Out: max. +28 dBu, 20 Hz to 50 kHz + 0 / -0.5 dB
• Output: max. +28 dBu, signal to noise ratio max. -118 dB, 20 Hz to 50 kHz +/- 0.5 dB
• Balanced inputs and outputs
• Integrated power supply
• Dimensions (W x H x D): 82.5 x 67 x 33.5 cm
• Weight: 40.8 kg

Disponível desdeNovembro 2025

número de artigo458524

unidade de venda1peça(s)

Concurrent Channels20

110V SupportYes

Input ConnectorSub-D, XLR, 6,3 mm TRS

InsertYes

PanoramaYes

Direct OutputsYes

Stereo Outputs3

Level MeterYes

19″ UnitNo

Width825 mm

Depth335 mm

Height670 mm

Weight40,82 kg

Simultaneous channels24

Mic-In8

Mono Line-in24

Stereo-In4

Hi-Z Input4

Phantom Power48 V

Master OutXLR

Aux Ways3

max. Pre Aux Channels3

PC InterfaceNone

Audio Interface Input0

Audio Interface Output0

USB/SD Direct RecordNo

Rec Out (Analog)Yes

Low CutYes

InsertsYes

Direct OutYes

CompressorYes

PFLYes

FX Processor0

Lamp connectionNo

FootswitchNo

BagNo

Zones0

19″ RackmountNo

RackmountNo
