Appsys FLX-DANTE/SRC + AUX-DANTE

Converter

• Dante-to-any-protocol converter with integrated 64 x 64-channel sample rate converter (SRC)
• Enables the conversion of 64 x 64 Dante channels to any protocol provided by a card installed in the AUX slot
• 2 DANTE ports on EtherCON connectors
• AUX port for connecting any AUX cards as a source or destination for signal conversion
• When used in conjunction with an AUX-DANTE card, the device functions as a Dante-to-Dante bridge with complete separation of network and clock domains
• SRC >120 dB THD+N, >134 dB dynamic range
• Bypass function
• Supports sampling rates from 44.1 to 192 kHz on both sides
• Enables, for example, the conversion of 96 kHz MADI to 48 kHz Dante, with 64 channels in each direction
• FlexLink port for bidirectional transmission of up to 192 audio channels, clock signals and power supply with minimal latency
• Remote control via USB using a web-based interface (no software installation required) or via a UART command line
• Triple-redundant power supply for maximum operational reliability
• Dimensions: (W x H x D) 152 x 44 x 153 mm
• Weight: 620 g

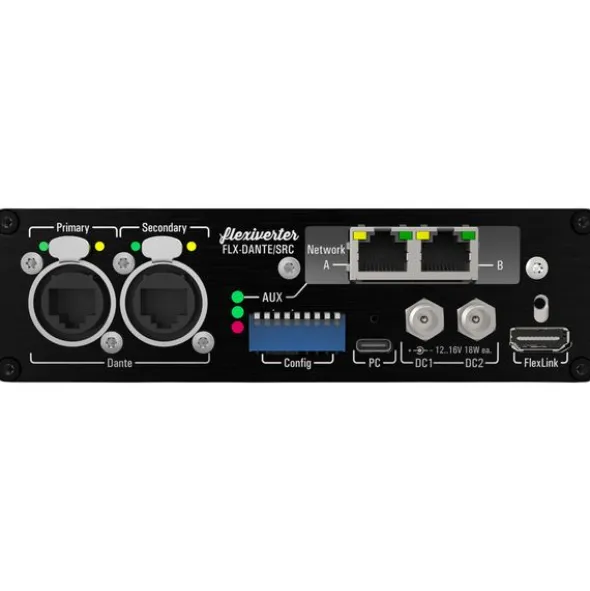

Connections:

• 2x Dante
• 2x Ethernet RJ45
• FlexiLink
• USB-C
• 2x DC inputs for redundant power supply

Disponível desdeAgosto 2026

número de artigo651313

unidade de venda1peça(s)

Amount Of Channels32

AD ConversionNo

DA ConversionNo

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz192 kHz

S/PDIF ConnecorNo

AES/EBU ConnectorNo

ADATNo

Word clockNo

Number of analog inputs0

Number of Analog Outputs0

Headphone connectionNo

Special Features64 x 64 Dante Channels
