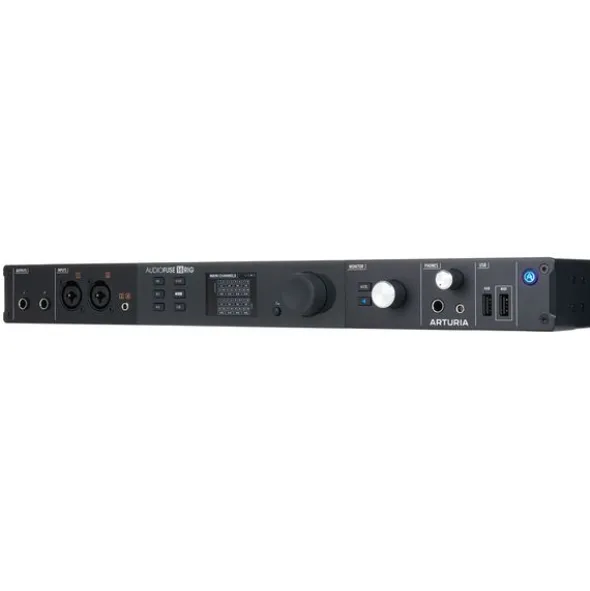

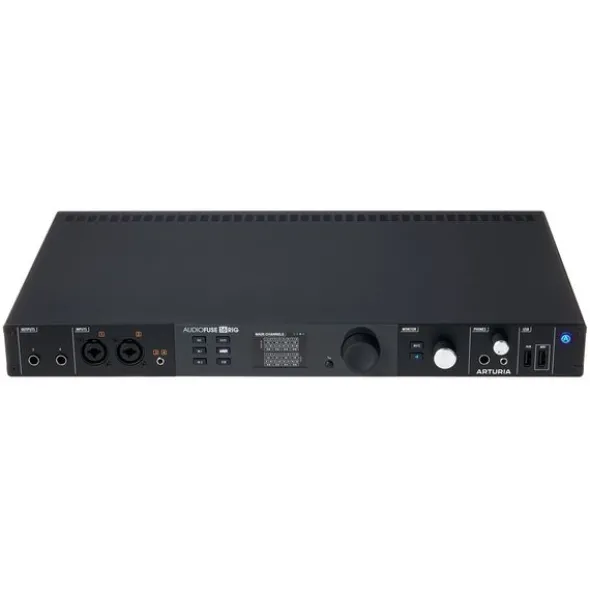

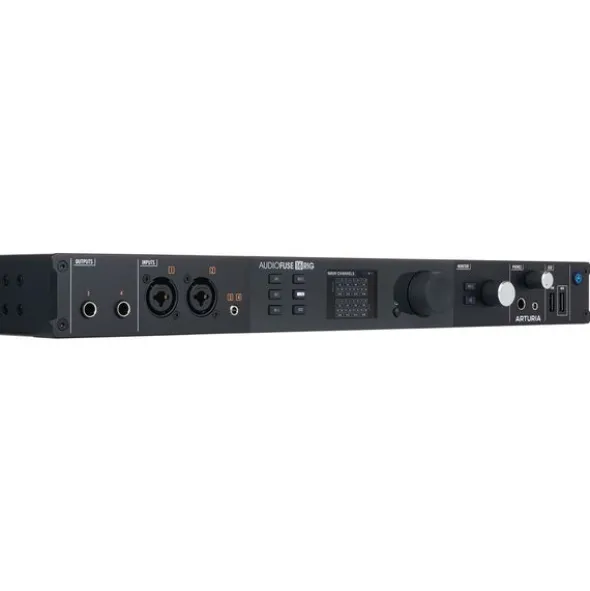

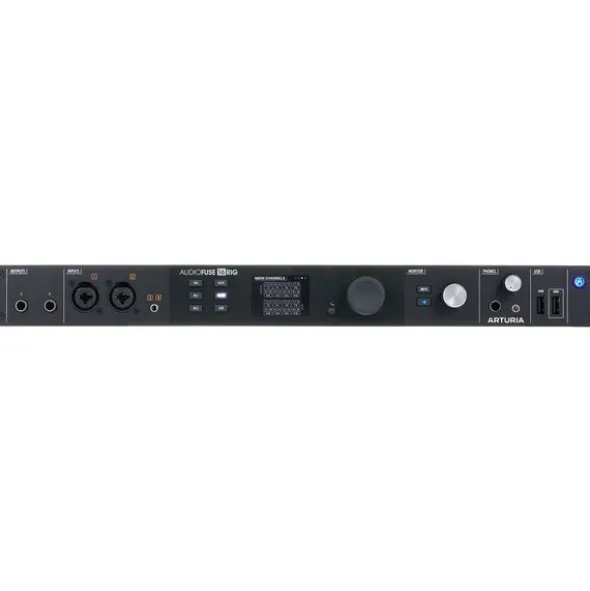

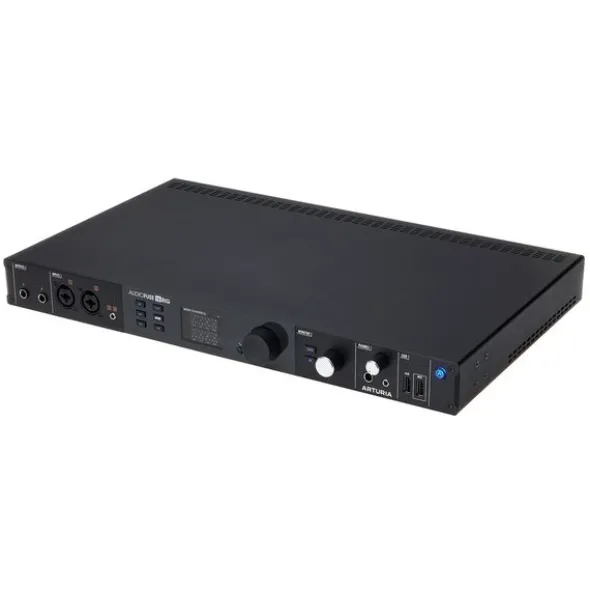

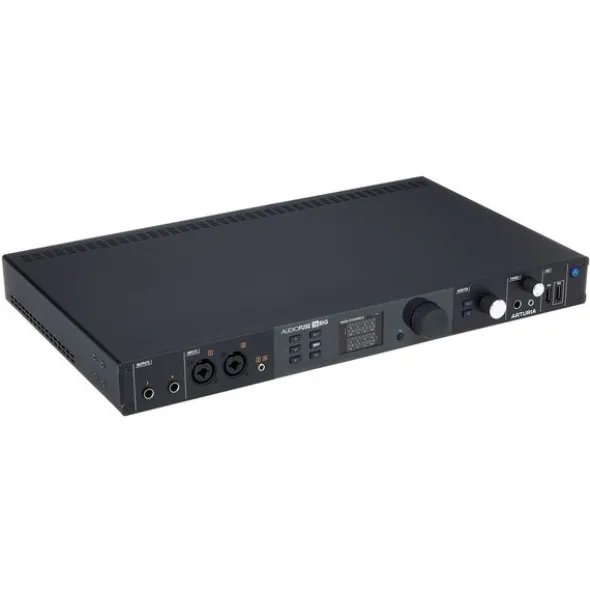

Arturia AudioFuse 16Rig

USB Audio Interface with USB-C Port

• Combines connectivity with flexible configuration options
• To connect a full synth studio, complex live audio routing, DAW recording and more
• 24-bit / 192kHz
• 16 analogue input channels and 12 analogue output channels
• Up to 16 channels of immersive audio monitoring (via firmware update)
• Separate front stereo input (input 3/4) for connecting tablets, smartphones or synths
• Dual ADAT I/O ports with word clock synchronisation
• Low Latency DSP Mixer
• Standalone audio and MIDI functionality
• Dedicated monitor volume control with mute and custom buttons to control studio monitors
• Custom buttons configurable (mono, dim or alternate speaker)
• Headphone volume control
• Reamp function
• Pad switch for all line inputs
• Colour display with rotary and push encoders
• Six direct access buttons and Back/Home buttons for easy navigation
• USB hub functionality with front and rear USB ports for connecting peripherals
• Load and recall presets for quick setup (e.g. studio, live performance, streaming, etc.)
• Configurable for desktop or rackmount use
• Format: 19″/ 1U
• Dimensions (W x H x D): 440 x 45 x 260 mm
• Weight: Approx. 4.5 kg
• Includes AudioFuse Creative Suite

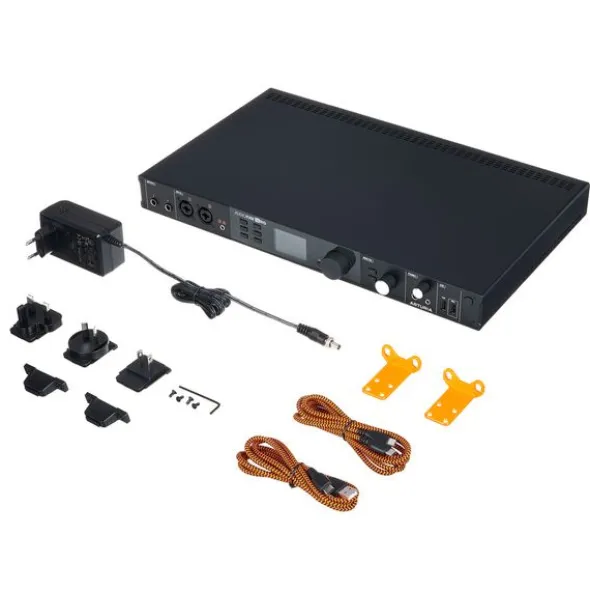

• Contents of the delivery: Quick start guide, power cable, USB-C to USB-C cable, USB-C to USB-A cable, registration card as well as detachable rack ears for rack mounting

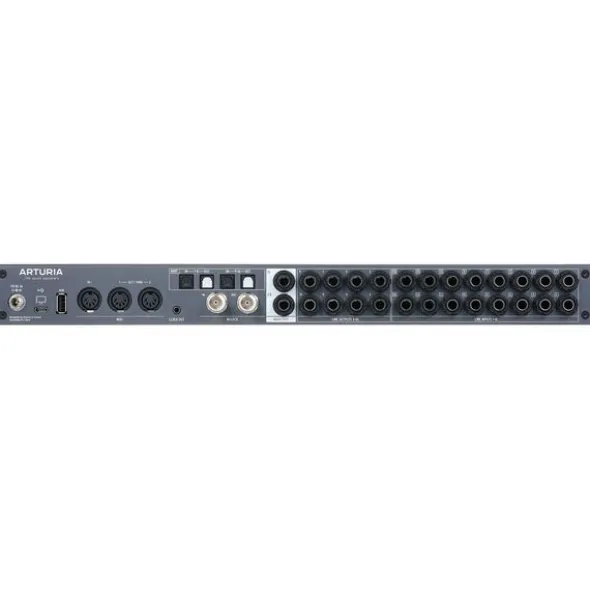

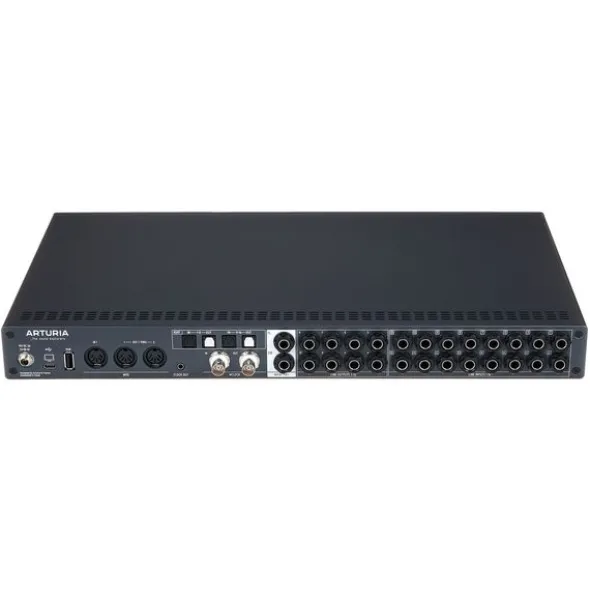

Analogue inputs:

• Two Mic / Line / Instrument combo inputs: XLR / 6.3 mm jack
• 16 individually switchable line inputs (+4 dBu / -10 dBv): 6.3 mm TRS jack
• One stereo line input: 3.5 mm jack

Analogue outputs:

• Eight DC-coupled line outputs: 6.3 mm TRS jack
• Two monitor outputs: 6.3 mm TRS jack – front mirrored: Outputs 3 and 4
• One headphone output: 6.3 mm TRS jack
• One headphone output: 3.5 mm jack

Digital inputs/outputs:

• Dual ADAT I/O for up to 16 channels I/O at 48 kHz: 2x input / 2x output
• Word Clock I/O: BNC
• One MIDI-In/Out/Thru: 5-pin DIN
• One MIDI Clock-Out: 3.5 mm jack
• One MIDI host USB port on the front for USB MIDI controllers

Disponível desdeOutubro 2023

número de artigo577287

unidade de venda1peça(s)

Recording / Playback Channels16×12

Number of Mic Inputs2

Number of Line Inputs18

Instrument Inputs16

Number of Line Outs12

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB-C

MIDI interfaceYes

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width440 mm

Depth260 mm

Height45 mm

Connection FormatUSB port Type C, 3x Type A

Amount Of Channels16

AD ConversionYes

DA ConversionYes

ADATYes

Word clockYes

Number of analog inputs16

Number of Analog Outputs12

Headphone connectionYes

Special Features16 analog Input Channels and 12 analog Output Channels; ADAT In / Out; MIDI In / Thru / Out

Included in deliveryPower Supply, USB-C Cable, USB-A to USB-C Cable, Rack Mount Accessories

Zero latency monitoringYes
