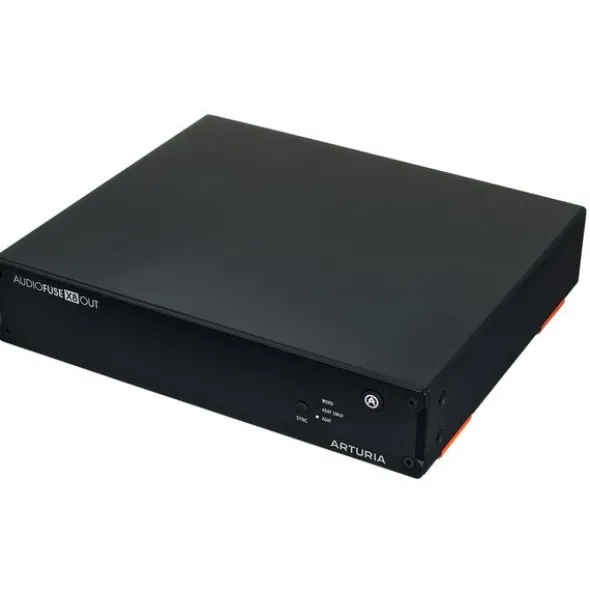

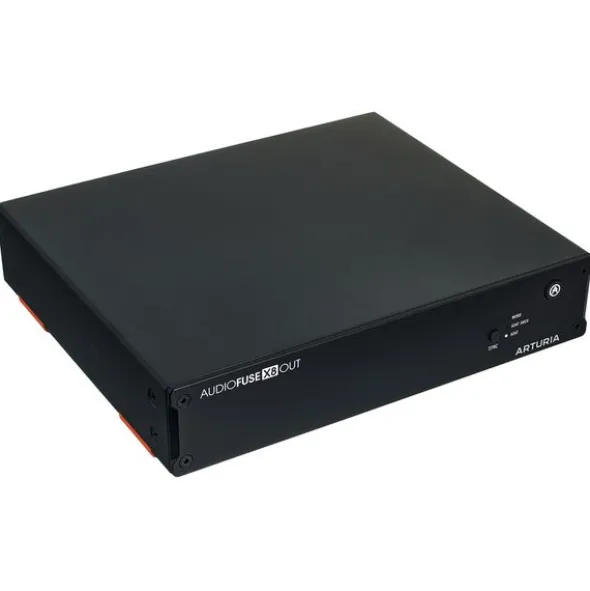

Arturia AudioFuse X8 OUT

A/D Converter

• Expander with 8 analogue DC-coupled line outputs via ADAT
• Sends audio signals to outboard devices (hardware effects, mixer, etc.), integrates additional speakers, and control synthesizers via DC-coupled outputs
• For producers and sound engineers who need additional analogue inputs for external equipment
• 24-bit Cirrus Logic DA converter with up to 96 kHz sampling rate

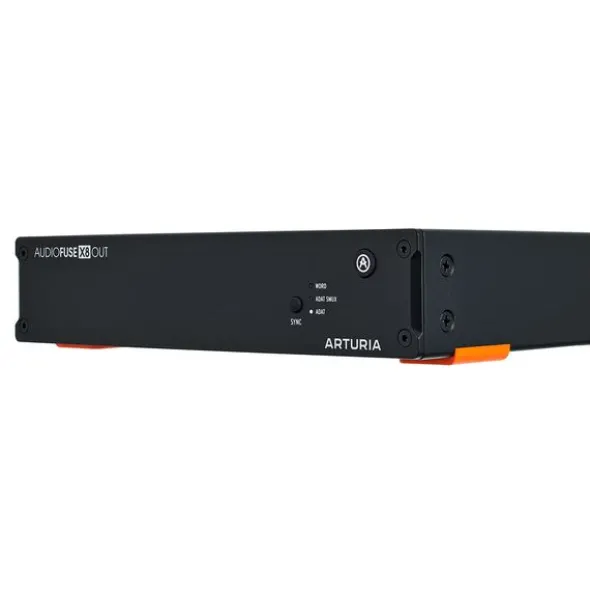

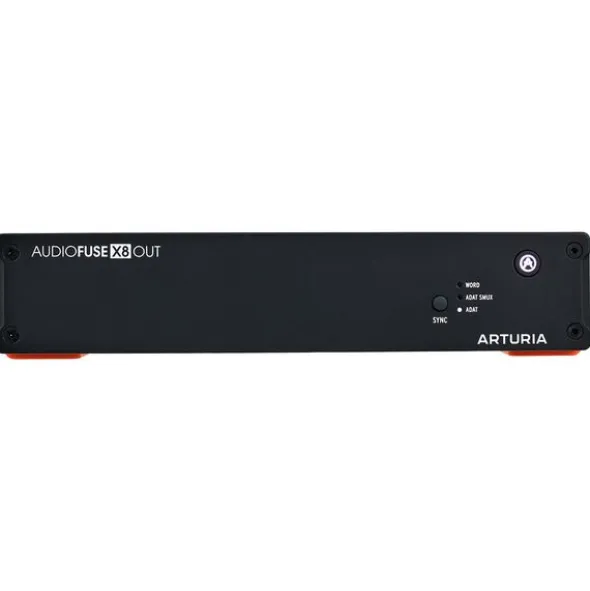

• Control element on the front panel with access to sync function

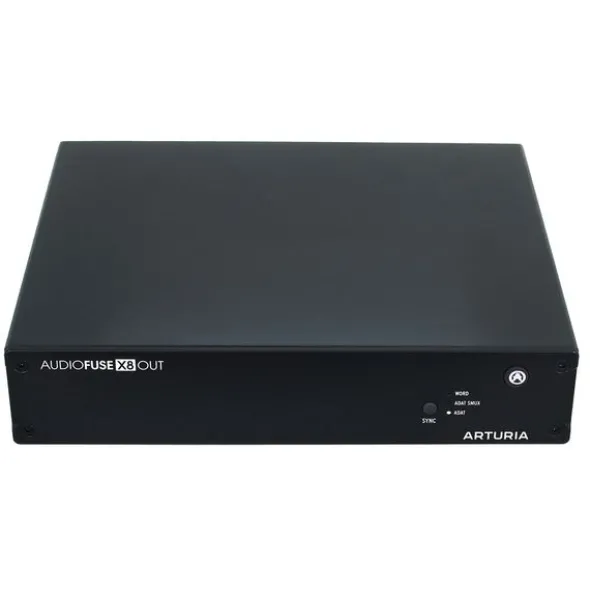

• Desktop design

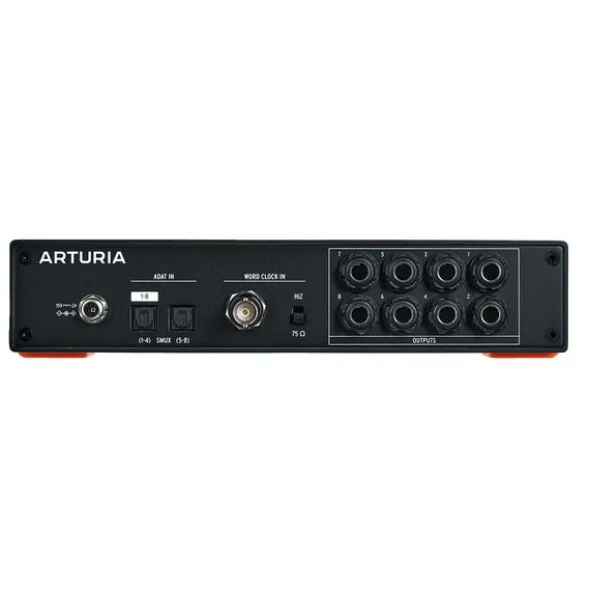

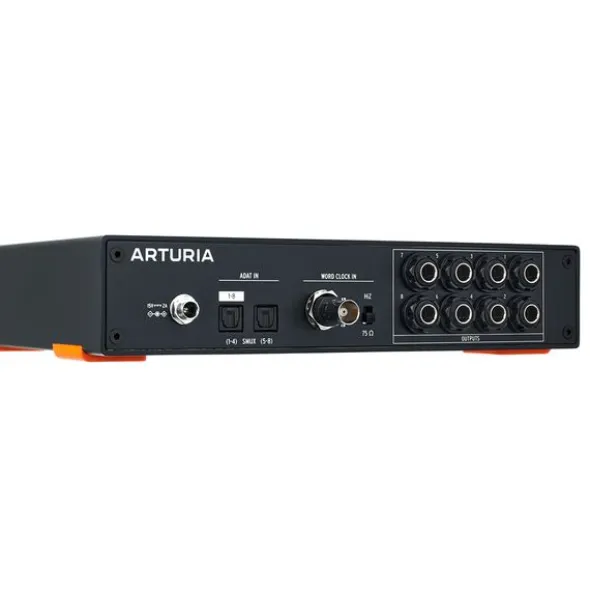

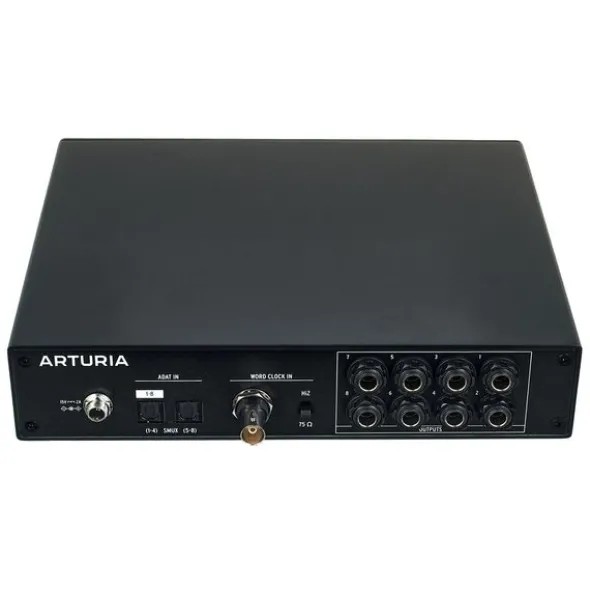

• 8 analogue outputs: 6.3 mm TRS jack
• One WordClock input (BNC)
• 2 x ADAT optical inputs, SMUX support
• Mains connection
• Rack installation possible (up to two devices next to each other)
• Dimensions (W x D x H): 221 x 216 x 48 mm
• Weight: 1.37 kg
• Included software: Analog Lab Intro, Pre 1973, Pre V76, Filter Mini, Chorus JUN-6, Comp FET-76, Delay TAPE-201, Rev PLATE-140, Phaser BI-TRON, Pre TridA, Comp DIODE-609
• Sturdy 1U half-rack housing

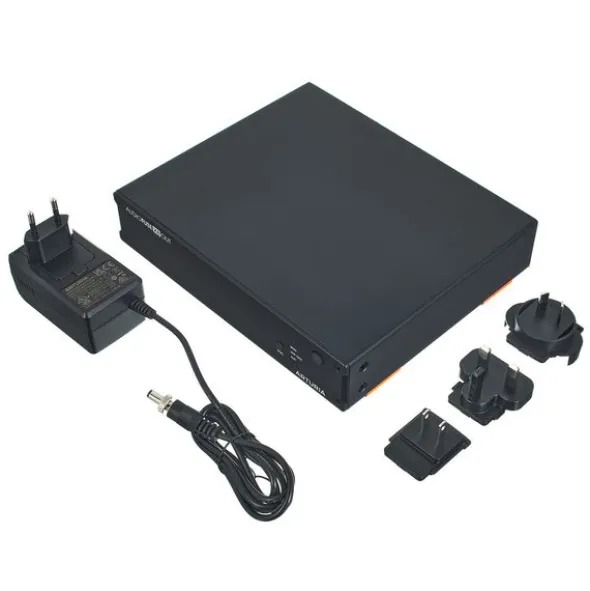

• Includes power supply and mounting kit for two AudioFuse X8 units

Disponível desdeAgosto 2024

número de artigo594251

unidade de venda1peça(s)

Amount Of Channels8

AD ConversionNo

DA ConversionYes

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz96 kHz

S/PDIF ConnecorNo

AES/EBU ConnectorNo

ADATYes

Word clockYes

Number of analog inputs0

Number of Analog Outputs8

Headphone connectionNo

Special Features8 analog Outputs, ADAT-Inputs (Ch 1-8), Word Clock Input, Software Bundle
