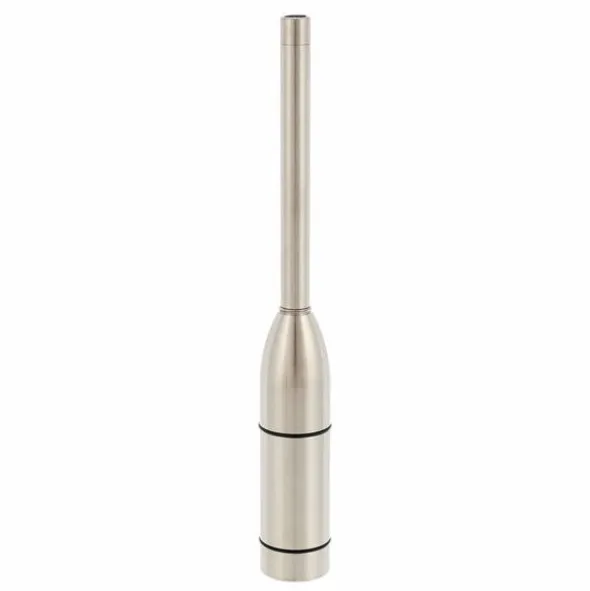

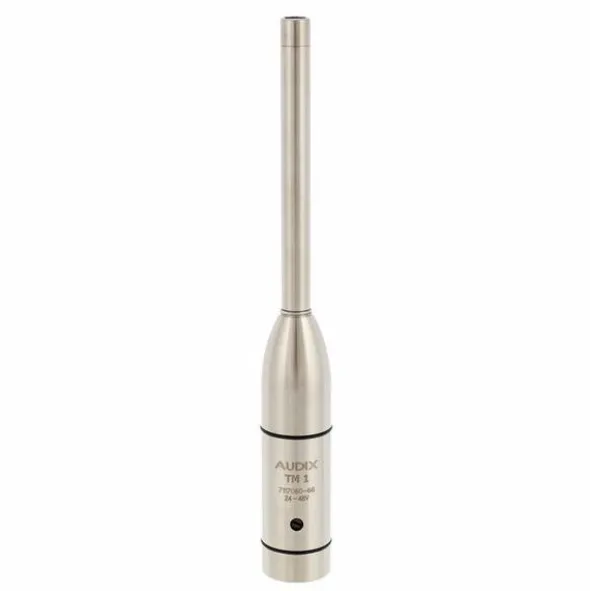

Audix TM-1 Plus

Test, Measurement and Recording Microphone

• Pre-polarised 6mm condenser capsule
• Omnidirectional
• Transmission 20 Hz – 25 kHz (+/- 2 dB)
• Max SPL 140 dB
• For 18-52 V phantom power
• Output impedance 200 Ohm
• Dynamic range 112 dB
• Suitable for real time analyser, measurements, tests, room analysis software programs, ambient/room recording

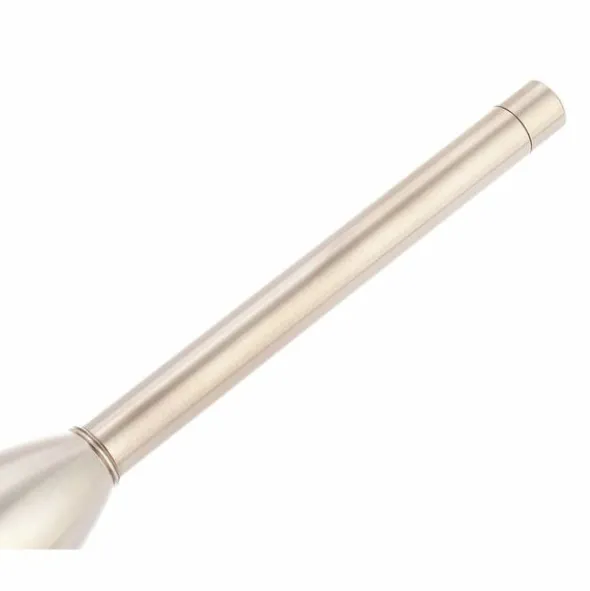

• Housing made of precision machined nickel-plated brass housing

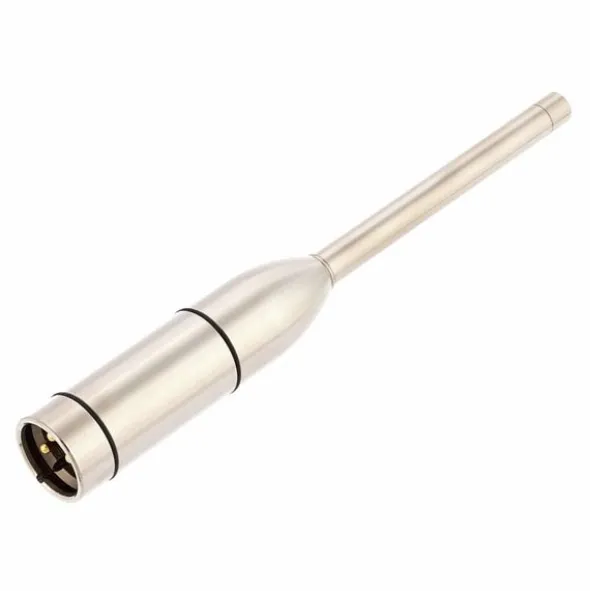

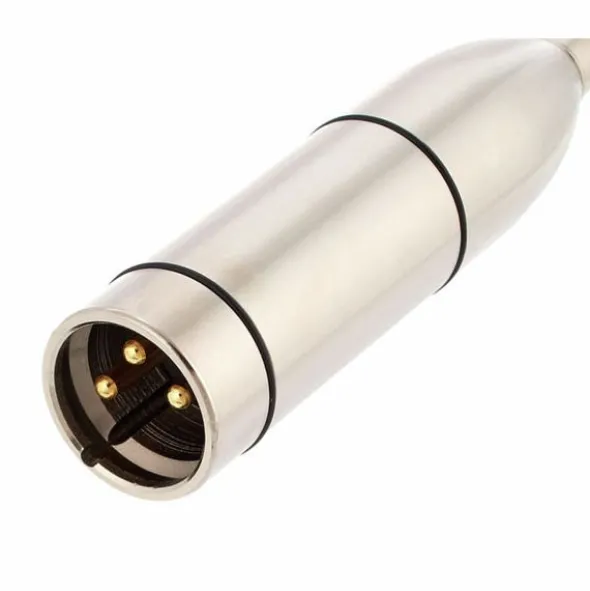

• Gold-plated XLR plug connector
• Length approx. 150 mm

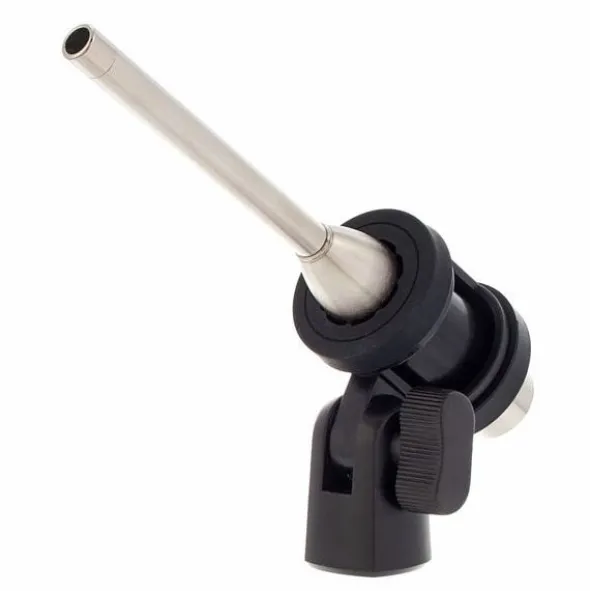

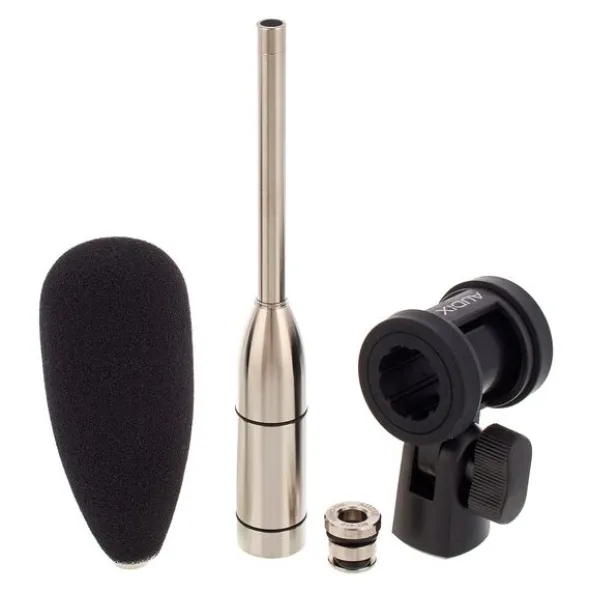

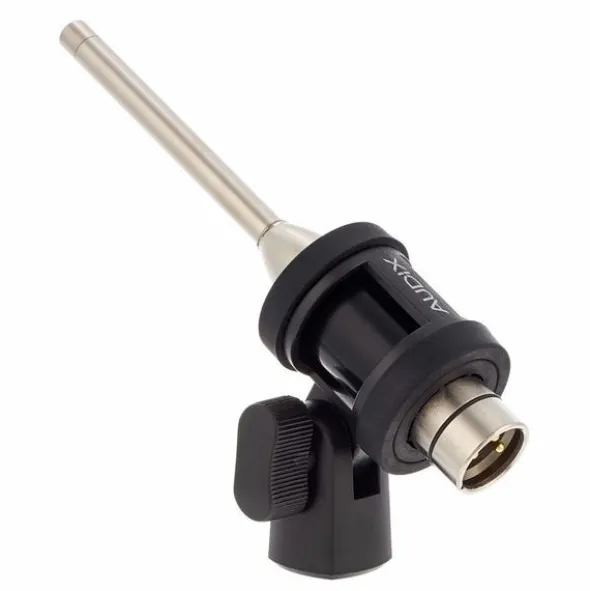

• Elastic suspension (SMT-19)
• 1/2″ Adapter for calibrator (TM1-CA) and individual sensitivity/calibration data file on USB stick

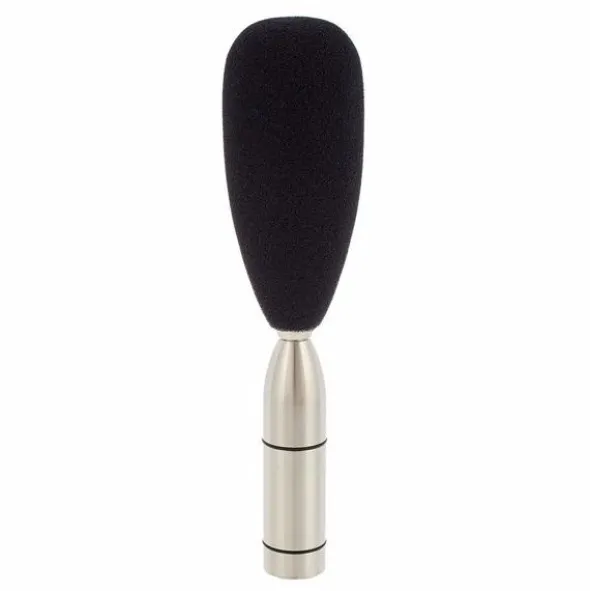

• Optional screw-on windshield (WS-TM1)
