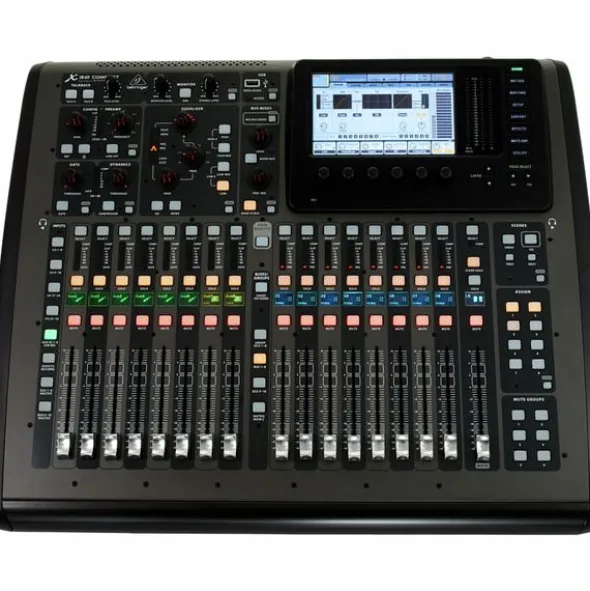

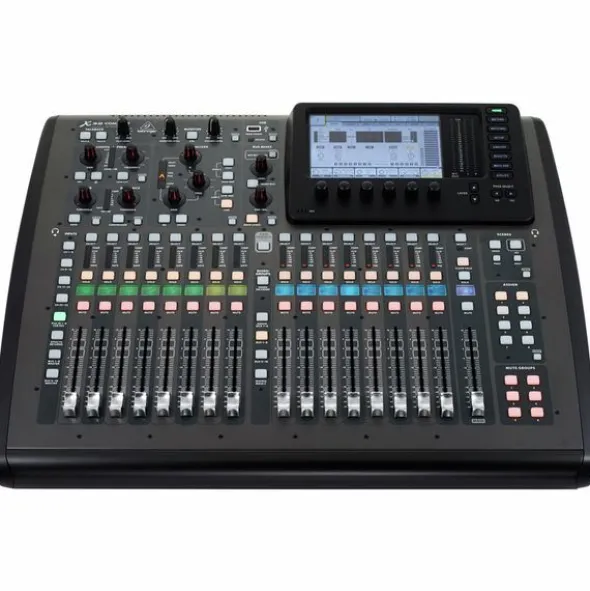

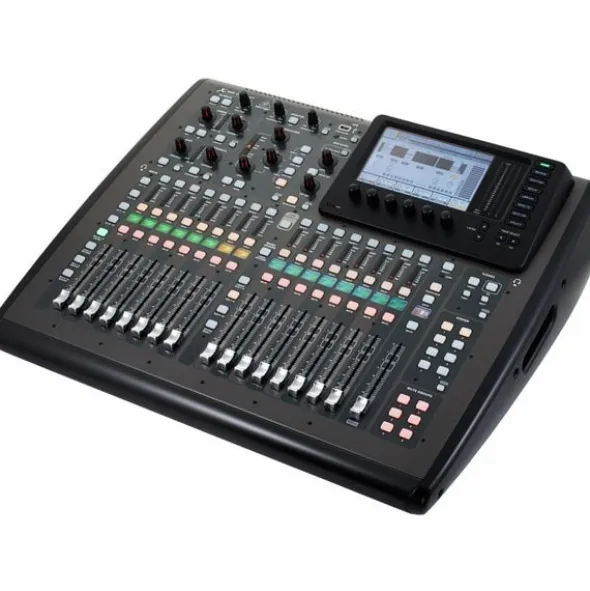

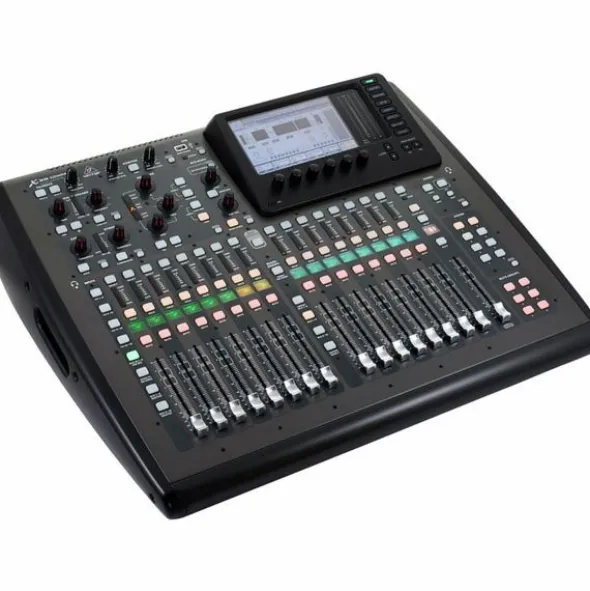

Behringer X32 Compact

Digital Mixer

• 16 XLR Mic/ line Inputs
• 8 Stereo FX Returns
• 16 Mix buses
• 6 Matrix buses with insert
• 6 Mute groups
• 8 DCA groups

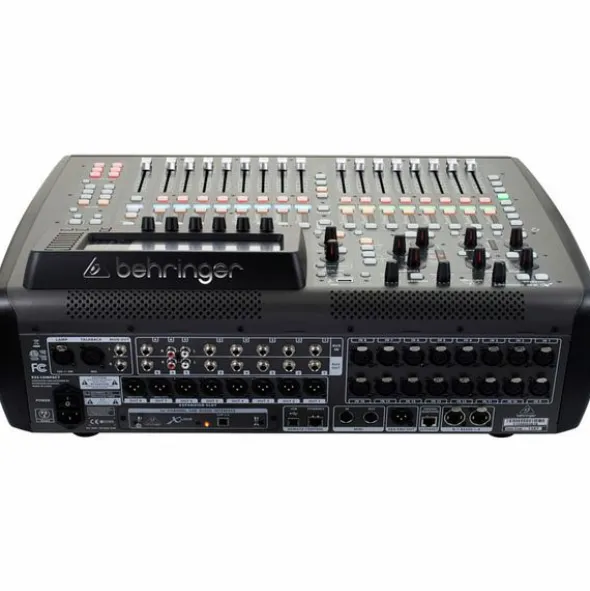

• 8 XLR Outputs
• 6 AUX In: 6.3 mm Jack (optionally 2 via RCA)
• 6 AUX Out: 6.3 mm Jack (optionally 2 via RCA)
• AES/EBU Stereo digital output
• 2 Headphone outputs: 6.3 mm Jack
• Stereo monitor/ control room output with dim function
• 32 In/ 32 out USB audio interface

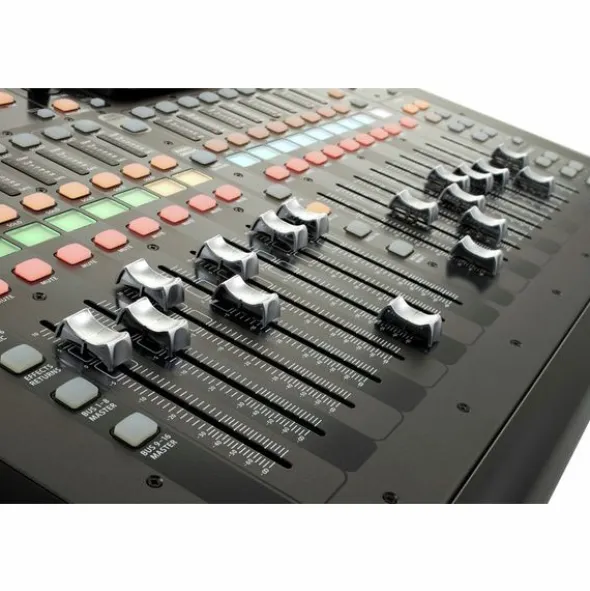

• 100 mm Motor fader

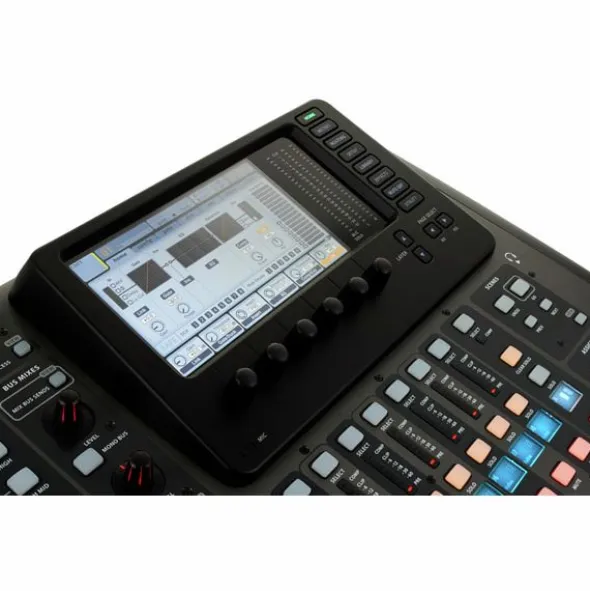

• 7″ TFT colour display

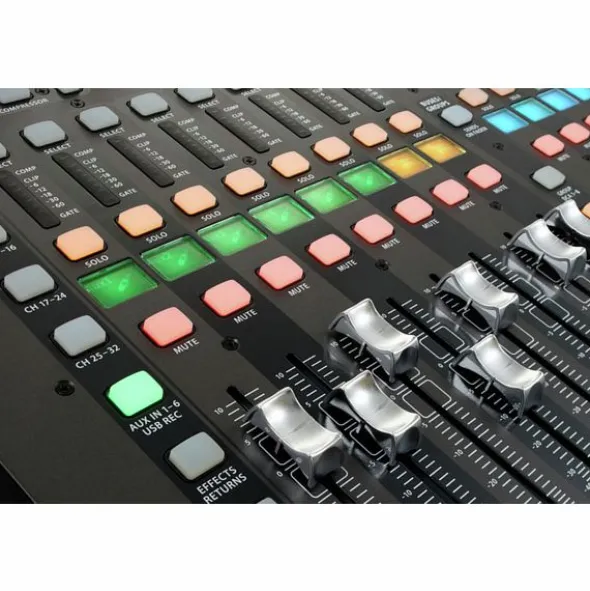

• LCD Display per channel

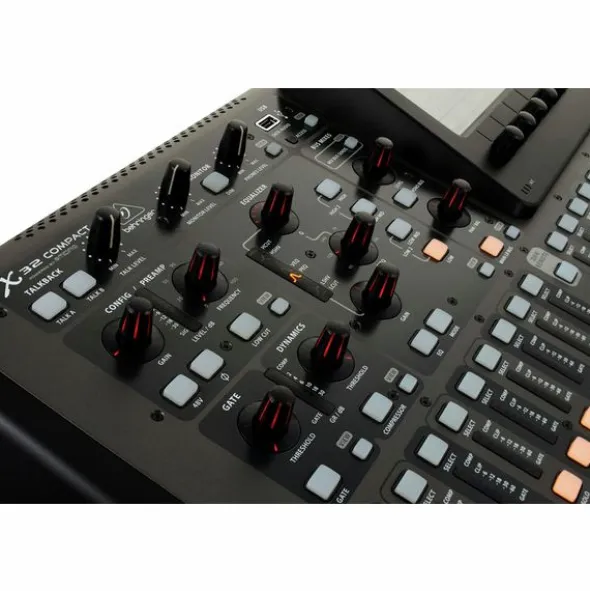

• 4-Band full-parametric EQ per channel
• Adjustable delays in all channels
• Virtual effect rack with 8 FX slots
• Built-in stereo USB recorder
• Remote control via ethernet
• Compatible with the Behringer P-16 personal monitoring system
• Full MIDI implementation
• Dimensions (H x W x D): 21.3 x 63.1 x 51.2 cm
• Weight: 15.5 kg
• Suitable expansion boards: Dante: Art. 334096, Madi: Art. 337831

Disponível desdeJulho 2013

número de artigo308703

unidade de venda1peça(s)

Max.number of input channels32

Microphone Inputs16

Analog Line Inputs32

Analog Line Outputs16

Analog in/ out with plug-in card expandableYes

Digital InputsNone

Digital OutputsAES

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderYes

Computer interfaceUSB, Ethernet

MIDI-interfaceYes

User InterfacePhysical/remote

Number of faders17

DSP Input channels32

DSP Output Channels24

Busses16

Number of Microphone Inputs16

Number of Mono Line Inputs6

Number of Stereo Line Inputs0

Physical outputs14

Digital stagebox connectionAES50

EthernetEthernet

HotspotNo

Special FeaturesCompatible with BEHRINGER P-16 Personal Monitoring System, 32 in / 32 out FW Interface

Multitrack RecordYes

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV

Scribble StripsYes

RTAYes

FX Processor8

31 Band EQ8

Delay InputYes

Delay OutputYes

Matrix6

DCA/VCA Groups8

MIDI InterfaceMidi-Din

Sample rate48 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATOptional

Digital SPDIFNo

Digital AES3/ASESEBYes

Digital MADIOptional

Digital DanteOptional

110V capableYes

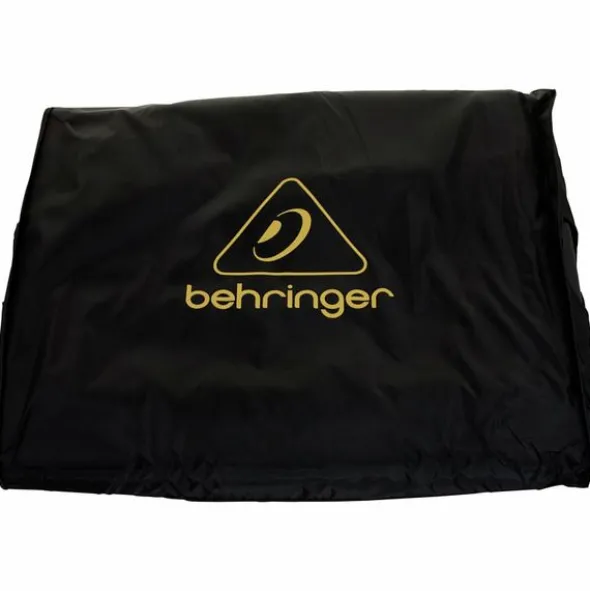

CaseIncluded

19″ RackmountNo

Height215 mm

Width625 mm

Depth510 mm

Weight15,4 kg
