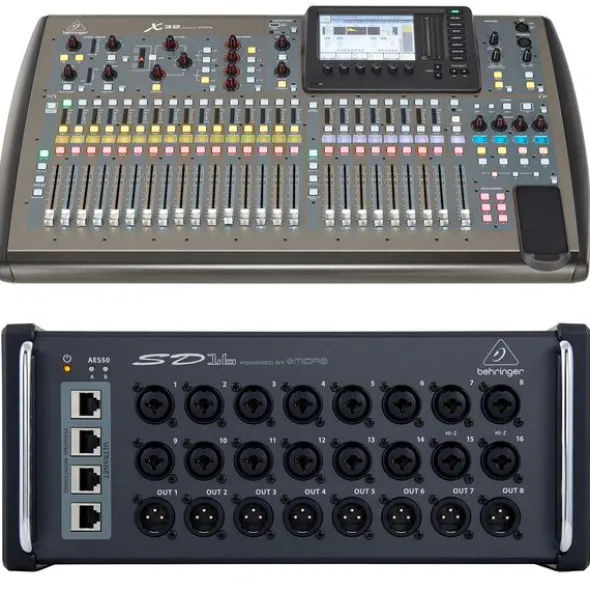

Behringer X32 SD 16 Bundle

Bundle offer comprising

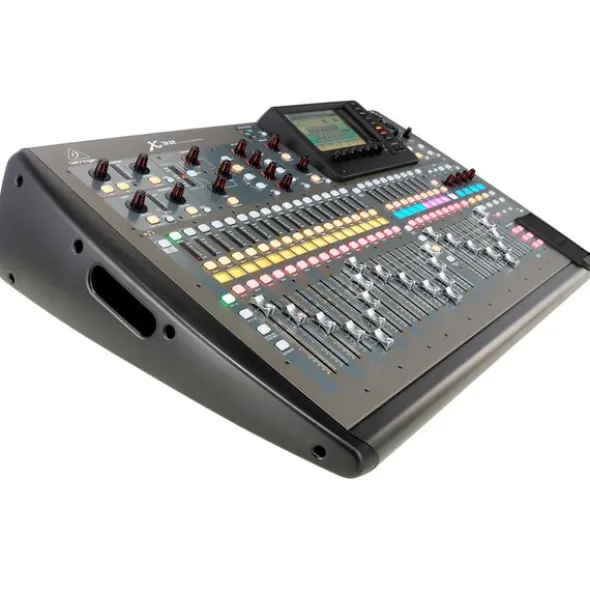

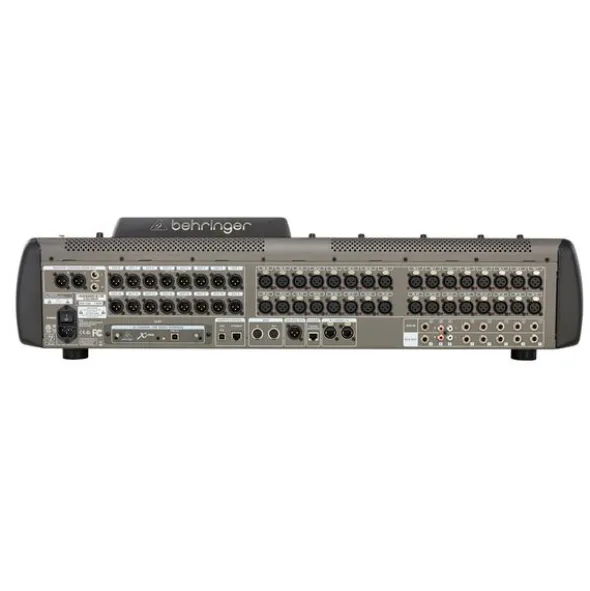

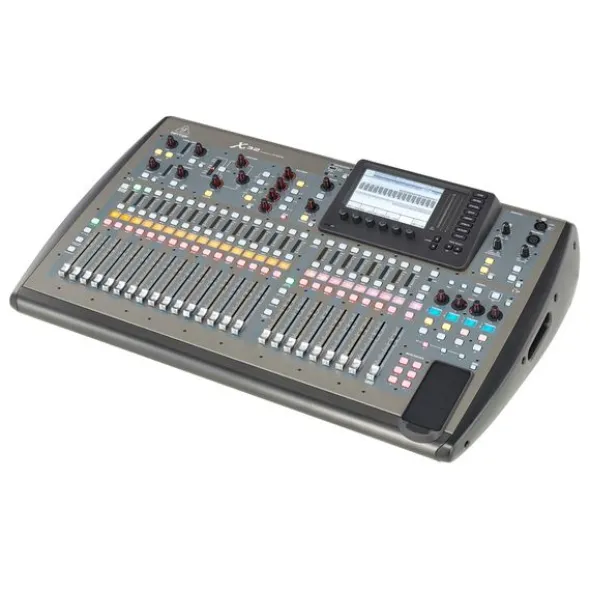

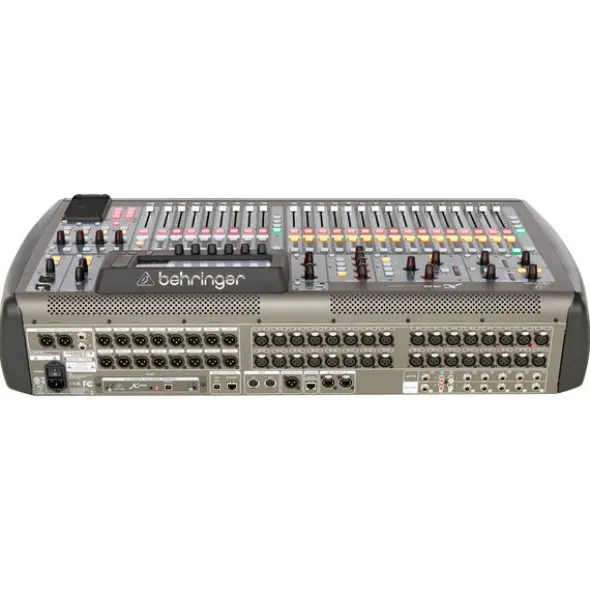

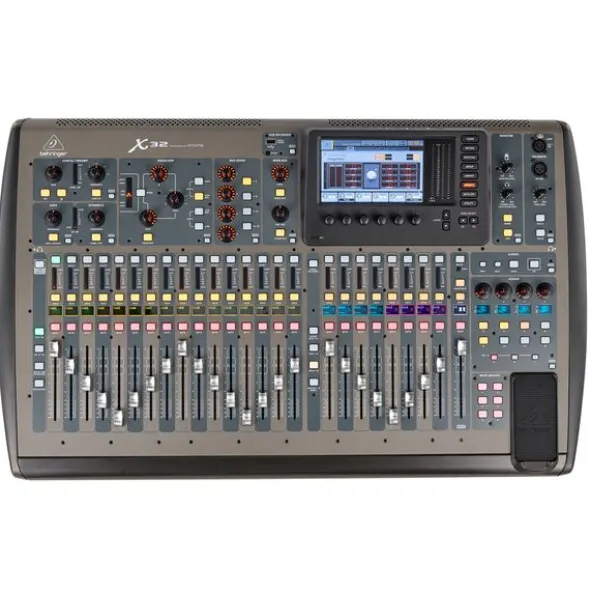

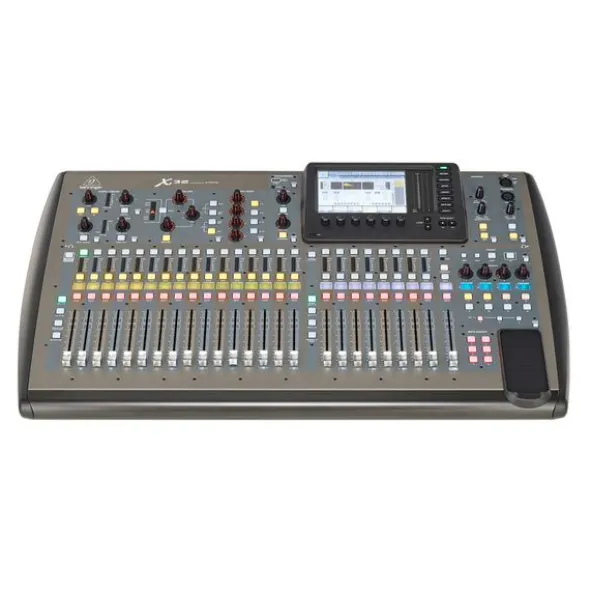

Behringer X32

32-Channel, 16-Bus Digital Mixer

• 32 XLR Mic/Line inputs
• Eight stereo FX returns
• 16 mix busses
• Six matrix buses with insert
• Six mute groups
• Eight DCA groups
• 16 XLR outputs
• Six Aux in via 6.3 mm jack (optionally two via RCA)
• Six Aux out via 6.3 mm jack (optionally two via RCA)
• AES/EBU stereo digital output
• Two headphone outputs via 6.3 mm jack
• Stereo monitor/control room output with dimming and mono function
• 32-in/32-out USB audio interface

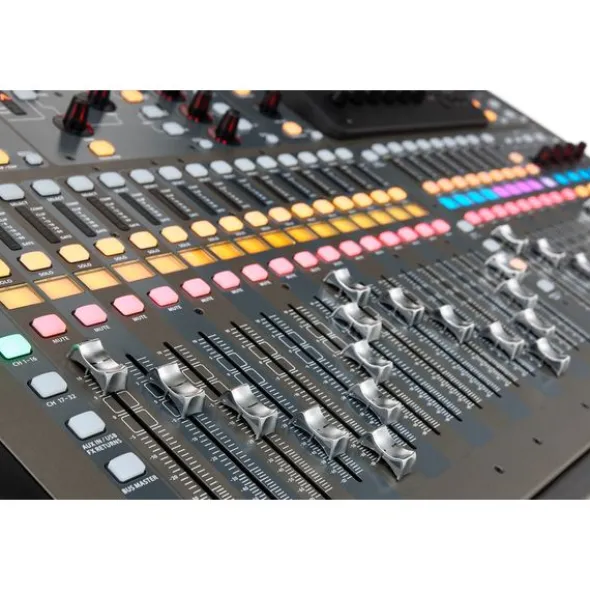

• 100 mm motorised fader

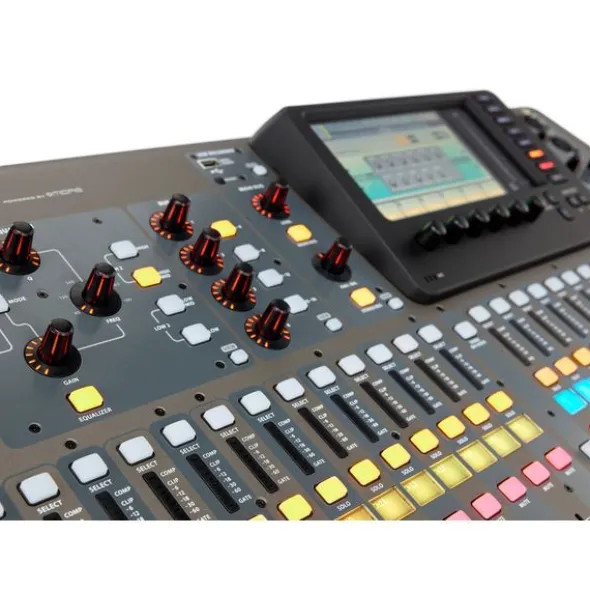

• 7″ TFT colour display
• LCD display per channel
• 4-band fully parametric EQ per channel
• Adjustable delays in all channels
• Virtual effects rack with eight FX slots
• Built-in stereo USB recorder
• Remote-controlled via USB or Ethernet
• Compatible with Behringer P-16 Personal Monitoring System
• Full MIDI implementation
• Dimensions (W x D x H): 900 x 550 x 230 mm
• Weight: 20.0 kg
• Including Behringer dust cover
• Suitable expansion card: SD Record Item No. 448412 (not included)
• Suitable case: Art. 281791 (not included)
• Suitable cover: Art. 487523 (not included)

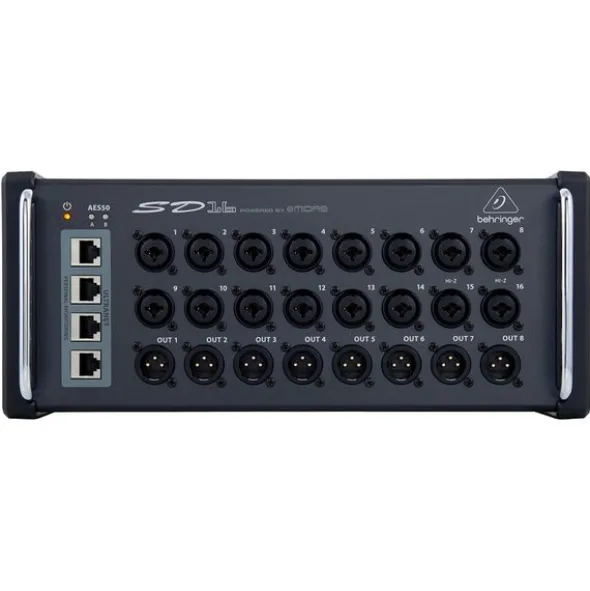

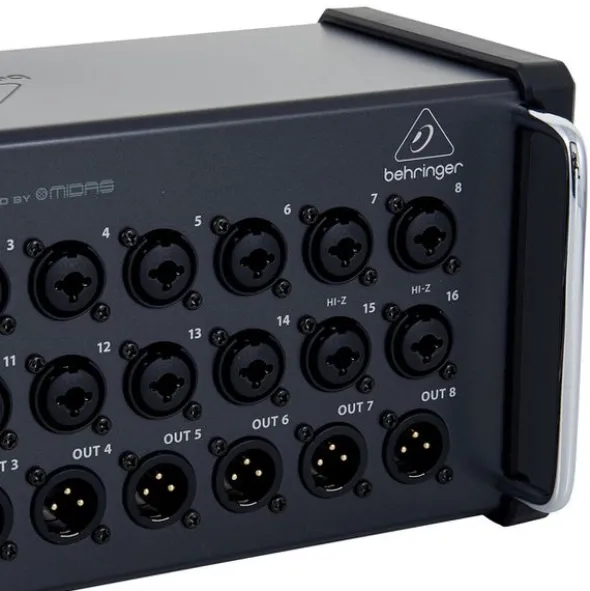

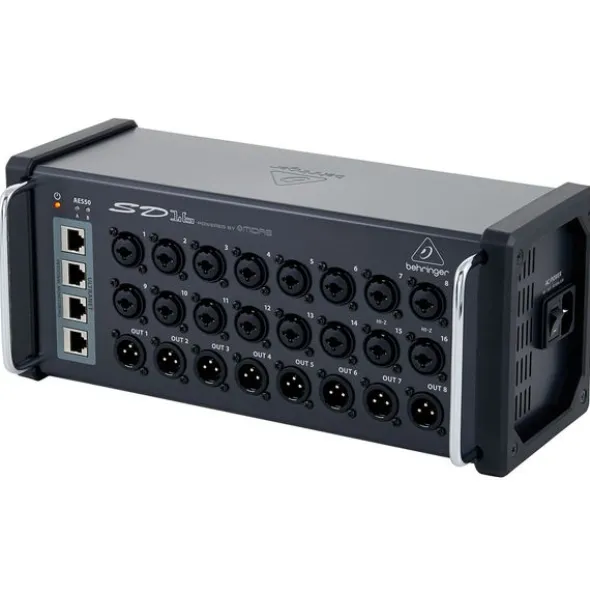

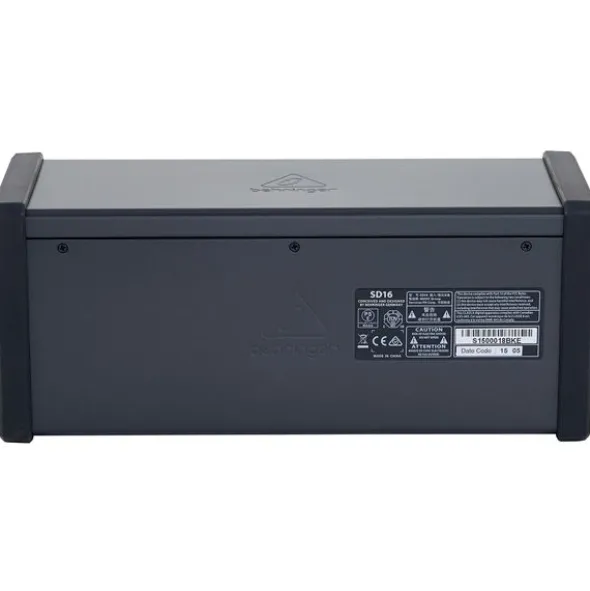

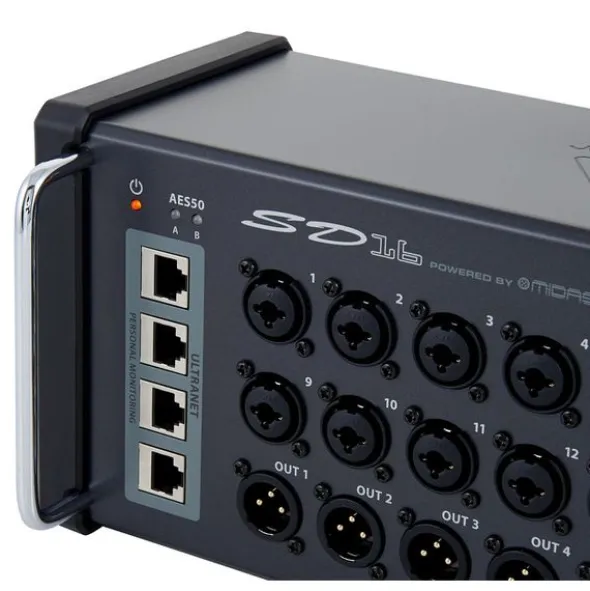

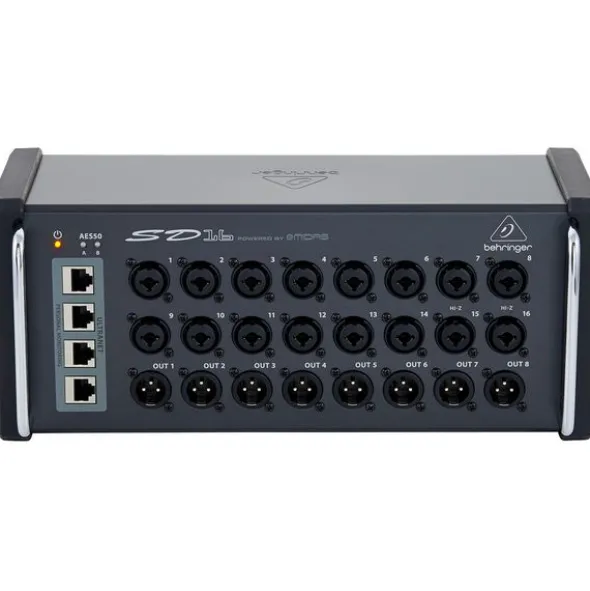

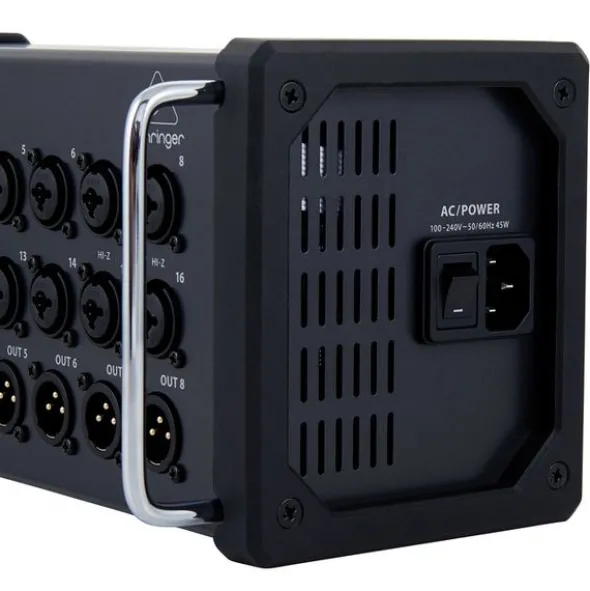

Behringer SD16

Digital Stage Box

• With 16 inputs and 8 outputs

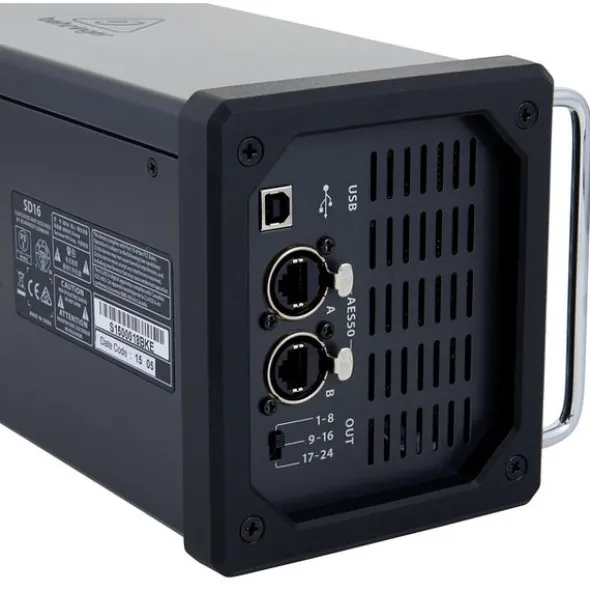

• AES50 network (Klark Teknik)
• Up to 100 m CAT-5e cables possible
• 4-Port connection for P-16 monitor connection
• USB connection for system updates via PC
• Overall height: 3 U
• Suitable bags: Article number 379654 and number 466438 (both not included)

Disponível desdeNovembro 2024

número de artigo604390

unidade de venda1peça(s)

Max.number of input channels32

Microphone Inputs32

Analog Line Inputs32

Analog Line Outputs16

Analog in/ out with plug-in card expandableYes

Digital InputsNone

Digital OutputsAES

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderYes

Computer interfaceUSB, Ethernet

MIDI-interfaceYes

User InterfacePhysical/remote

Number of faders25

DSP Input channels32

DSP Output Channels24

Busses16

Number of Microphone Inputs48

Number of Mono Line Inputs6

Number of Stereo Line Inputs0

Physical outputs30

Digital stagebox connectionAES50

EthernetEthernet

HotspotNo

Special FeaturesCompatible with BEHRINGER P-16 Personal Monitoring System, 32 in / 32 out FW Interface

Multitrack RecordYes

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV

Scribble StripsYes

RTAYes

FX Processor8

31 Band EQ8

Delay InputYes

Delay OutputYes

Matrix6

DCA/VCA Groups8

MIDI InterfaceMidi-Din

Sample rate48 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATOptional

Digital SPDIFNo

Digital AES3/ASESEBYes

Digital MADIOptional

Digital DanteOptional

110V capableYes

CaseIncluded

19″ RackmountNo

Height200 mm

Width900 mm

Depth528 mm

Weight20,6 kg
