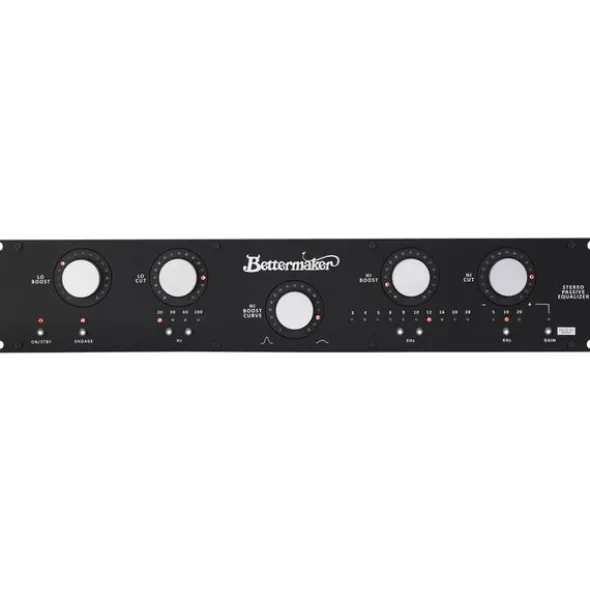

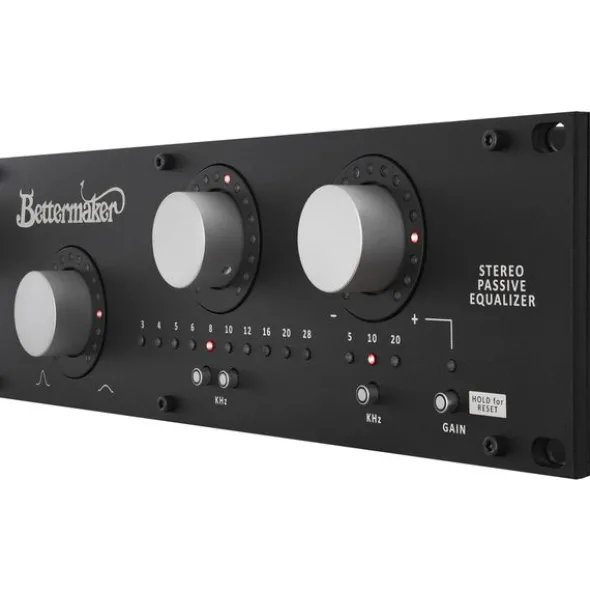

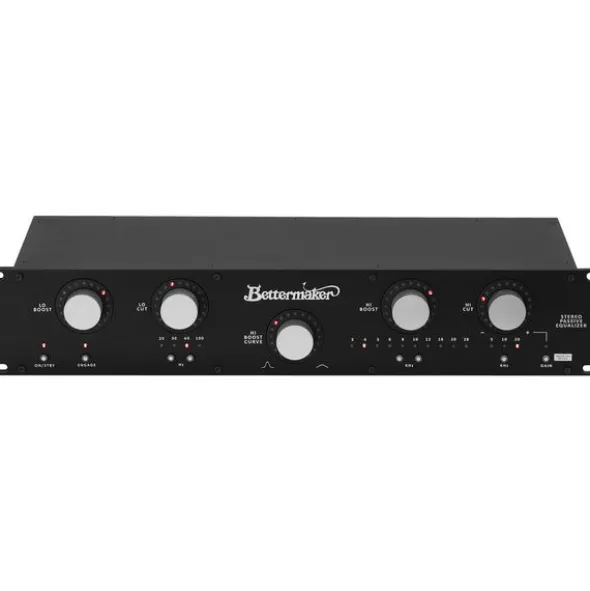

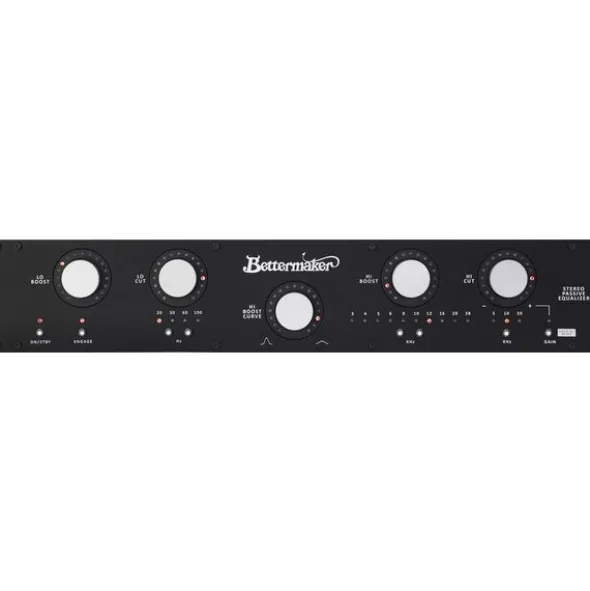

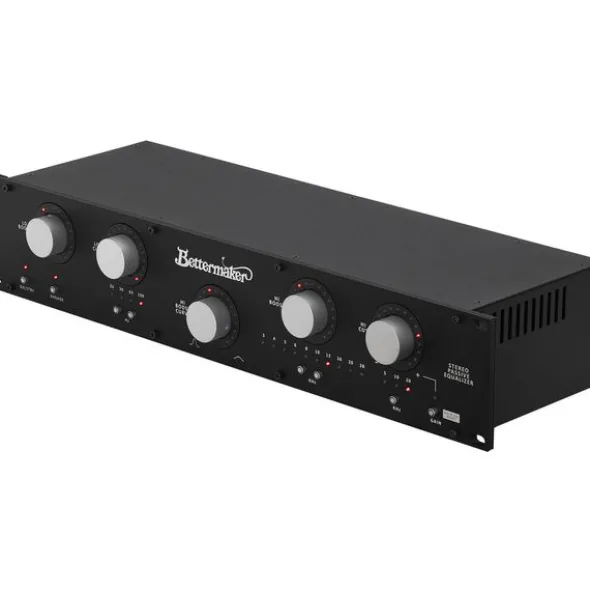

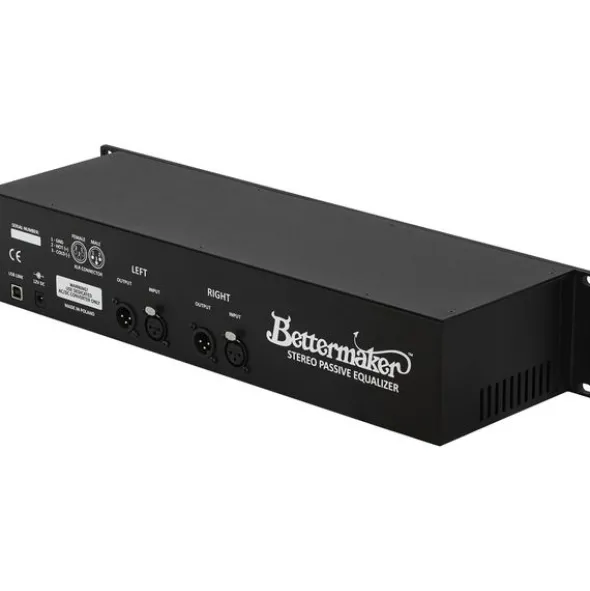

Bettermaker Stereo Passive EQ

Stereo Equaliser

• 2-Channel analogue equaliser with digital control

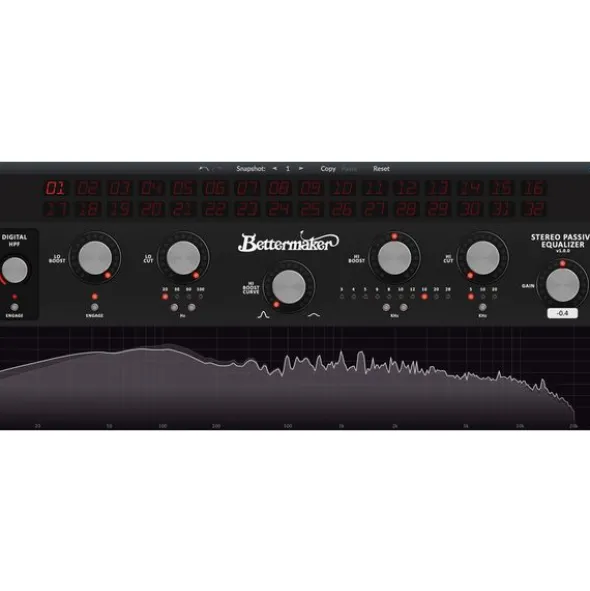

• All parameters are digitally controlled by the DAW (with its own plug-in)
• Max. input level: +24 dBu
• Max. output level: +27 dBu
• Max. LF boost: 15 dB (set to 100 Hz)
• Max. LF cut: 16 dB (set to 100 Hz)

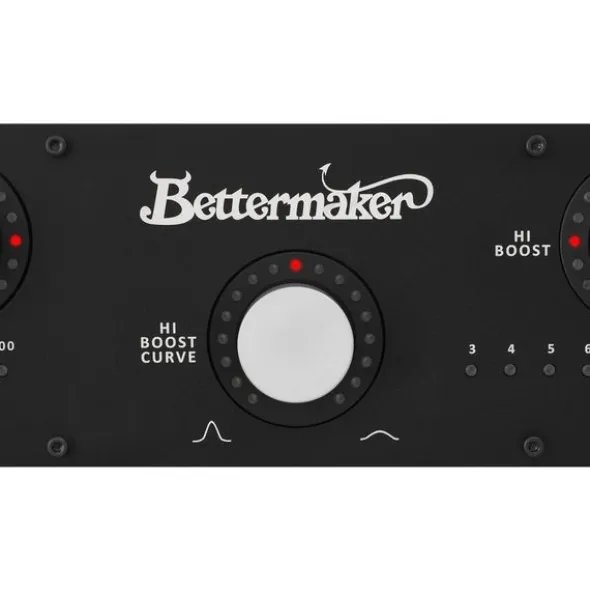

• Max. HF boost: 18 dB (all frequencies)
• Low boost/cut frequencies: 20, 30, 60, 100 Hz
• High boost frequencies: 3,000, 4,000, 5,000, 6,000, 8,000, 10,000, 12,000, 16,000, 20,000, 28,000 kHz
• High cut frequencies: 5,000, 10,000, 20,000 Hz
• Dimensions: 2 U x 140 mm depth
• Weight: approx. 2.7 kg
