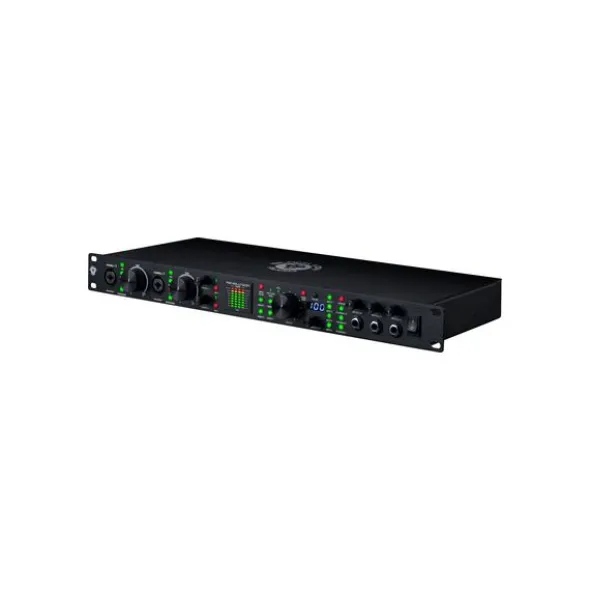

Black Lion Audio Revolution 14×16 B-Stock

USB-C Audio Interface

• 14 Inputs and 16 outputs
• Integrated Black Lion Auteur preamplifier on channels 1 and 2
• Precise macro MMC clock
• 3 Stereo headphone outputs with separate control
• Customised headphone mixes per headphone channel
• Can be used as a stand-alone 4-channel preamplifier
• Expandable with 8 additional inputs and outputs via ADAT
• Direct monitoring with mix control and mono switch
• AD/DA conversion: up to 24 bit / 192 kHz
• LED level display
• Switchable 48V phantom power on all XLR inputs
• Volume control
• Dimensions (H x W x D) : 94 x 584 x 269 mm
• Weight: 6.5 kg
• Included software packet (Download): Presonus Studio One+ (90 Tage) , Sonarworks Reference Headphones (90 Tage), Audified GK Amplification 3 LE, Audified Mixchecker, Psychic Modulation EchoMelt 3

Connections:

• 4 Combo inputs Mic/Line: XLR/jack
• 4 Line inserts/returns: 6.3 mm jack
• 4 Line outputs: 6.3 mm jack, balanced
• 3 Stereo headphone output: 6.3 mm jack
• 1 S/PDIF In/Out: RCA
• 1 Word Clock In/Out: BNC-socket
• 1 ADAT In/Out: Toslink
• USB-C connection

Disponível desdeOutubro 2024

número de artigo608464

unidade de venda1peça(s)

Recording / Playback Channels14×16

Number of Mic Inputs4

Number of Line Inputs4

Instrument Inputs4

Number of Line Outs4

Headphone Outs3

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors2

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB-C

MIDI interfaceNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyNo

USB Version2.0

Width584 mm

Depth269 mm

Height94 mm

Connection FormatUSB port Type C

Included in deliveryPower Supply, USB-C Cable

Zero latency monitoringYes
