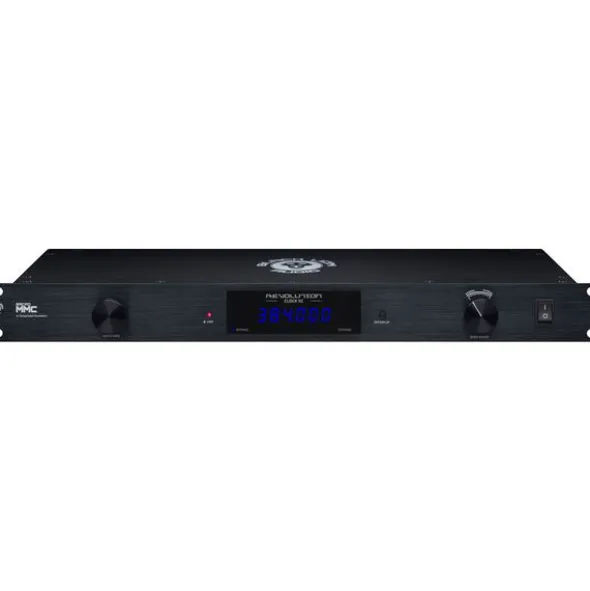

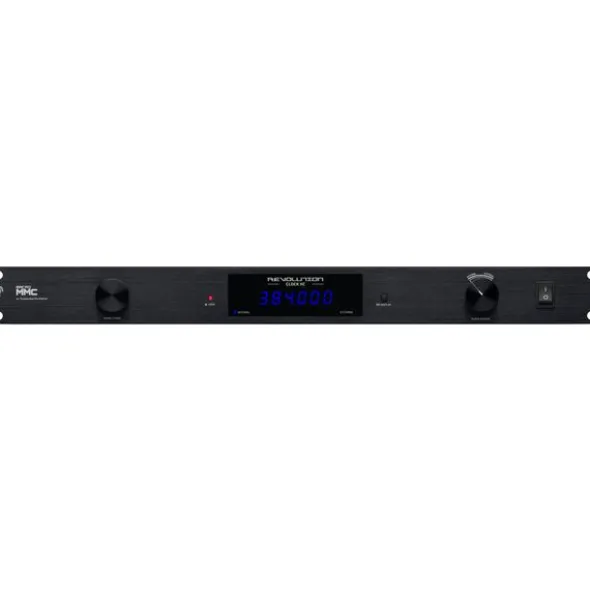

Black Lion Audio Revolution Clock XC

Word Clock Generator

• Features patented Macro-MMC technology and Suspended Oscillation technology
• MEMS oscillator
• 8 selectable sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz

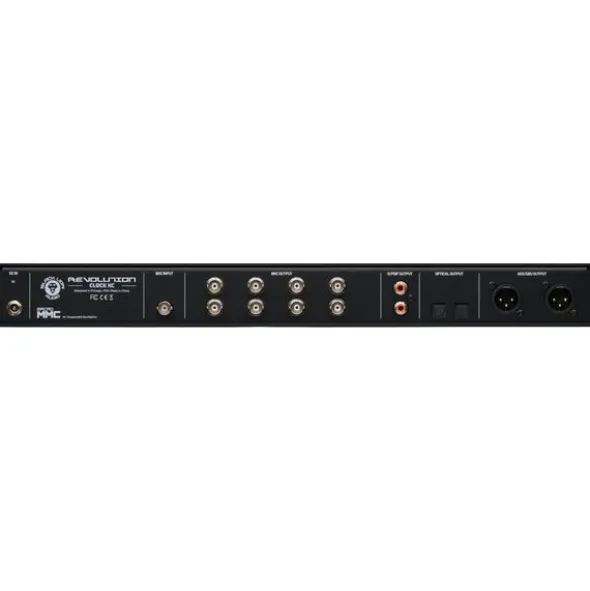

• 8 BNC outputs (75 ohms, 5 V) for synchronising external devices
• 2 coaxial S/PDIF outputs (75 ohms): 44.1 kHz – 192 kHz
• 2 optical S/PDIF outputs: 44.1 kHz – 96 kHz
• 2 AES/EBU outputs (110 ohms): 44.1 kHz – 192 kHz
• 1 BNC input for external clock sources
• Jitter: 0.5 ps RMS
• Lock function to prevent accidental changes to the sample rate
• Dimmable display
• External 9 V DC power supply (6 W power consumption)
• Format: 19″ / 1 U
• Dimensions (W x D x H): 482.6 x 165.1 x 44.5 mm
• Weight: 2.49 kg
