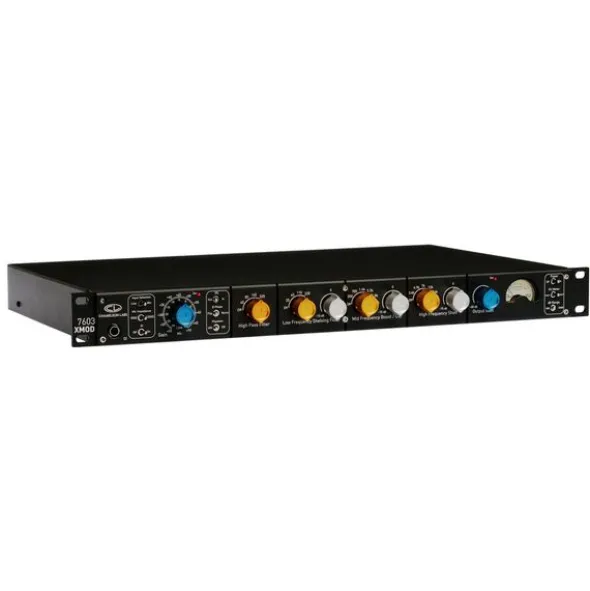

Chameleon Labs 7603 XMOD Preamp & EQ

Mono Microphone Preamp and EQ

• Carnhill (UK) microphone and line input transformers and Carnhill (UK) output transformers
• High impedance instrument input
• Discrete Class A topology
• Preamp with 70 dB gain
• Induction-based three-band EQ
• High-pass filter switchable at 40, 80, 160 or 320 HZ
• 48 V phantom power for the microphone input
• Switchable phase switch
• Selectable microphone input impedance of 300 or 1200 ohm
• Switchable VU meter (input/output) with calibrated ballistics
• Relay-based selection of line/mic and DI inputs
• Overload indicator for input and output
• Dimensions (W x D x H): 480 x 295 x 440 mm
• Weight: 5 kg

Disponível desdeJunho 2026

número de artigo590008

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesNo

Compressor/LimiterNo

EqualizerYes

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsXLR

Digitale OutputsNone

Headphone connectionNo

Level MeterYes

Design19″ / 1U
