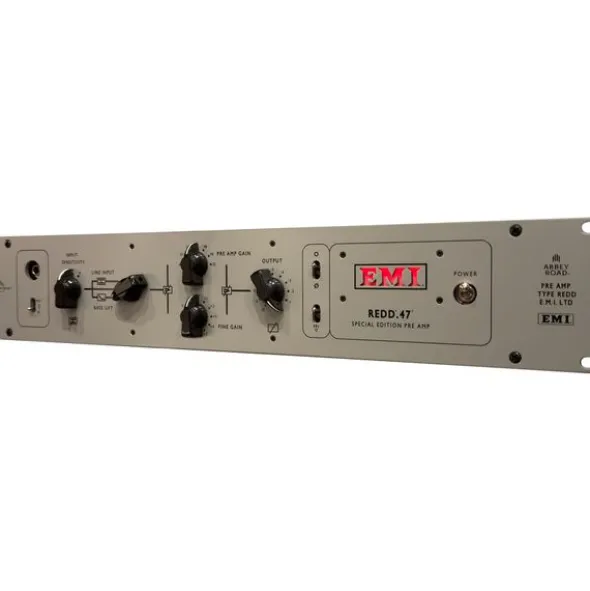

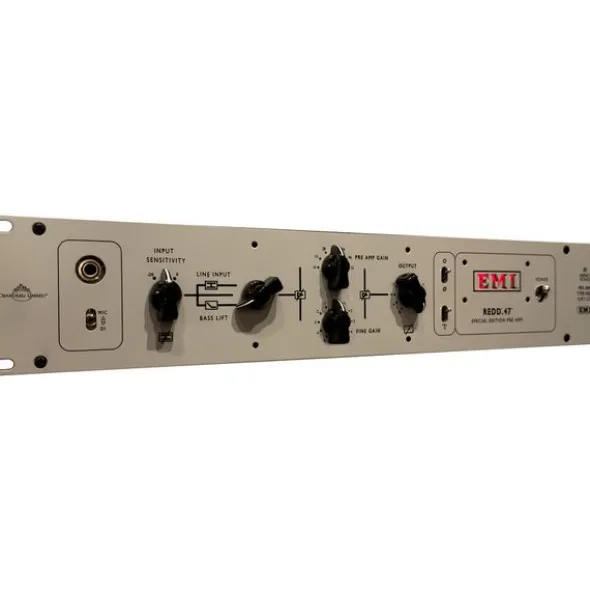

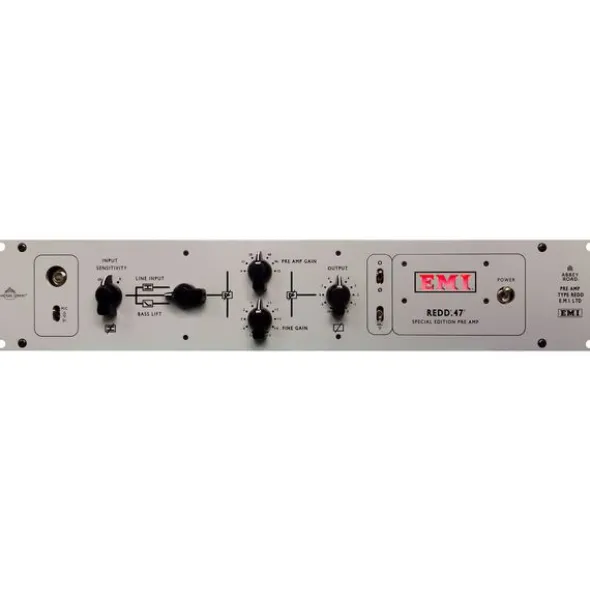

Chandler Limited REDD.47 Special Edition

Tube Microphone Preamp

• Limited edition of the 1-channel tube microphone preamplifier with 53 vintage components from the 60s and 70s, such as Piher resistors, ISKRA resistors, Beyschlag and ERO/Roederstein resistors, Siemens and Wima capacitors, and Mullard “Tropical Fish” capacitors
• Limited edition design with illuminated EMI logo and additional ‘Input Sensitivity’ sections
• ‘Line Input’ and ‘Bass Lift’ from the REDD.51 console
• +57 dB total gain
• Foot noise filter
• 20 dB pad switch
• Switchable phase
• +48V phantom power switchable
• Gain: 16 to 52 dB (stepped)
• Fine gain: +/- 5 dB (variable)
• Transformer-balanced inputs/outputs
• Tubes: EF86, E88CC (Input / Output)
• Microphone / Line inoput: XLR balanced
• Hi-Z input 6.3 mm jack on the front
• Line output: XLR
• Built-in power supply
• Format: 19″ two U

Disponível desdeNovembro 2025

número de artigo621500

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesYes

Compressor/LimiterNo

EqualizerNo

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsXLR

Digitale OutputsNone

Headphone connectionNo

Level MeterNo

Design19″ / 2U
