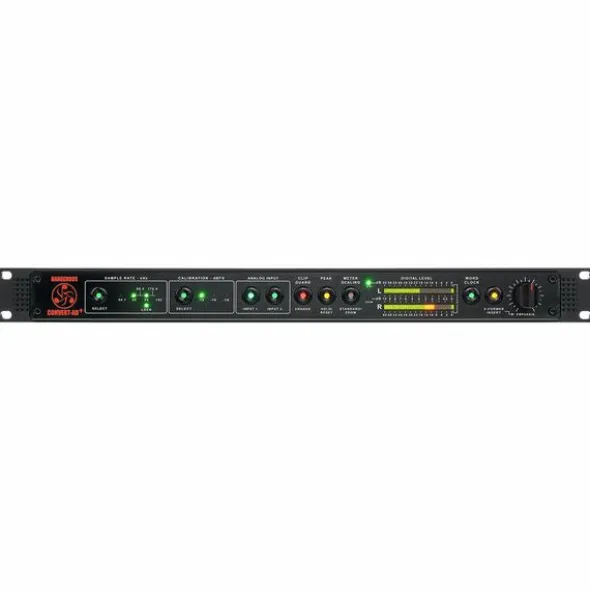

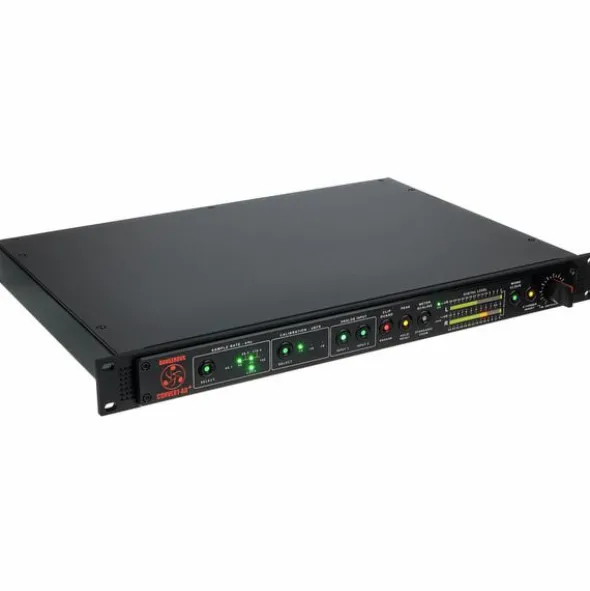

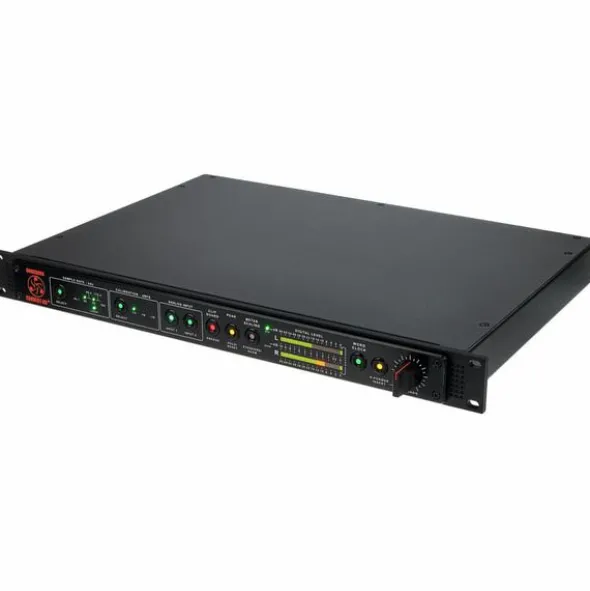

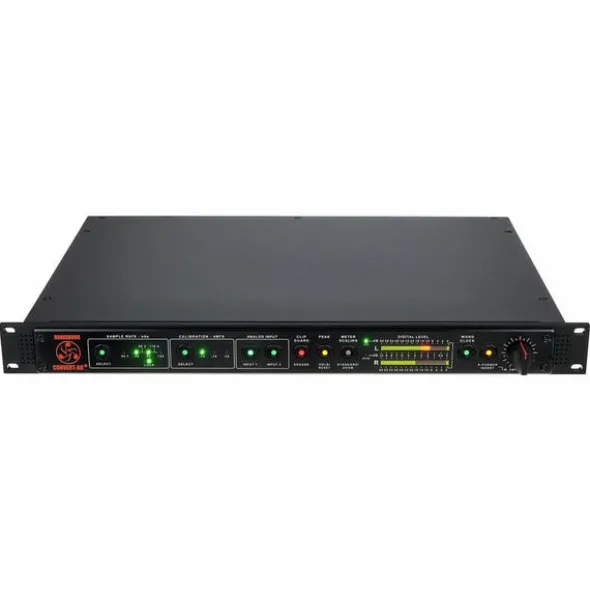

Dangerous Music Convert AD+

Stereo AD converter

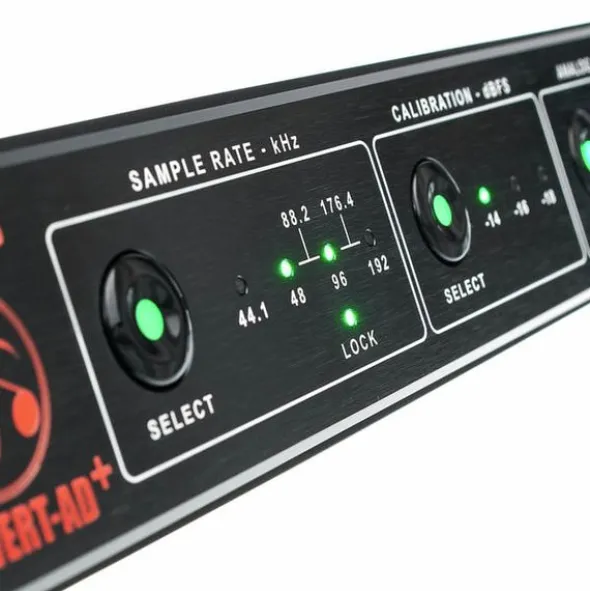

• Sample frequency switchable in 6 steps
• For universal compatibility with other devices
• Calibration level in 3 steps switchable for compatibility with other devices
• Two selectable discrete stereo input paths
• “Clip Guard” prevents the red LEDs on the target (such as the DAW) from coming on
• Custom-made digital display with normal and peak hold mode for precise optical feedback
• “Zoom View” For a more accurate, enlarged resolution, only the upper 10dB of the signal level is displayed

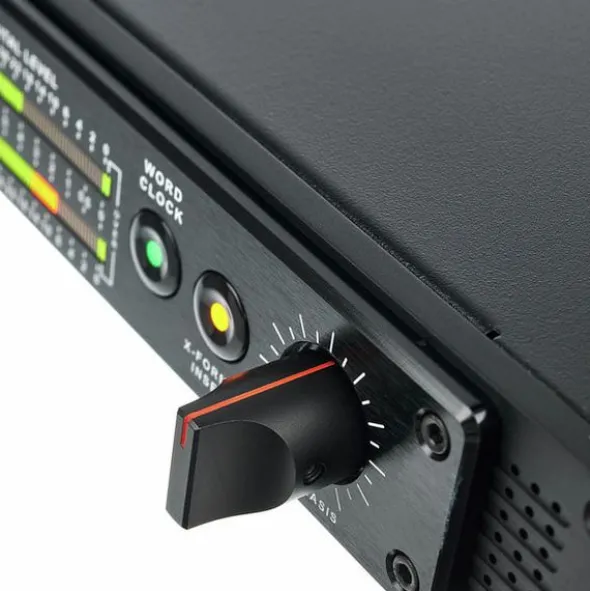

• Word Clock with three modes: Internal, External and Master
• X Shaper
• EMPHASIS Shelving EQ / Compressor
• USB port for Mac / PC
• Frequency Response (@ 96kHz): 20Hz to 20kHz (+0 / -0.035dB)
• IMD (SMPTE): IMD 60Hz / 7kHz +4 dBu in: <0.0012%
• Jitter: 16ps (100Hz to 40KHz), 18ps (100Hz to 1MHz)
• Crosstalk attenuation: 118dBu from 15 Hz to 40kHz (+/- 0.04 dB)
• 3-Pin IEC Auto Switching Power Supply, 120V (US) / 240V (Europe)
• Dimensions: 19″ 1U

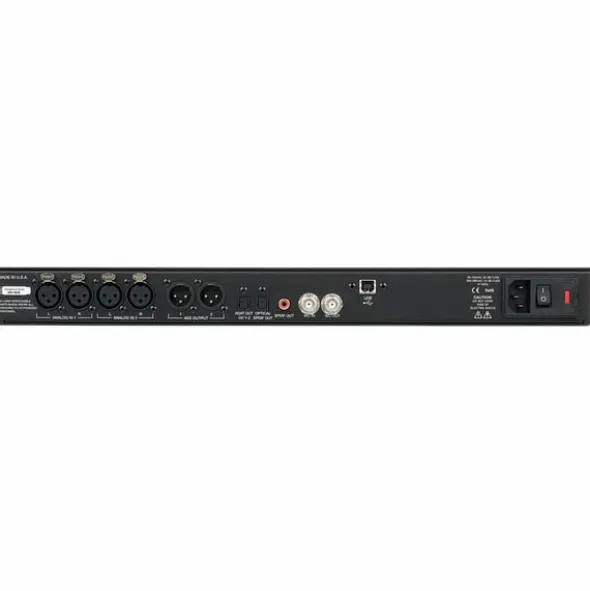

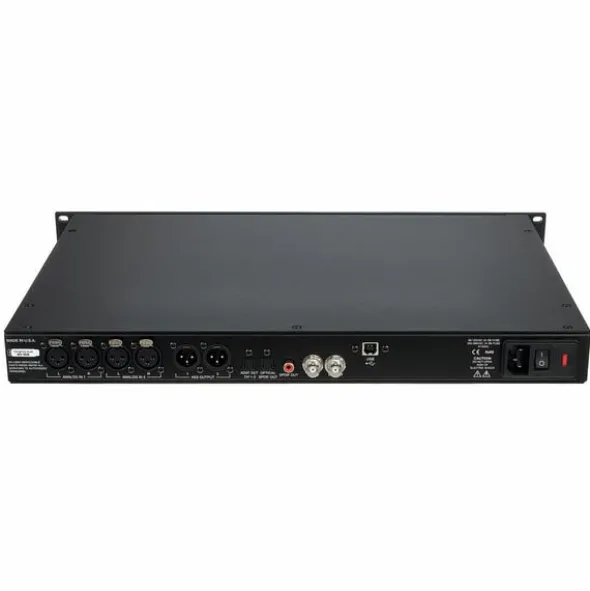

Inputs / outputs:

• 2 Switchable stereo input channels
• 2 AES outputs
• ADAT Optical output
• SPDIF Optical output
• SPDIF COAX output

Disponível desdeDezembro 2017

número de artigo424653

unidade de venda1peça(s)

Amount Of Channels8

AD ConversionYes

DA ConversionNo

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz192 kHz

S/PDIF ConnecorYes

AES/EBU ConnectorYes

ADATYes

Word clockYes

Number of analog inputs0

Number of Analog Outputs8

Headphone connectionNo

Special FeaturesDigital Input Pass Thru
