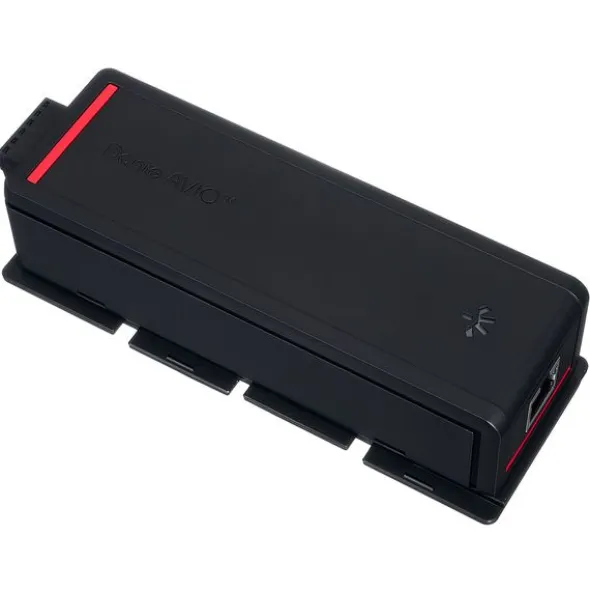

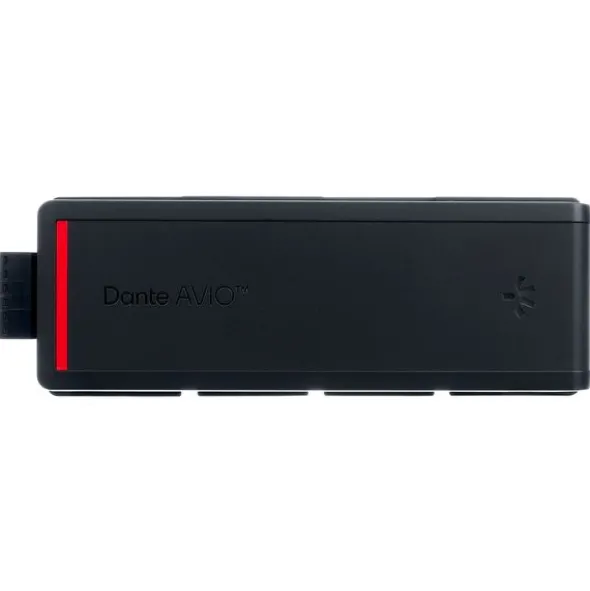

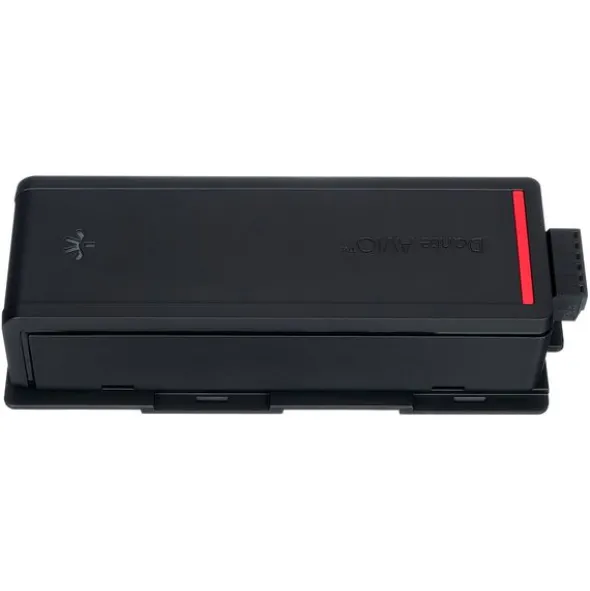

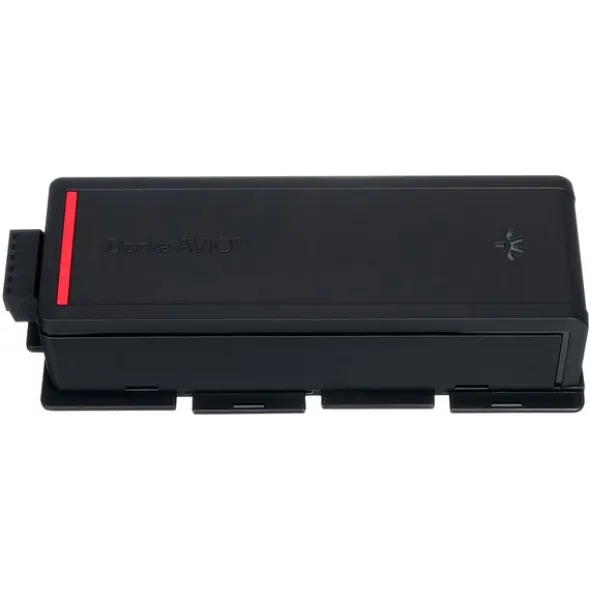

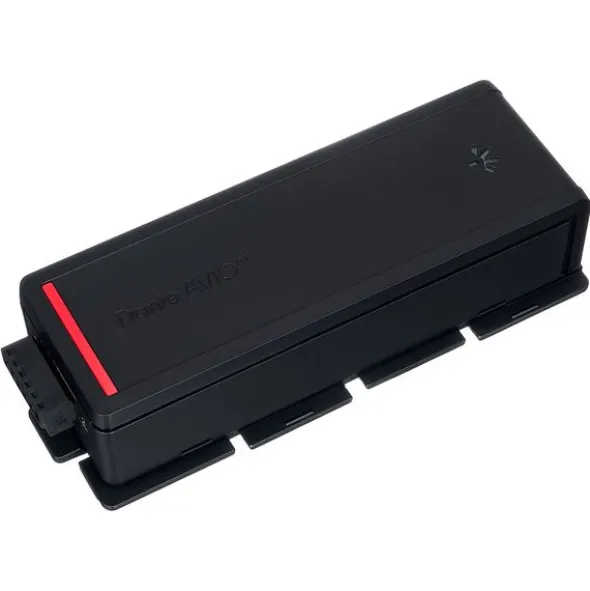

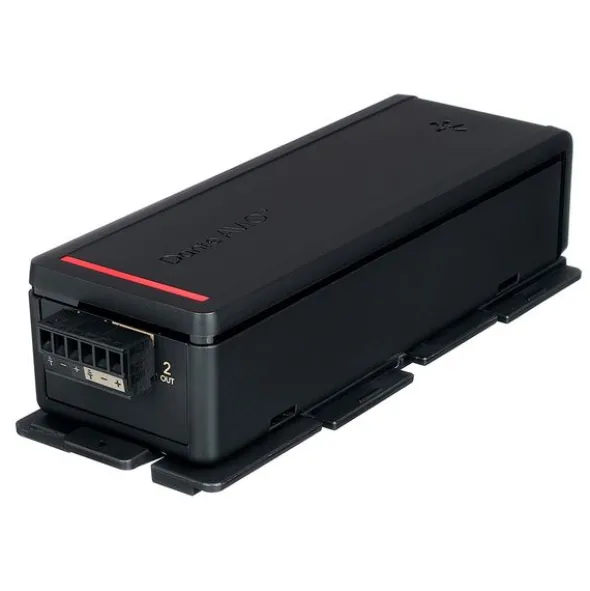

Dante AVIO Install 2Ch Analog Output

DA Converter

• Enables the output of analogue audio line signals from a Dante network
• 96 kHz / 32 Bit
• Fully functional Dante interface
• Adjustable signal levels: +4 dBu / 0 dBu / 0 dBV / -10 dBV (via Dante Controller)
• Frequency range: 20 – 20.000 Hz (-/+0,2 dB)
• Requires POE (Power over Ethernet) for operation (Class1 802.3af PoE)

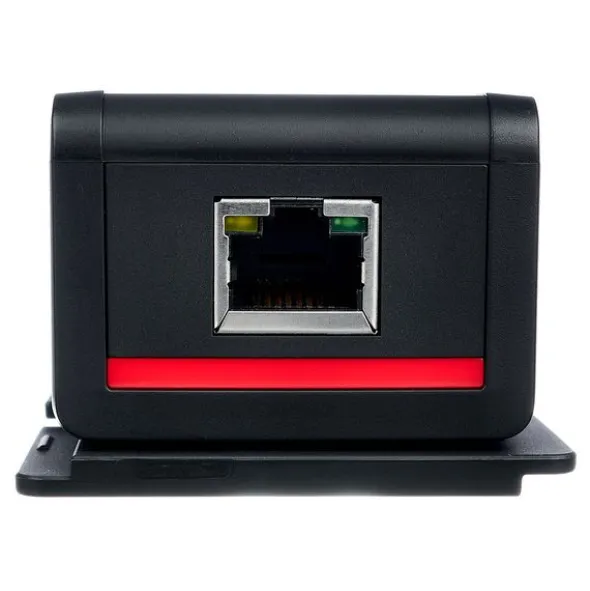

• RJ45 metal plug with built-in LEDs

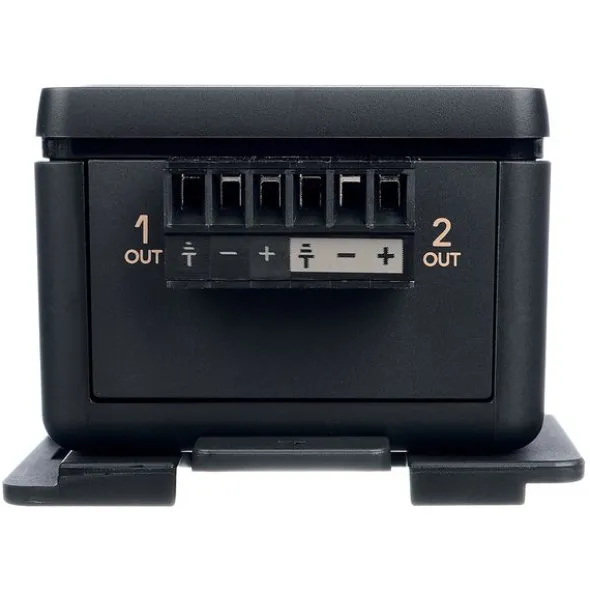

• Output connection: 6-pin Euroblock
• Robust housing
• Dimensions: 190 x 92.5 x 45 mm
• Weight: 0.14 kg

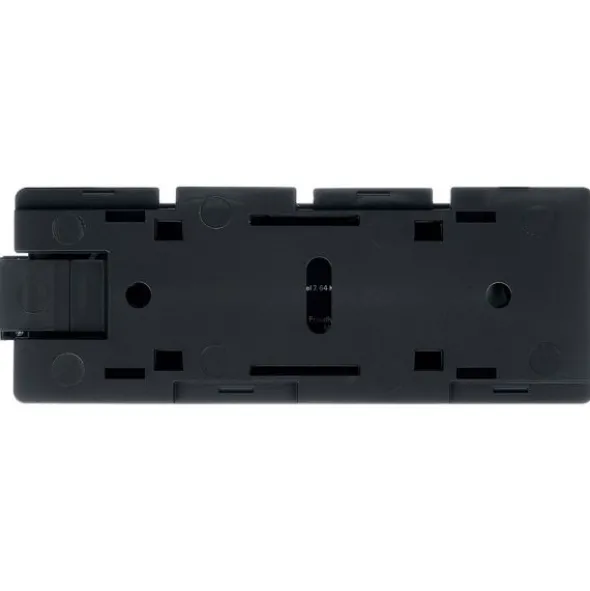

• Includes mounting kit

Disponível desdeJulho 2025

número de artigo614710

unidade de venda1peça(s)

Amount Of Channels2

AD ConversionNo

DA ConversionYes

Max. Resolution Rate in Bits32 bit

Max. Sampling Rate in kHz96 kHz

S/PDIF ConnecorNo

AES/EBU ConnectorNo

ADATNo

Word clockNo

Number of analog inputs0

Number of Analog Outputs2

Headphone connectionNo

Network ProtocolDante

ConnectorRJ45

Width190 mm

Depth in mm92 mm

Height45 mm

Weight0,145 kg

Mounting Height0 U

19″ RackkitNo

Input Channels0

Output Channels2

Digital Inputs0

Digital Outputs0

Special FeaturesAssembly
