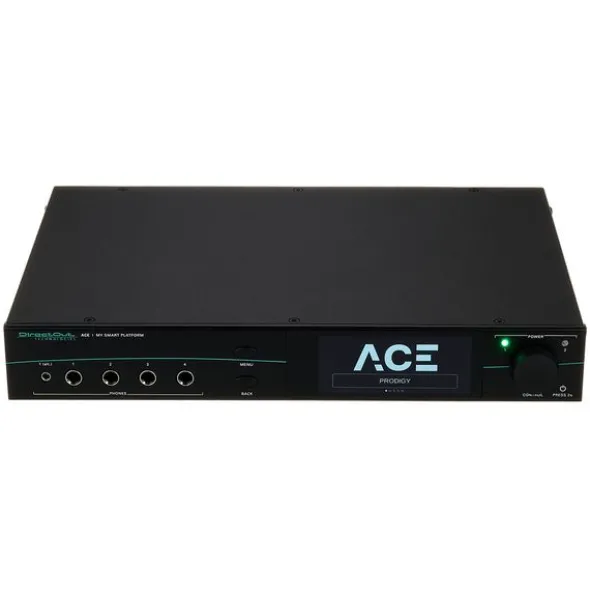

DirectOut ACE – Dante

Audio Interface

• DAnte model
• Audio interface, routing matrix, DSP processing and redundancy management based on the FPGA architecture of the DirectOut PRODIGY series
• DSP processing including EQ, dynamics, delay and system tools (depending on the mode)

One of two ACE operating modes that can be selected during registration for different applications:

• Playback Mode – quick setup of primary and backup systems, vocal inserts and output routing, including redundancy management (EARS)
• PA Mode – a complete drive rack solution featuring EQ, dynamics, delays and integrated Smaart analysis
• Additional modes can be added as required by purchasing extra licences from the manufacturer

Technical specifications:

• Input sensitivity: -55 dBu to +24 dBu
• Phantom power +48 V switchable
• Sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (+/-12.5%)
• Supports MADI and Dante
• A/D converter: SNR @ 0 dB gain: -118 dBFS RMS (20 – 20,000 Hz), THD @ -1 dBFS: -113 dB, EIN @ 60 dB gain: -118 dBu (20 – 20,000 Hz)
• D/A converter: SNR: -119 dB (20 – 20,000 Hz), THD+N @ -0 dBFS: -109 dB (@ +24 dBu)

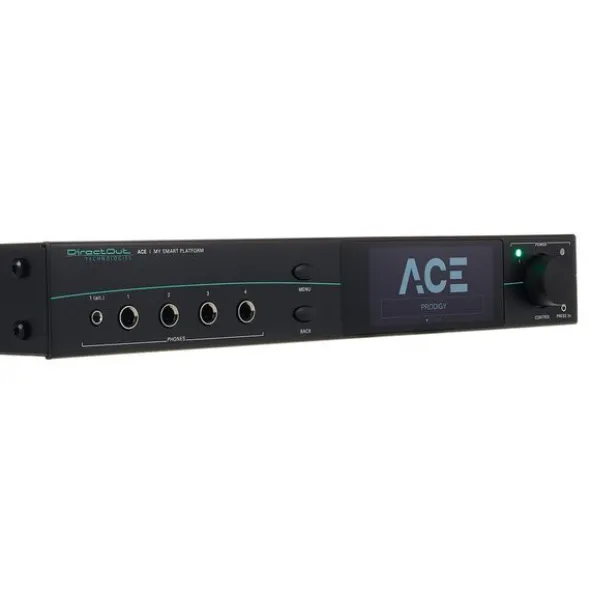

• Headphone sockets: 4 x 6.3 mm TRS and 1 x 3.5 mm TRS

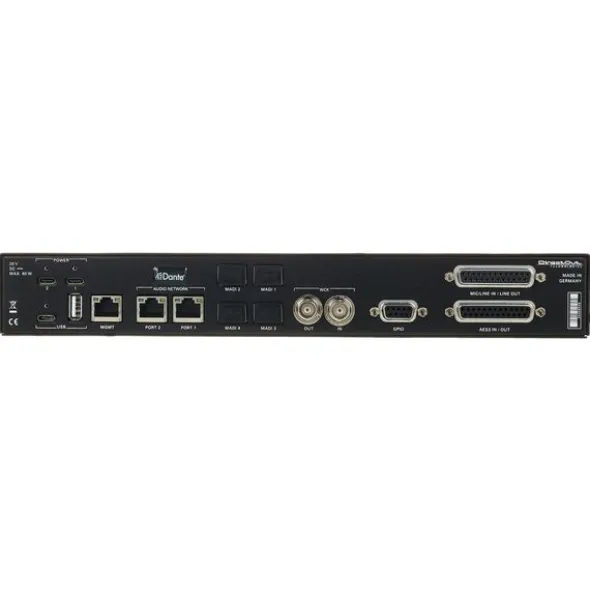

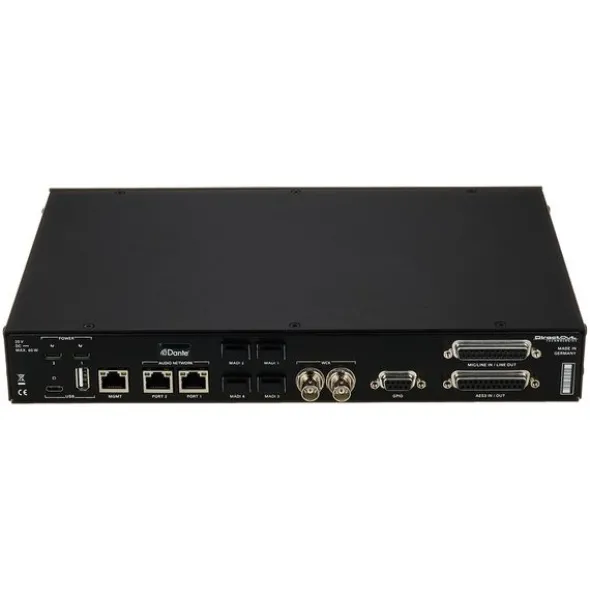

• 4 mic/line inputs via D-Sub 25
• 4 line outputs via D-sub 25
• 4 AES3 stereo ports (8 in / 8 out) via D-Sub 25
• 4 MADI SFP slots (without transceivers)
• 2 RJ45 (1 Gbps) audio network ports and 1 RJ45 (1 Gbps) management port
• Word Clock: 2 x BNC (75 ohms, terminatable)
• GPIO: 2 GPI voltage inputs (DSUB-9) and 2 GPO MOSFET switches (DSUB-9)
• USB ports: 1 USB 2.0 (Type A) and 1 USB 3.1 (Type-C, lockable)
• Power supply: 2 USB-C ports (lockable, redundant power supply) 20 V, max. 60 W

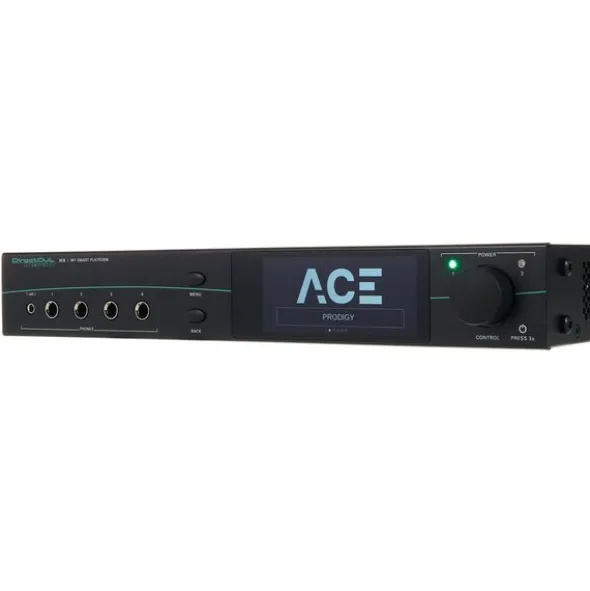

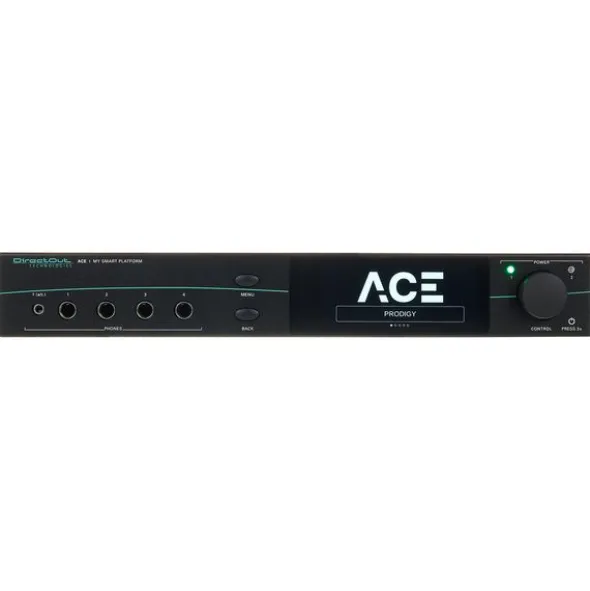

• 3.5″ IPS touchscreen with backlight and 340×800 px resolution
• Abmessungen (W x H x T): 310 x 44 (1 U) x 210 mm
• Weight: Approx. 2.5 kg
• Includes an external power supply and 2 x 0.5 m breakout cables

Disponível desdeJulho 2026

número de artigo645423

unidade de venda1peça(s)

Amount Of Channels64

AD ConversionYes

DA ConversionYes

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz192 kHz

S/PDIF ConnecorNo

AES/EBU ConnectorYes

ADATNo

Word clockYes

Number of analog inputs4

Number of Analog Outputs4

Headphone connectionYes

Special FeaturesDSP, Specialized Operating Modes
