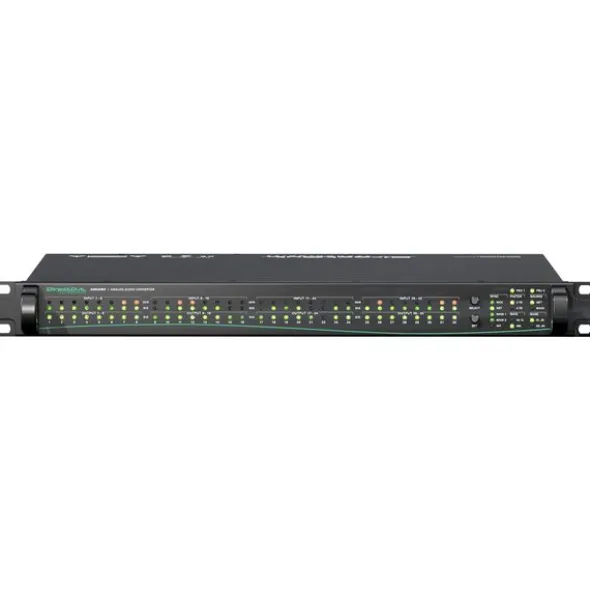

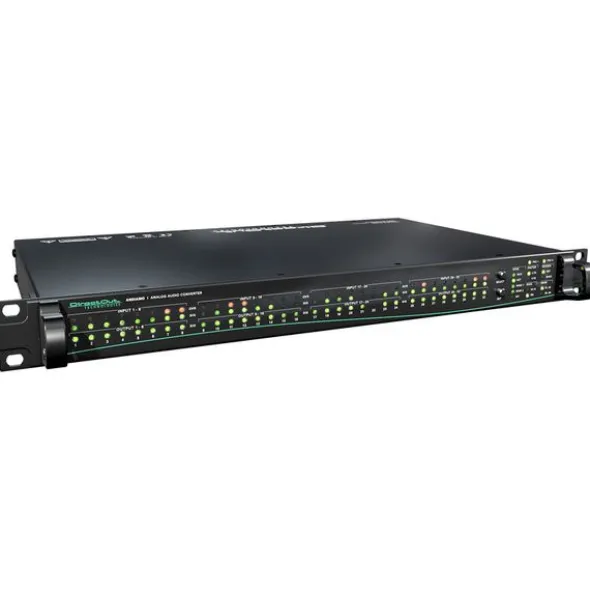

DirectOut Andiamo – Ravenna

AD/DA Converter

• High-quality AD/DA converter with redundancy management for professional applications
• Dante Ravenna Extension Board included
• Analogue inputs: 32 channels via 4x SUBD-25 (balanced)
• Analogue outputs: 32 channels via 4x SUBD-25 (balanced)
• Network: Two RJ45 (1 Gbit/s) for audio networks and one x RJ45 (1 Gbit/s) for remote control management
• Word clock input and output: Two coaxial BNC
• Optional MADI ports: Two SFP (empty housing for transceiver modules)
• Audio network options: RAVENNA (128 channels @ 1 FS), Dante (64 channels @1 FS), SoundGrid (128 channels @ 1 FS)
• Redundant power supply and signal transmission
• Remote control via globcon software
• Dimensions (W x D x H): 483 x 19 x 44.5 mm (1 U, 254″)
