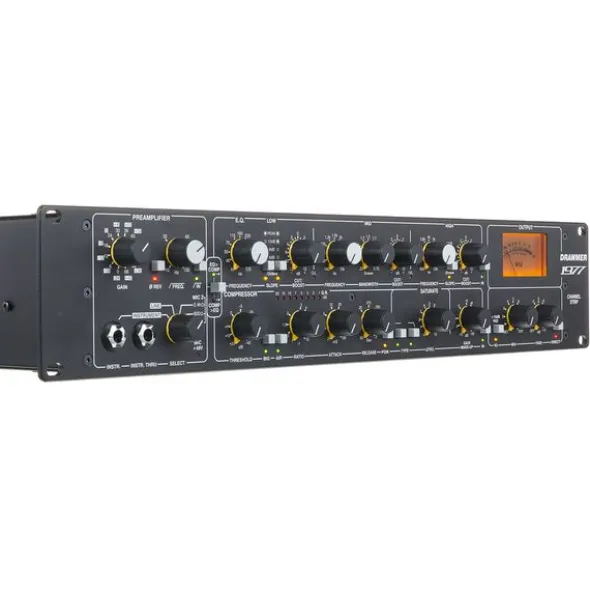

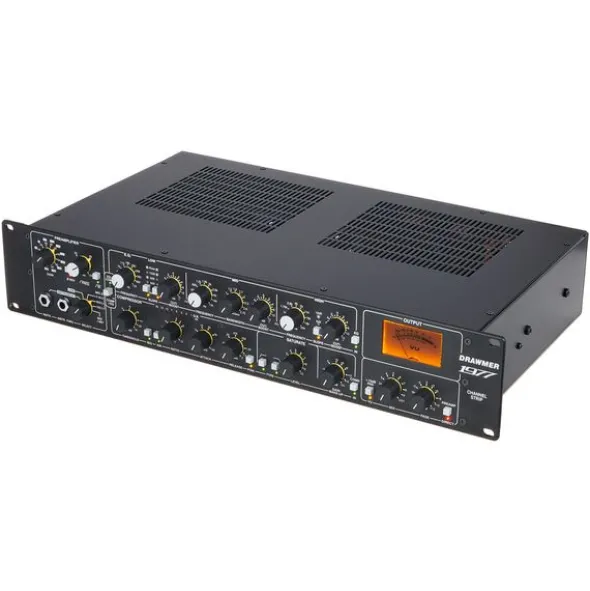

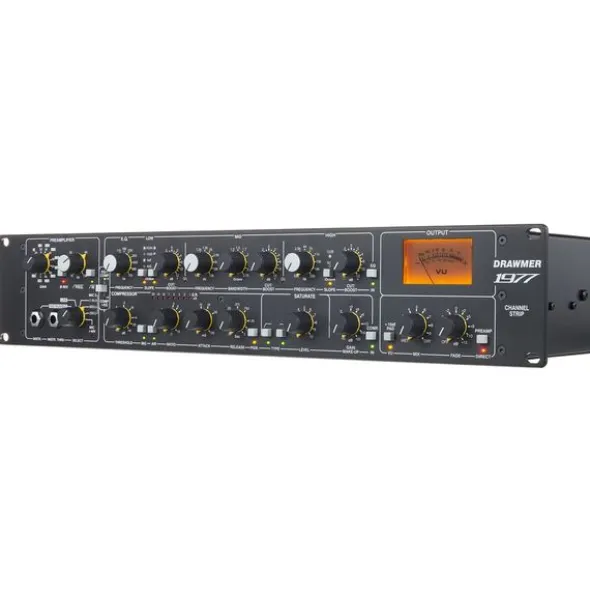

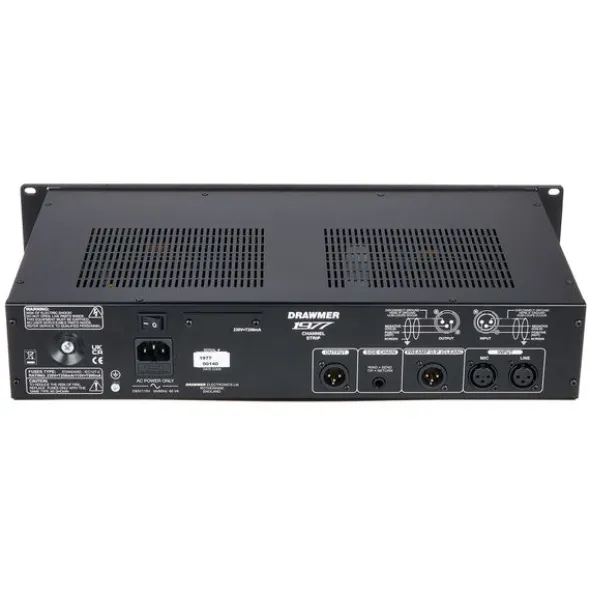

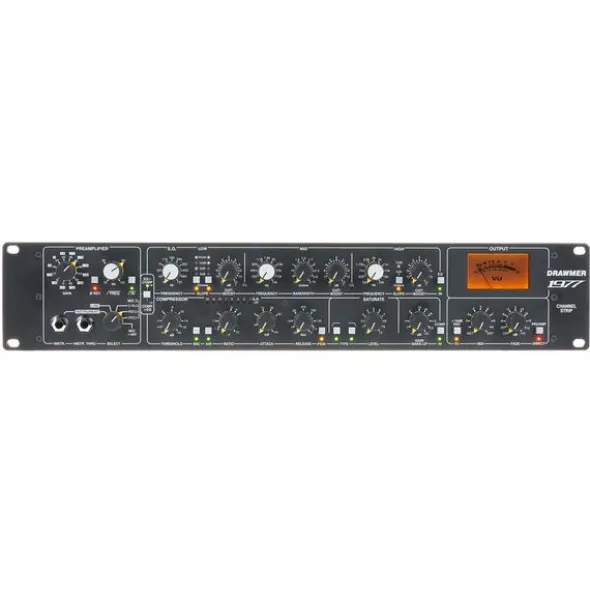

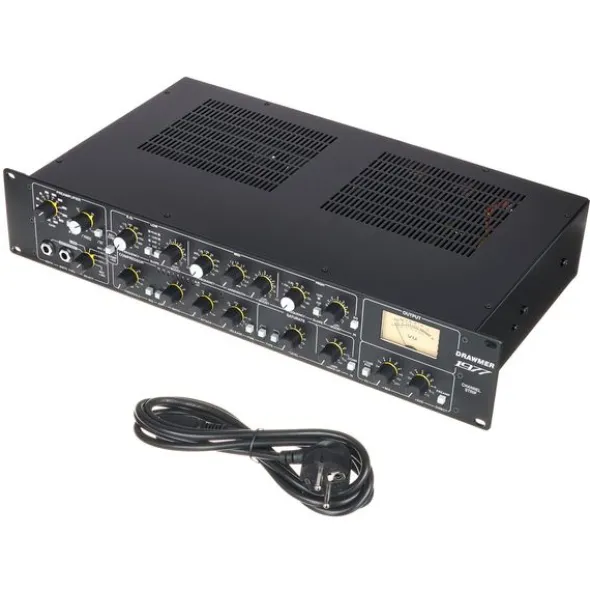

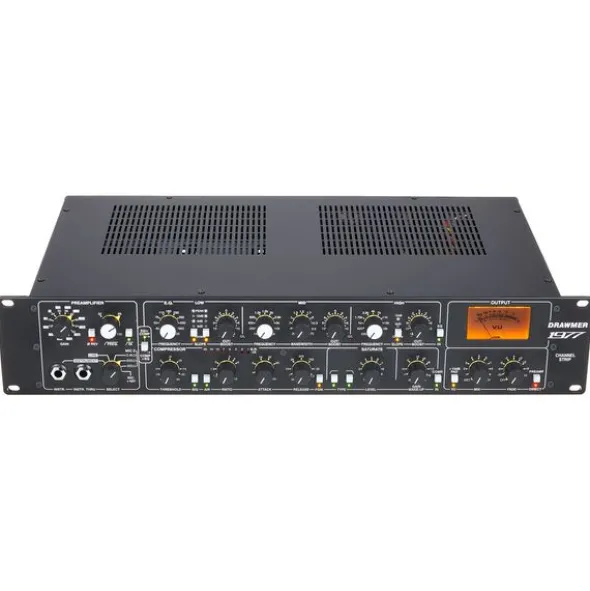

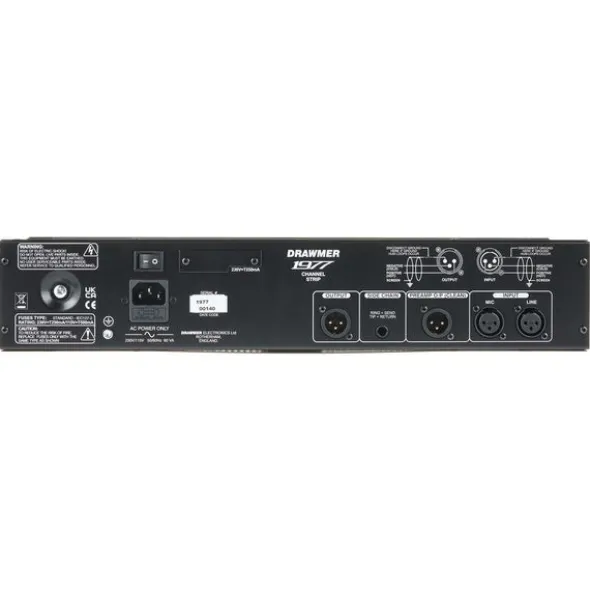

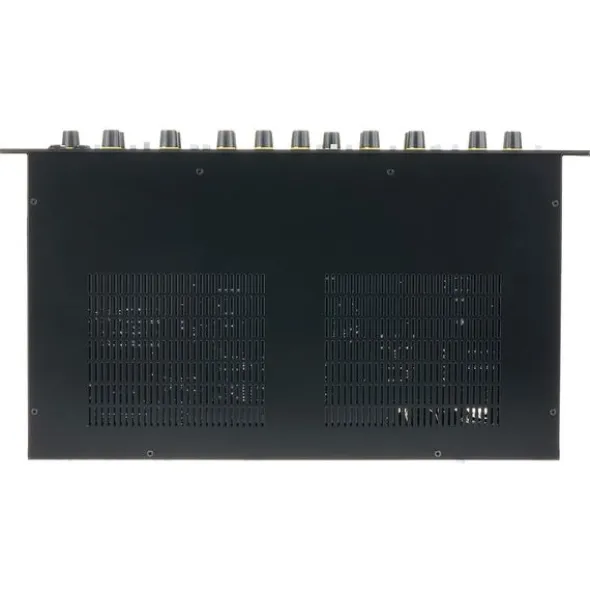

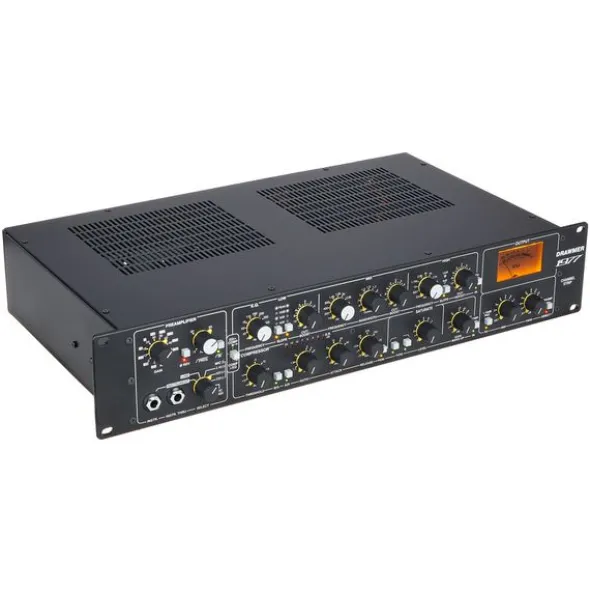

Drawmer 1977

Channel Strip

• With vintage character
• Consists of a preamp, a parametric three-band equaliser, a soft knee compressor and a variable saturation stage
• Wet/dry mix control
• Output gain control
• Fade control
• Illuminated VU meter
• Preamp Direct switch
• Line input: XLR
• Mic input: XLR
• 48 V phantom power
• Instrument ID with direct output
• Input impedance (switchable): > 20 kOhm
• Input level max.: +21 dBu
• Microphone ON: -130 dB
• Input gain: 0 – +66 dB (microphone), -24 – +42 dB (instrument
• Output impedance: < 100 Ohm
• Output level max: +21 dBu (10 kOhm load impedance)
• Output gain: off – +12 dB
• Frequency response: 20 – 20,000 Hz +/-0.5 dB
• Noise (unity gain, 20 – 20,000 Hz): > 93 dB
• Distortion (THD+N @ 1 kHz): 0 dB: 0.01 %, 10 dB: 0.01 %
• High-pass filter (variable): 16 – 130 Hz
• Low band: 40 – 725 Hz
• Slope: 6 dB / 9 dB / 12 dB / Peak
• Cut/Boost: -12 – +12 dB
• Mid Band: 140 – 13.000 Hz
• Bandwidth: 0.25 – 2.75 octaves
• Cut/Boost: -12 – +12 dB
• High Band: 530 – 20.000 Hz
• Slope: 6 dB / 12 dB
• Cut/Boost: -12 – +12 dB
• Compressor: Threshold (-40 – +20 dB), Ratio (1:1 – 10:1), Attack (0.2 ms – 100 ms), Release (0.05 s – 2 s)
• Power supply: 230 V or 115 V at 50-60 Hz, 30 VA
• Dimensions (W x H x D): 482 x 88 x 270 mm
• Weight: 4.2 kg

Disponível desdeJulho 2023

número de artigo570630

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesNo

Compressor/LimiterYes

EqualizerYes

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsXLR

Headphone connectionNo

Level MeterYes

Design19″
