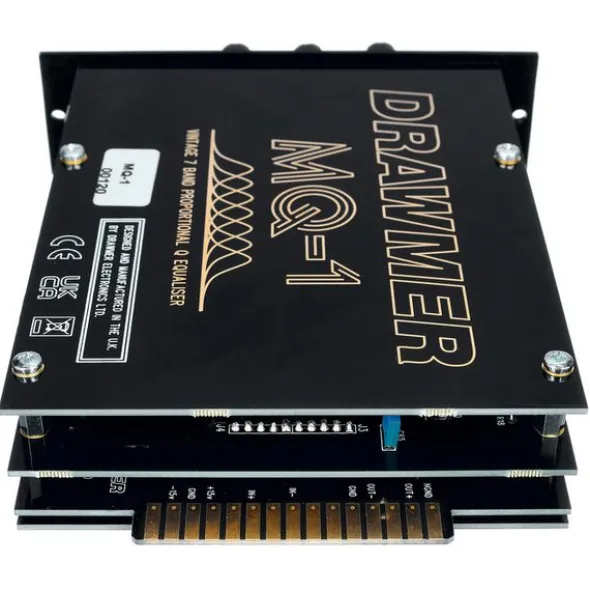

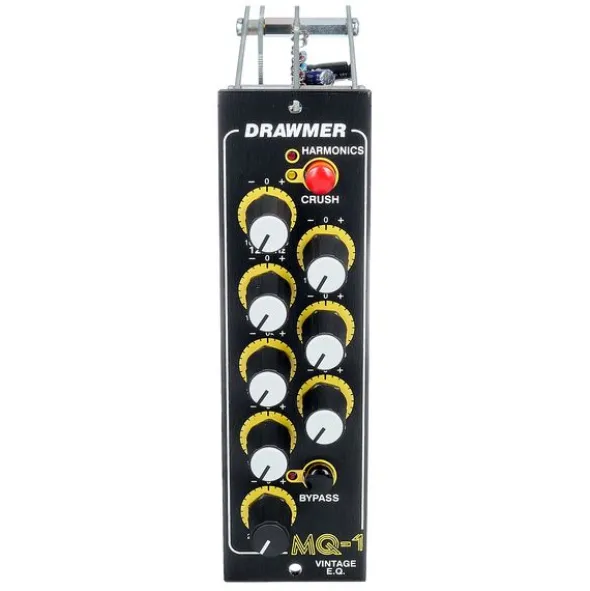

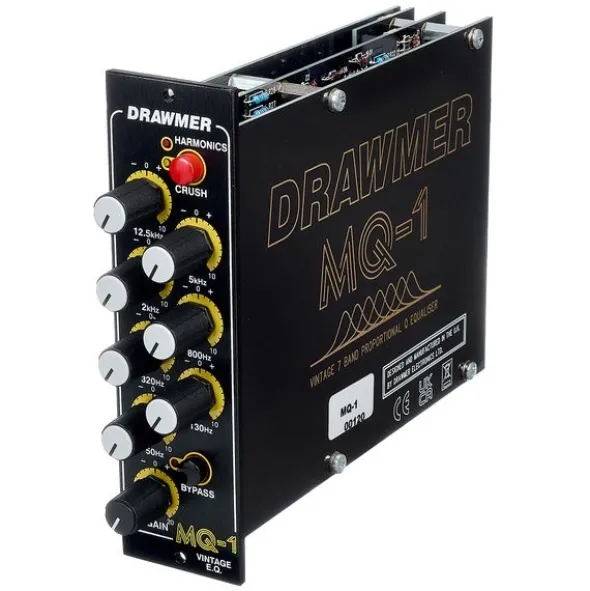

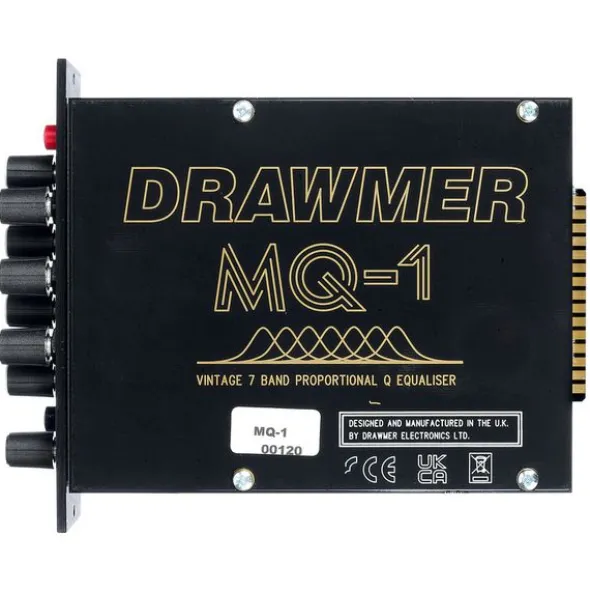

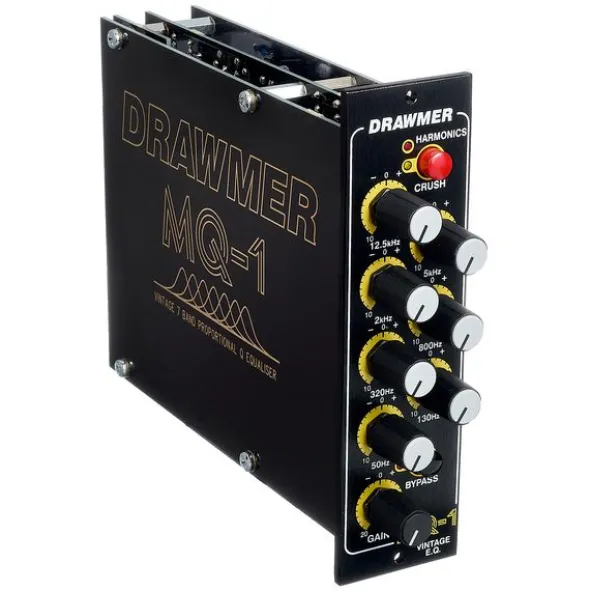

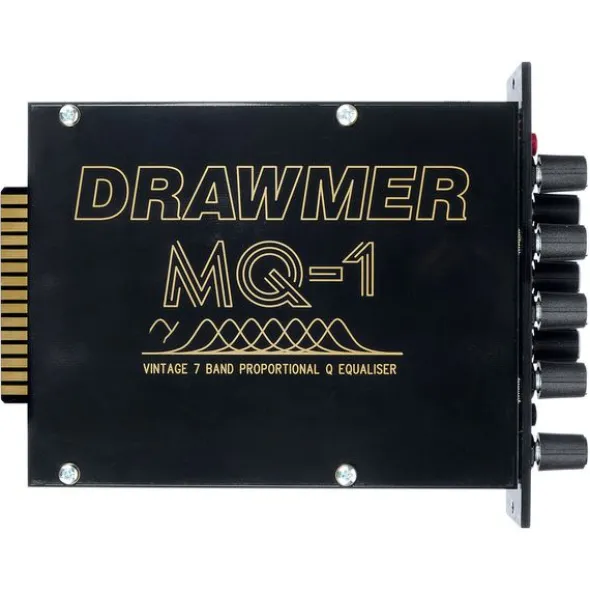

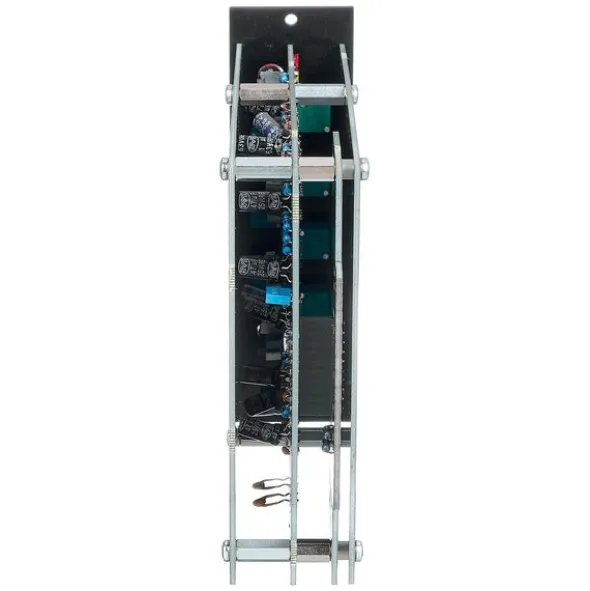

Drawmer MQ-1

500 Series Module

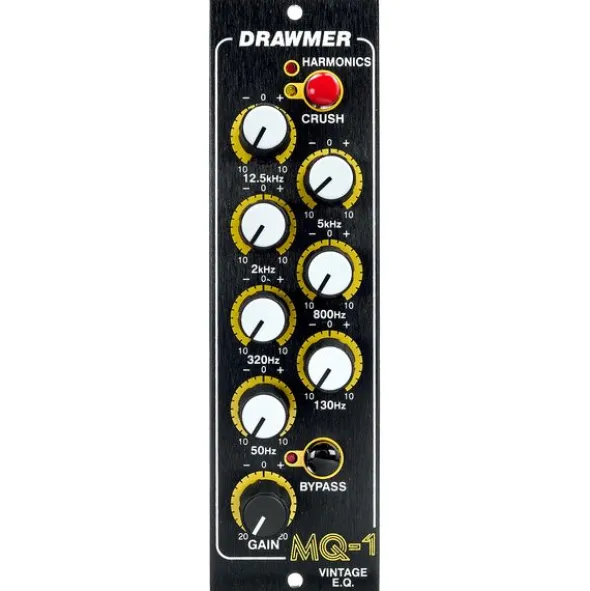

• 7-band vintage equaliser with proportional Q-curves
• Inspired by the Motown EQ of the 1960s
• ‘CRUSH’ function for harmonic saturation
• Stepless boost or cut by ±10 dB
• Hardwired bypass
• EQ Frequencies: 50 Hz, 130 Hz, 320 Hz, 800 Hz, 2,000 Hz, 5,000 Hz, 12,500 Hz, +/- 10 dB Gain
• Input impedance: 20 kOhm
• Max. input level: +21 dB
• Frequency range: 20 – 20.000 Hz +/- 0.5 dB
• Dimensions: 1 x 500 series slot
• Weight: 0.38 kg
