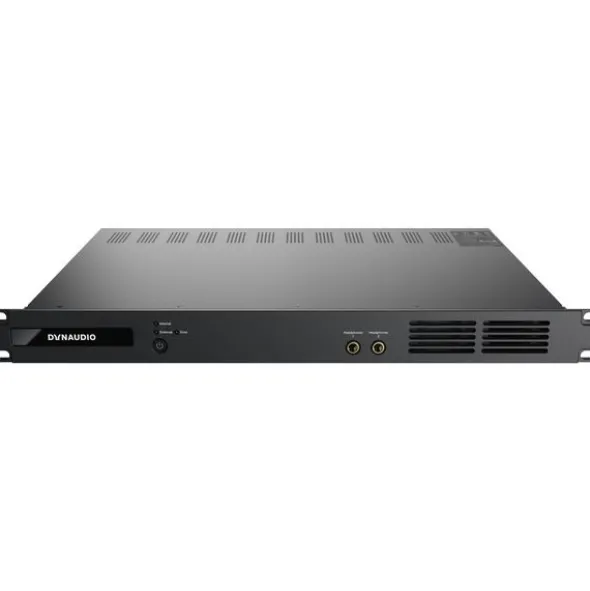

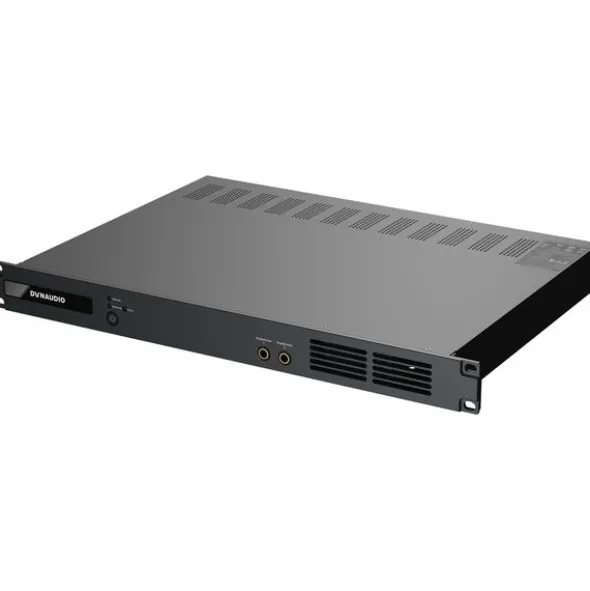

Dynaudio Control 01

Digital Audio Processor and Monitor Controller

• For professional studio applications
• Centralised routing, monitoring and control platform for recording, mixing, mastering and immersive audio environments
• DADman software with PRO
  MON SPQ for managing loudspeaker set-ups ranging from mono to immersive multi-channel applications
• Internal 1024 x 1024 routing matrix
• 512 x 64-channel summing processor
• SPQ equaliser with 1024 filters, 128 channels of speaker signal processing for EQ, gain and delay
• Sample rates up to 384 kHz
• Integrated Dante interface with 256 I/O channels
• Thunderbolt 3 audio interface with 256 inputs and 256 outputs
• DADlink-Slot
• 2 expansion slots for DAD expansion modules

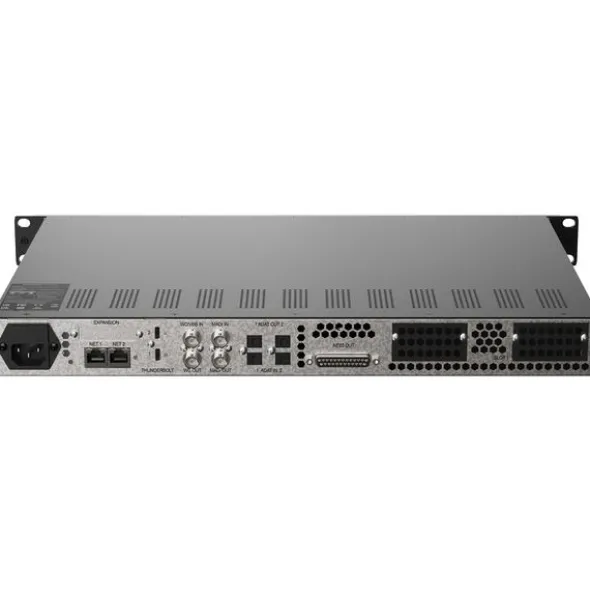

• AES3 output via DB25 with 16 digital audio channels
• 2x Gigabit Ethernet (RJ45) with Dante/AES67
• 2x Thunderbolt 3 ports with up to 15 W Power Delivery per port
• 2x ADAT In and 2x ADAT Out (TOSLINK); inputs can also be configured as S/PDIF
• 1x MADI in and 1x MADI out (BNC), word clock in/out (BNC); input can also be configured for video black burst
• 2 independent TRS headphone outputs on the front panel
• Dynamic range: > 120 dB (A-weighted)
• THD+N: < -100 dB (A-weighted) at -3 dBFS
• Headphone impedance: 18–600 ohms
• Format: 19″ / 1 U
• Dimensions (W x D): 43.5 x 32 cm
• Weight: 2.4 kg
