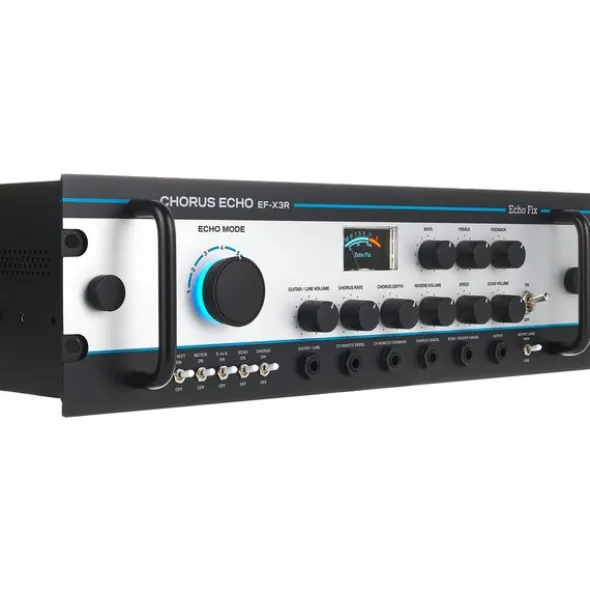

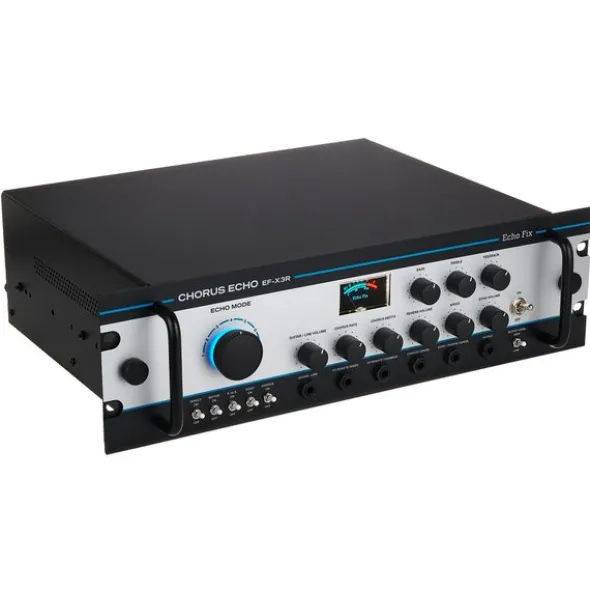

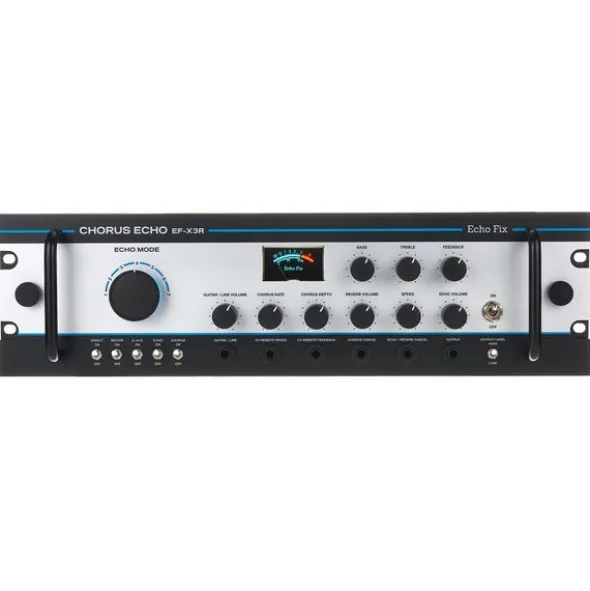

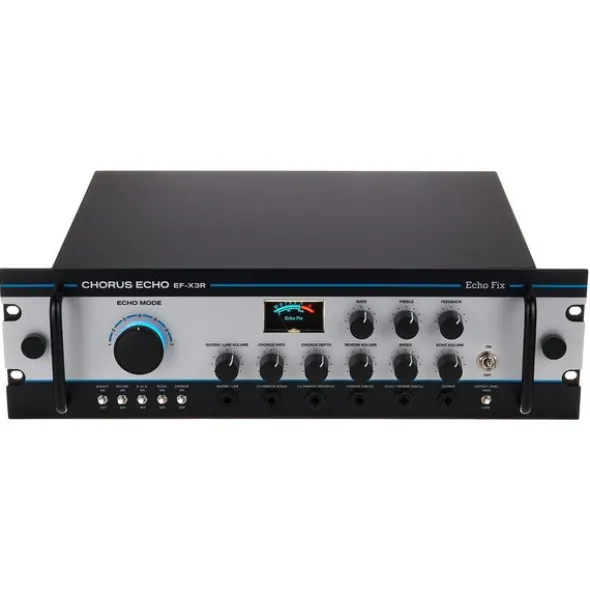

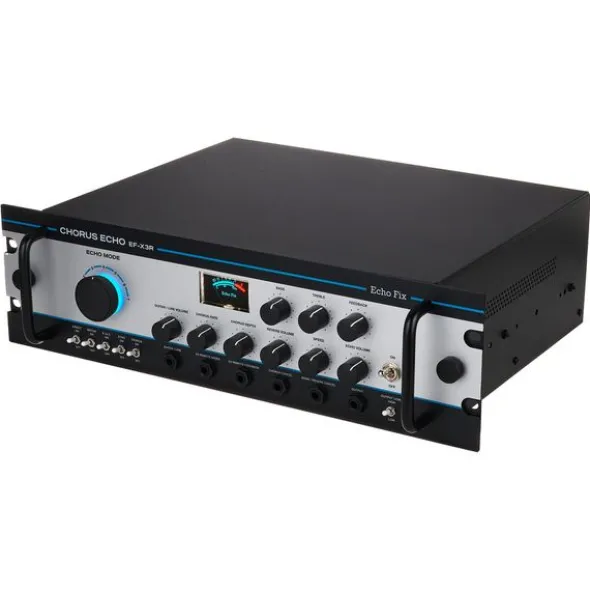

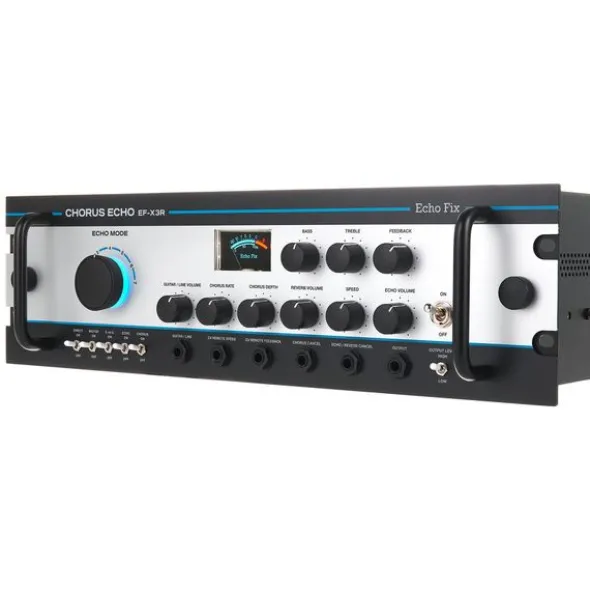

Echo Fix EF-X3R Chorus Echo Silver

Tape Echo with Chorus and Spring Reverb

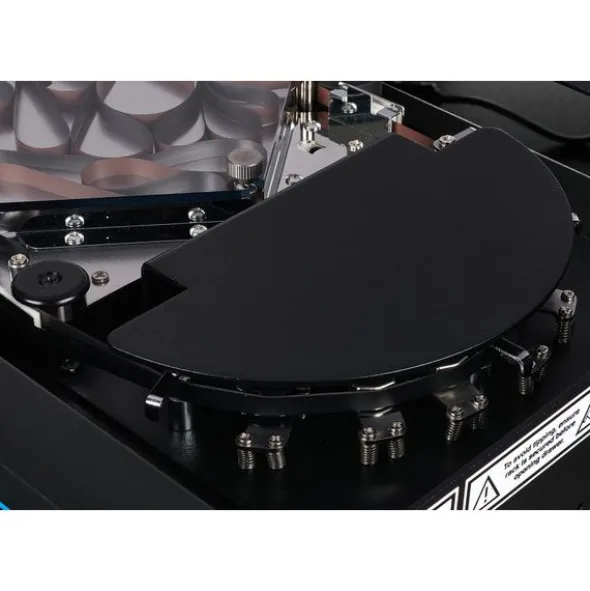

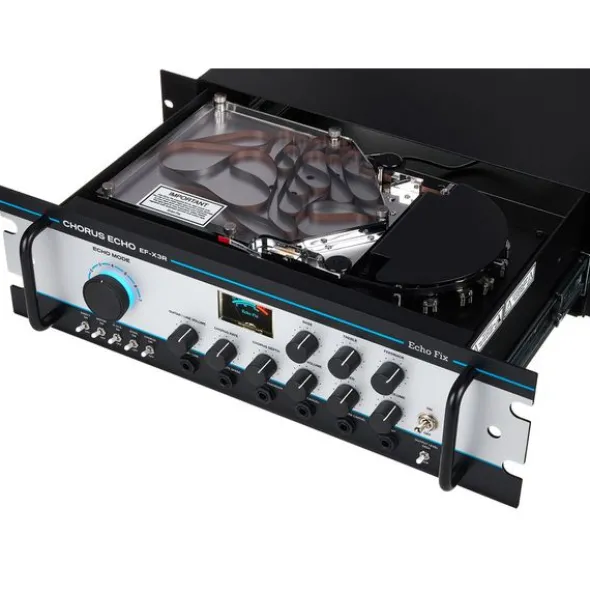

• Analogue tape echo with 4 playback heads, additional analogue chorus based on a ‘bucket brigade’ delay and classic spring reverb
• Automatic tape stop for a longer durability of the tape
• Direct On/Off: switches the direct signal on or off
• Motor On/Off: Enables the tape drive motor to be switched on and off to achieve the tape stop effect or to increase the durability of the tape
• Sound on Sound On/Off switch: activates an additional playback head (loop or overdub function)
• Echo On/Off: Bypasses the tape circuit for pure use as a reverb with preamp (instrument input)
• Chorus On/Off: activates the chorus effect
• Combined jack input for guitar or line signals via FET input stage with 1 MegaOhm impedance

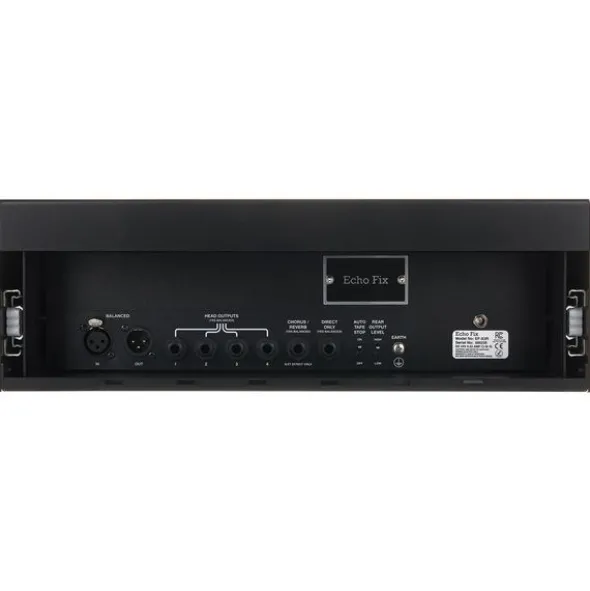

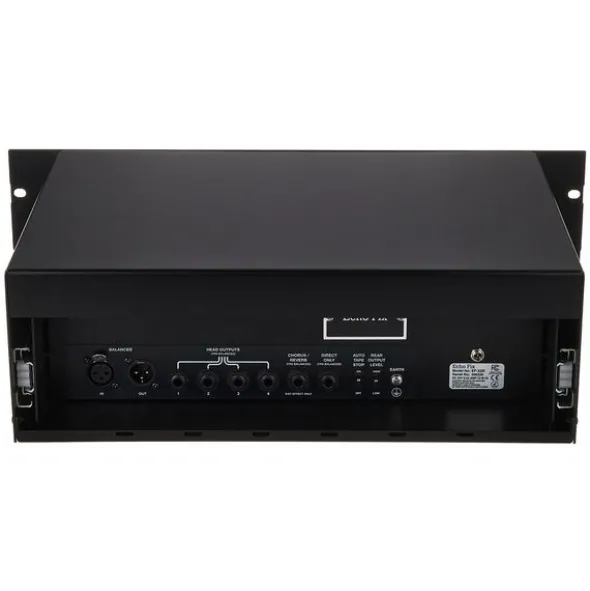

• Balanced direct outputs on TRS jack for playback heads as well as for reverb / chorus signal and direct signal enable individual mixes and further effects
• Balanced XLR input and output
• CV control for motor speed and feedback level
• Pedal inputs for activating chorus or echo / reverb
• Dimensions: 19″ / 3U x 185 mm
• Weight: 12 kg
• Colour: Silver
• Includes 2 tape loops
