Fender Studio Quantum HD2

20 x 24 USB 2.0 Audio Interface with USB-C Connection

• Conversion with up to 32 bit / 192 kHz
• 48 V phantom power
• 2 MAX-HD preamps with 75 dB gain each
• Auto Gain function
• Control functions such as preamplification and phantom power directly from Studio Pro or the Universal Control app

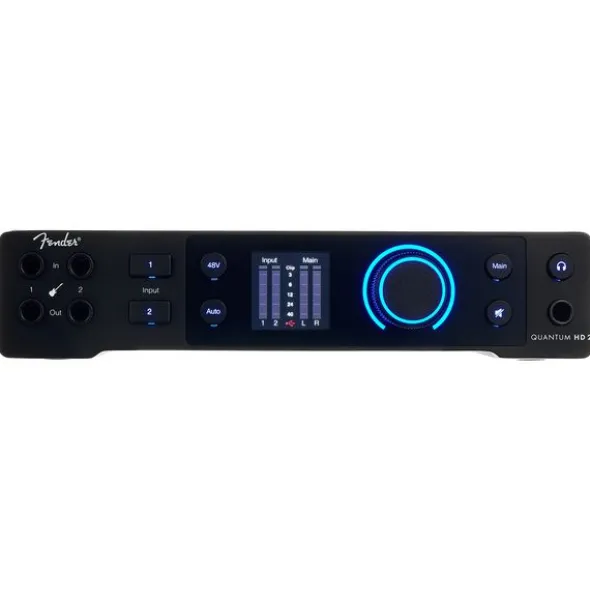

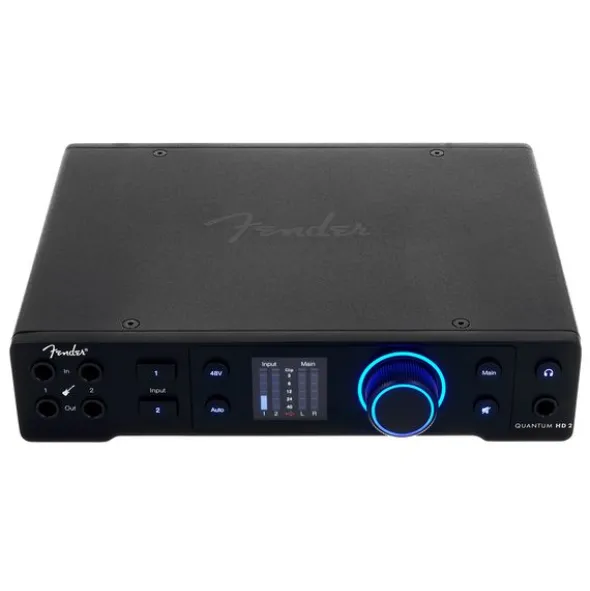

• High-resolution full-colour screen for monitoring the input and output levels
• Loopback function
• Integrated speaker switching for use with up to 2 pairs of speakers
• Latency-free monitoring

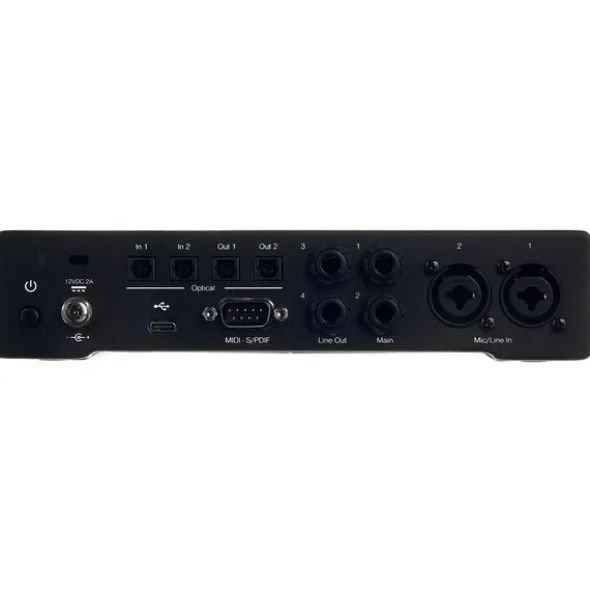

• 2 Combo input mic/line: XLR/jack
• 2 front-sided instrument inputs
• 2 Re-Amp outputs
• 2 ADAT inputs and outputs and stereo S/PDIF input and output
• 2 balanced TRS main outputs
• 2 TRS jack/line outputs
• MIDI in and out
• Stereo headphone output
• System requirements: Windows 10 or higher, Mac OSX 10.14 or higher
• Dimensions (W x D x H): 215 x 190 x 48 mm
• Weight: 1.32 kg

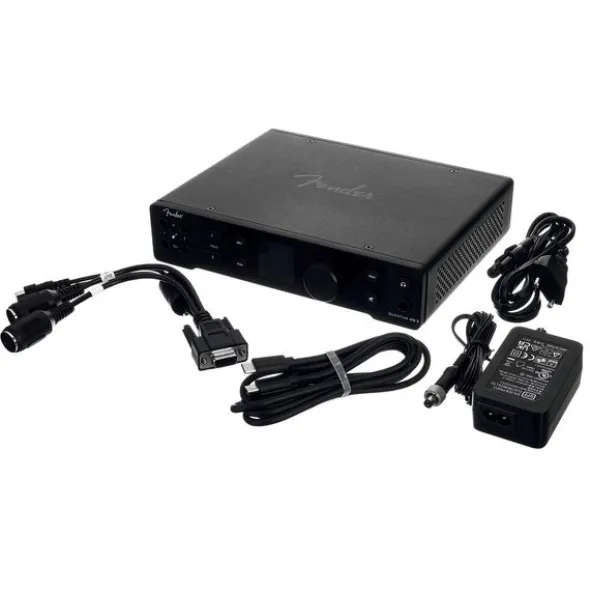

• Includes 1.5 m USB-C to USB-C cable, breakout cable for MIDI and S/PDIF, and Fender Studio Pro Perpetual (download)

Disponível desdeJaneiro 2026

número de artigo633938

unidade de venda1peça(s)

Recording / Playback Channels20×24

Number of Mic Inputs2

Number of Line Inputs2

Instrument Inputs2

Number of Line Outs4

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors2

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceYes

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits32 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width215 mm

Depth190 mm

Height48 mm

Connection FormatUSB port Type C

Included in deliveryPower Supply, Power Cable, USB-C Cable, S/PDIF + MIDI In/Out Adaptor Cable

Zero latency monitoringYes
