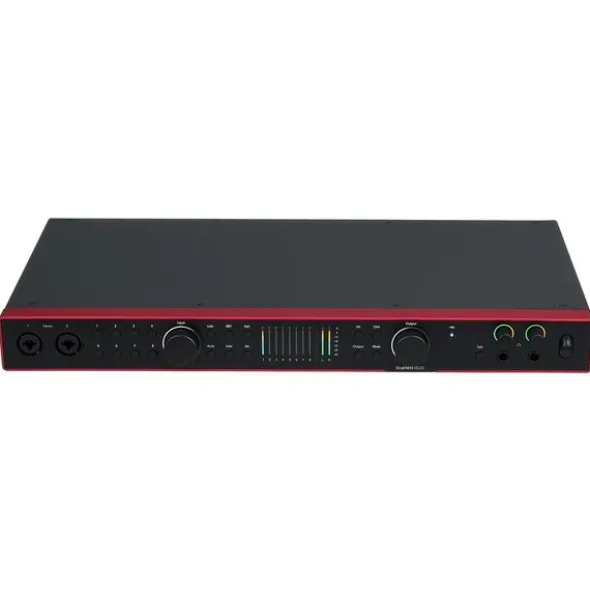

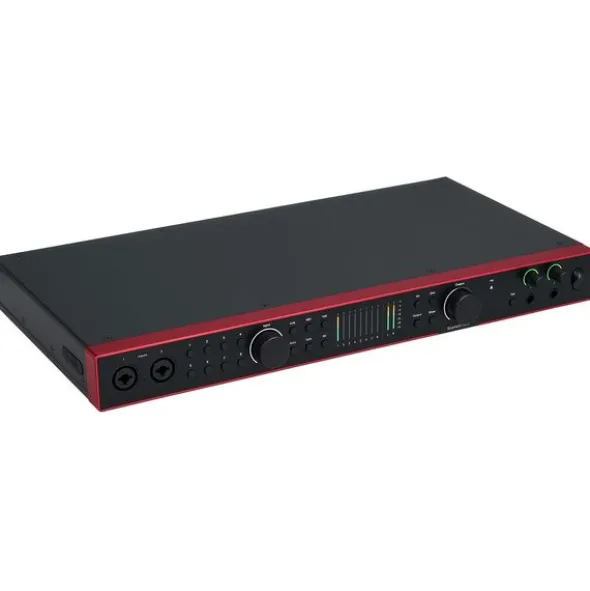

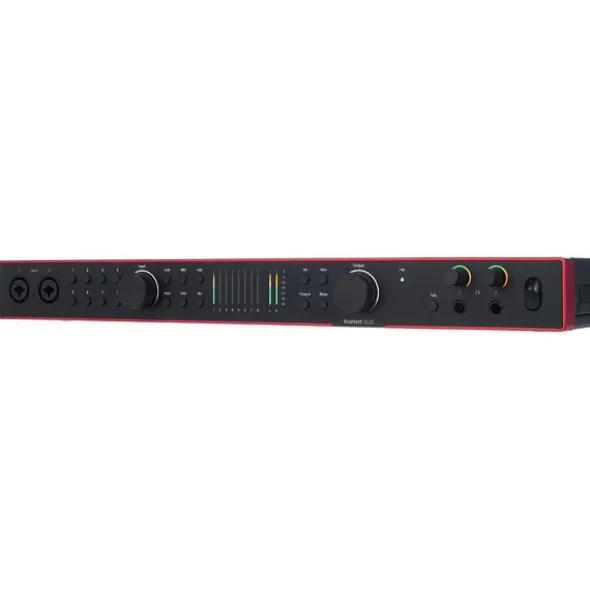

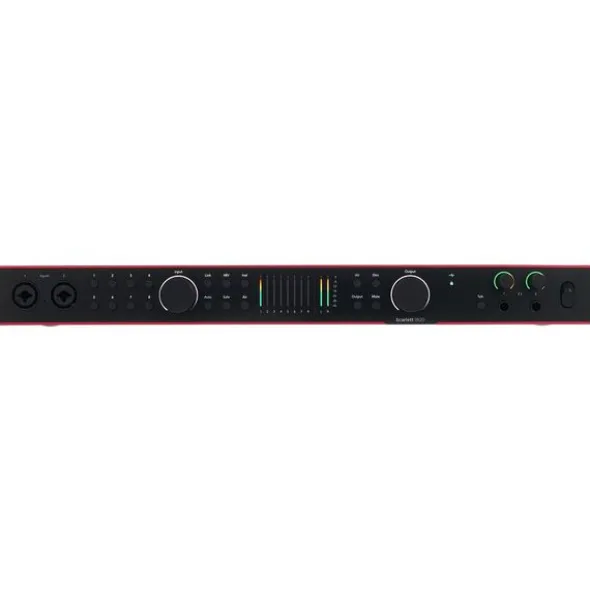

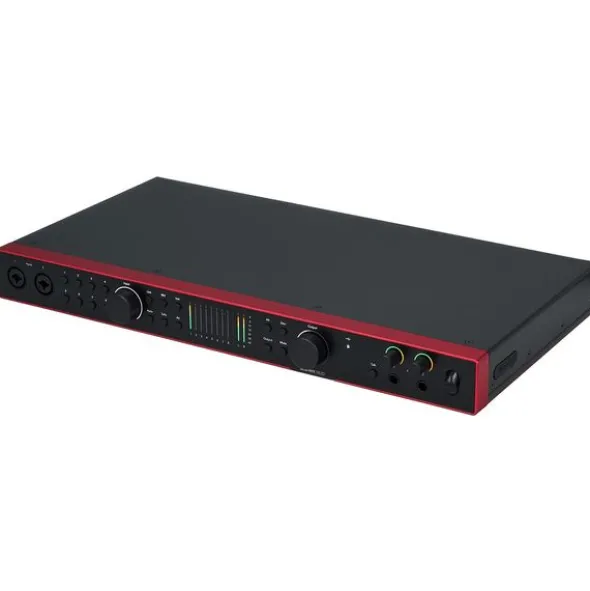

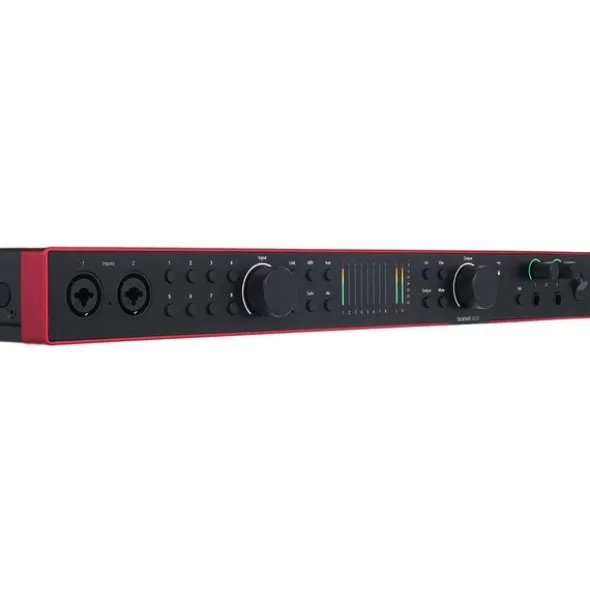

Focusrite Scarlett 18i20 4th Gen

18-Channel USB 2.0 Audio Interface with USB-C Connector

• 24-bit / 192kHz
• 122 dB Dynamic range
• Eight Scarlett microphone preamps with 69 dB gain
• +48 V phantom power
• 18 physical inputs and outputs – can be used simultaneously 20 x 24 incl. loopback
• Switchable Air mode with Presence and Harmonic Drive
• Auto-gain and clip-safe function
• Dynamic level display for inputs and outputs
• Loopback
• Built-in talkback microphone
• Focusrite Control 2 software and mobile app
• Design: 19″ / 1U
• Dimensions (W x H x D): 482.6 x 46.6 x 259.8 mm
• Weight: 3.304 kg
• Includes power supply, USB cable (Type C to A), Steinberg Cubase LE, Ableton Live Lite, Pro Tools Intro+ and the Hitmaker Expansion Software Bundle (3-month Splice Sounds membership and a plugin bundle for songwriting, mixing and mastering, as well as the Avid Complete Plugin Bundle)

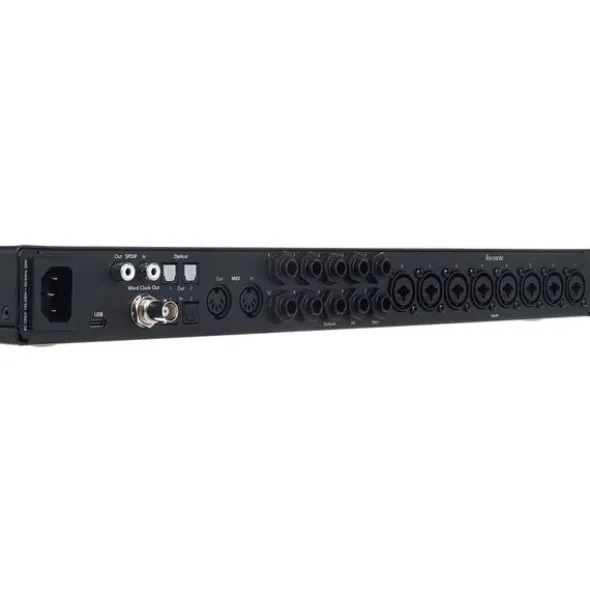

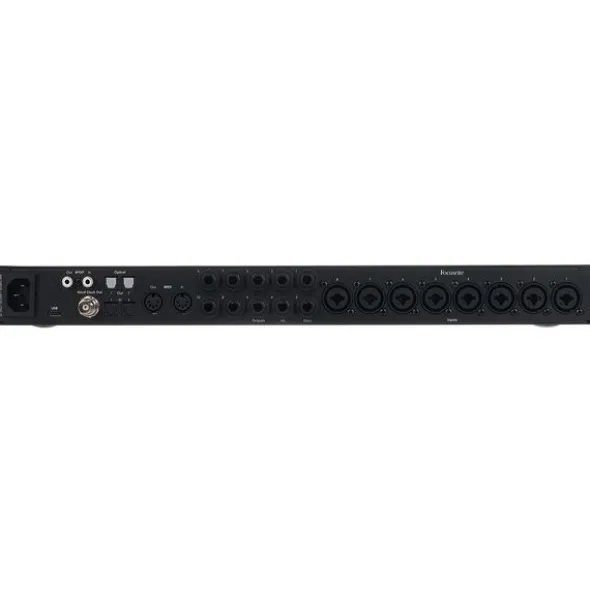

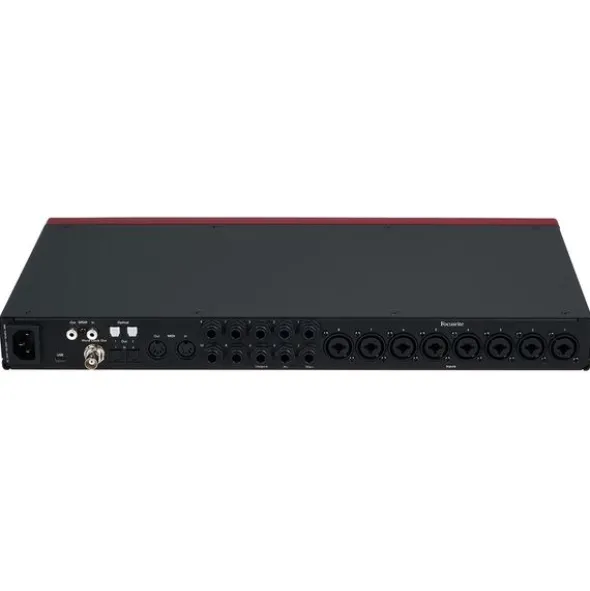

Connectors:

• Combo microphone / line inputs: Eight XLR / 6.3 mm jack, including two instrument inputs at the front
• Line outputs: Ten 6.3 mm jacks
• Two stereo headphone outputs: 6.3 mm jack
• S/PDIF input and output: coaxial
• Two ADAT inputs and outputs (16 channels at 44.1/48 kHz or up to eight channels at 96 kHz)
• Wordclock BNC
• MIDI In & Out
• USB-C for computer connection
• USB-C input for power supply (5 V DC)

Hitmaker Expansion Plugins:

• Celemony Melodyne Essential
• Softube Flow Guitar Essentials
• Native Instruments MASSIVE
• Sonnox VoxDoubler
• Brainworx bx_console Focusrite SC
• Focusrite Red 2 & 3 Plugin Suite
• XLN Audio Addictive Keys
• XLN Audio Addictive Drums 2: Studio Rock
• Relab LX480 Essentials, FAST Balancer

Disponível desdeNovembro 2024

número de artigo596531

unidade de venda1peça(s)

Recording / Playback Channels18×20

Number of Mic Inputs8

Number of Line Inputs8

Instrument Inputs2

Number of Line Outs10

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors4

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceYes

Word Clock1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width442 mm

Depth259,73 mm

Height46,6 mm

Connection FormatUSB port Type C

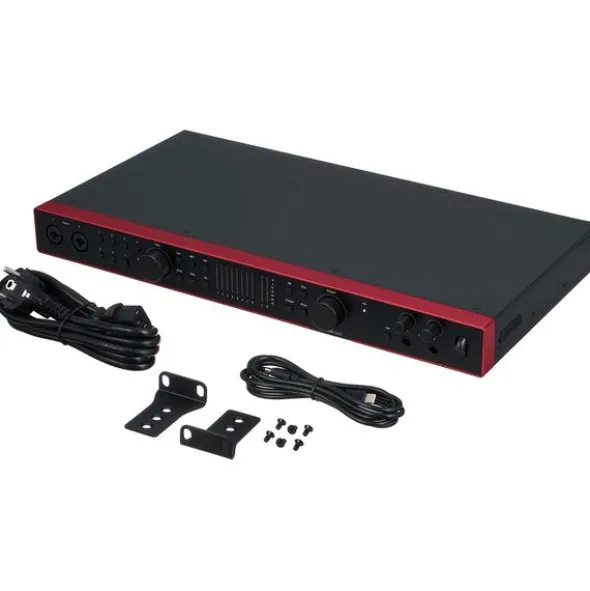

Included in deliveryPower Supply, Power Cable, USB-C Cable, USB-A to USB-C Adaptor, Rack Mount Accessories

Zero latency monitoringYes
