freqport FreqInOut FO1_2RK

8×8 Analogue Integration System for Rack Mounting with Plugin Control

• Enables the integration of analogue outboard equipment into your preferred DAW
• For sound engineers, producers and hybrid studios

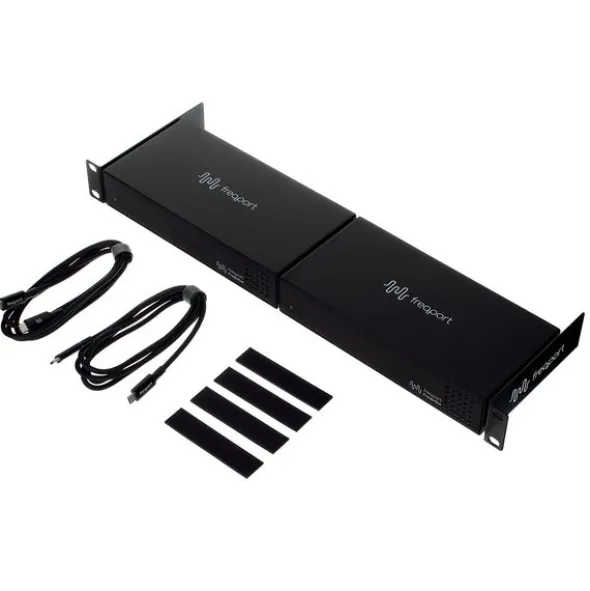

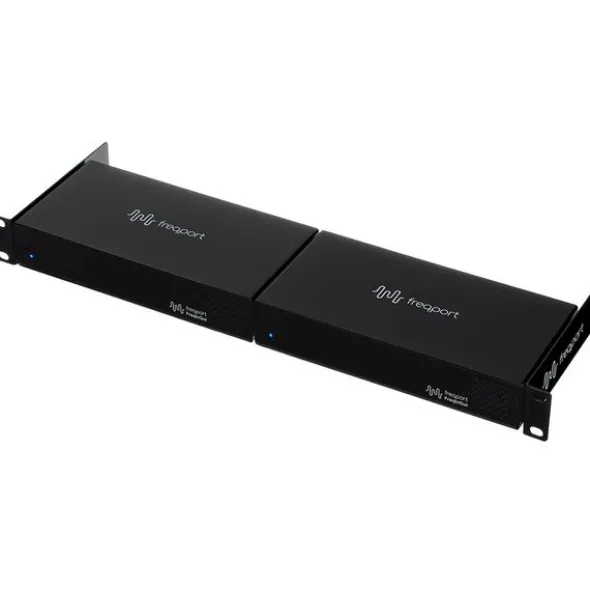

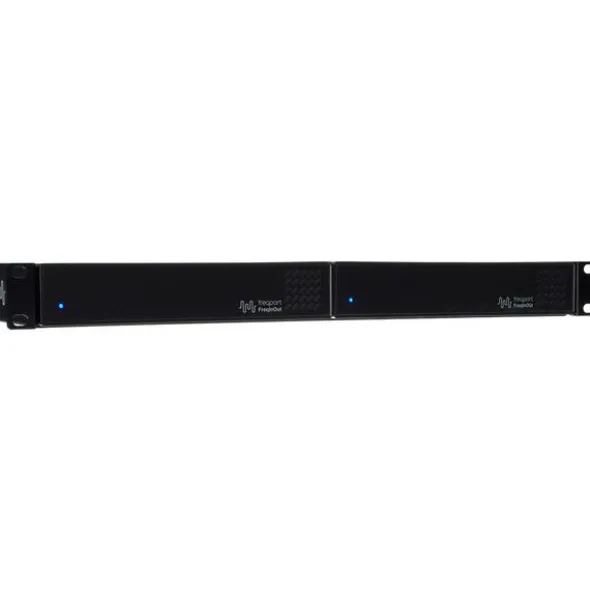

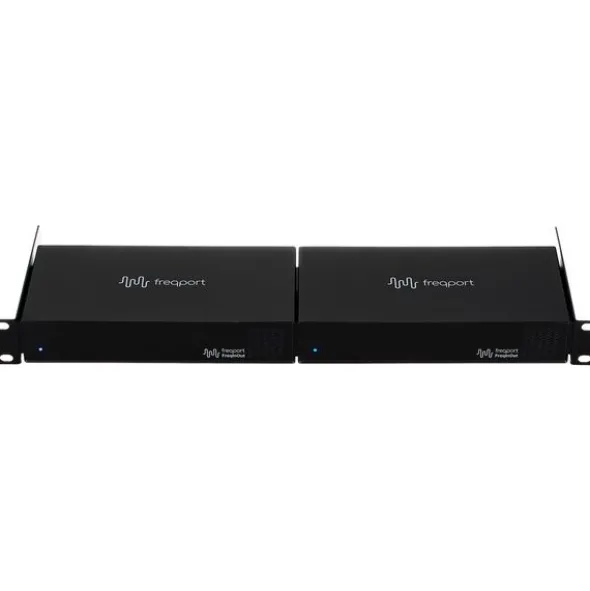

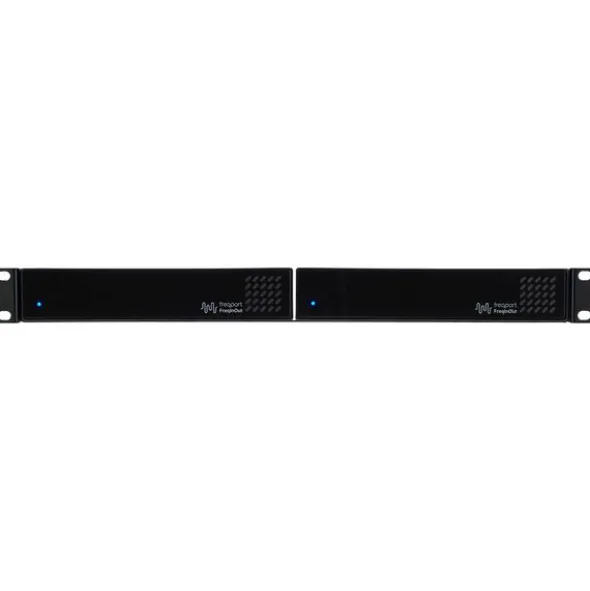

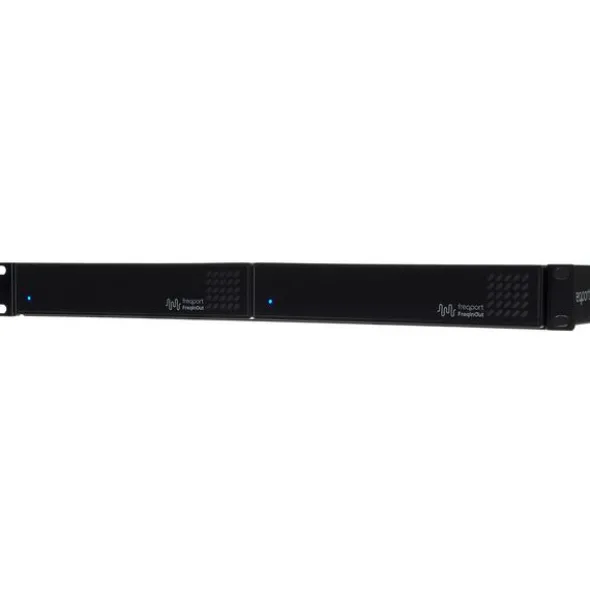

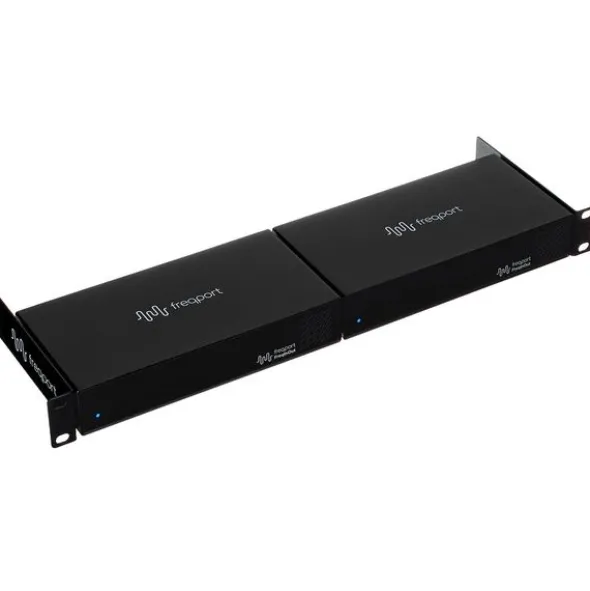

• Two integrated FreqInOut FO1 units in a 19-inch rack enclosure with 1U height
• Nominal level: -10 dBV to +4 dBu
• 4×4 analogue matrix routing per unit for flexible signal routing without the need to reconnect cables
• Hardware mix for parallel processing
• M/S mode
• Sample-accurate latency compensation
• Gain-staging control
• Automation and session recall via the FreqInOut plug-in
• QR-Capture for the visual documentation of hardware settings
• 32-bit / up to 192 kHz
• Converter dynamic range: 120 dB DAC, 116 dB ADC
• Works alongside existing audio interfaces without an aggregate device

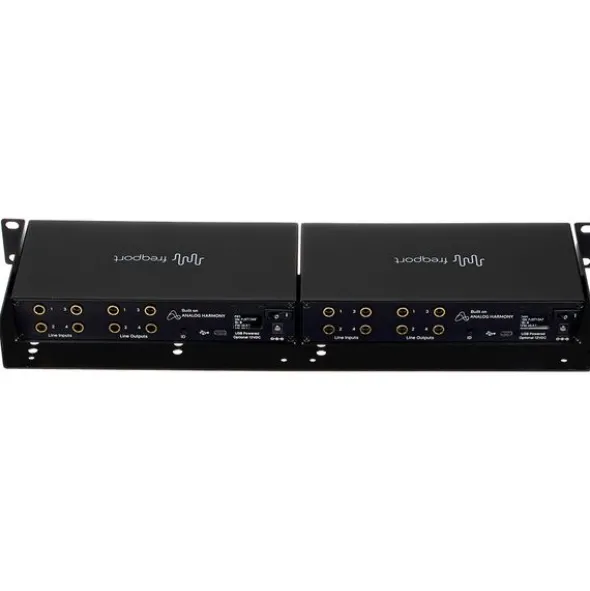

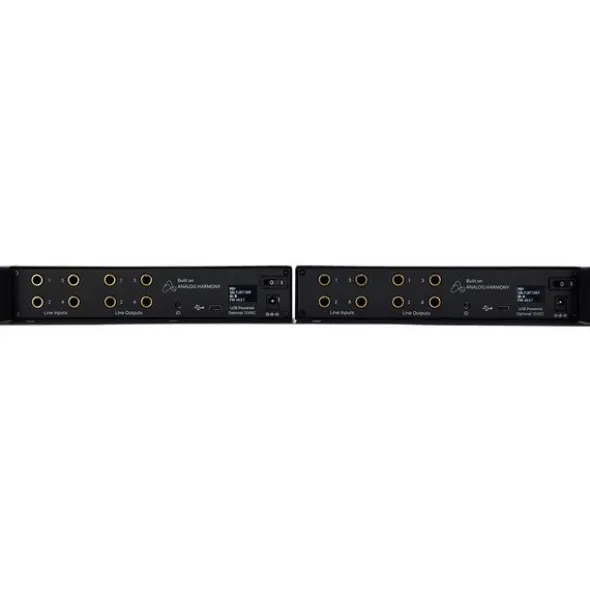

• 8 x line inputs: 6.3 mm jack, balanced
• 8 x line outputs: 6.3 mm jack, balanced
• USB-C connection
• Compatible with the most popular DAWs on Mac and PC
• Supported plug-in formats: VST3, AU, AAX
• Power supply via USB-C (5 W) or mains adaptor (12 V DC / 1 A) (not included)
• Robust metal housing
• Dimensions (W x D x H): 483 x 140 x 44 mm
• Weight: 2.9 kg

Disponível desdeJulho 2026

número de artigo649722

unidade de venda1peça(s)

Number of Mic Inputs0

Number of Line Inputs8

Instrument Inputs0

Number of Line Outs8

Headphone Outs0

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB-C

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits32 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version2.0

Width483 mm

Depth140 mm

Height44 mm

Connection FormatUSB port Type C

Amount Of Channels8

AD ConversionYes

Number of analog inputs8

Number of Analog Outputs8

Special Features8×8 Analog-Integrationssystem with Plugin Integration; 19″ Rackmount, USB-C Interface

Zero latency monitoringYes
