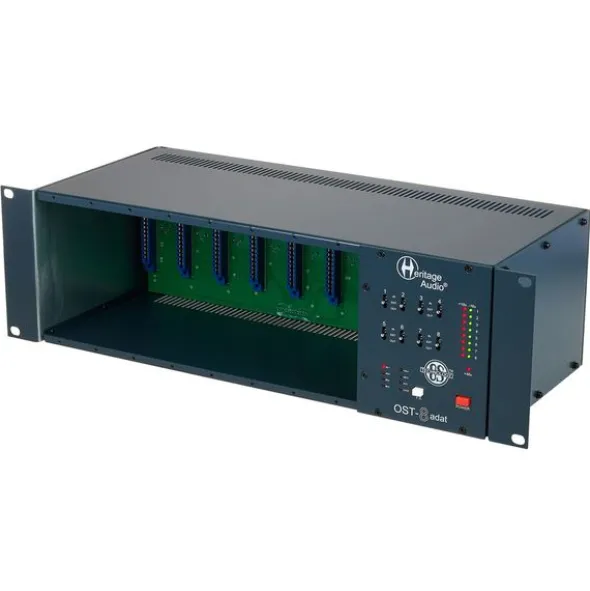

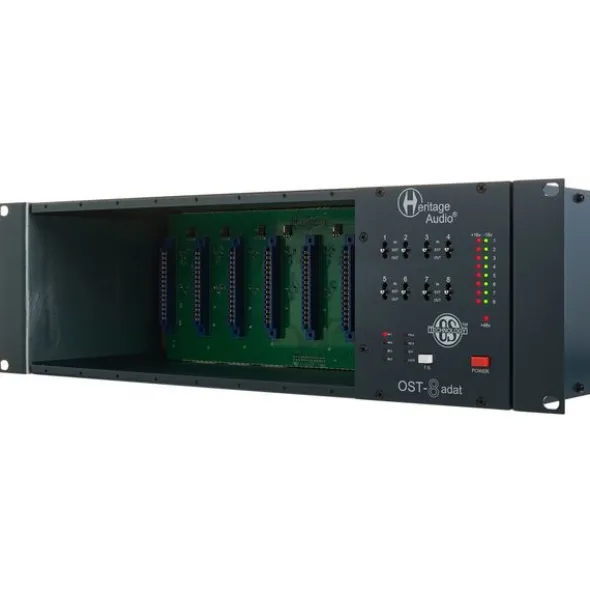

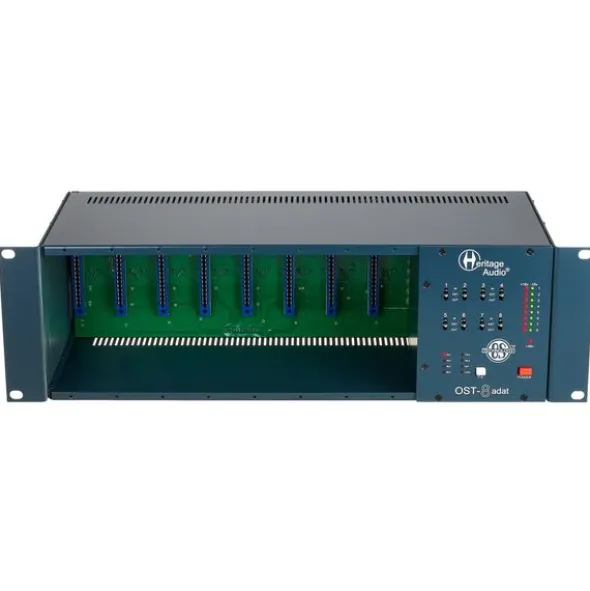

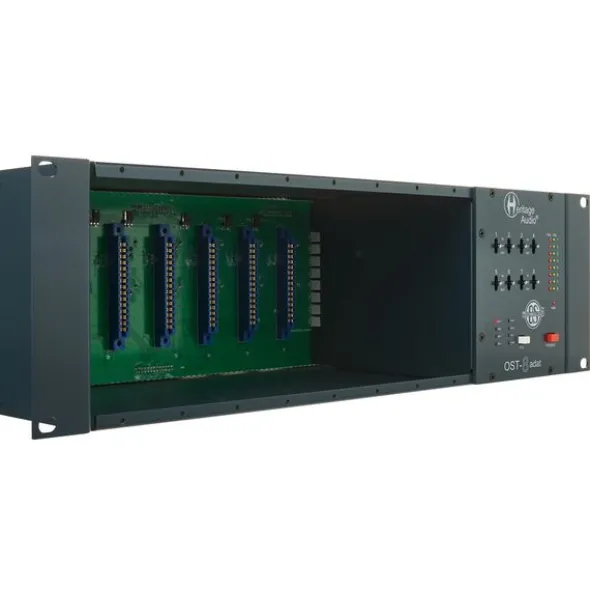

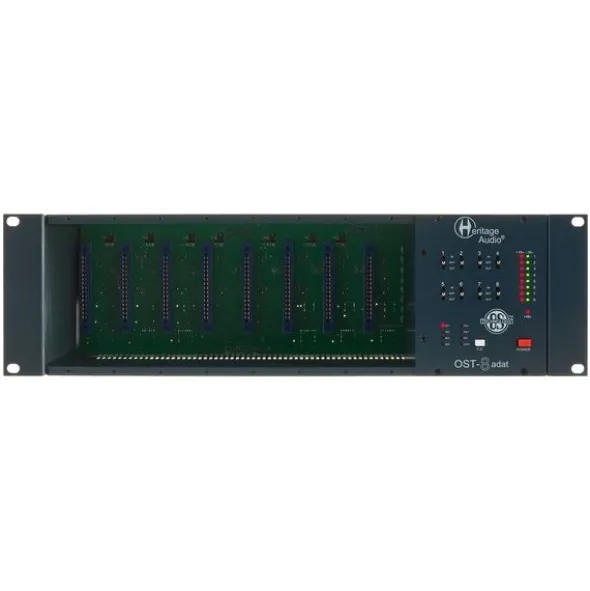

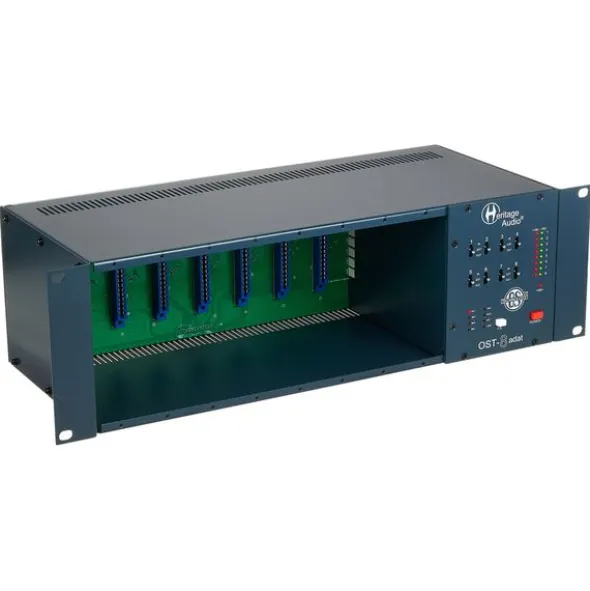

Heritage Audio OST-8 ADAT

Empty housing

• For up to eight 500 modules
• 8-Channel AD-converter 24-bit / 192 kHz
• On Slot technology (power regulation for each individual slot)
• Link function (each channel can be linked to the next channel at the push of a button)
• 400 mA power supply per module
• Phantom power (140 mA max. total requirement)
• Independent status LEDs per slot

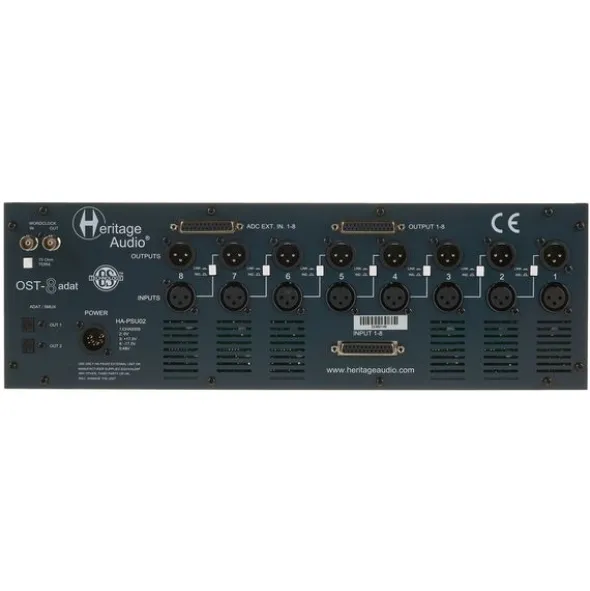

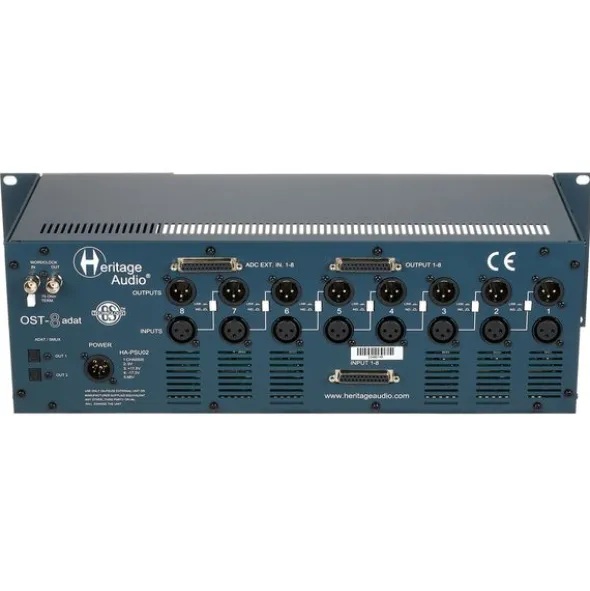

• 8 XLR inputs
• 2 Sub-D25 inputs
• 8 XLR outputs
• 1 Sub-D25 output
• 2 ADAT outputs (SMUX)
• Word clock input and output: BNC
• Sheet steel housing with aluminium front panel
• Construction: 19″ / 3U
• Dimensions (W x H x D): 482 x 134 x 200 mm
• Weight: 4.7 kg

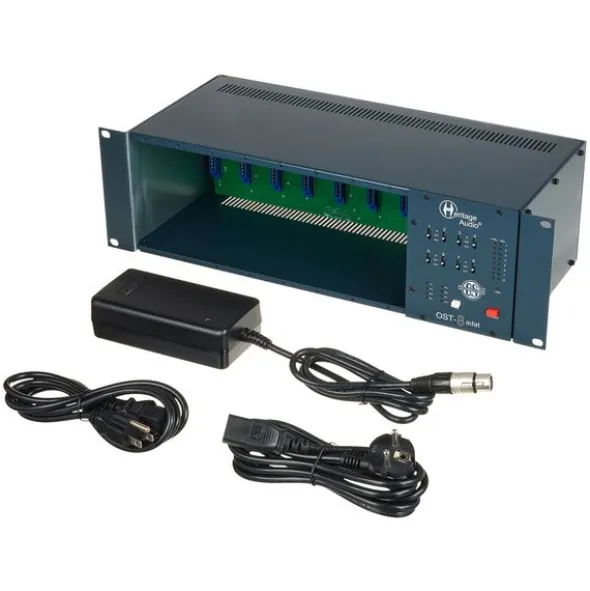

• Includes external power supply unit
