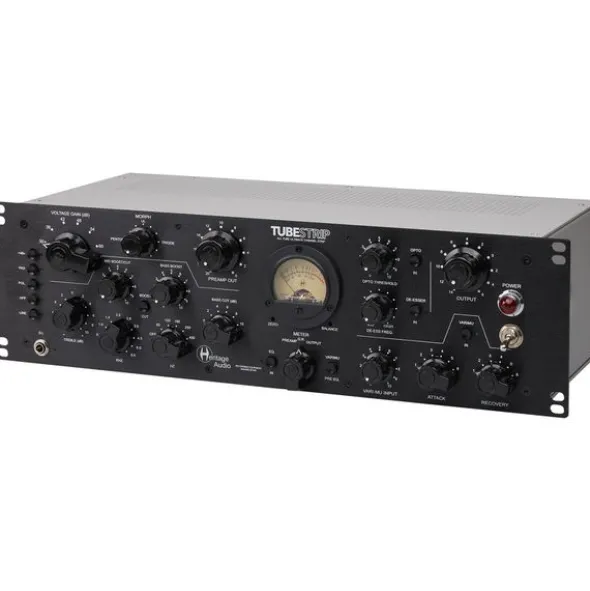

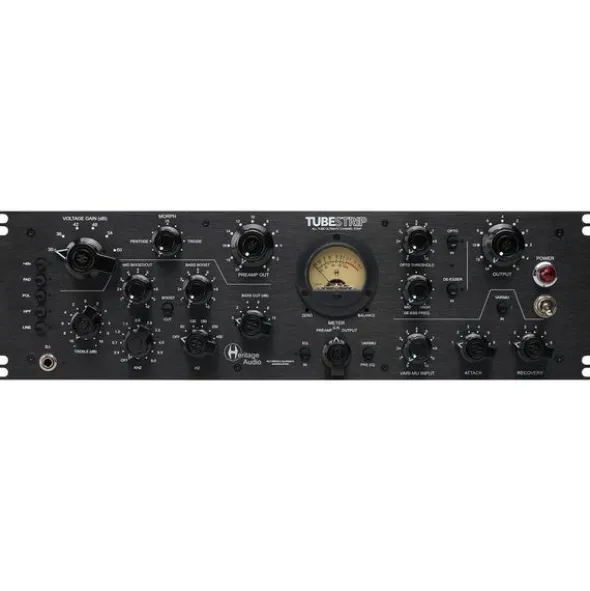

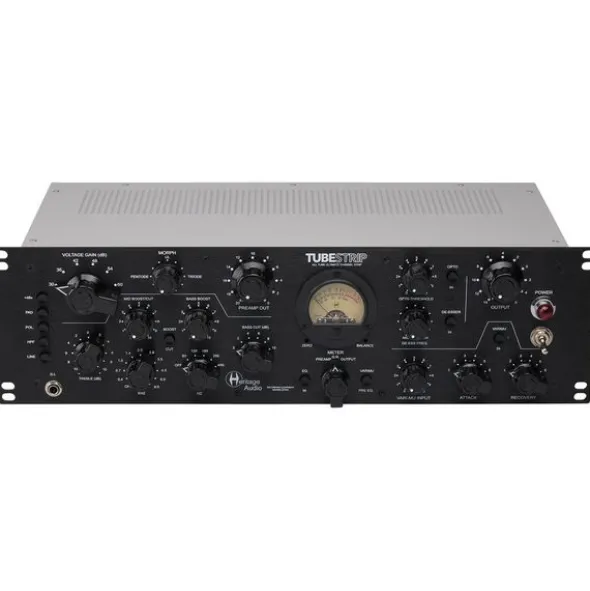

Heritage Audio Tubestrip

1-Channel Tube Channel Strip

• With two compressors for microphones and instruments
• A fully tube-based signal path from input to output
• Valve preamplifier with special morphing functions (triode to pentode)
• 4 tubes: NOS for the preamp and the Vari-Mu, and JJ for the power amp
• 4 bespoke transformers – Main IN & OUT, Vari-Mu IN / OUT
• Intuitive inductive EQ
• VARI-Mu compression
• Optical tube compression
• De-esser option for transparent de-essing
• +48V phantom power
• Input gain: 30 to 60 dB
• Output gain: -14 to +6 dB
• Dimensions (W x H x D): 483 x 123 x 204 mm
• Weight: 7.6 kg

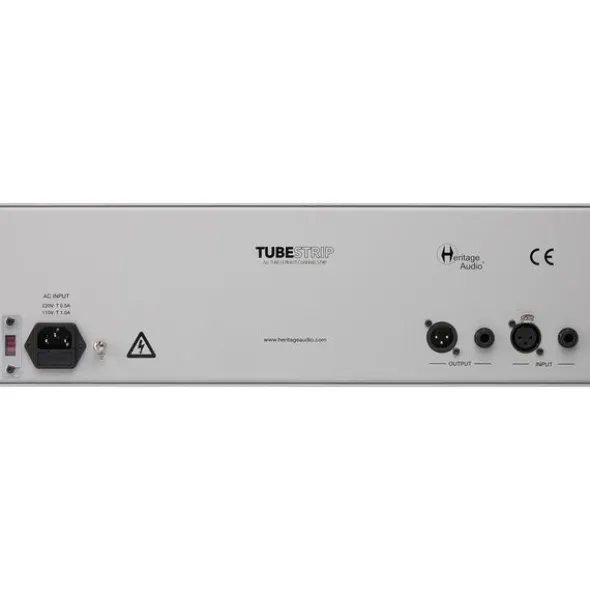

Connections:

• 1x microphone input: XLR / 6.3 mm jack
• 1x DI instrument input: 6.3 mm jack
• 1x line output: XLR / 6.3 mm jack

número de artigo649025

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesYes

Compressor/LimiterYes

EqualizerYes

De-EsserNo

Phantom powerYes

Phase ReverseNo

External effect loopsNo

Analogue OutputsXLR, jack

Digitale Outputs0

Headphone connectionNo

Level MeterYes

Design19″ / 3U
