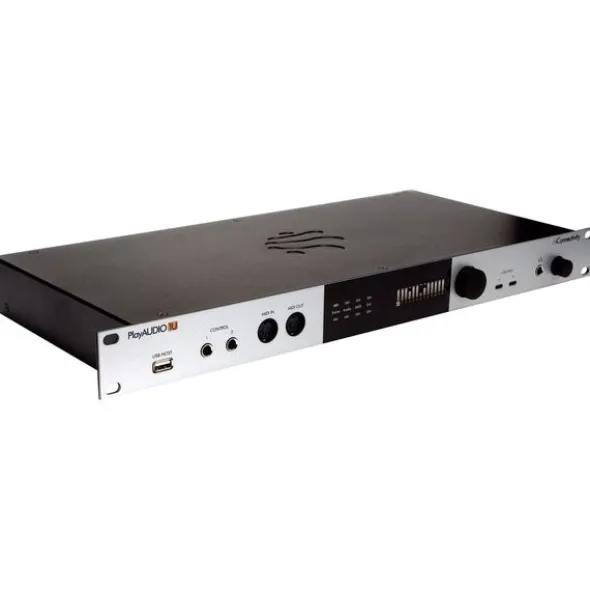

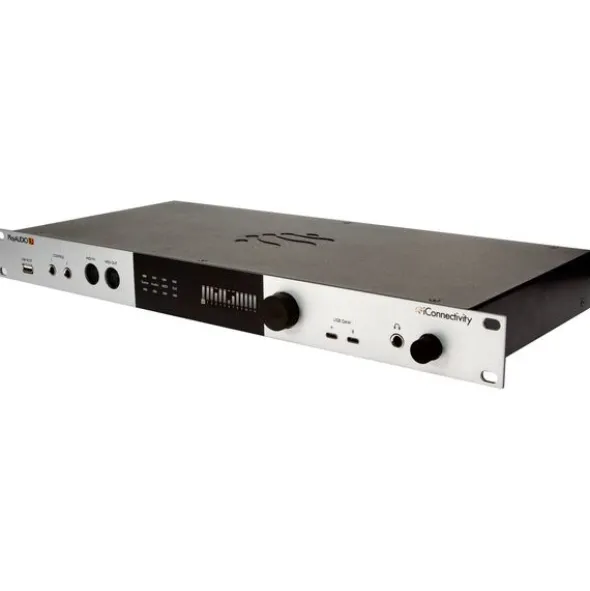

iConnectivity PlayAUDIO1U

USB Live Playback audio / MIDI interface

• For simultaneous operation on two computers for a crash-proof computer setup in live mode
• In the event of a fault on one computer, there is an automatic switchover to the second computer (automatic and manual switchover between the computer systems is possible).
• 24 Bit / 96 kHz AD/DA-converter

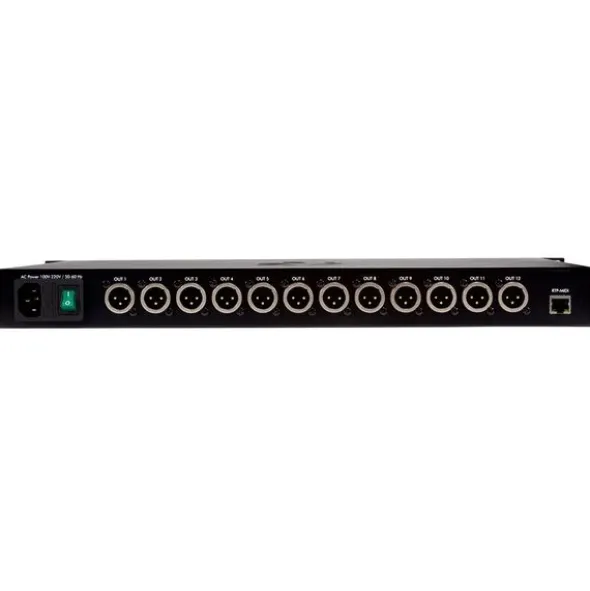

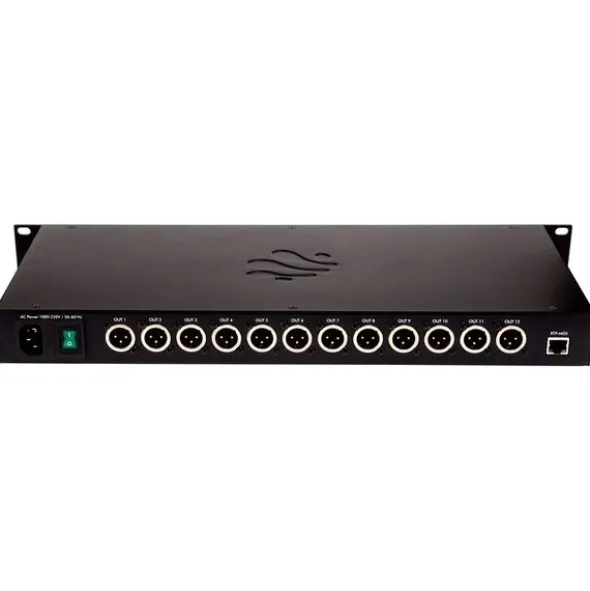

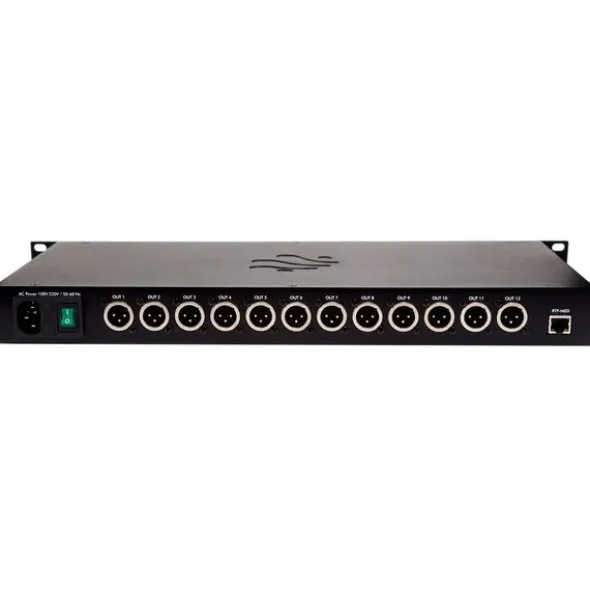

• Outputs: 12 XLR line balanced
• Stereo headphone output: 6.3 mm jack
• 2 USB C ports for two computers simultaneously
• 2 x Foot pedal connection
• USB MIDI host connection for up to 8 MIDI devices
• 1x MIDI DIN connection (In/Out) and Ethernet MIDI network connection

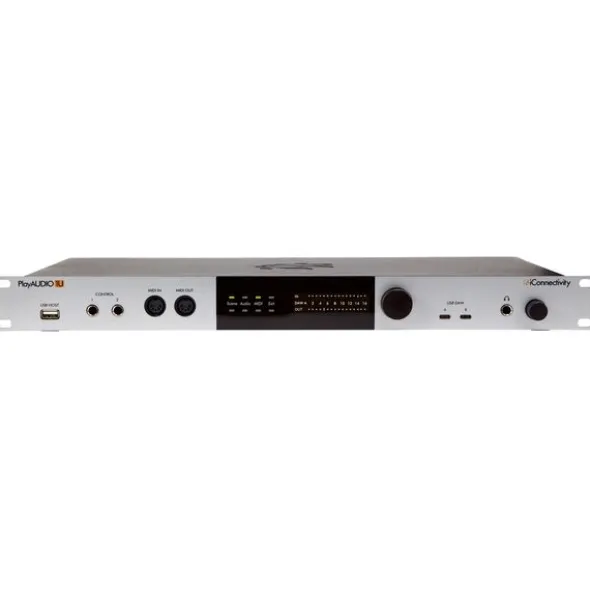

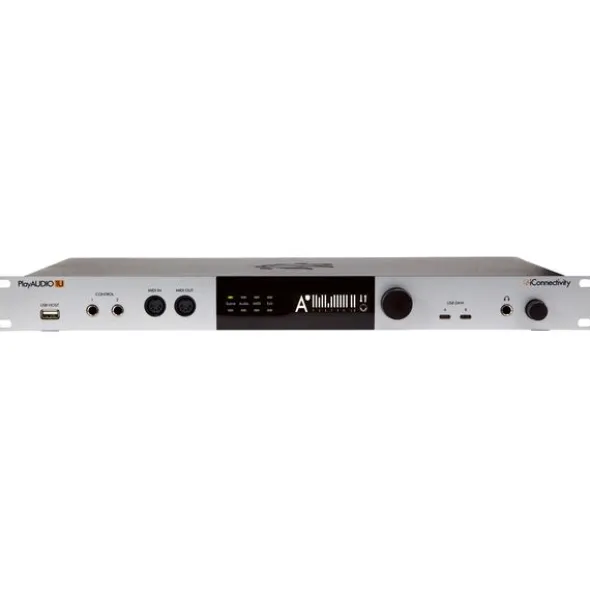

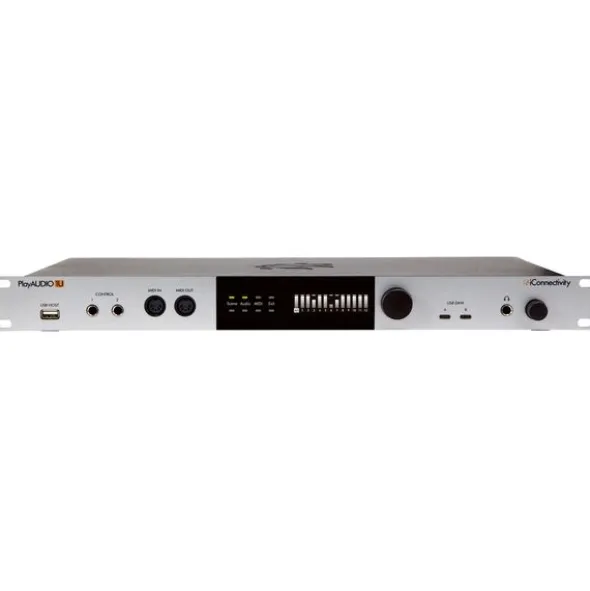

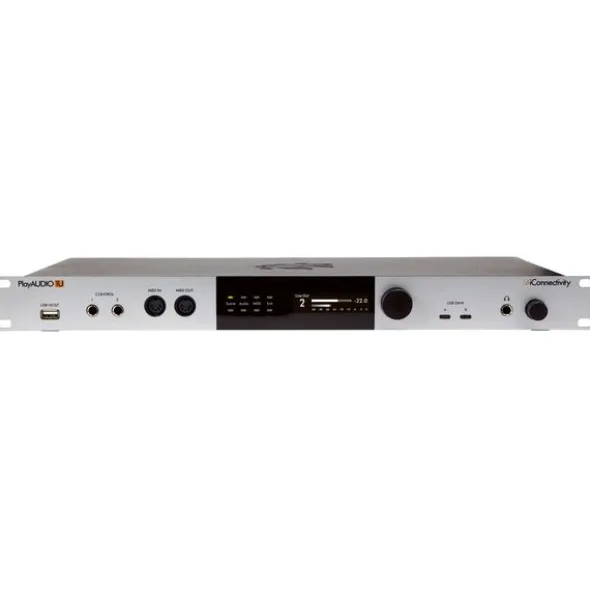

• Touch control panel with metering display
• Includes external power supply unit
• Dimensions (W x H x D): 483 x 44 x 200mm
• Weight: 2.7 kg

System requirements:

• Windows 10, Mac OS X 10.11 or higher
• iOS 8 and higher (Apple Lightning to USB camera adapter not included)
• One free USB port

Disponível desdeOutubro 2023

número de artigo575751

unidade de venda1peça(s)

Recording / Playback Channels0x12

Number of Mic Inputs0

Number of Line Inputs0

Instrument Inputs0

Number of Line Outs12

Headphone Outs1

Phantom PowerNo

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet1

Other ConnectorsNone

MIDI interfaceYes

Word ClockNo

Max. Sampling Rate in kHz96 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width483 mm

Depth200 mm

Height44 mm

Connection FormatUSB port Type C

Included in deliveryPower Cable, 2x USB-C Cables, 2x USB-A to USB-C Adaptors

Zero latency monitoringYes
