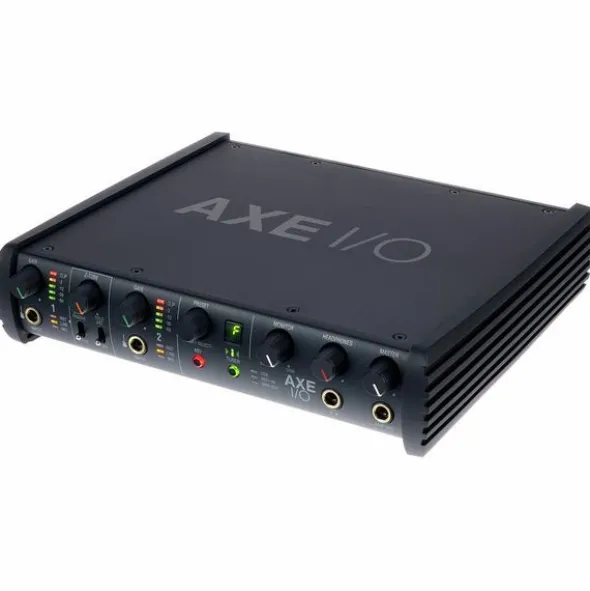

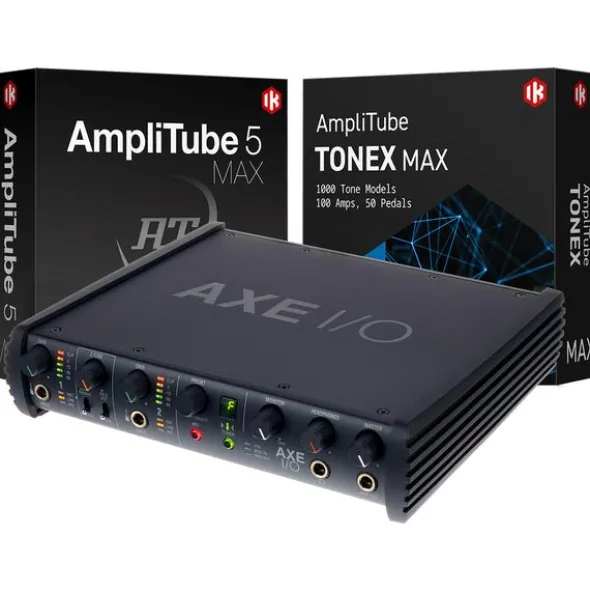

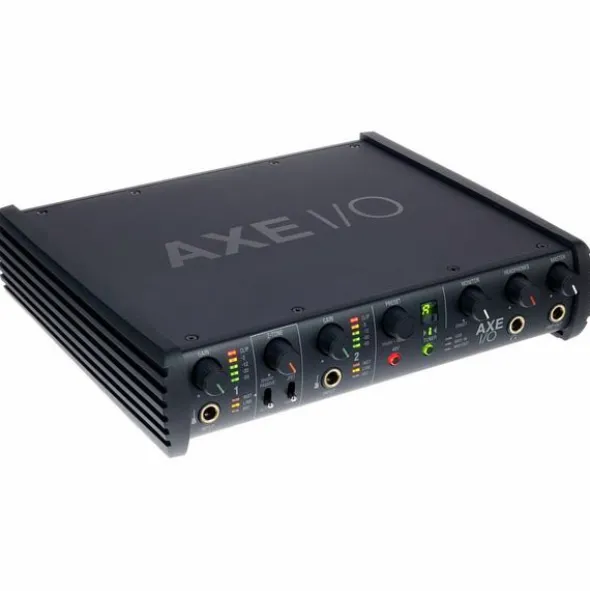

IK Multimedia AXE I/O+AmpliTube5+Tonex MAX

USB 2.0 Audio Interface with Guitar Effects Software

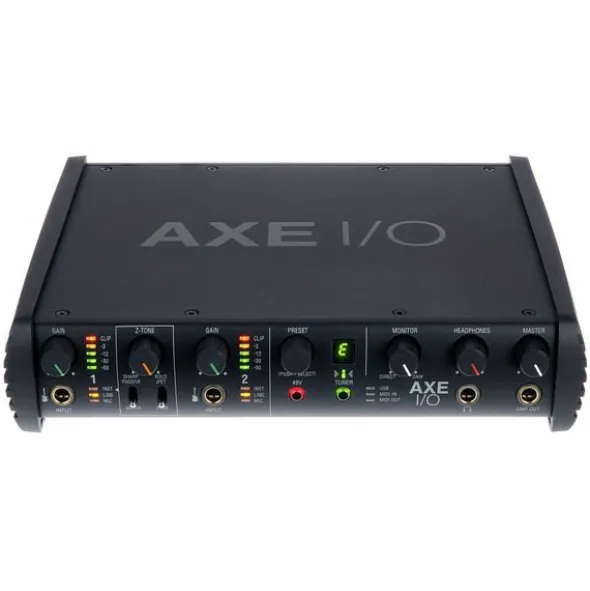

• Audio interface specially designed for guitarists
• 2 Inputs for instrument-, line- and microphone signals with discrete class-A preamps and switchable 48 V phantom power

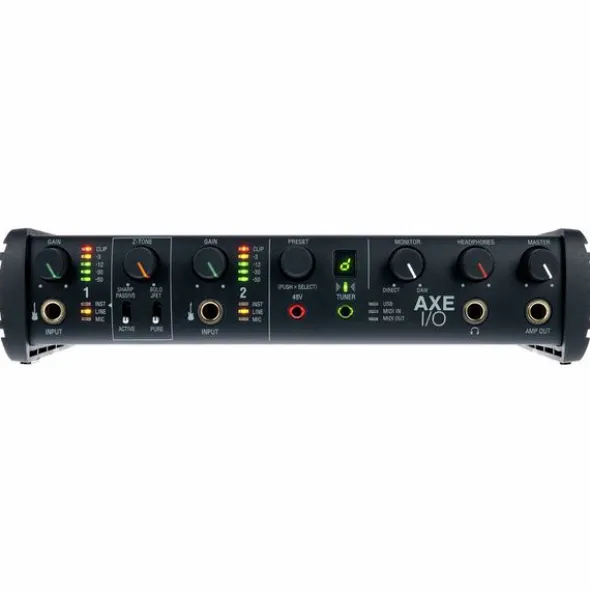

• Hi-Z instrument inputs at the front, of which input 1 is with Z-Tone (variable impedance)
• JFET circuit adds subtle harmonic enhancements + Active circuit for optimal operation with active pickups

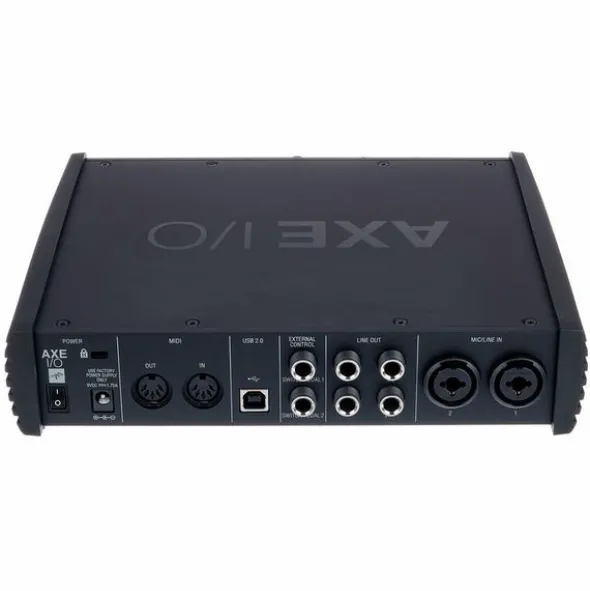

• Mic/Line inputs on the back via XLR/jack combo sockets

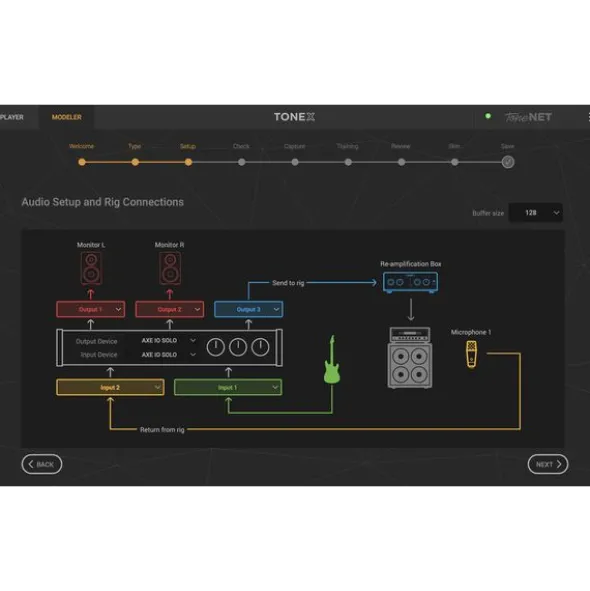

• 1 Amp output on the front for re-amping

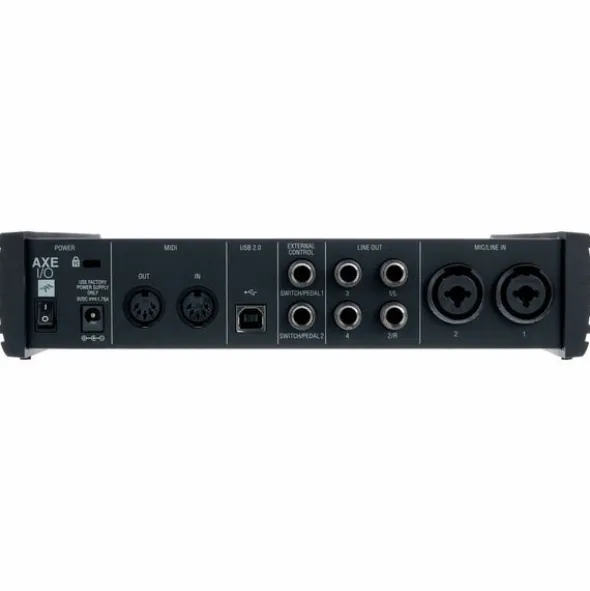

• 4 Balanced line outputs on the back with 6.3 mm TRS jacks
• 1 Stereo headphone output to 6.3 mm stereo jack with own control
• Monitor- and master volume control
• Integrated guitar tuner
• Preset controls for controlling plug-in parameters
• 2 Inputs for expression pedals or footswitches for real-time control of virtual guitar effects
• AD/DA conversion with 24-bit/192 kHz
• 117 dB Dynamic range
• MIDI input/output
• Dimensions: 238 x 211 x 53 mm
• Weight: 1.3 kg
• System requirements: from Windows 7 (64-bit), from Mac OSX 10.11 (64-bit)

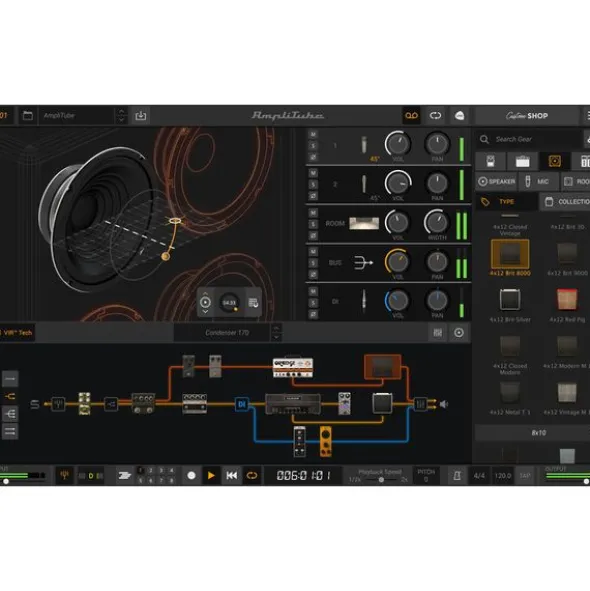

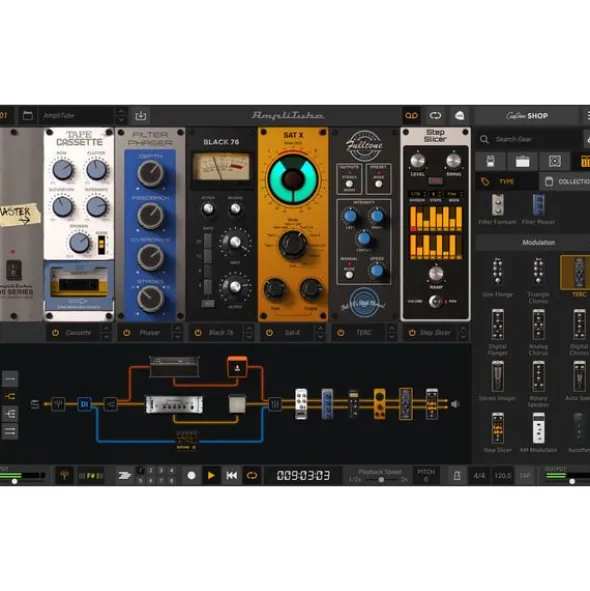

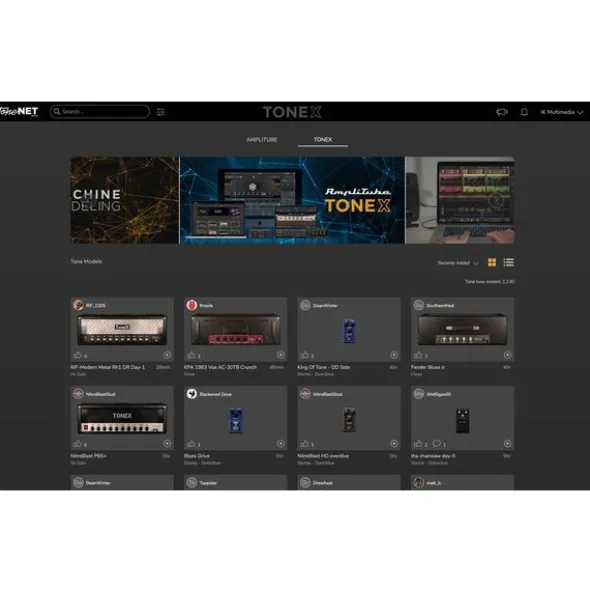

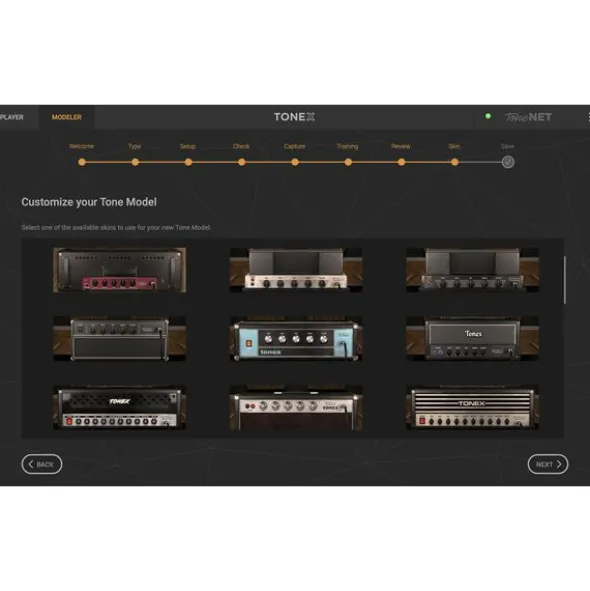

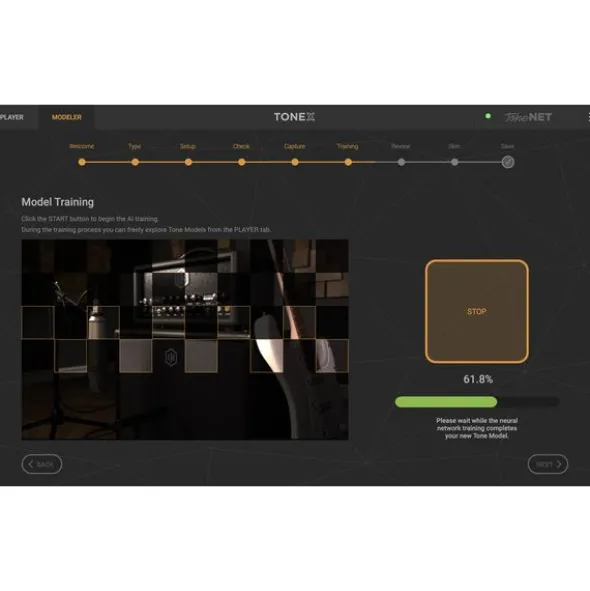

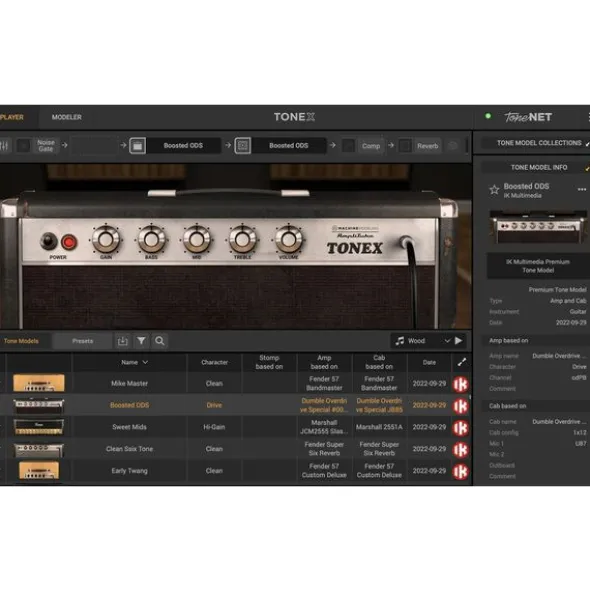

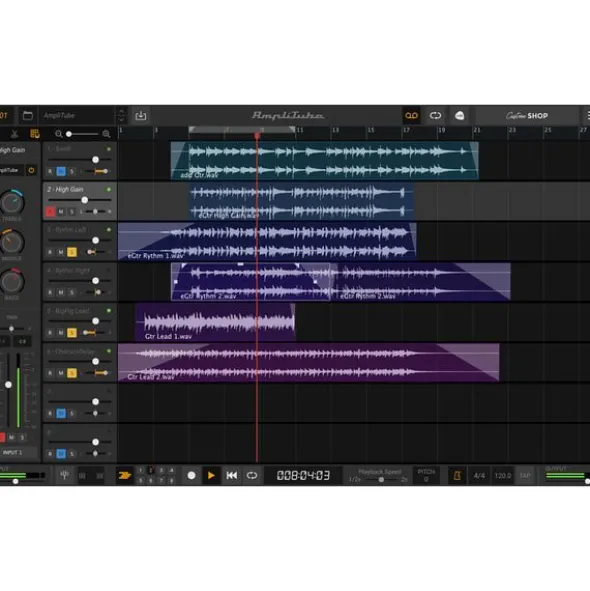

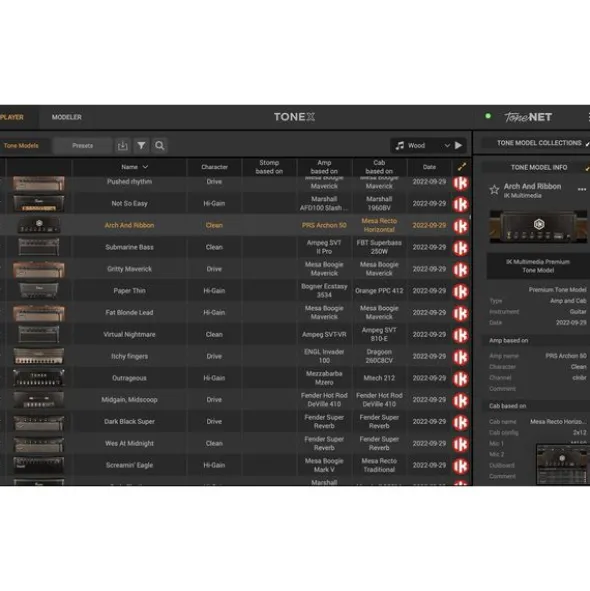

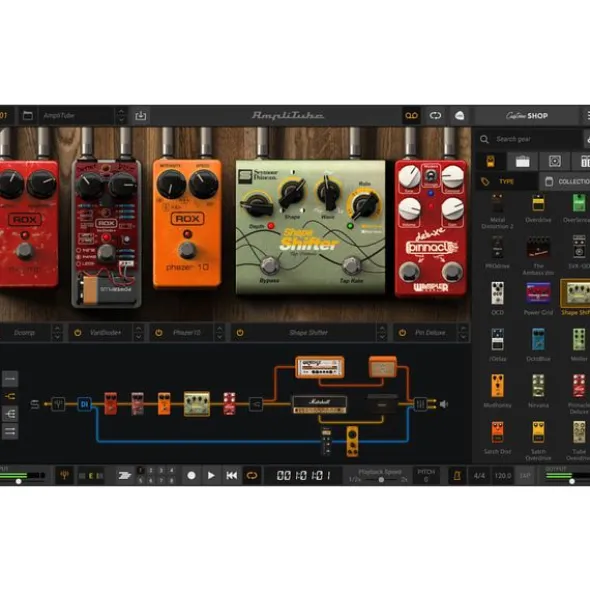

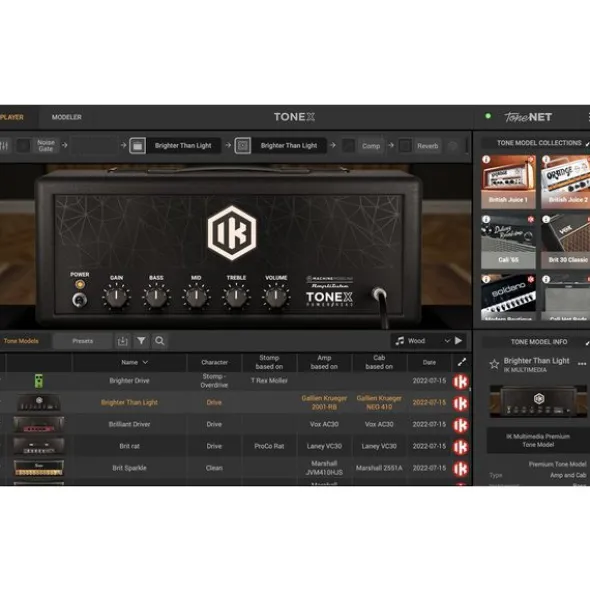

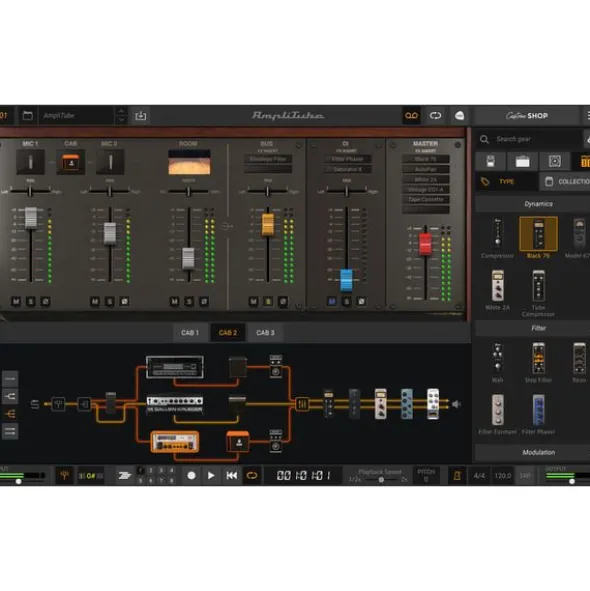

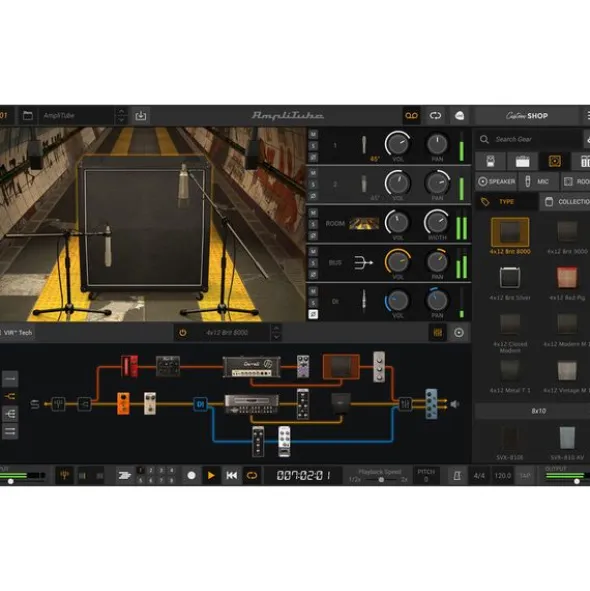

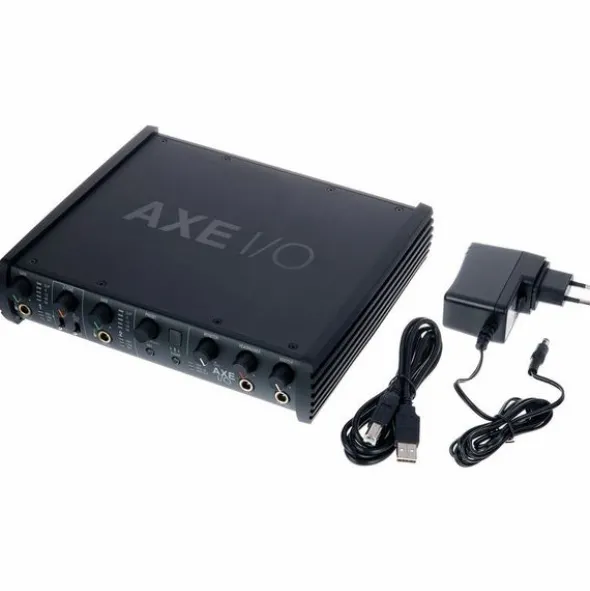

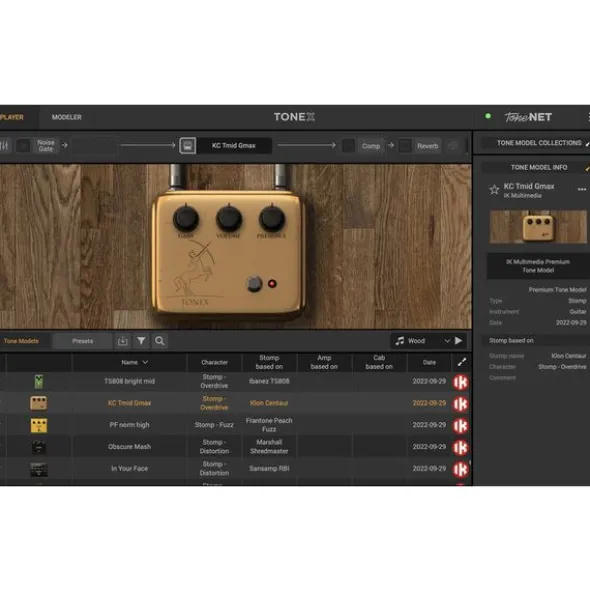

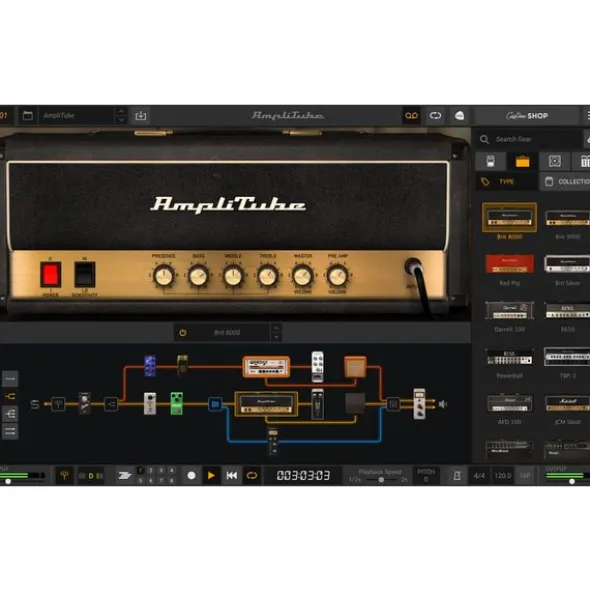

• Includes a comprehensive software package (downloadable) with AmpliTube 5 MAX, TONEX MAX, 10 T-RackS processors and Ableton Live Lite, and a 1.5 m USB cable and power supply unit

Disponível desdeFevereiro 2021

número de artigo508002

unidade de venda1peça(s)

Recording / Playback Channels2×5

Number of Mic Inputs2

Number of Line Inputs2

Instrument Inputs2

Number of Line Outs4

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceYes

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width238 mm

Depth211 mm

Height53 mm

Connection FormatUSB port Type B

Included in deliveryPower Supply, USB-A to USB-B Cable

Zero latency monitoringYes
