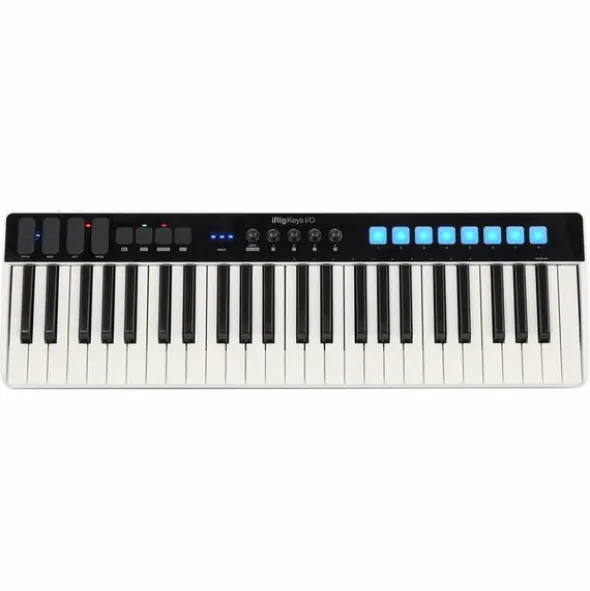

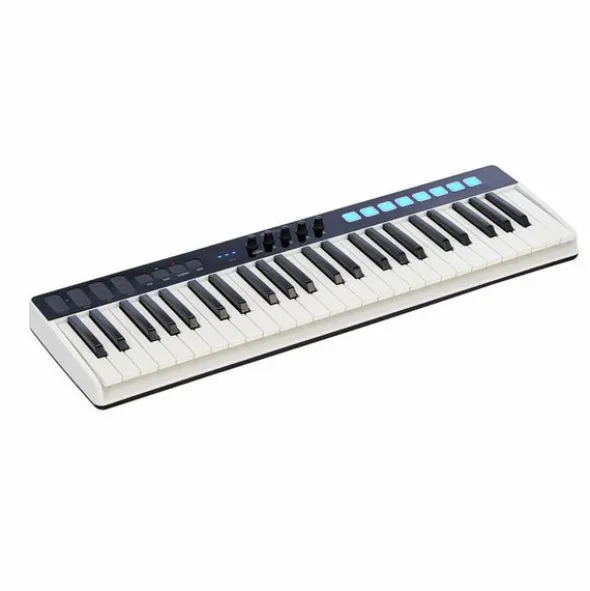

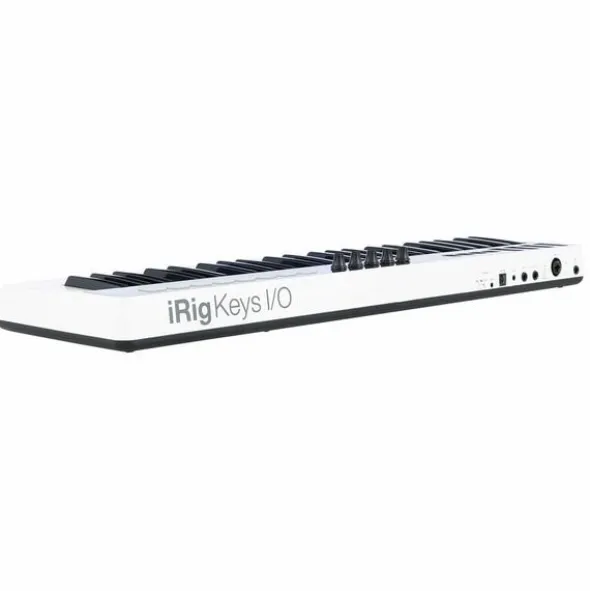

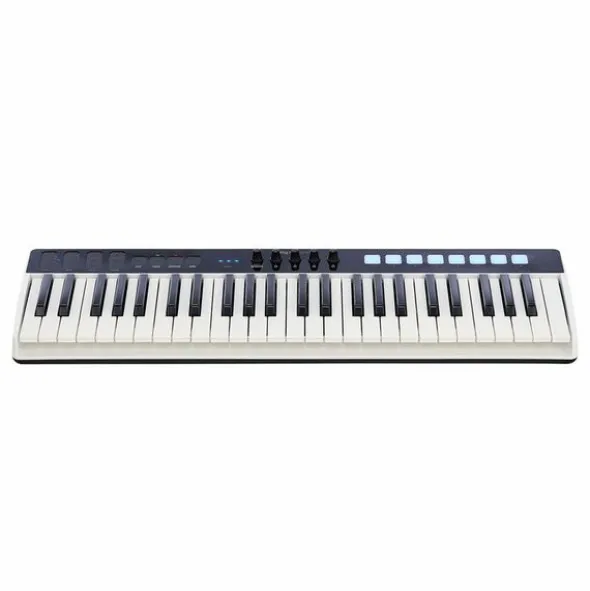

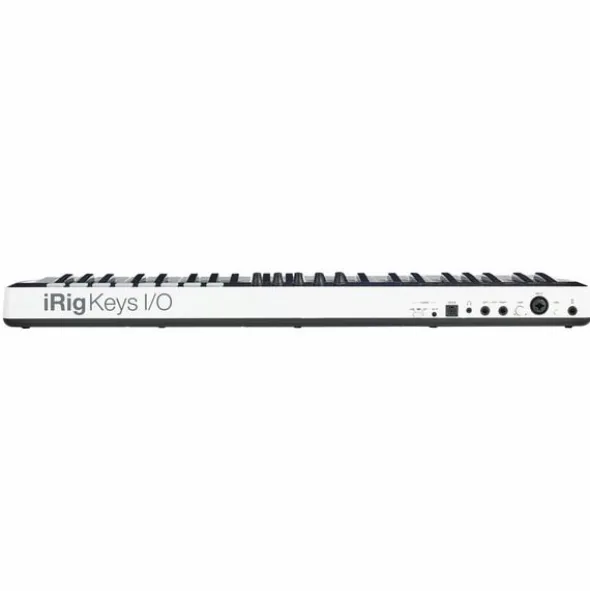

IK Multimedia iRig Keys I/O 49

USB Controller Keyboard with Built-in Audio Interface

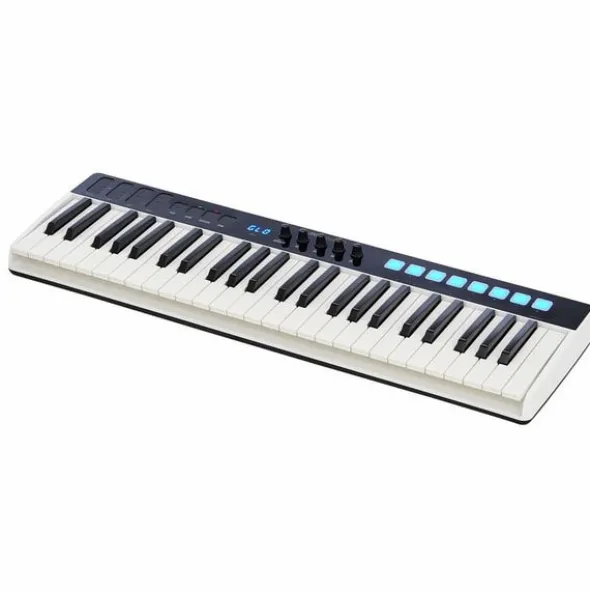

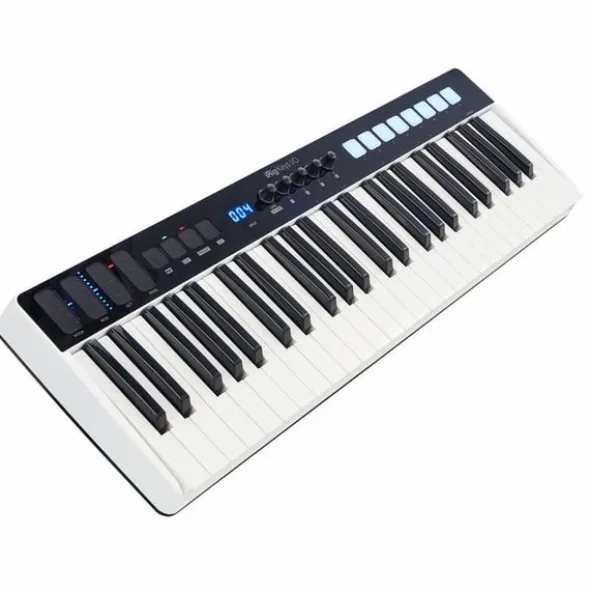

• Compact controller keyboard with 49 velocity-sensitive standard keys

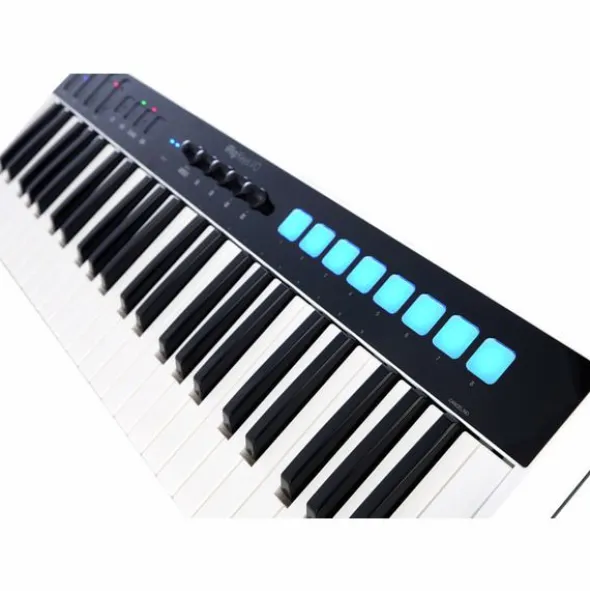

• Eight assignable velocity-sensitive multi-colour pads

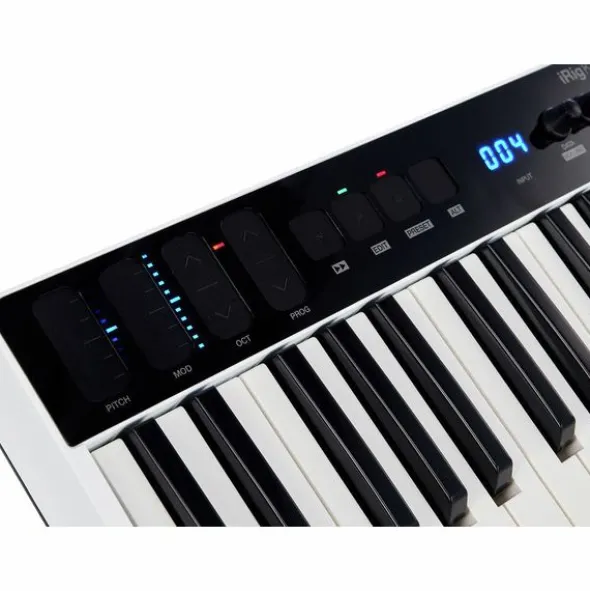

• Two touch strips

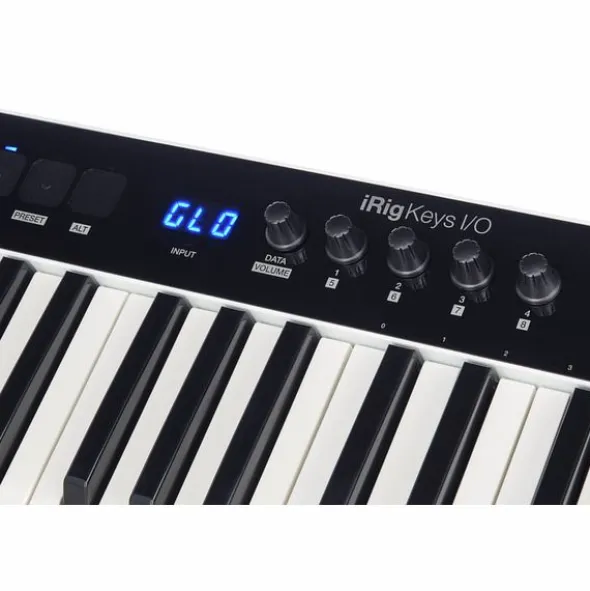

• Four dual-assignable, touch-sensitive rotary encoders
• Three buttons for transport and editing functions
• AD/DA conversion: Up to 24 bit / 96 kHz
• Stereo headphone output: 3.5 mm stereo jack, power 100 mW at 50 ohm
• Pedal connection: 6.3 mm TRS jack
• Power supply connector
• Mini DIN connector for data cable
• Power supply via USB when used with a computer, batteries or optional power supply (Art. 417705) with charging function for connected iOS devices (only via mini DIN to Lightning cable)
• System requirements: WinXP or later, Mac OSX 10.6 or later, free USB port
• Dimensions (W x D x H): 693 x 208 x 65 mm
• Weight: 2.18 kg

Note: Tablets/laptops are not included!

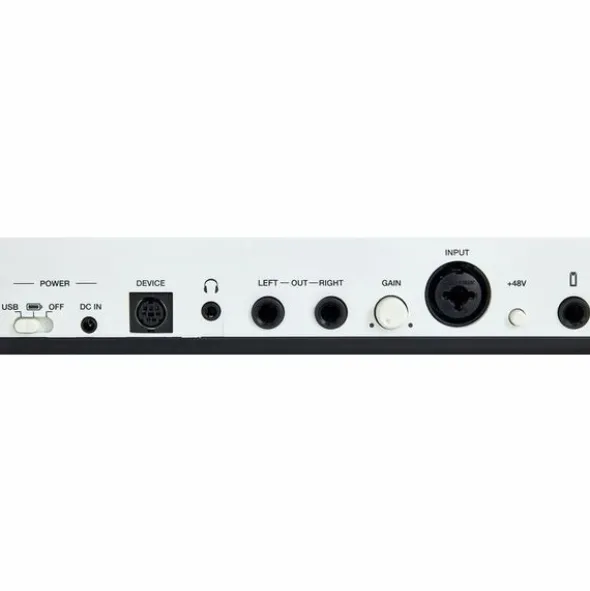

Microphone input:

• XLR balanced
• Gain: 46 dB
• Input impedance: 1.6 kOhm
• Phantom power: 48 V +/-4 V
• Frequency range: 20 – 20,000 Hz (+/-1.5 dB)
• Input noise: -103 dB(A), -97 dB RMS

Instrument input:

• 6.3 mm jack unbalanced
• Gain: 27 dB
• 1 MOhm input impedance
• Frequency range: 20 – 20,000 Hz (+/-1.5 dB)
• Input noise: -103 dB(A), -97 dB RMS

Line outputs:

• Two 6.3 mm jack balanced
• Output level max. 13 dBu at 600 ohms balanced
• Frequency range: 10 – 21,000 Hz (+/-0.2 dB)
• Dynamic range: 102 dB (A)

Compatible iOS devices (from iOS 6):

• iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5, Generation, iPad Pro (12.9″) 1st Generation, iPad Pro (9.7″), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4. Generation

Delivery contents:

• Lightning mini DIN cable 0.6 m
• USB mini DIN cable 0.6 m

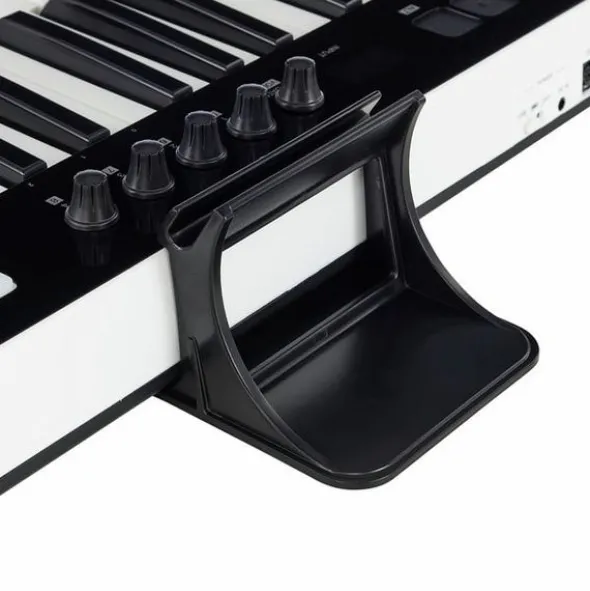

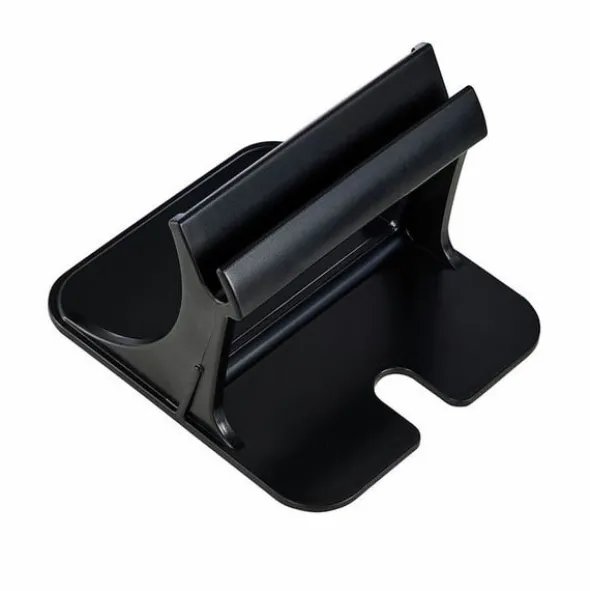

• iOS device tripod
• Four 1.5 V AA batteries
• Software package (download after registration)

Disponível desdeNovembro 2017

número de artigo420955

unidade de venda1peça(s)

Number of Keys49

Hammer Action KeysNo

AftertouchNo

Split Zones0

Layer functionNo

Pitch Bend / ModulationYes

Rotary Encoder4

Fader2

Pads8

DisplayYes

MIDI InterfaceNone

Sustain Pedal ConnectionYes

USB-portYes

Mains OperationYes

Battery OperationYes

Bus-PoweredYes

TypeKeyboards

Recording / Playback Channels1×2

Number of Mic Inputs1

Number of Line Inputs1

Instrument Inputs1

Number of Line Outs2

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Word ClockNo

Ethernet0

Other ConnectorsNone

Max. Sampling Rate in kHz96 kHz

Width in mm693

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Height in mm65

Depth in mm208

Weight in kg2,2 kg

USB Version1.1

Special Featuresintegr. Audiointerface

Width693 mm

Depth208 mm

Height65 mm

Included in deliveryLightning to Mini-DIN Cable, USB-A to Mini-DIN Cable, USB-C to Mini-DIN Cable, iOS Device Stand, 4x 1.5V AA Batteries

Connection FormatMini DIN-USB Typ A, Mini DIN-Lightning
