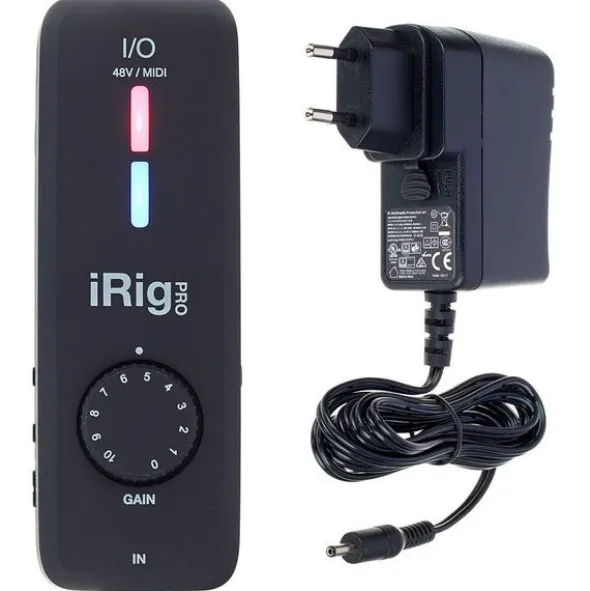

IK Multimedia iRig Pro I/O PSU Bundle

Bundle offer comprising

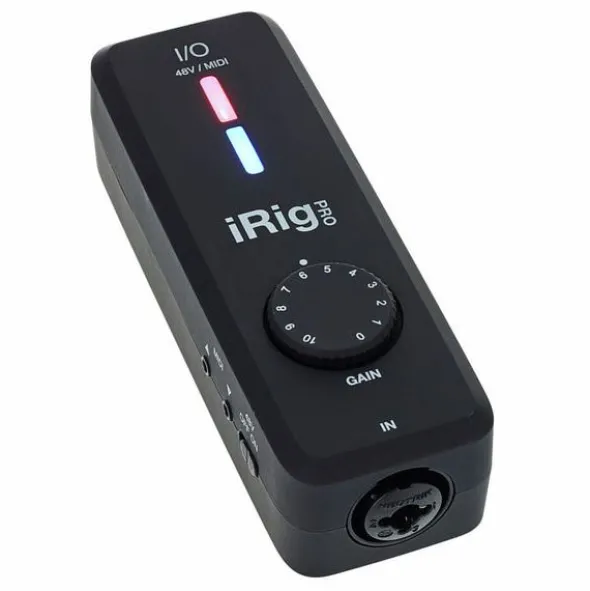

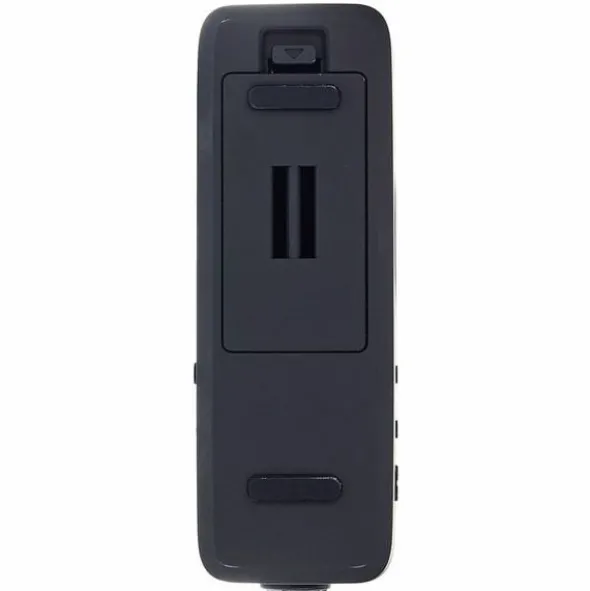

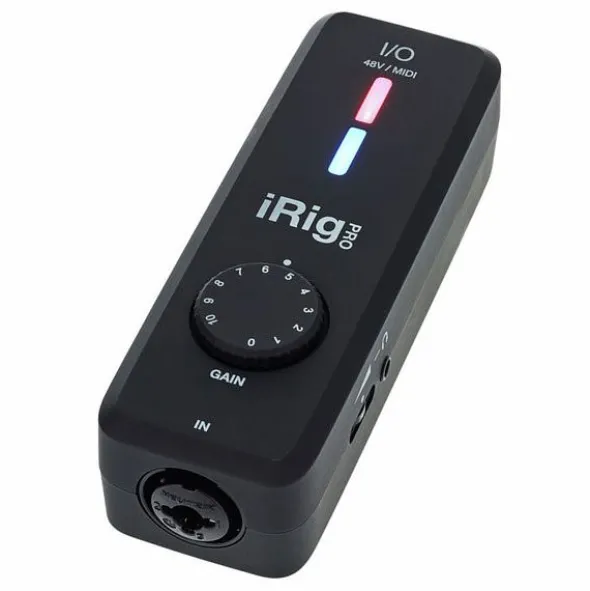

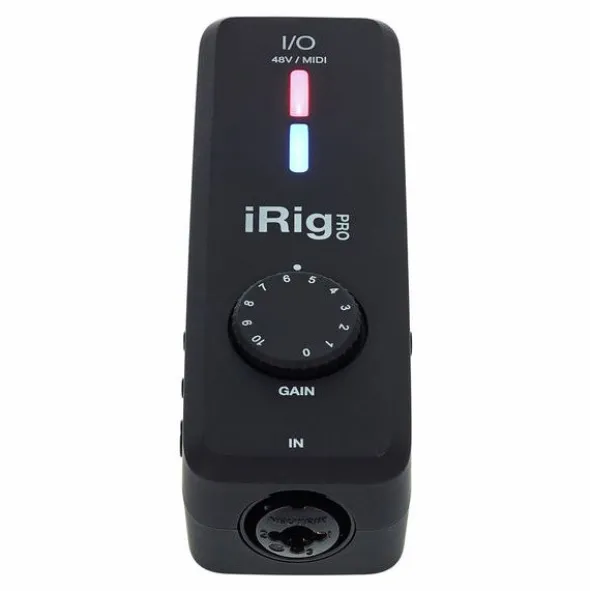

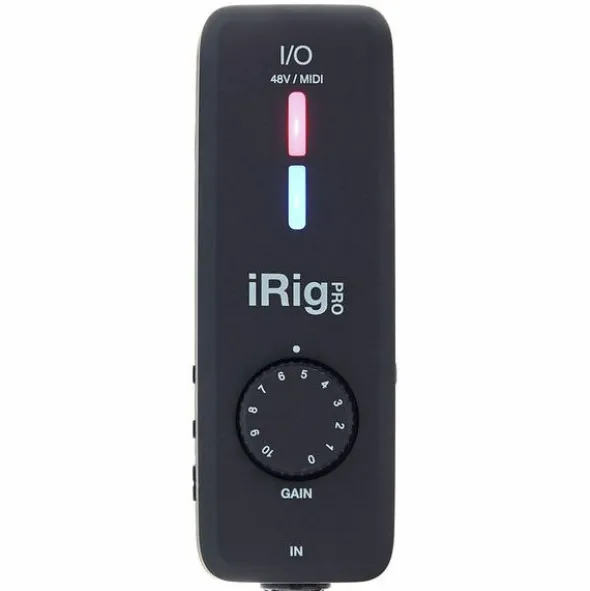

IK Multimedia iRig Pro I/O

Universal Audio and MIDI Interface for Mobile Devices and Computers

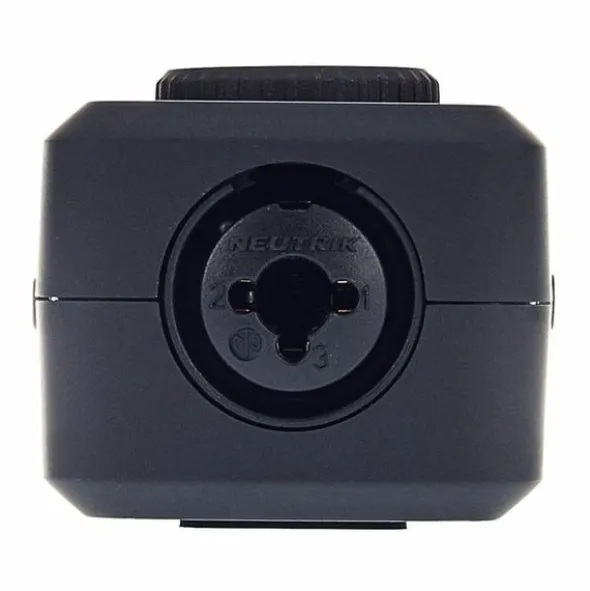

• Combination input XLR and 6.3 mm jack for microphone, line and instrument signals
• High-quality preamplifier with adjustable gain
• High-quality ADDA conversion with up to 24 bit / 96 kHz
• Adjustable stereo headphone output
• MIDI input and output
• Power supply via USB, 2x AA batteries or optional mains adapter (not included)

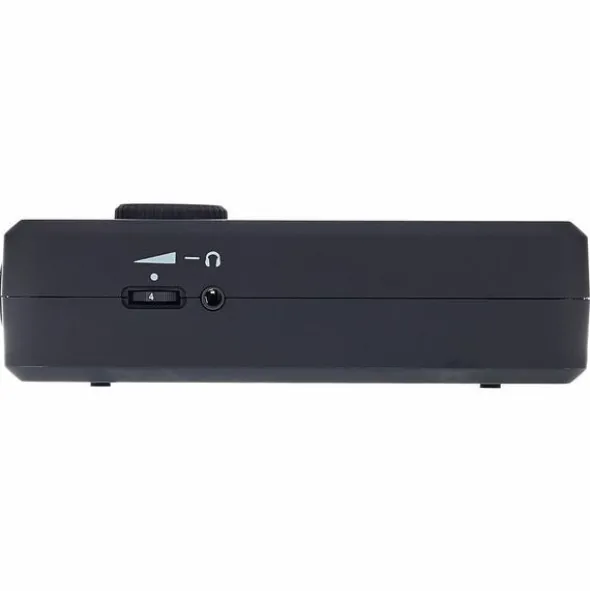

• Headphone output: 3.5 mm stereo jack unbalanced, 100 mW at 50 Ohm

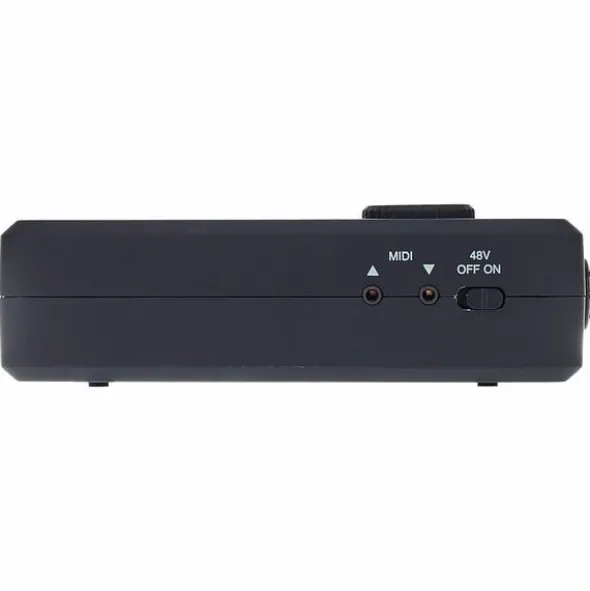

• MIDI input and output: 2x 2.5 mm mono jack

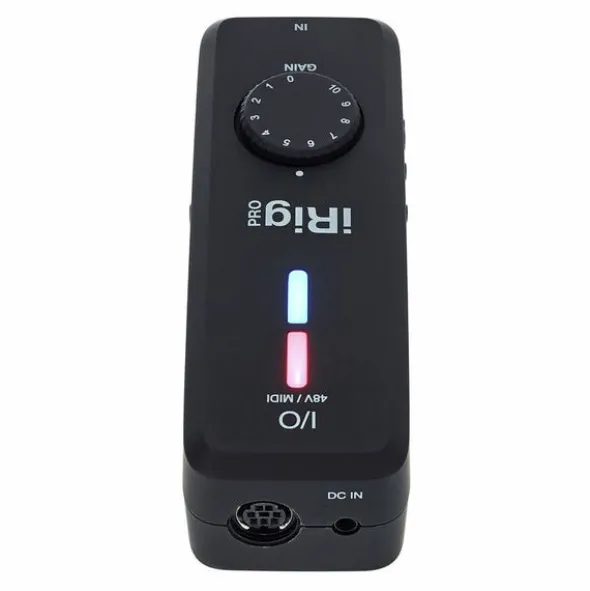

• Power supply connection 5.4 V DC (optional power supply: Article no. 417705, not included)

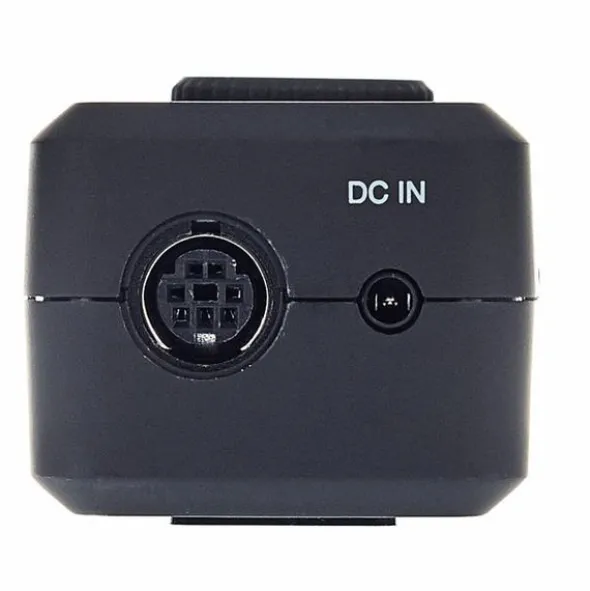

• Device connection Mini-DIN
• Dimensions: 43 x 127 x 37 mm
• Weight: 120 g (without batteries)

Microphone input:

• XLR balanced
• +48V +/-4V Phantom powering
• 40 dB gain
• Impedance 1.6 kOhm
• Frequency range: 20-20000 Hz +/-1.5 dB
• Noise level -103 dB(A)
• -97 dB RMS

Instrument input:

• 6.3 mm jack, unbalanced
• 27 dB gain
• Impedance 1 MOhm
• Frequency range: 20-20000 Hz +/-1.5 dB
• Noise level -103 dB(A)
• -97 dB RMS

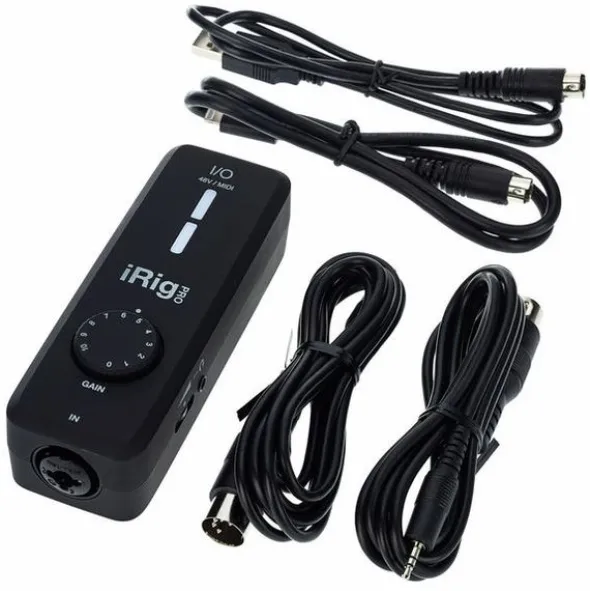

Includes:

• iRig Pro I/O Audio MIDI Interface
• Lightning to mini-DIN adapter cable 0.6 m
• USB to Mini-DIN adapter cable 0.6 m
• 2x 2.5 mm jack MIDI adapter cable 1.6 m
• 2x 1.5 V AA battery
• Comprehensive software package AmpliTube 4 and AmpliTube 5 SE as download via manufacturer/app store

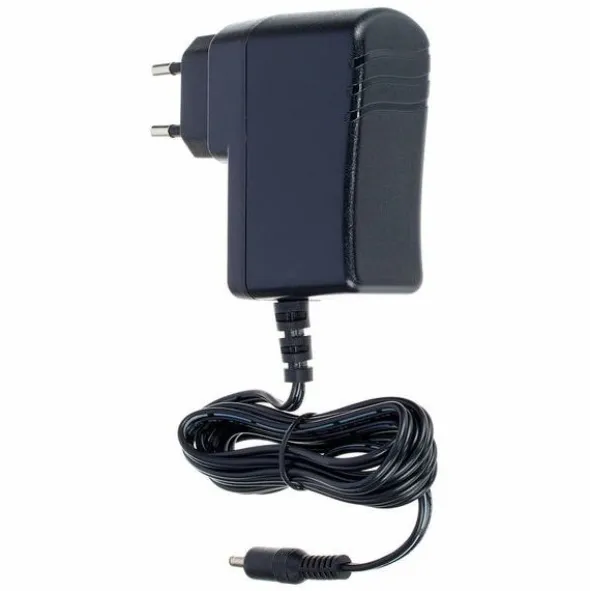

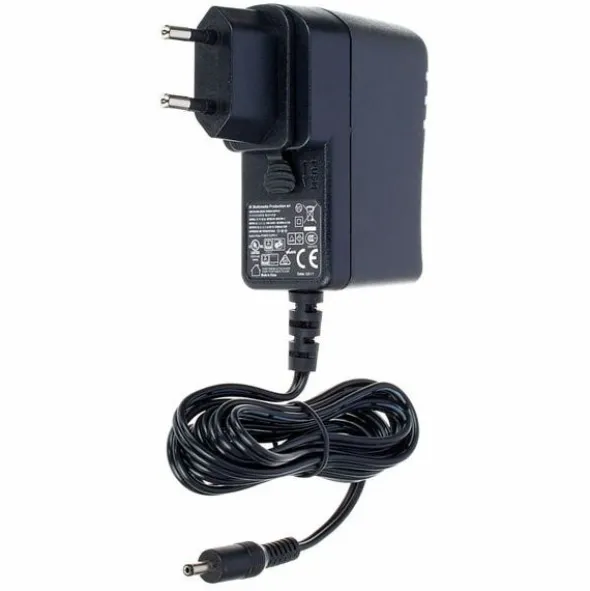

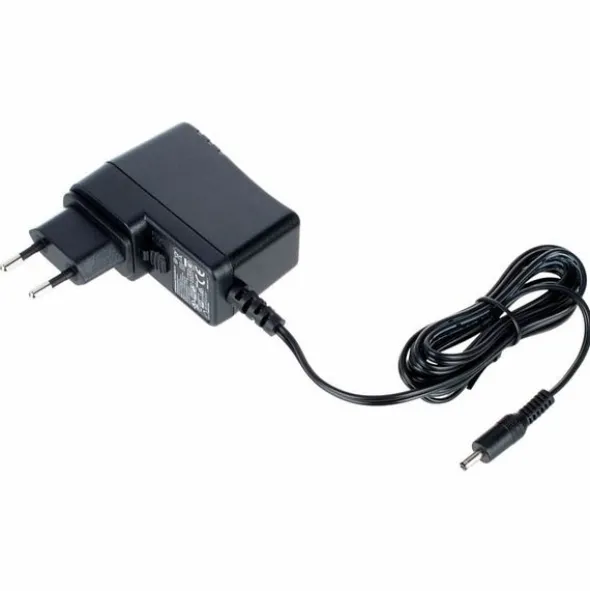

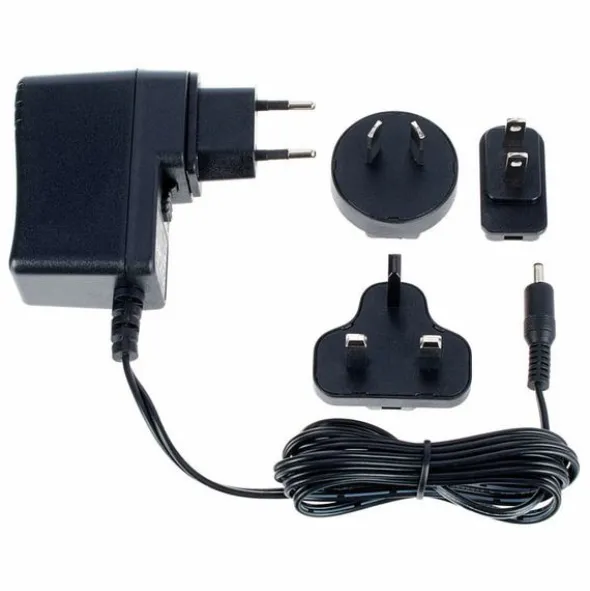

IK Multimedia PSU 3A

IK Multimedia PSU 3A

• External original power supply for IK Multimedia iRig Pro I/O (art. 406088)
• Apple MFi certified
• Allows iOS devices to be charged while connected to the iRig Pro I/O
• Output: 5V DC, 3A
• Output connection: Hollow female plug 3.5 / 1.3 mm
• Positive pole inside

Disponível desdeJulho 2017

número de artigo417710

unidade de venda1peça(s)

Recording / Playback Channels1×2

Number of Mic Inputs1

Number of Line Inputs1

Instrument Inputs1

Number of Line Outs0

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceYes

Word ClockNo

Max. Sampling Rate in kHz96 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version1.1

Width127 mm

Depth43 mm

Height37 mm

Connection FormatMini DIN-USB Typ A, Mini DIN-Lightning

Included in deliveryLightning to Mini-DIN Cable, USB-A to Mini-DIN Cable, USB-C to Mini-DIN Cable, 2x 2.5mm TRS MIDI Adaptor, 2x 1,5V AA Batteries, Velcro Tape
