IMG Stageline MPA-102

1-Channel low noise microphone preamplifier

• Power supply or battery operation
• 1x Balanced XLR input
• 11-Stage amplification of 20-70dB
• Peak LED
• Phantom power +24 V switchable
• Microphone phase position switchable
• Lo-Cut 100 Hz, Hi-Cut 12 kHz, 12 dB/Oct. switchable
• Lo-Cut 100 Hz, Hi-Cut 12 kHz, 12 dB/Oct. switchable
• 1 Stereo line input
• 1 Stereo line output
• Level control and panorama control for mixing the microphone signal to the stereo line channel
• Frequency range: 20-20000 Hz
• Input sensitivity: 0.3-150 mV switchable
• Input Impedance: 2.2 Ohm (Mic), 10 kOhm (Line)
• Output signal: 1-12 V (line, balanced), 1-6 V (line, stereo)
• Output impedance: 100 Ohm
• Gain: 20-70 dB (Mic) 0 db (Line)
• Crossover frequency: 100 Hz/-3 dB, 12 dB/oct. (low cut), 12 kHz/-3 dB, 12 dB/oct. (high cut)
• Low Cut 100 Hz
• Signal-to-noise ratio > 66 dB, unweighted (Mic), 80 dB, unweighted (Line)
• Distortion factor < 0.01 %
• Power supply via plug-in power supply unit or alternatively 4 x 9 V block

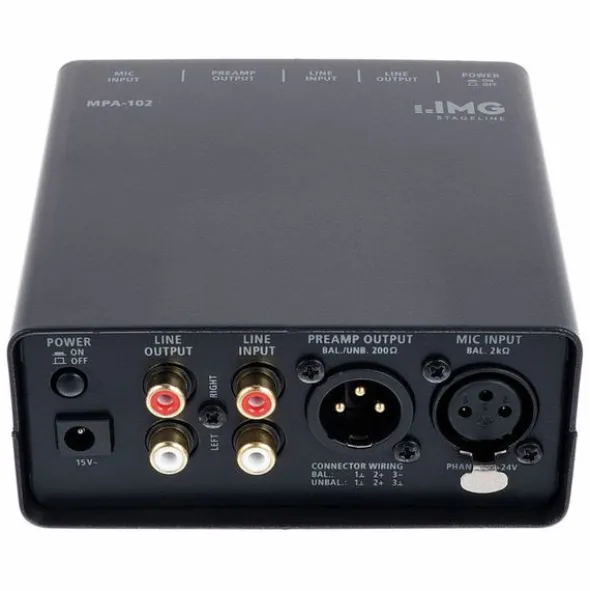

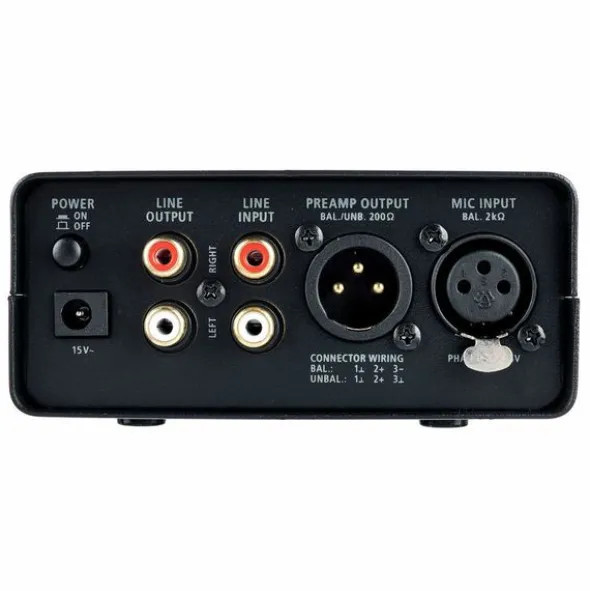

• Inputs: 1x XLR (Mic), 1x RCA L/R (Line)
• Outputs: 1x XLR (Preamp), 1x RCA L/R (Line)
• Dimensions: 116 x 55 x 125 mm
• Weight: 978 g

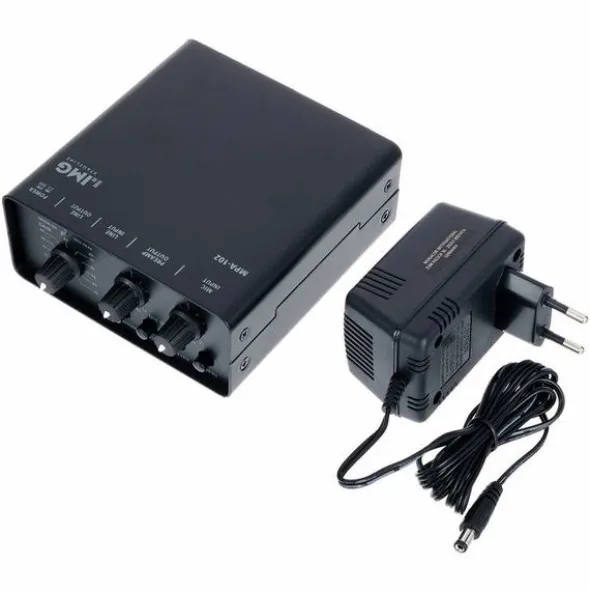

• Includes power supply

Disponível desdeNovembro 2019

número de artigo479567

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputNo

TubesNo

Compressor/LimiterNo

EqualizerNo

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsRCA, XLR

Digitale OutputsNone

Headphone connectionNo

Level MeterNo

DesignDesktop
