Intellijel Designs Jellymix

Compact Stereo Performance Mixer

• Five stereo channels for synthesizers, drum computers, samplers, grooveboxes and other sources
• Hi-Z instrument input switchable for channel 1
• Muted channels are sent to the mute bus
• Adjustable stereo headphone output with level control and selectable source (Main / Muted)
• Main output with level control and LED level indicator
• Switchable stereo filters for main output with high-pass control
• Low-pass and resonance filter

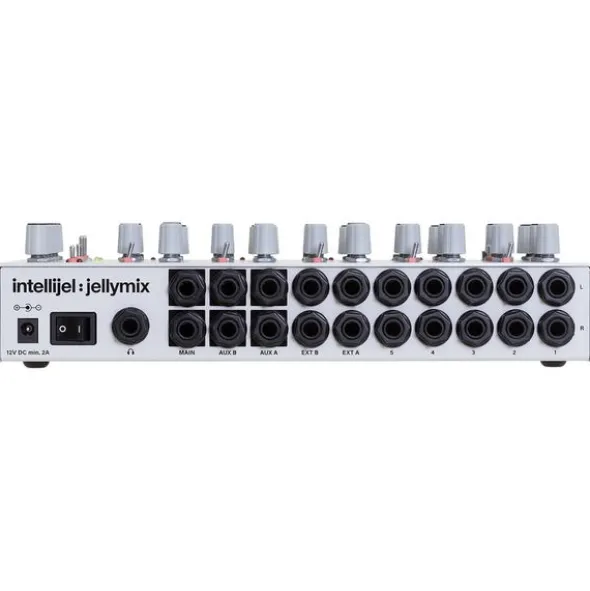

• Five stereo inputs: 2x 6.3 mm jack, balanced
• Two stereo aux sends: 2x 6.3 mm jack, balanced
• Two external inputs: 2x 6.3 mm jack, balanced
• Stereo main output: 2x 6.3 mm jack, balanced
• Stereo headphone output: 6.3 mm jack
• Solid metal housing
• Dimensions (W x D x H): 277 x 122 x 66 mm
• Weight: 1.4 kg
• Includes external power supply (12 V DC, 2.5 A)

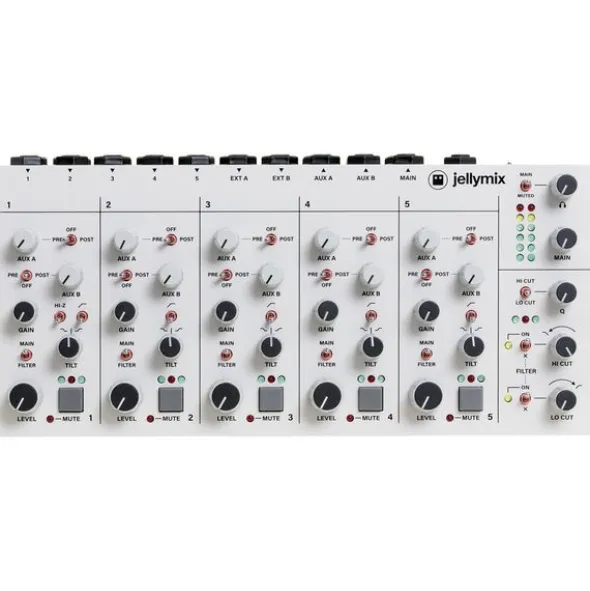

Controls and functions per channel:

• Level control
• LED indicators for signal level and overload
• Noise-free mute switch with LED
• Gain control: +26 dB
• Tilt EQ: ±10 dB, centre frequency 810 Hz
• Switchable high-pass filter: 150 Hz
• Routing switch: Main / Filter
• Two stereo aux: Off & Pre-/Post-fader switchable

Disponível desdeMarço 2026

número de artigo637082

unidade de venda1peça(s)

Simultaneous channels5

Mic-In0

Mono Line-in10

Stereo-In5

Hi-Z Input1

Phantom PowerNo

Master Out6,3 mm bal.

Aux Ways2

max. Pre Aux Channels2

PC InterfaceNone

Audio Interface Input0

Audio Interface Output0

Multitrack-RecordingNo

USB/SD Direct RecordNo

Rec Out (Analog)No

Low CutYes

InsertsNo

Direct OutNo

ParametricNo

CompressorNo

PanoramaNo

PFLYes

FX Processor0

USB PlaybackNo

Bluetooth PlaybackNo

Lamp connectionNo

FootswitchNo

MatrixmixerNo

BagNo

Zones1

19″ RackmountNo

Width277 mm

Depth122 mm

Height66 mm

Weight1,1 kg

Parallel usable Channels5

Mic Ins0

Mono Line Ins10

Stereo Ins5

Number of Pre Aux max.2

Effect Processor0

USB PlayNo

Bluetooth PlayNo

Lamp ConnectorNo

Foot SwitchNo

RackmountNo
