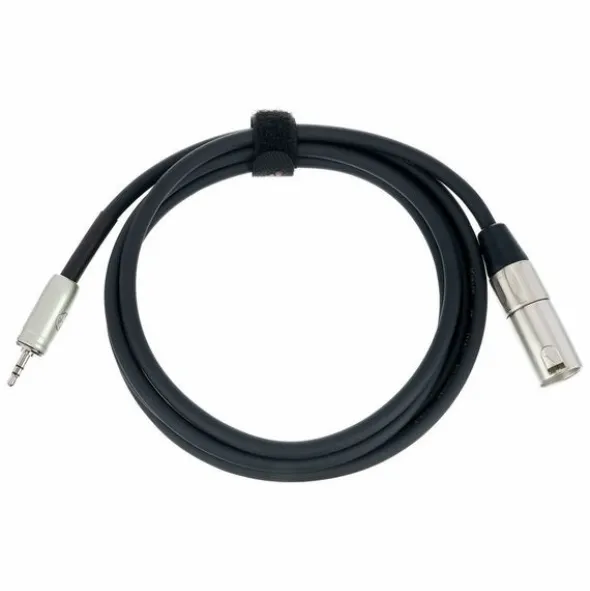

Kirlin AP-493PRL-06 BK

Patch cable

• Length: 1.8 m (6 ft.)

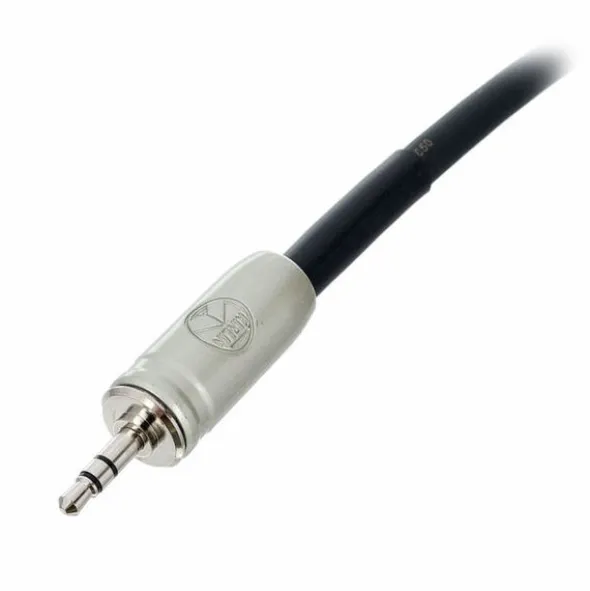

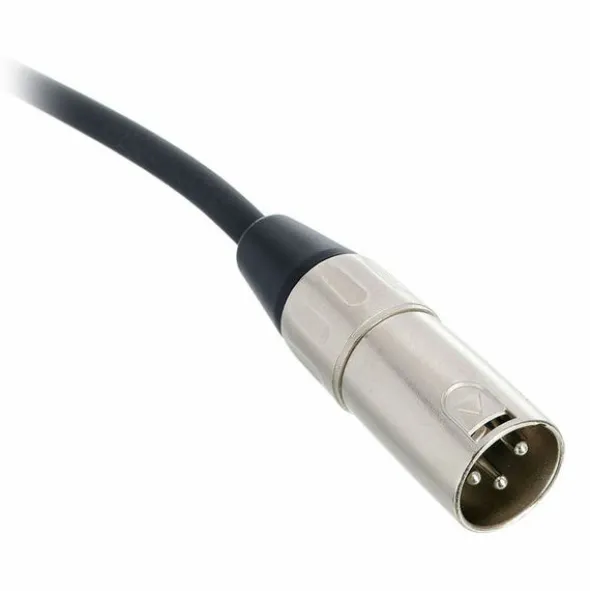

• XLR male to 3.5 mm stereo jack
• Conductor & spiral shield made of OFC (oxygen-free copper)
• PE insulation
• Conductive PVC shield with 80% coverage
• Casing material: PVC
• Sheath diameter: 6.3 mm
• Conductor area : 0.81 mm
• Colour: Black

Assignment:

• XLR Pin1 = jack shaft = shield
• XLR Pin2 = jack tip = red
• XLR Pin3 = jack ring = blue
