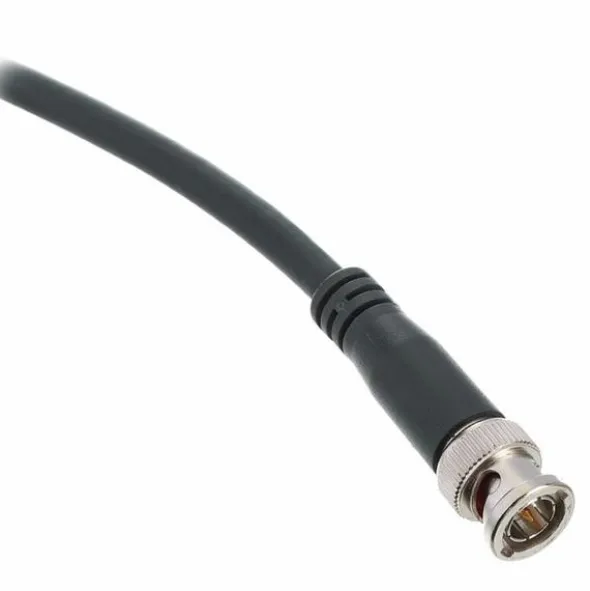

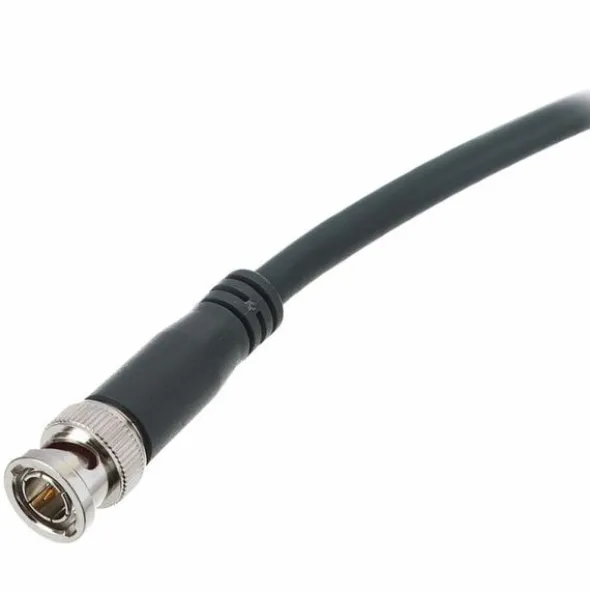

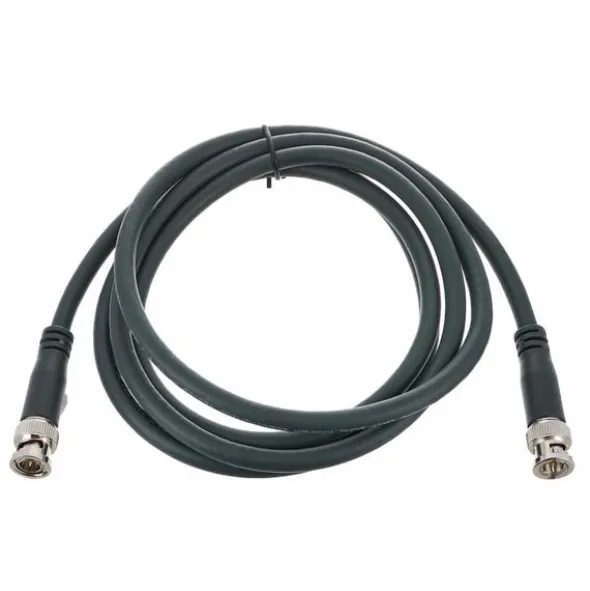

Kramer C-BM/BM-6 Cable 1.8m

3G HD-SDI BNC Coaxial Cable

• Length: 1.80 m
• Made from a high-performance RG-6 coaxial cable with 75 Ohm BNC plugs at both ends
• Inner conductor: 18 AWG solid copper wire
• Dielectric: Foam skin
• Shielding: (A) 61% aluminium wire braid 34 AWG, (B) double foil / Mylar with 25% overlap
• Outer sheath: PVC
• Colour: Dark grey
• Inner conductor diameter: 1.0 mm
• Diameter of dielectric: 4.6 mm
• Outer diameter: 7.0 mm
• Impedance: 75 Ohm
• Ohmic resistance: 21.8 Ohms / km
• Capacitance: 53.1 pF / m
• Tested up to 3G
