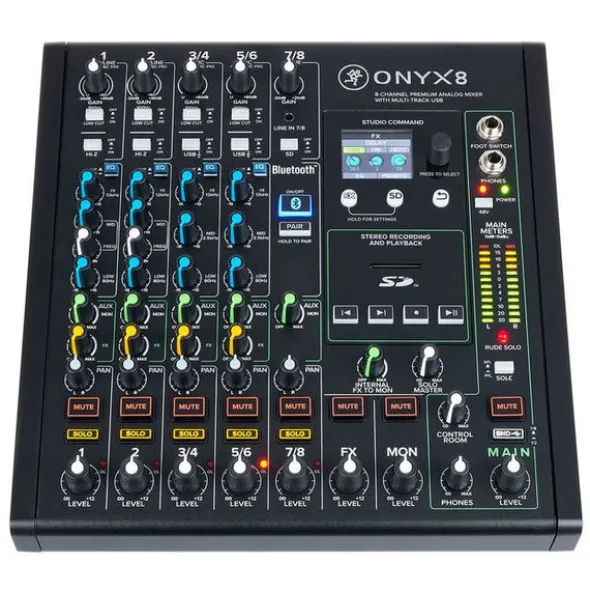

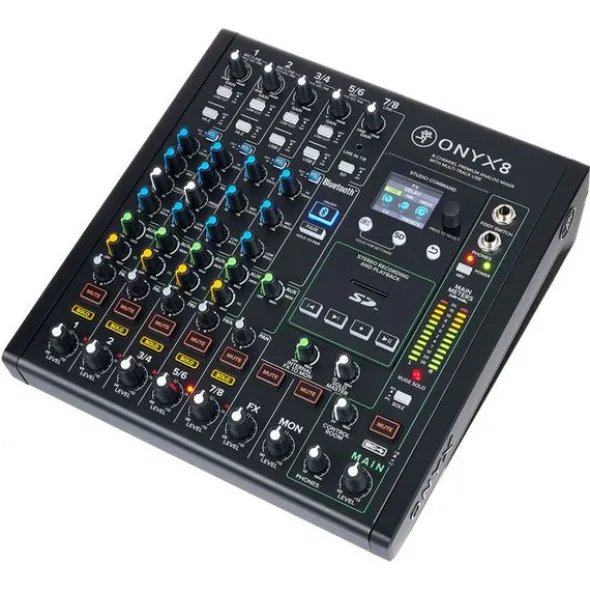

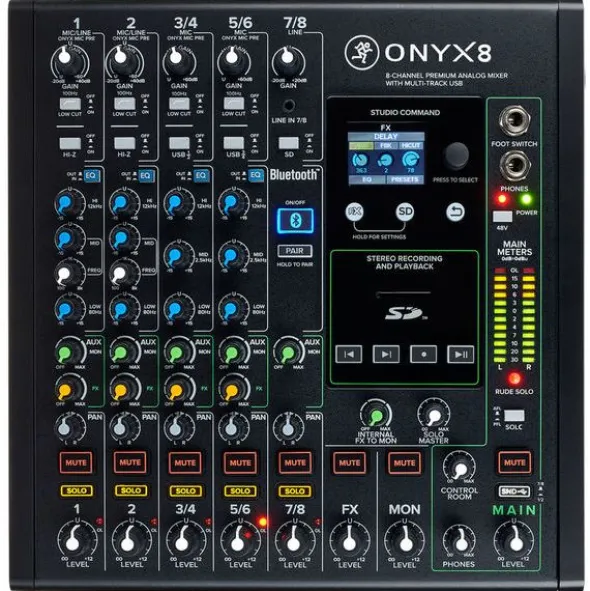

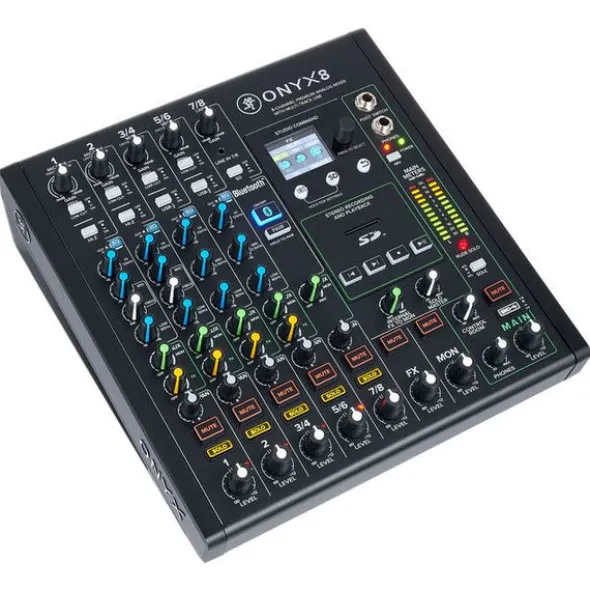

Mackie Onyx8

8-Channel Mixer

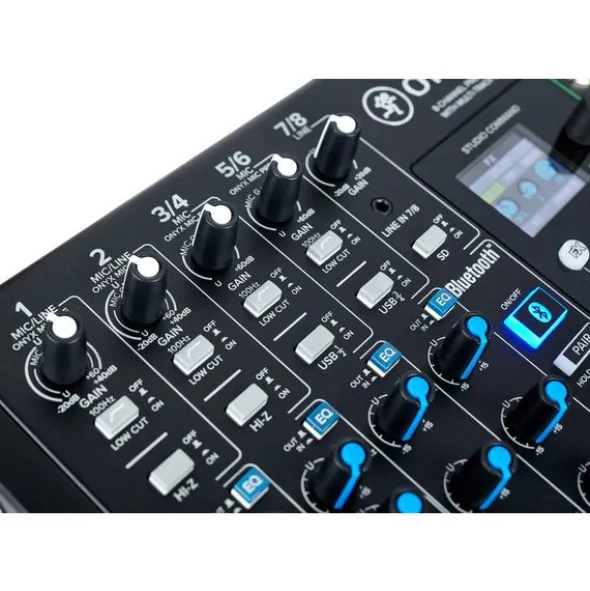

• Four microphone inputs with 100 Hz low-cut and +48 V phantom power
• Gain up to 60 dB
• 3-band EQ with parametric mids on channels 1 and 2
• Hi-Z inputs for guitar, bass, and other instruments
• 24-Bit / 96 kHz multitrack recording – eight tracks via USB to Mac/PC
• Stereo recording to SD card
• One-touch sum recording possible
• Assignable USB return
• Playback via SD possible
• One mini jack input
• Bluetooth streaming
• Up to six storable user presets
• Built-in effects processor with customisable parameters and EQ

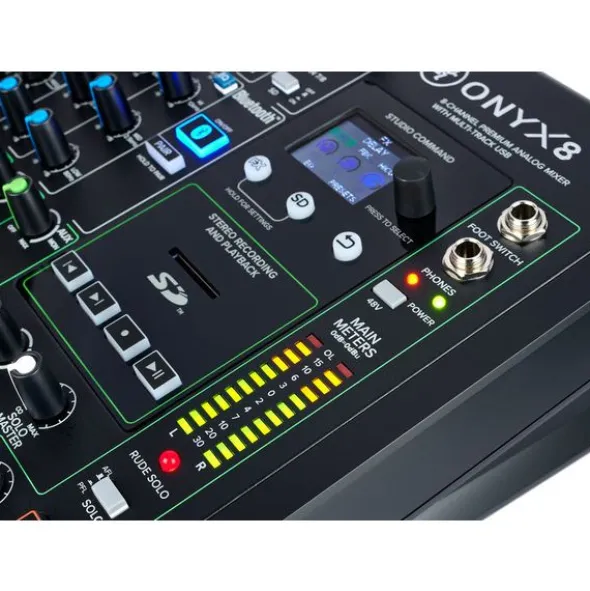

• LED level meter
• Separate control room output
• Monitor output
• 6.3 mm headphone output
• PFL/AFL solo

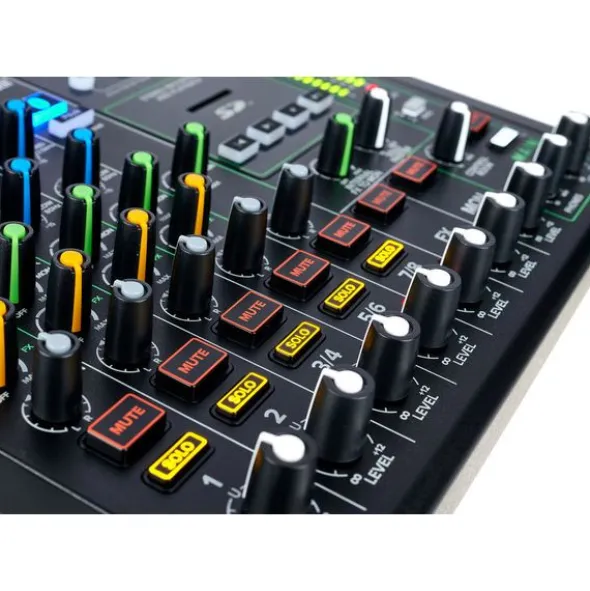

• Mute button per channel
• Full-colour display
• Includes Waveform OEM recording software

Disponível desdeNovembro 2021

número de artigo500237

unidade de venda1peça(s)

Simultaneous channels8

Mic-In4

Mono Line-in2

Stereo-In3

Hi-Z Input2

Phantom Power48 V

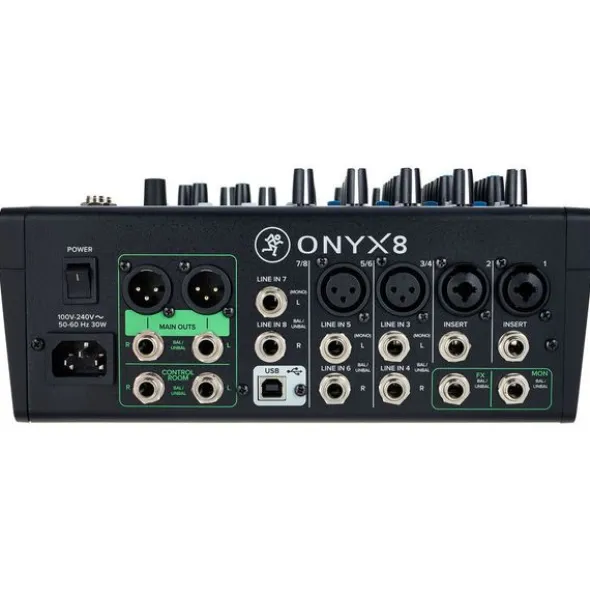

Master OutXLR

Aux Ways1

max. Pre Aux Channels0

PC InterfaceUSB-B

Audio Interface Input8

Audio Interface Output4

Multitrack-RecordingYes

USB/SD Direct RecordSD

Rec Out (Analog)No

Low CutYes

InsertsYes

Direct OutNo

ParametricYes

CompressorNo

PanoramaYes

PFLYes

FX Processor1

USB PlaybackNo

Bluetooth PlaybackYes

Lamp connectionNo

FootswitchNo

MatrixmixerNo

BagNo

Zones0

19″ RackmountNo

Width279 mm

Depth267 mm

Height114 mm

Weight3,2 kg

Parallel usable Channels8

Mic Ins4

Mono Line Ins2

Stereo Ins3

Number of Pre Aux max.0

Multitrack RecordingYes

InsertYes

Effect Processor1

USB PlayNo

Bluetooth PlayYes

Lamp ConnectorNo

Foot SwitchNo

RackmountNo
