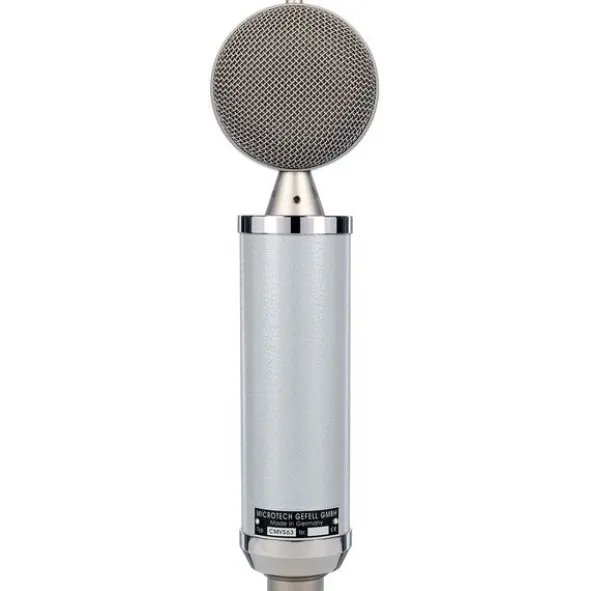

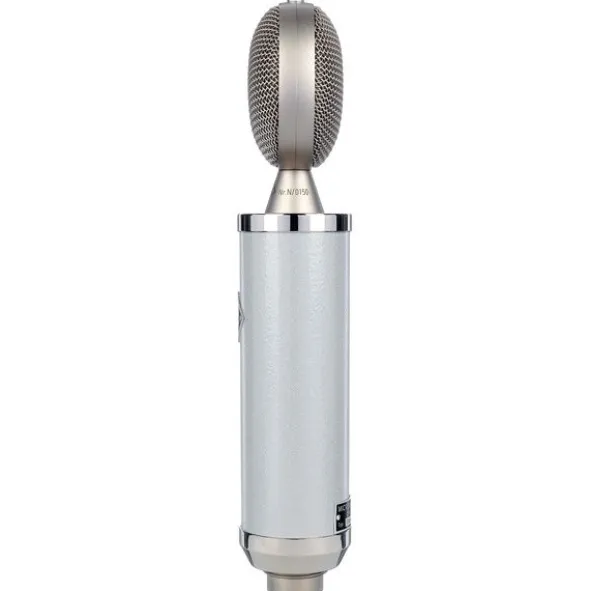

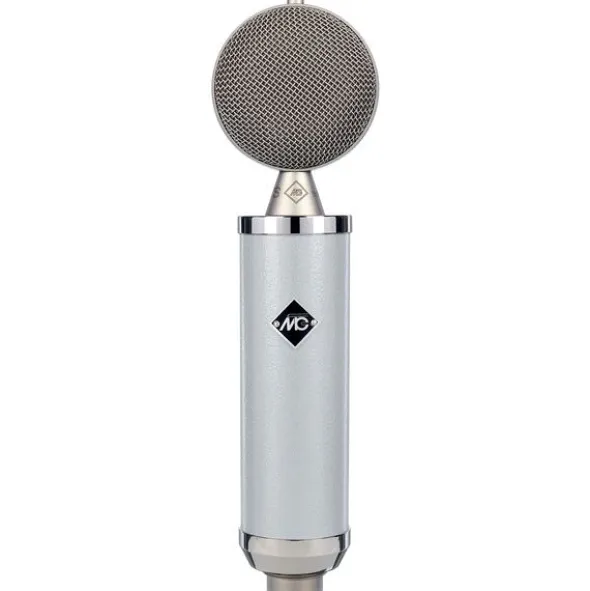

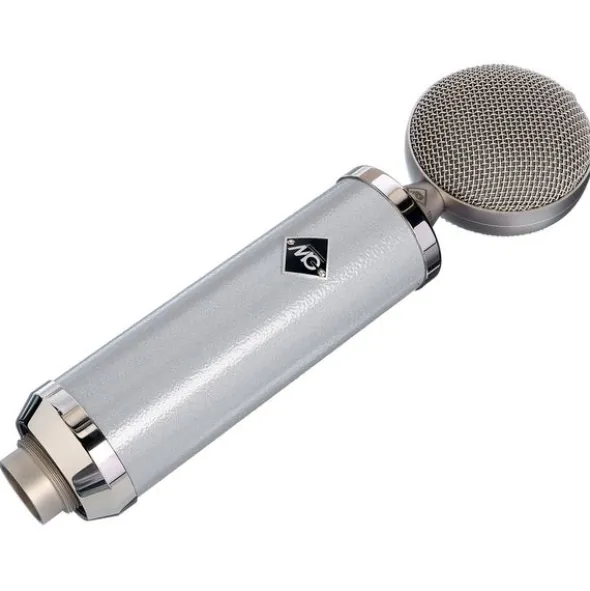

Microtech Gefell CMV 563 – M 7 S

Large diaphragm condenser microphone with tube amplifier

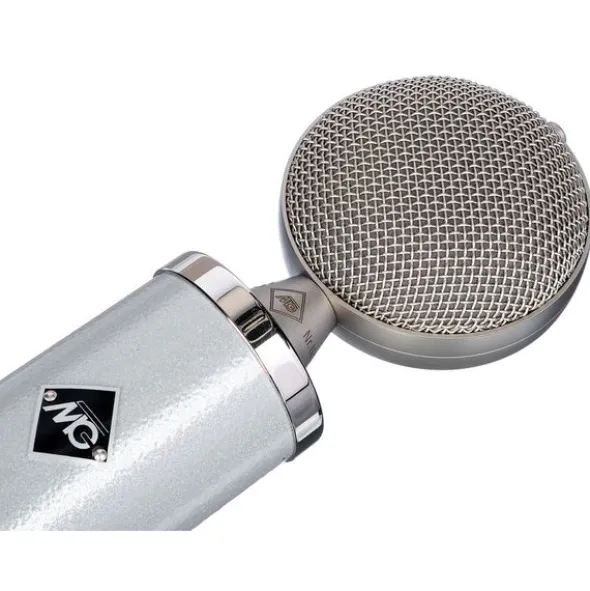

• Original reissue of the famous CMV 563 tube preamplifier with EF 86 pentode in combination with the legendary, uniquely sounding M7 PVC capsule
• Very round and full sound with lively mids and subtle silky highs
• Very well suited for voice and vocal recordings as well as acoustic instruments with moderate sound levels, such as guitars, strings, etc

Specifications:

• Polar pattern: Cardioid
• Acoustic operating principle: Pressure gradient transducer
• Frequency range: 20 – 20,000 Hz
• Sensitivity: 19 mV/Pa at 1 kHz
• Nomial impedance: 200 Ohm
• Equivalent noise level: 15 dB A-weighted
• Signal-to-noise ratio: 79 dB A-weighted
• Maximum sound pressure level: 118 dB at 0.5% THD
• Dynamic range: 103 dB
• Tubes: Selected EF86
• Power supply: 120 V via power supply unit

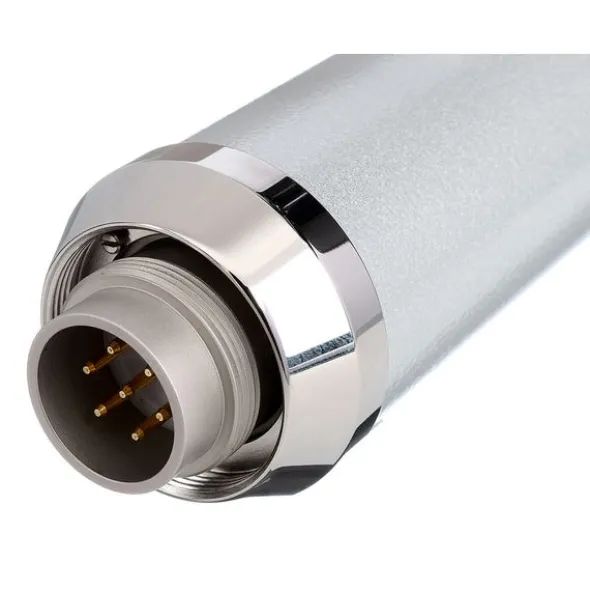

• Conenctor: Tuchel 7-pin C70/A
• Length: 216 mm
• Diameter: 42 mm
• Weight: 540 g
• Colour: Hammered finish, grey

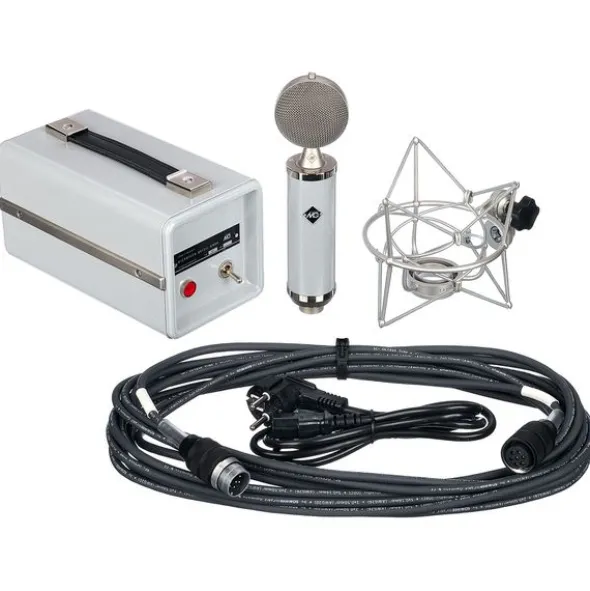

Contents of delivery:

• CMV 563 – M 7 S

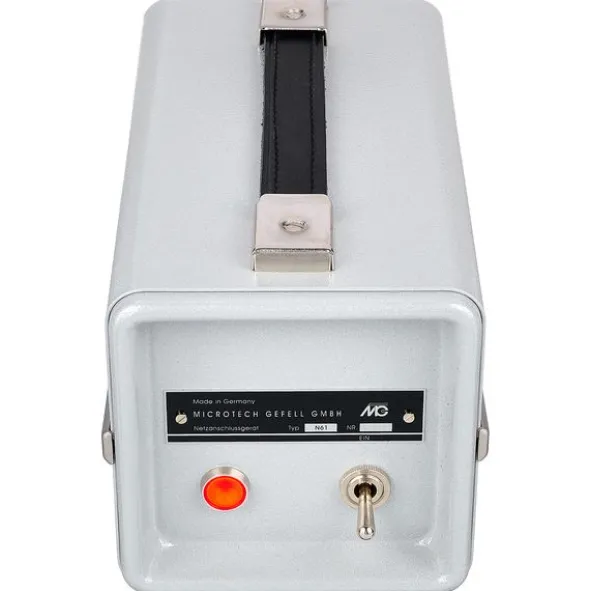

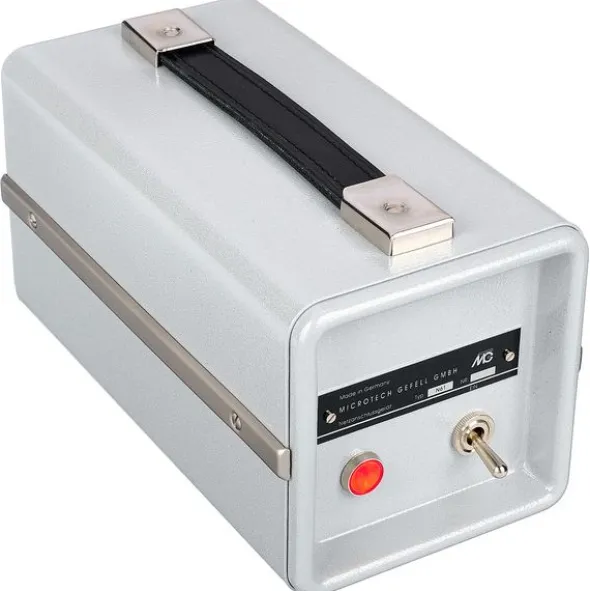

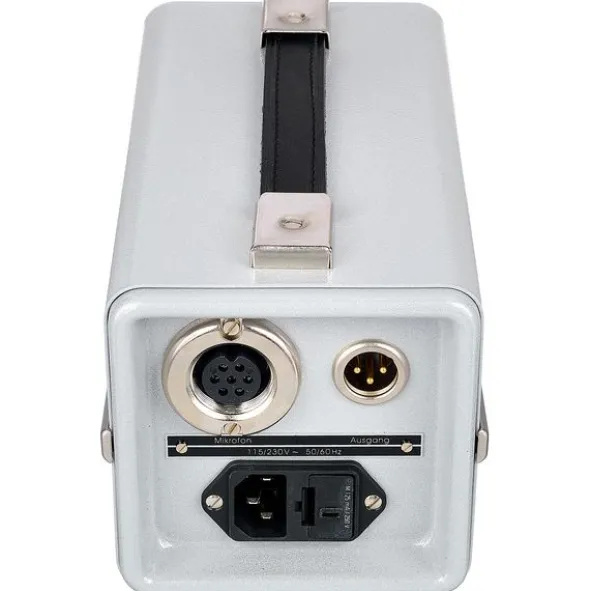

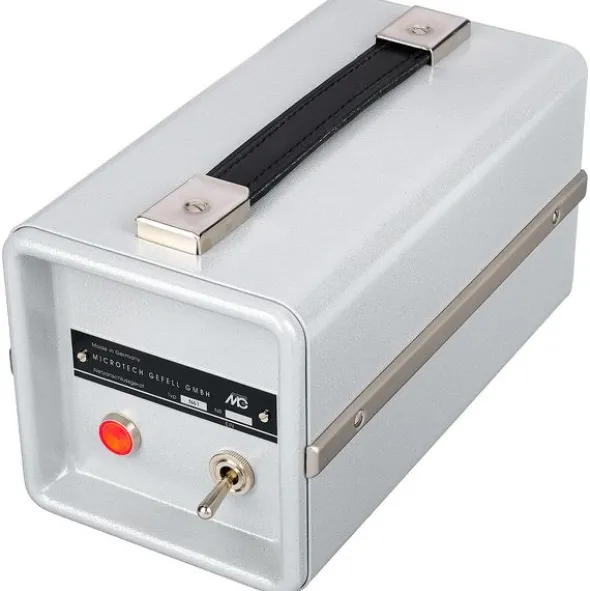

• N61 power supply unit
• C 563.1 microphone connection cable:

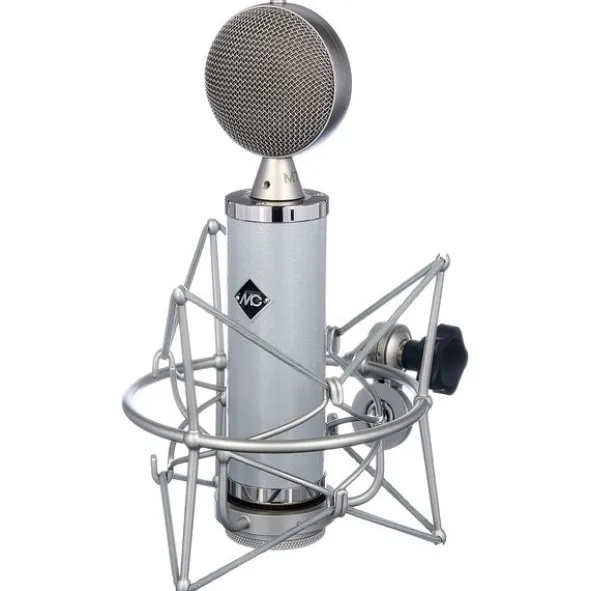

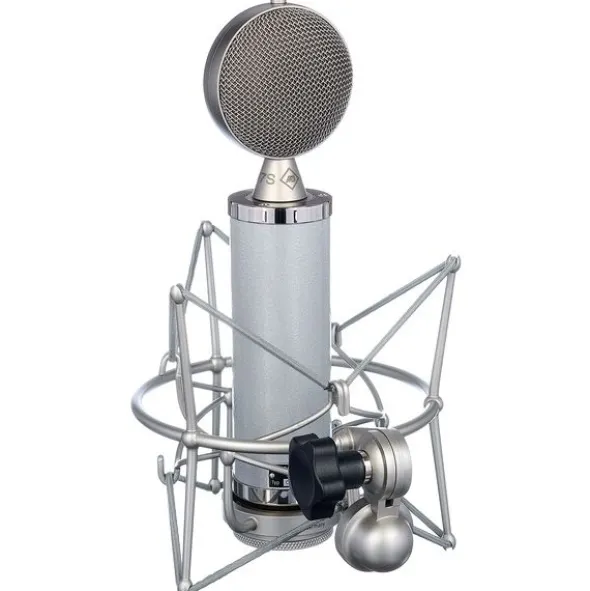

• EA 92 shockmount

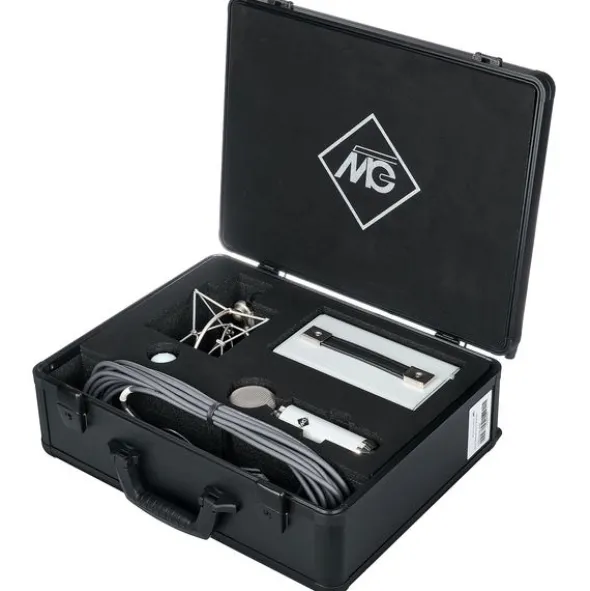

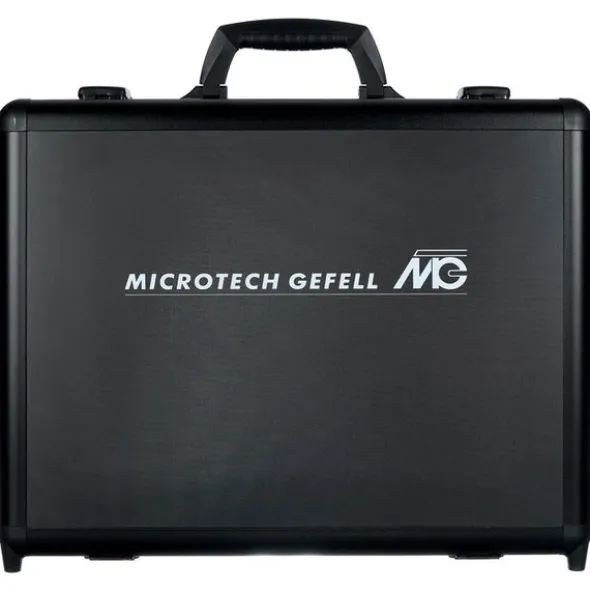

• Case

Disponível desdeJulho 2025

número de artigo621612

unidade de venda1peça(s)

TubeYes

Switchable Polar PatternNo

OmnidirectionalNo

CardioidYes

Figure-8No

Low CutNo

PadNo

shockmount includedYes

USB MicrophoneNo
