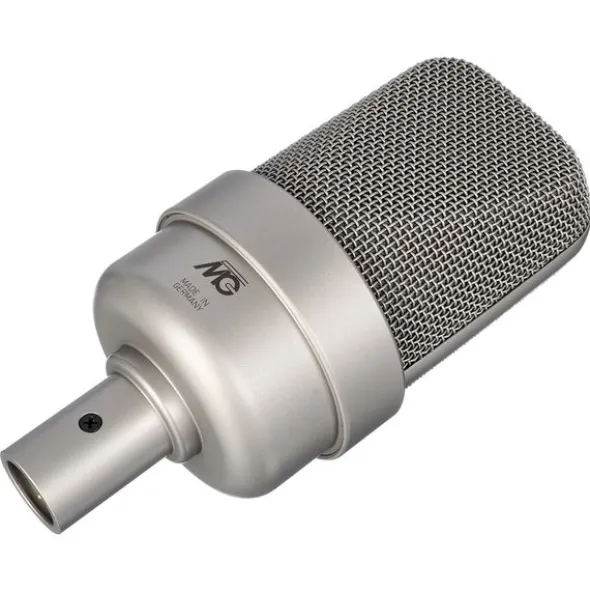

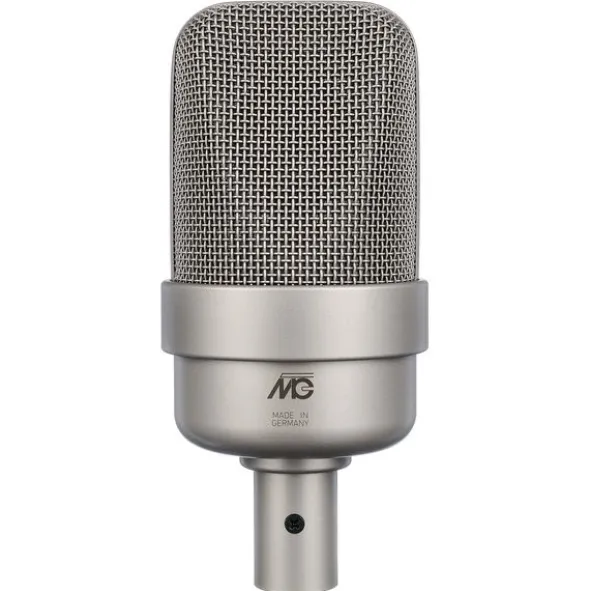

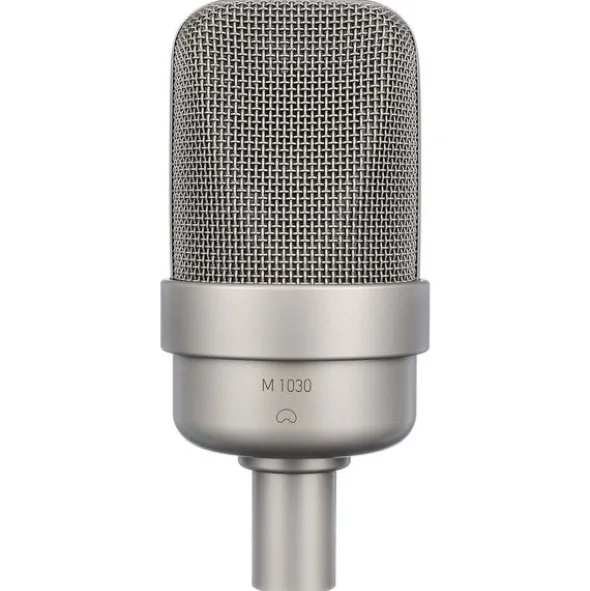

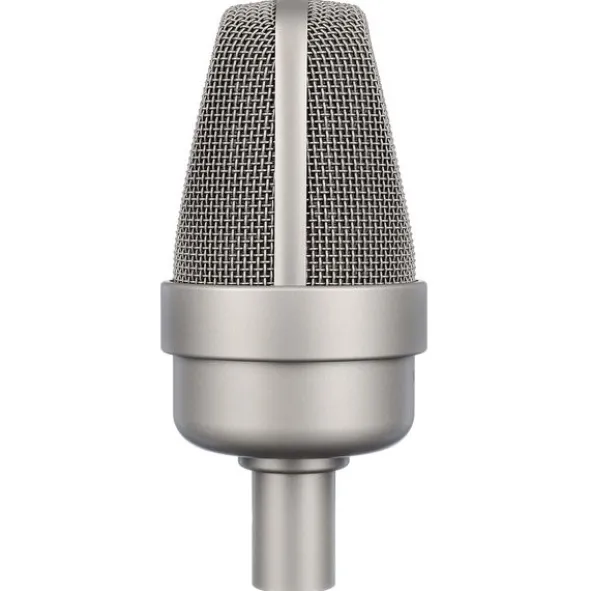

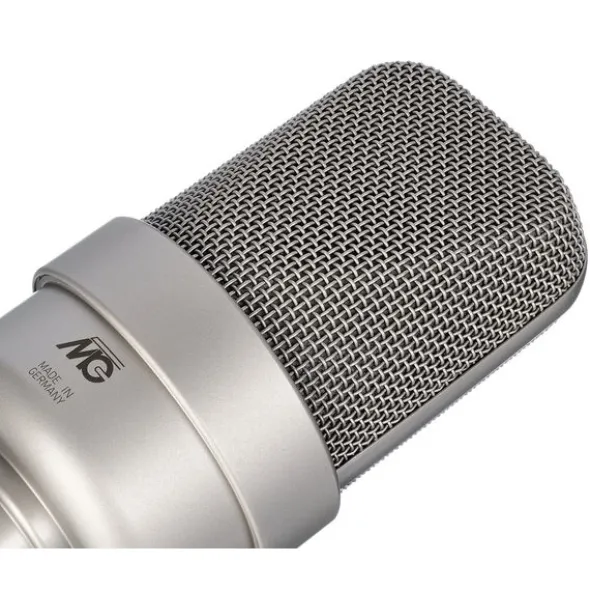

Microtech Gefell M 1030 – EA 92 Set

Large Diaphragm Condensor Microphone

• Compact studio microphone for a wide range of applications, from speech and vocal recordings, broadcast and podcasting to instrument pickup and as a main or support microphone in stereo and multi-channel setups.
• Combines modern PE large diaphragm capsule technology with the latest semiconductor circuit technology.
• The circuit design of the impedance converter enables the detailed transmission of low sound levels and the distortion-free reproduction of very high sound pressures thanks to its extended dynamic range.
• Polar pattern: Cardioid
• Acoustic operating principle: Pressure gradient transducer
• Frequency range: 20 – 20,000 Hz
• Sensitivity: 21 mV/Pa at 1 kHz
• Nominal impedance: 100 Ohm
• Equivalent noise level: 7 dB A-weighted
• Signal-to-noise ratio: 87 dB A-weighted
• Maximum sound pressure level: 142 dB at 0.5% THD
• Maximum output level: 18 dBu at RL = 10 kOhm
• Dynamic range: 135 dB
• Power supply: 48V phantom power
• Current consumption: 3.6 mA

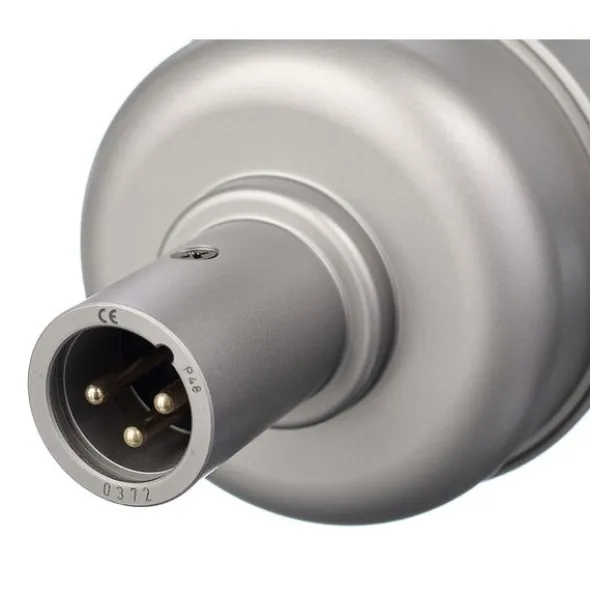

• Connector: XLR3M
• Dimensions (L x Ø): 145 x 66 mm
• Weight: 355 g
• Colour: Satin nickel

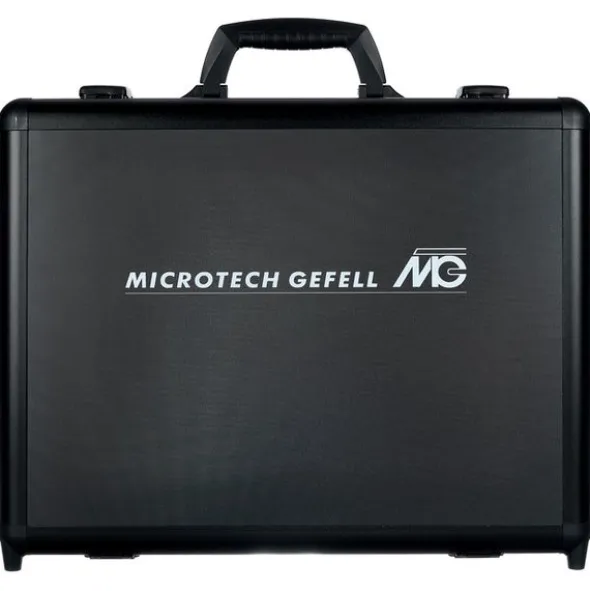

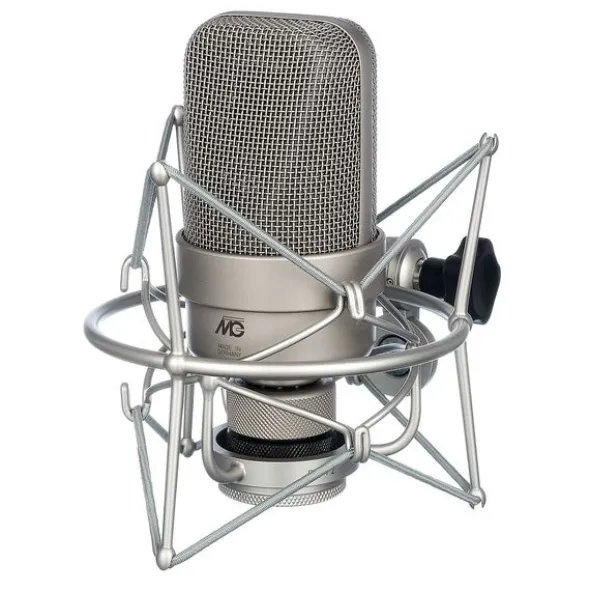

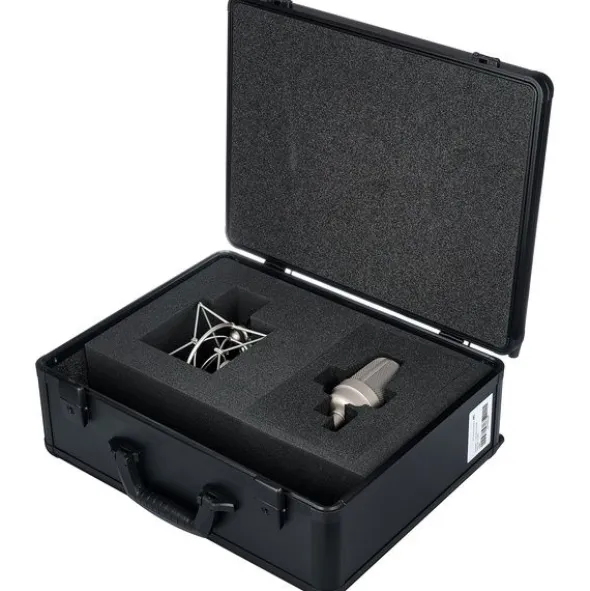

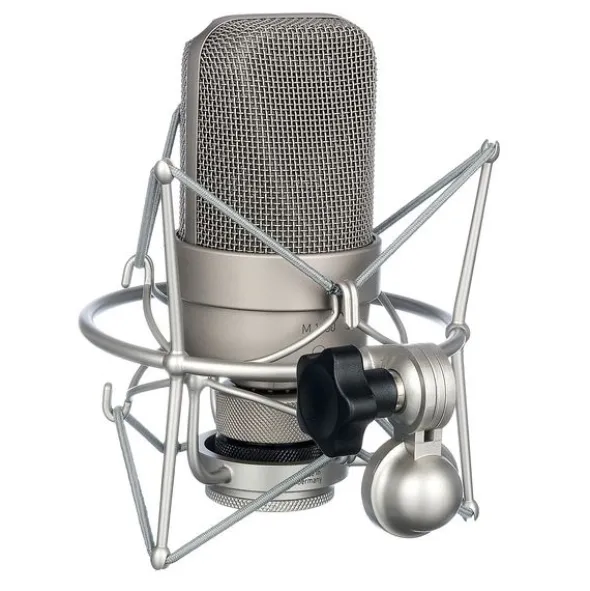

• Scope of delivery: M 1030, elastic mount EA 92, aluminium case
