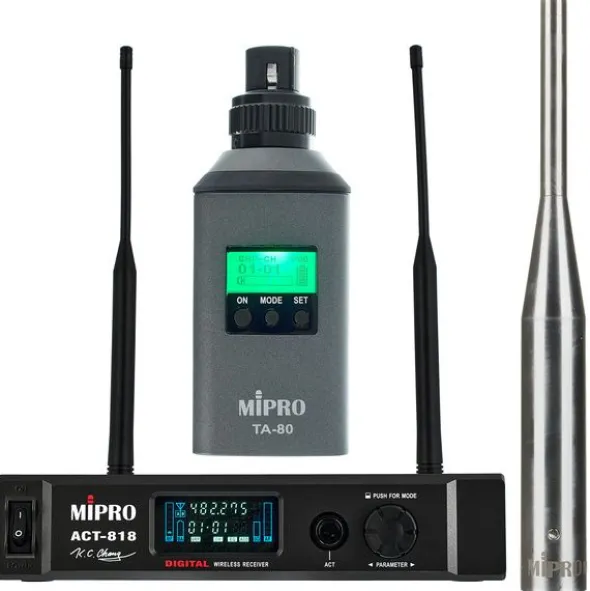

Mipro ACT-800 Measurement Set 5UA

Bundle offer comprising

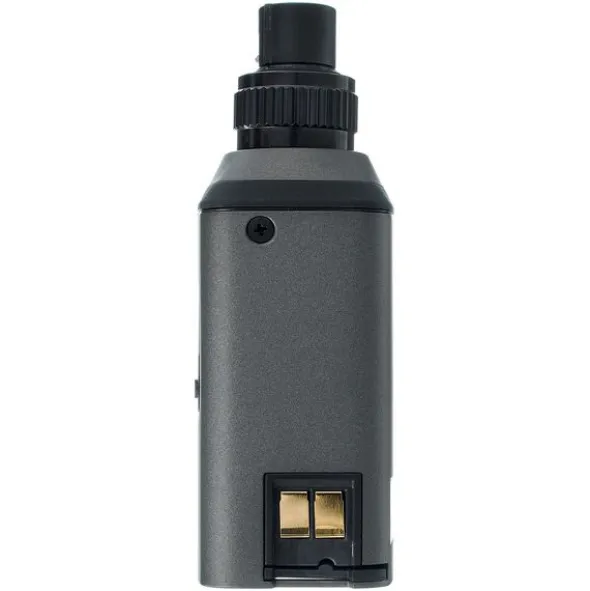

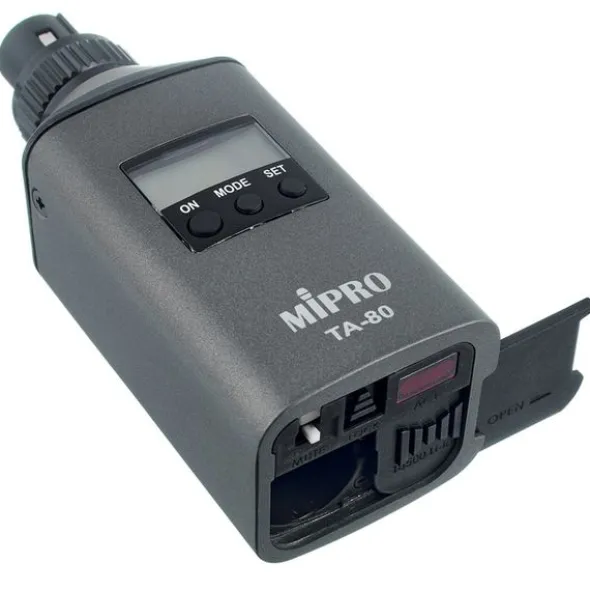

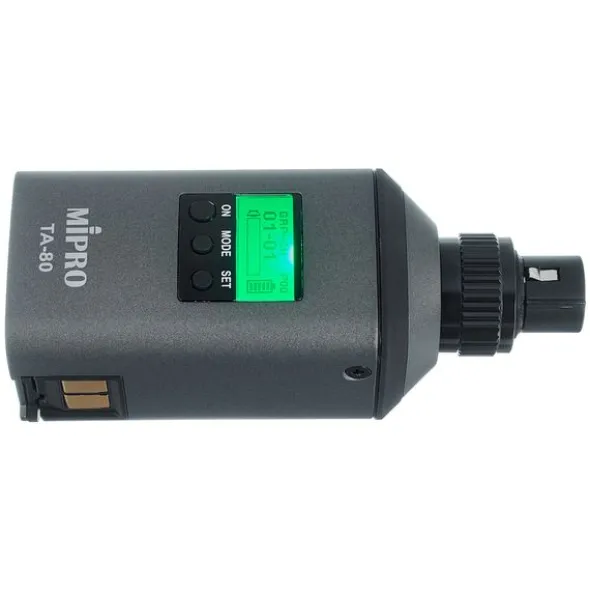

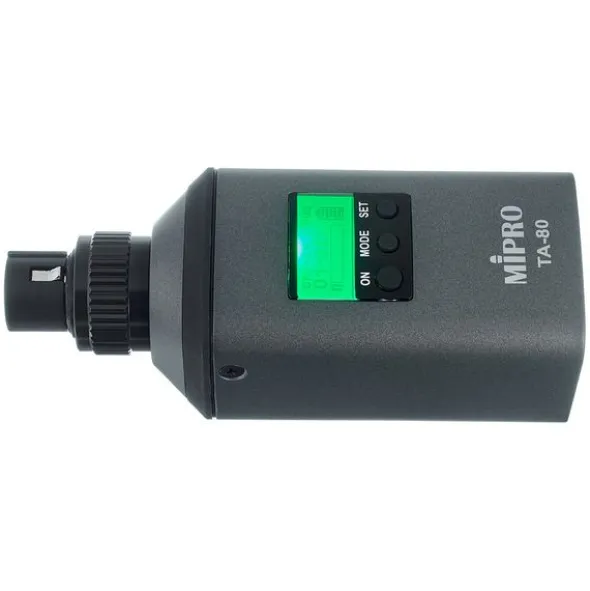

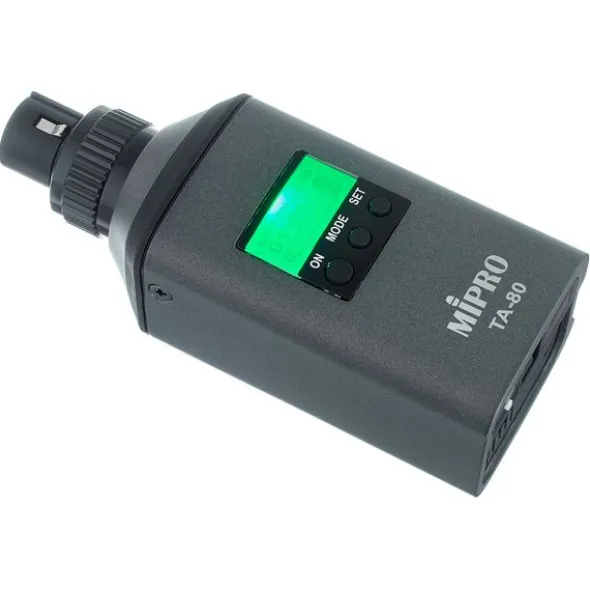

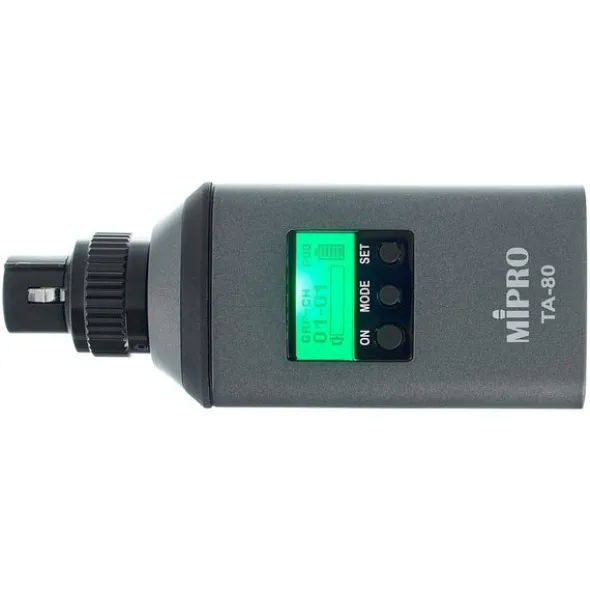

Mipro ACT-800 TA-80 5UA

Digital Plug-On Transmitter

• Frequency range: 482 – 554 MHz
• Can be used with all dynamic microphones or condenser microphones with XLR plugs
• Switchable 12 V / 48 V phantom power supply
• ACT – Automatic Channel Targeting
• Switchable low-cut
• Battery life up to 12 hours – 5 hours at 48 V

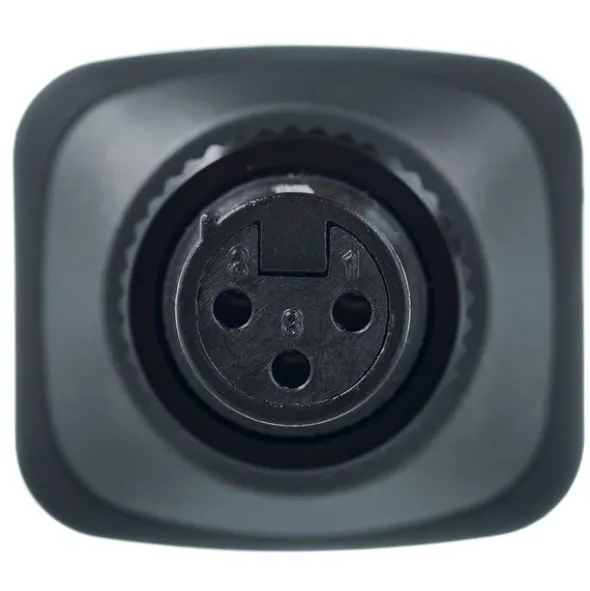

• Lockable XLR socket
• Input sensitivity adjustable in 6 levels: +12 dB to -18 dB
• Dimensions: 44 x 114 x 39 mm
• Weight without battery: 165 g
• Colour: Black

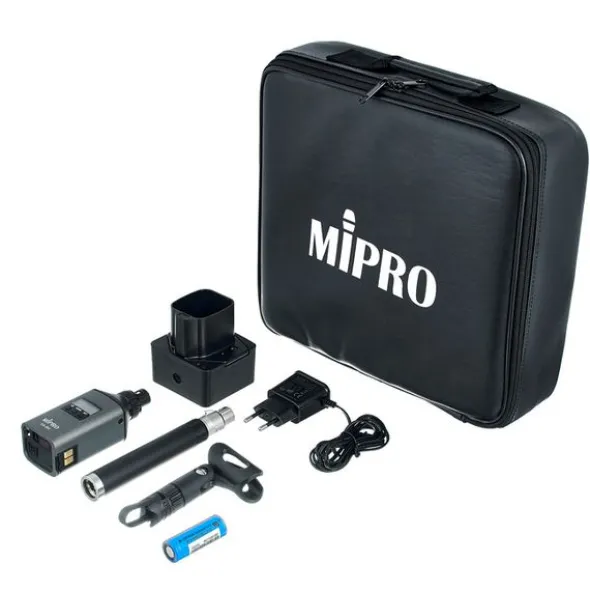

• Includes bag, battery, charging cradle and microphone stand adapter

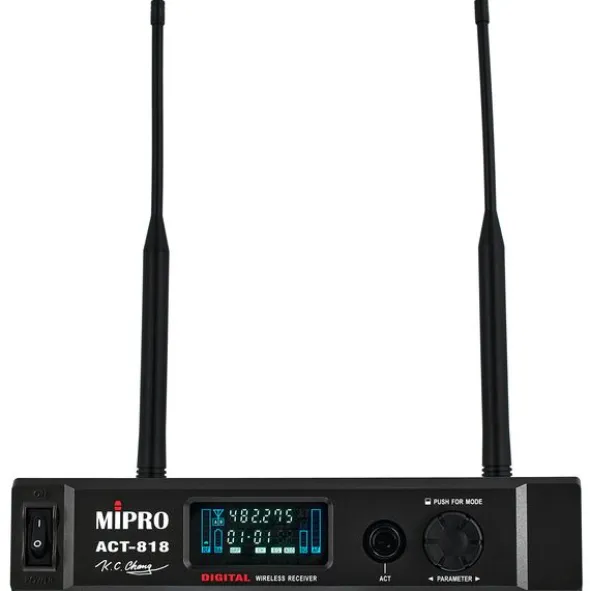

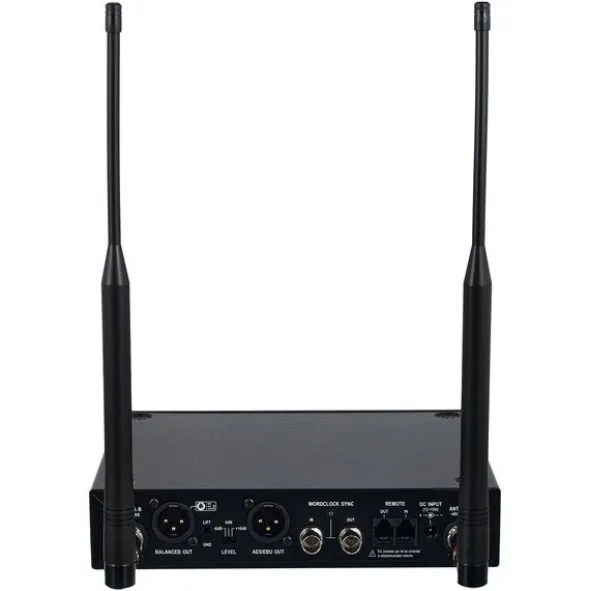

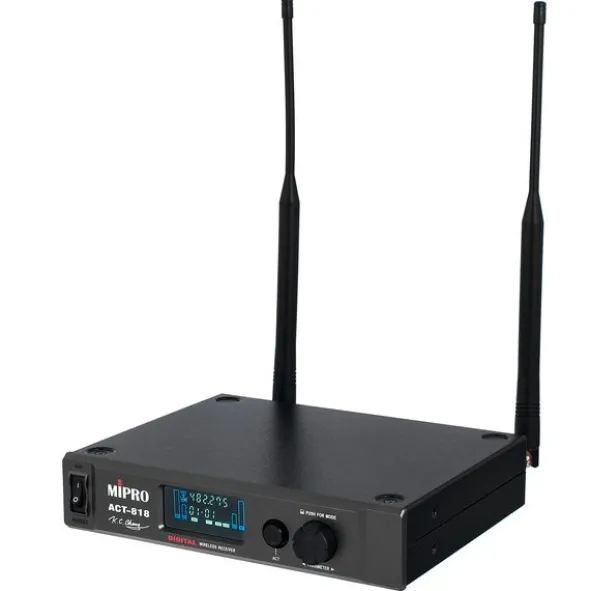

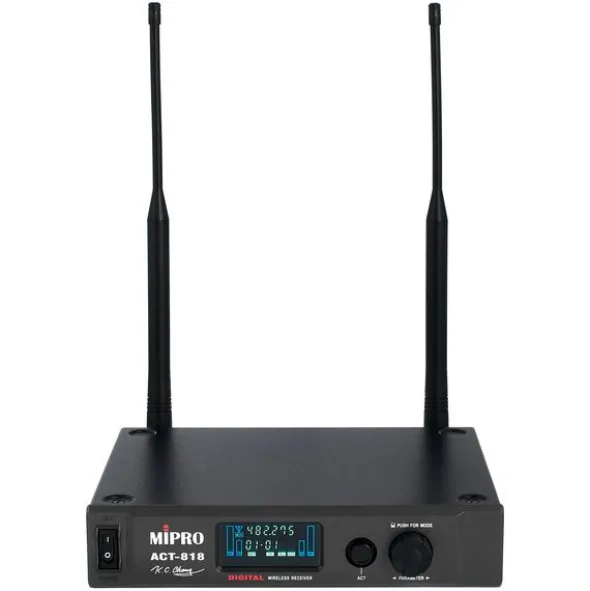

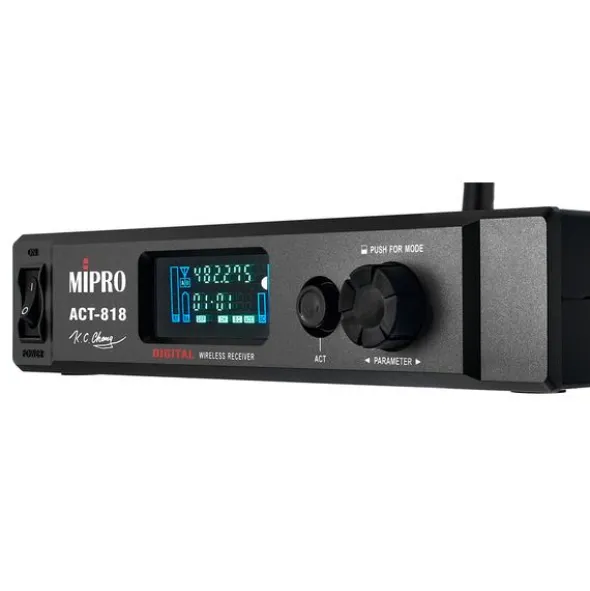

Mipro ACT-818 5UA

Digital UHF 1-Channel Receiver with 72 MHz Switching Bandwidth

• Frequency range: 482 – 554 MHz
• 224 preset channels in 7 groups
• Up to 48 compatible channels
• Latency < 2.7 ms
• 115 dBA dynamic range
• 256-bit encryption
• Range up to 100 metres
• ACT: Automatic Channel Targeting
• Full-colour VFD screen
• Interference warning indicator
• SmartEQ
• Adjustable reception sensitivity
• Three-stage adjustable output level

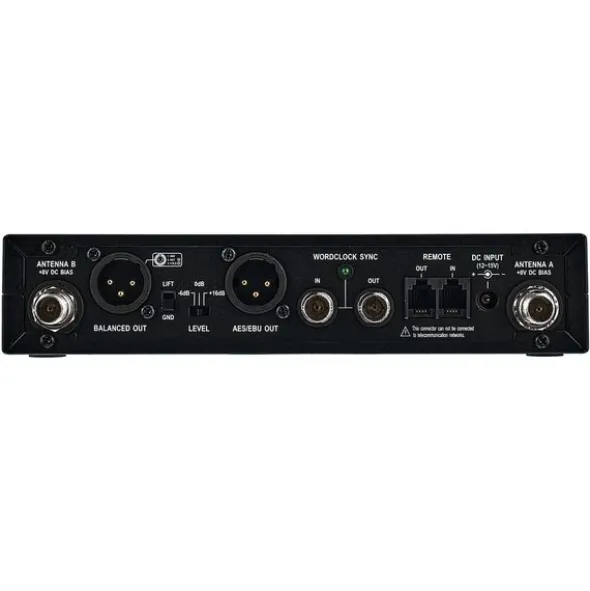

• TNC antenna connections with 8V bias voltage
• XLR output with ground lift
• Digital AES/EBU output
• Word clock I/O
• RJ11 Remote I/O
• Rack mounting possible using optional rack kits Mipro FB-71 or FB-72
• Dimensions (W x H x D): 210 x 44 x 230 mm
• Weight: 1.10 kg
• Colour: Black

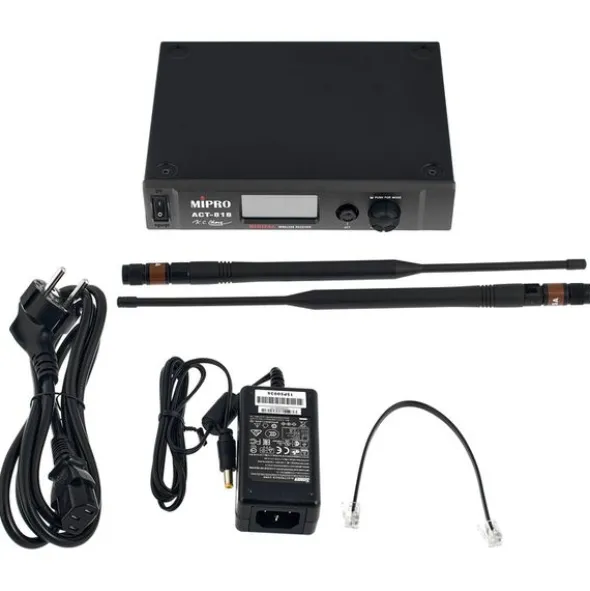

• Includes power supply (100 – 240V) and RJ11 patch cable

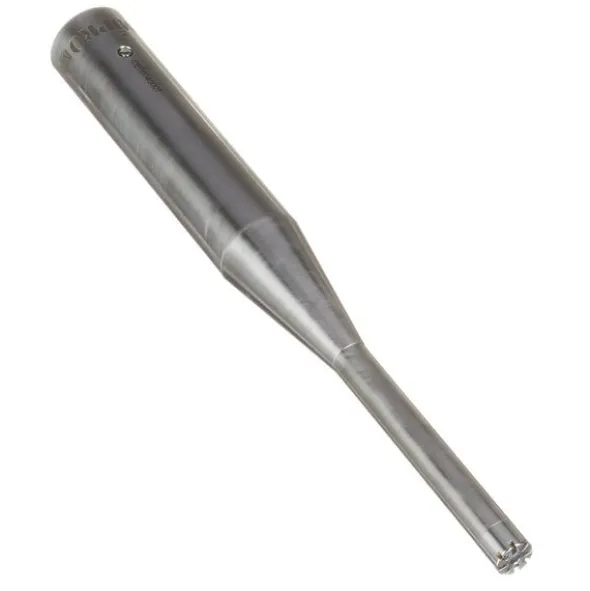

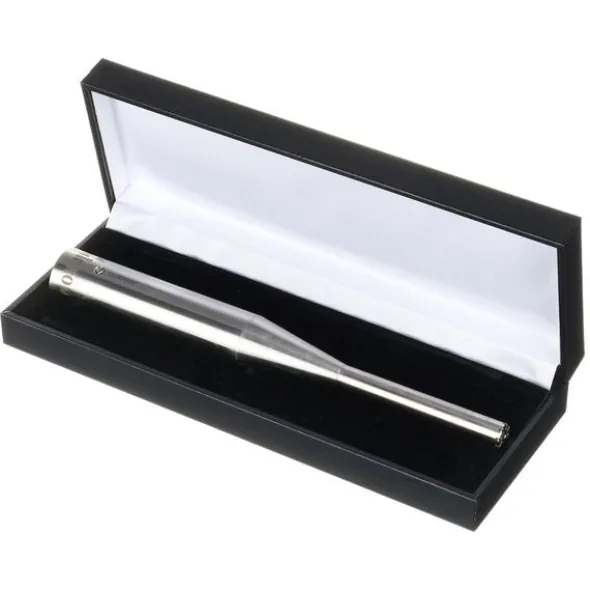

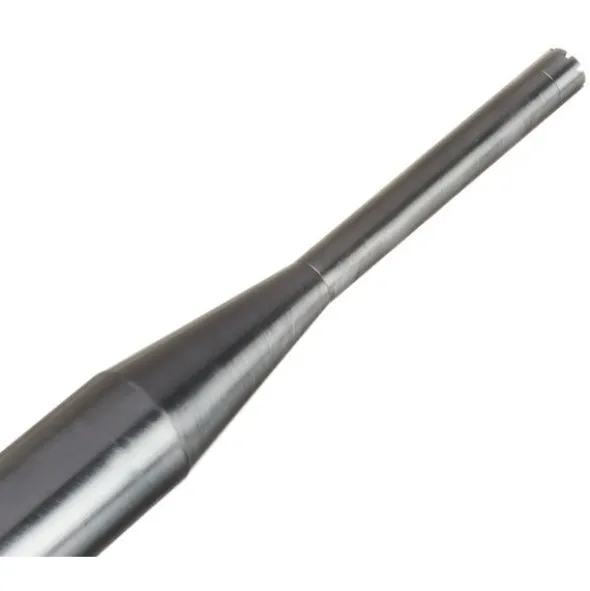

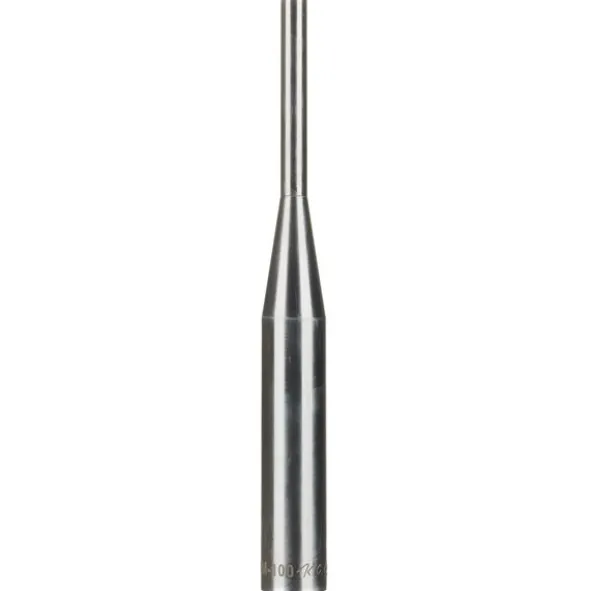

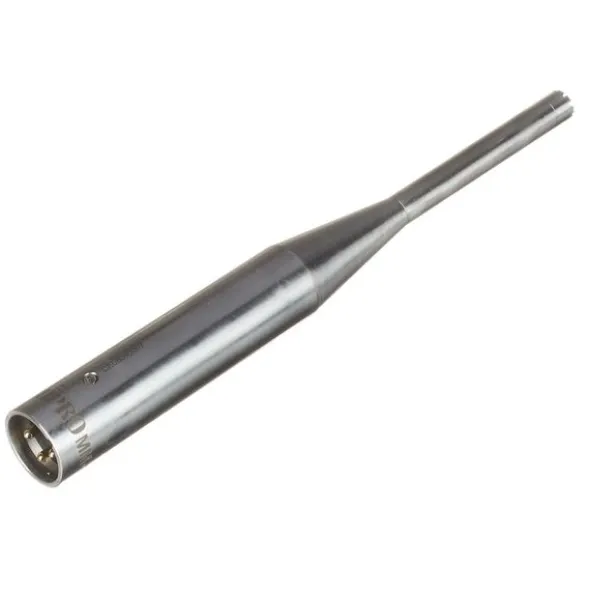

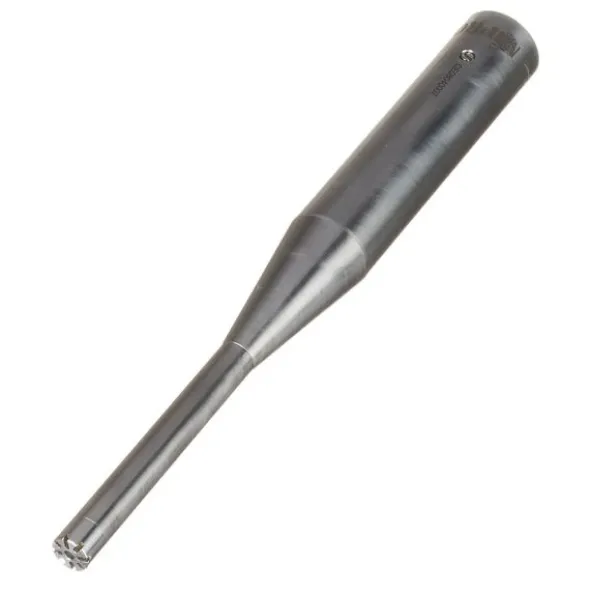

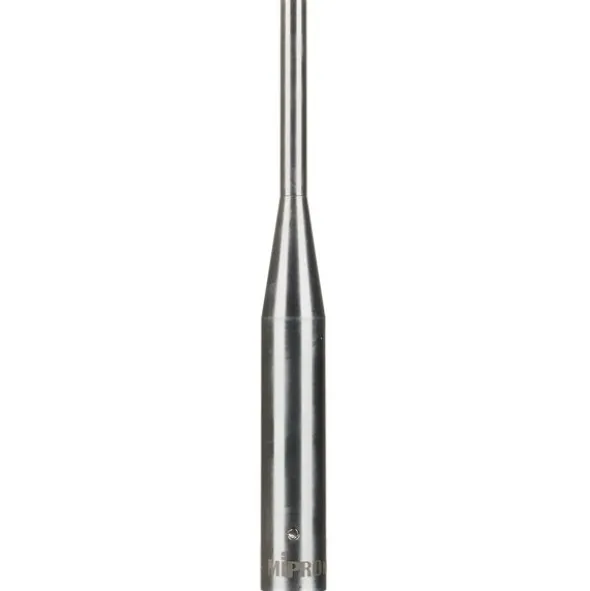

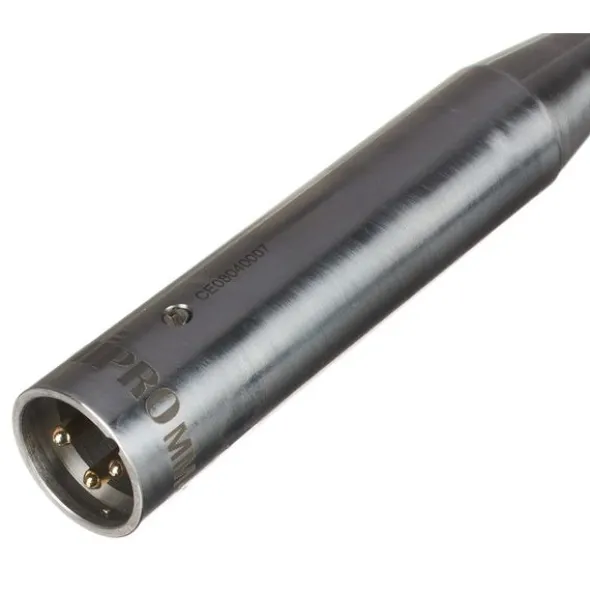

Mipro MM-100

Measuring microphone

• For calibrating sound systems and measuring sound levels and frequency curves
• Polar pattern: Omnidirectional
• Frequency range: 20 – 20,000 Hz
• max. SPL: 125 dB
• Sensitivity: -36 dBV / Pa (0 dB=1V)
• Impedance: 200 ohms
• 12-48 V phantom power
• Dimensions (D x H): 19 x 168 mm
• Weight: 109 g

Disponível desdeNovembro 2024

número de artigo604194

unidade de venda1peça(s)

Frequency BandUHF

DiversityYes

Switchable FrequenciesYes

Removeable AntennaYes

Transmitter powered withRechargeable battery

Frequency from482 MHz

Frequency to554 MHz
