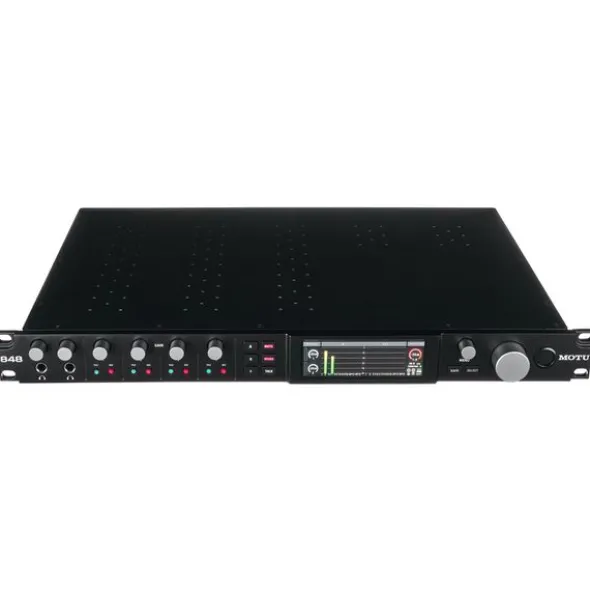

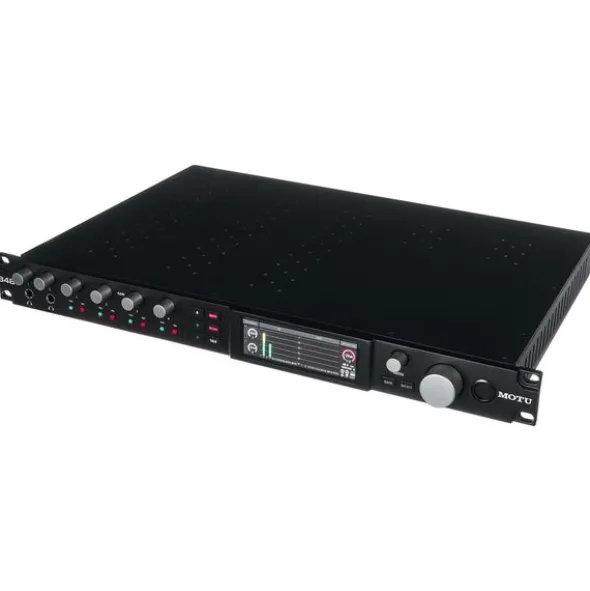

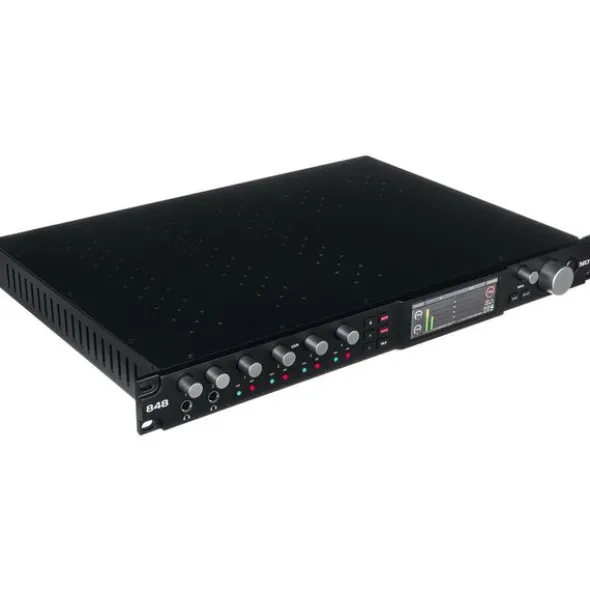

MOTU 848

28 x 32 Thunderbolt / USB / AVB Audio Interface

• 28 inputs and 32 outputs

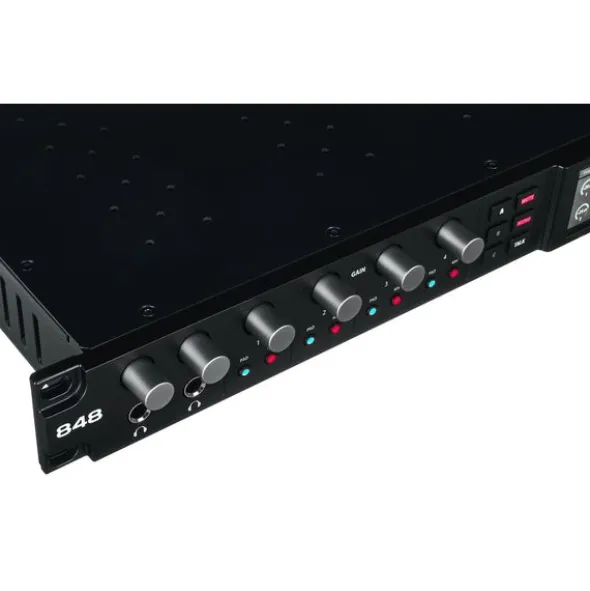

• Four high-quality preamps with up to 74 dB gain, 48 V phantom power, -20 dB pad, phase reversal, remote control and dedicated inserts (on Mic 3–4)

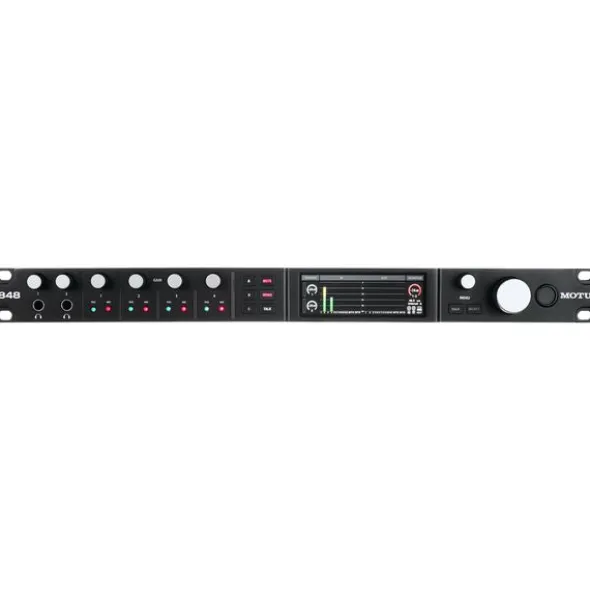

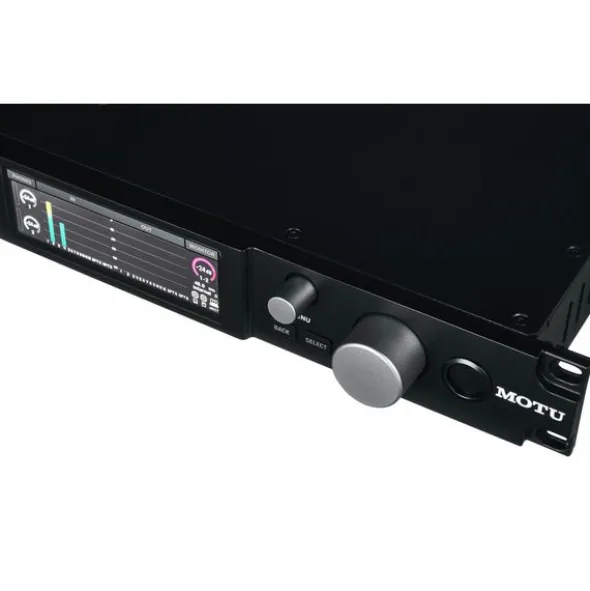

• 3.9″ display with precise level indication for all inputs and outputs
• ESS Sabre32 Ultra DAC-Technology
• DSP-controlled mixer with 64 inputs, 32 buses and DSP effects (reverb, 4-band equaliser, gate, compressor and high-pass filter)
• Patchbay routing to route any source signal to any destination
• Two Gigabit Ethernet ports support AVB daisy-chaining and networking with standard CAT 5/6 cables
• 16x 8-channel AVB streams inputs and outputs (128 audio channels in total)
• WiFi control via the CueMix Pro app
• Network management functions – detection and control of multiple devices in the network
• Control room functions such as talkback and A/B/C monitor selection via the CueMix Pro software
• Dynamic range line outputs: 125 dB
• Dynamic range line inputs: 120 dB
• Resolution: 24 bit / 192 kHz
• Dynamic range of microphone inputs: 118 dB

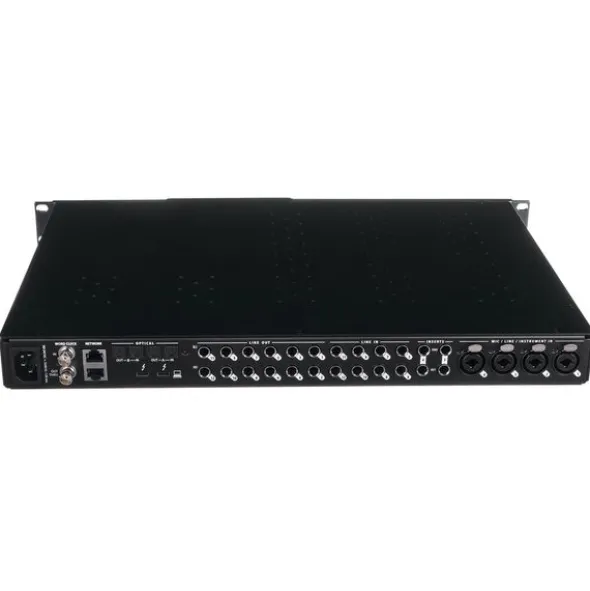

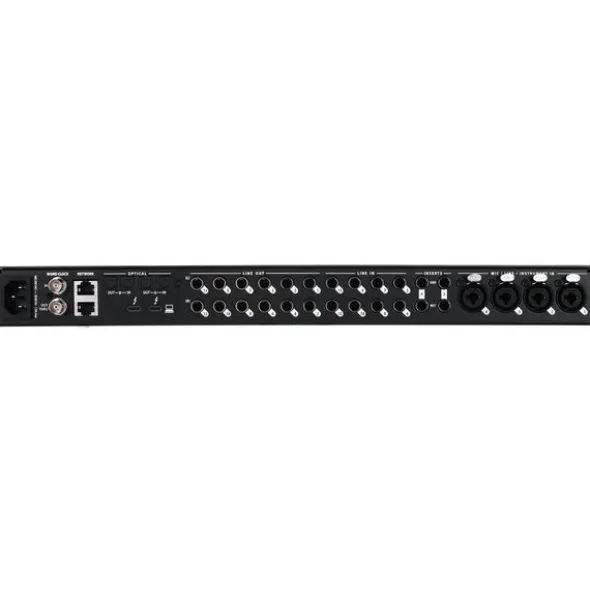

• Outputs: 12 x 6.3 mm jacks (balanced, DC-coupled)
• Inputs: Eight 6.3 mm jack (balanced)
• Headphone outputs with independent volume control: 2 x 6.3 mm jack
• Microphone/line/Hi-Z inputs: 4 x 6.3 mm jack/XLR combo
• Two ADAT (16 ADAT channels)
• Word clock input and output
• System requirements: Windows 10 or later, Mac OSX 12 or later
• Dimensions: 482 x 311 x 44 mm
• Weight: 4.5 kg
• Includes 40 Gbps USB-C cable (compatible with Thunderbolt 3/4, USB4, USB3 and USB2)

Disponível desdeSetembro 2025

número de artigo625419

unidade de venda1peça(s)

Recording / Playback Channels28×32

Number of Mic Inputs4

Number of Line Inputs8

Instrument Inputs4

Number of Line Outs12

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors2

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet2

Other ConnectorsNone

MIDI interfaceNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version4.0

Width482 mm

Depth311 mm

Height44 mm

Connection FormatUSB port Type C

Number of Instrument Inputs4

Number of Line Outputs12

AES/EBU Connectors0

Incl. Power SupplyYes

Thunderbolt Version4

Width in mm483 mm

Depth in mm177 mm

Height in mm44 mm

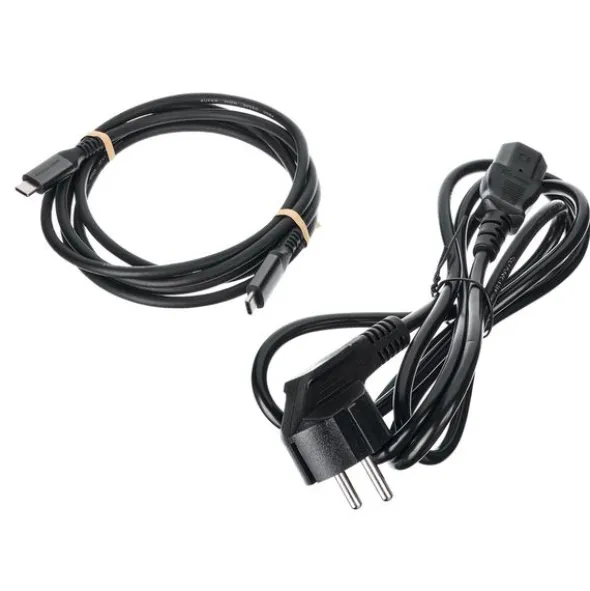

Included in deliveryPower Cable, USB-C Cable

Zero latency monitoringYes
