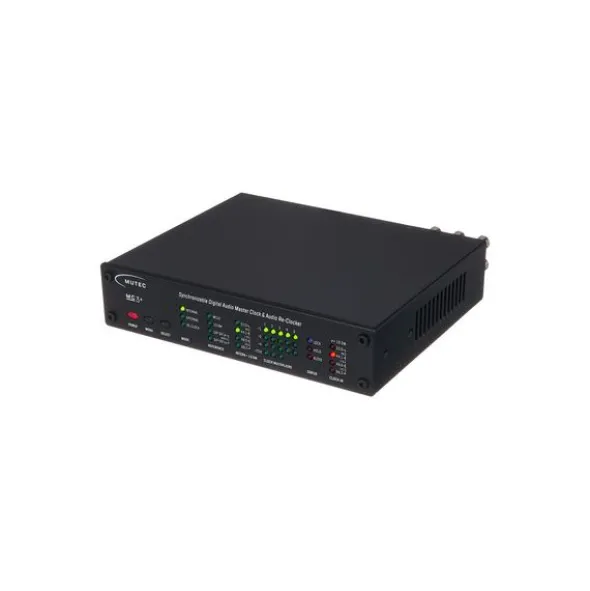

Mutec MC-3+ Smart Clock blac B-Stock

Digital Audio Master Clock Generator

• Based on MUTEC 1G clock technology
• Improves the audio quality of all connected digital audio equipment
• Most aggressive re-clocking digital audio signals
• Increases audibly the sound quality of each DA converter
• Prevents digital “clicks and pops” in audio recordings
• Digitally-compensated clock accuracy for the highest precision of generated clock signals
• Locks to 10 MHz clock signals of so-called Atomic clocks or GPS receivers
• Outputs clock signals are fail-safe in any state of operation
• Generates Word Clock, Super Clock, AES11- and S/P-DIF reference clocks simultaneously
• Converts between AES3 and S/P-DIF, as well as between AES11 and Word Clock
• Generates Word Clock rates up to 768.0 kHz
• Controls can be switched off to prevent accidental operation
• 1x BNC input for Word Clock + 10 MHz, 75 ohm termination, switchable, unbalanced
• 1x XLR input for AES3/11, 110 ohm termination, transformer balanced
• 1x Optical input for S/PDIF, Toshiba Toslink , EIAJ RC-5720
• 1x RCA input (coaxial) for S/PDIF, 75 ohm termination, unbalanced
• 6x BNC output for Word Clock, terminated, unbalanced, individually buffered, adjustable in pairs
• 1x XLR output for AES3/11, terminated, transformer balanced, buffered
• 1x RCA output (coaxial) for S/P-DIF, terminated, unbalanced, buffered
• 1x Optical output for S/PDIF, Toshiba Toslink™, EIAJ RC-5720
• 9.5″ Anodized aluminium housing
• Dimensions: 196 x 42 x 156 mm
• Weight: 1260 g
• Built-in, usable internationally power supply
• Colour of the front panel: Black
