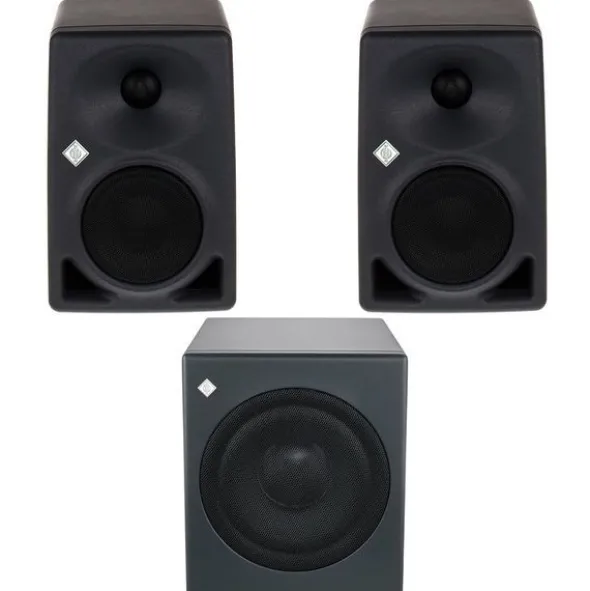

Neumann KH 80 DSP Sub Bundle

Bundle offer comprising

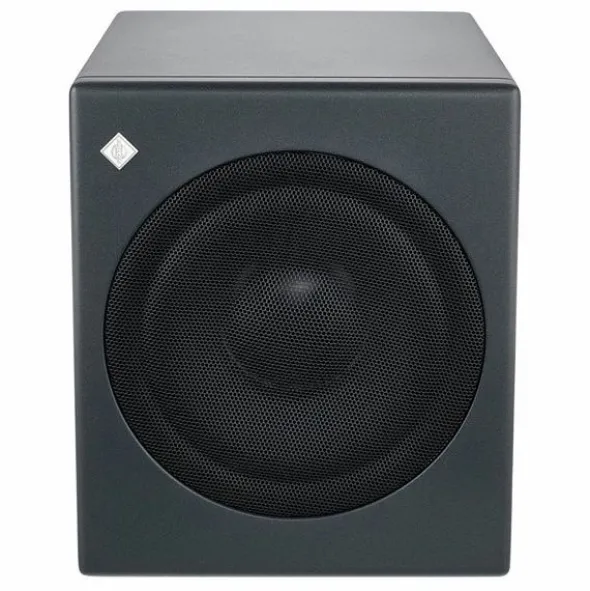

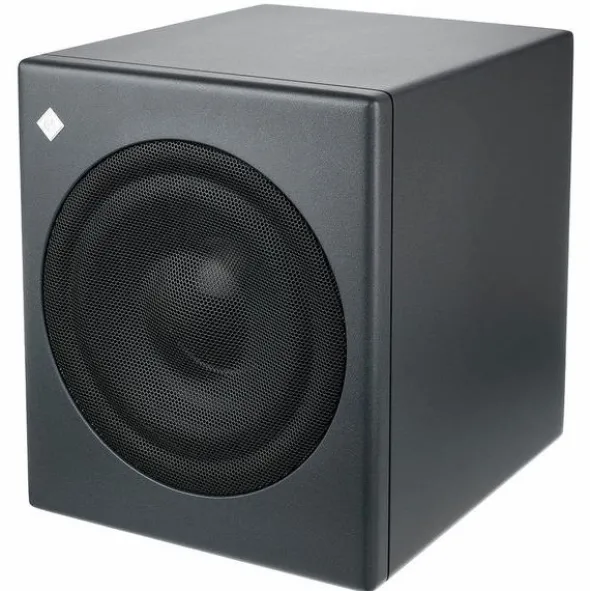

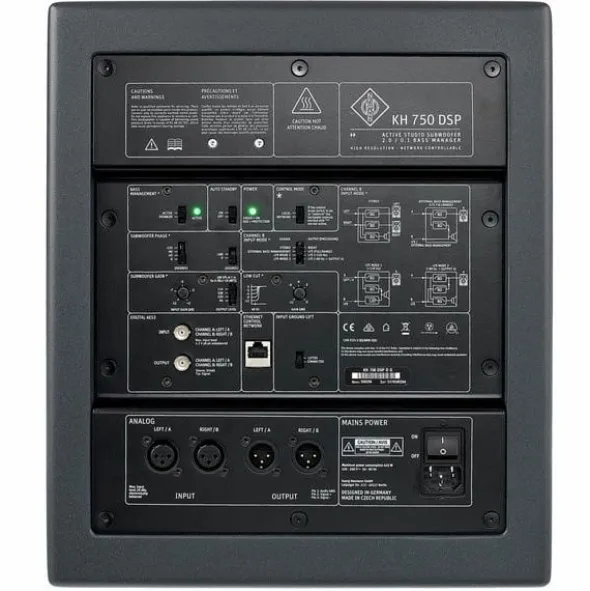

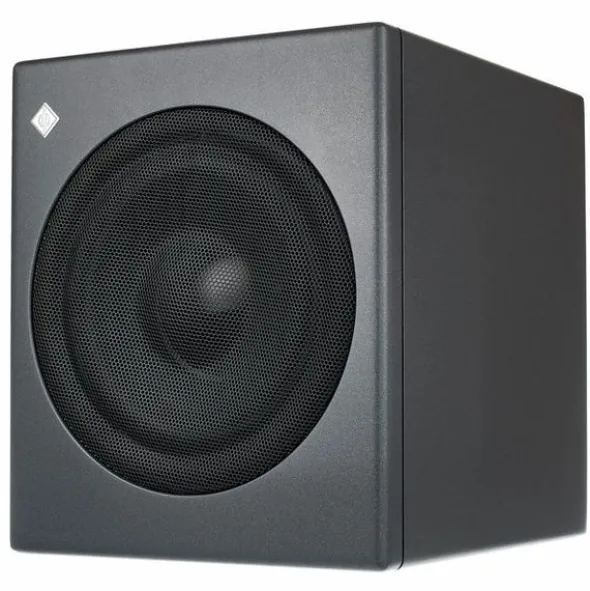

Neumann KH 750 DSP

Active Studio Subwoofer with DSP

• Equipment: 10″ Ultra Long Excursion woofer
• Power: 256 W
• Maximum level: 105.0 dB SPL
• Frequency range: 18 – 750 Hz (+ 3 dB)
• 2 different LFE modes selectable
• Crossover frequency: 80 Hz
• FIR phase correction for the connected analogue Neumann monitors via optional MA 1 (Art. 508756 – not included)
• Switchable stand-by mode

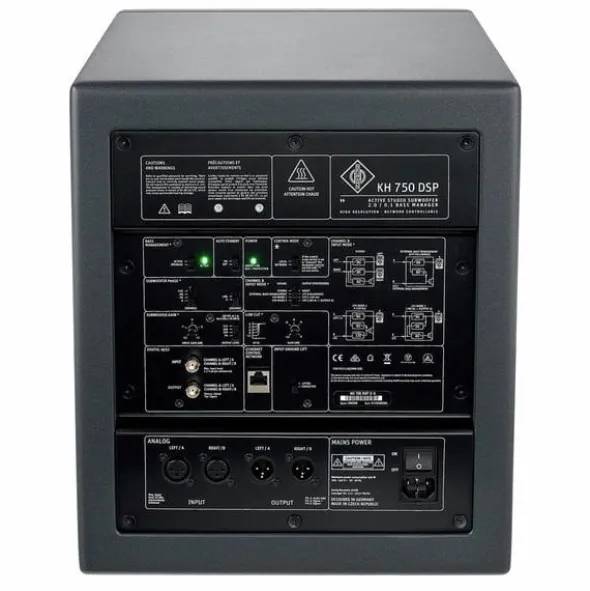

• Analogue inputs / outputs in XLR
• Digital inputs / outputs in BNC (75 Ohm, AES3)
• Automatic calibration including the connected Neumann monitors via optional MA 1 software (MAC/PC)
• Dimensions: 383 x 330 x 383 mm
• Weight: 19.5 kg

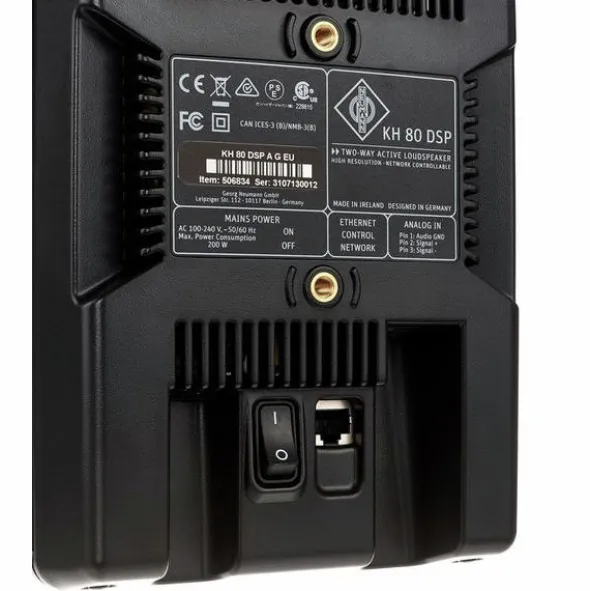

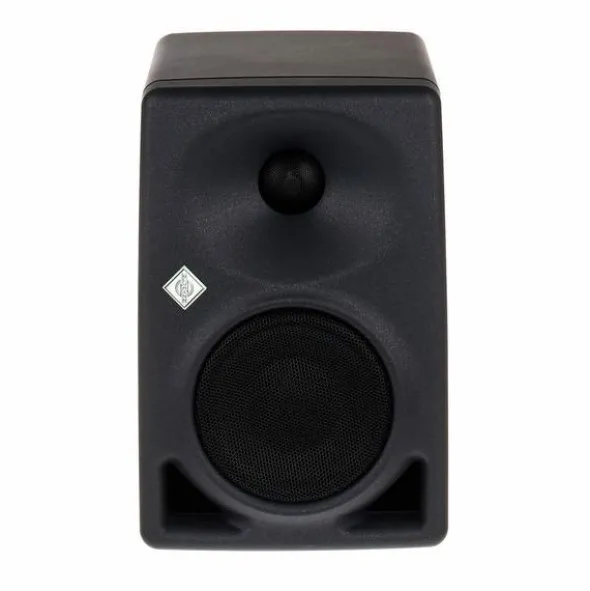

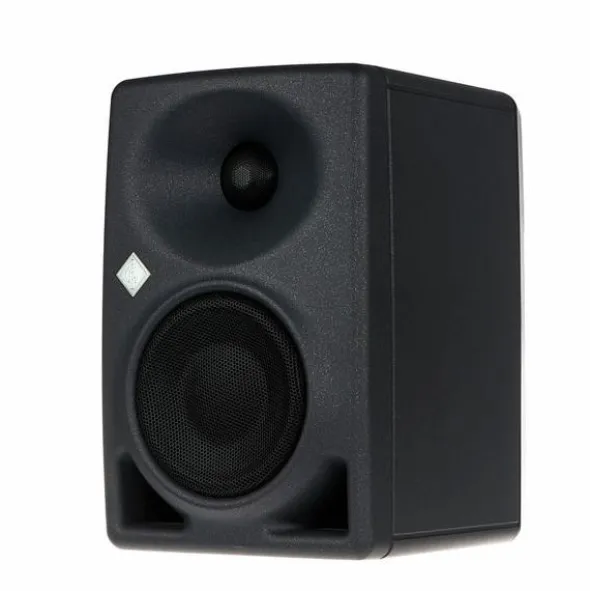

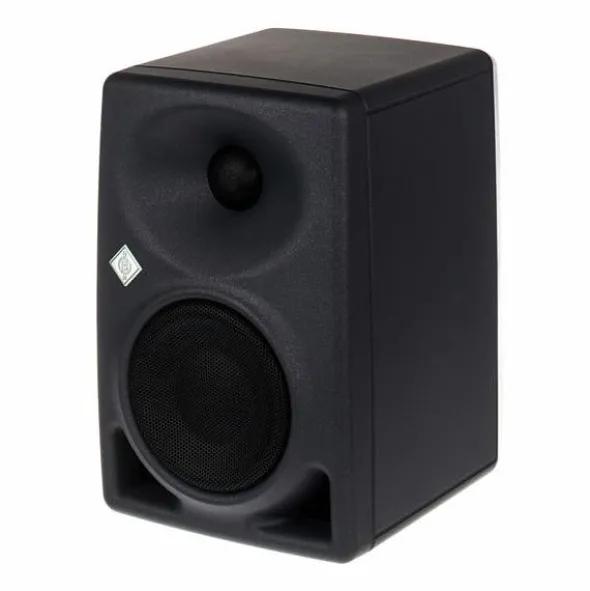

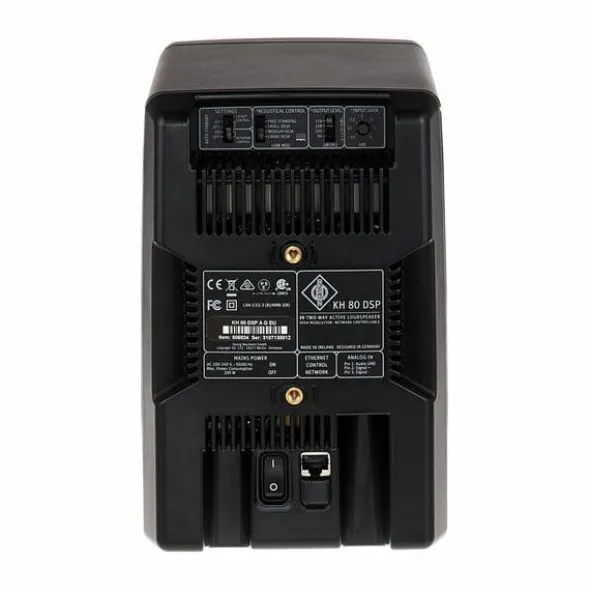

2x Neumann KH 80 DSP

Studio Monitor with DSP

• 24-Bit 48 kHz signal processing
• Equipped with: 4″ woofer 1″ tweeter
• Frequency response (+/- 3 dB): 57 Hz – 21 kHz
• Maximum output level: 108.8 dB SPL
• Power: 90 W woofer and 50 W tweeter
• Control panel for standby and acoustical control
• Electronic peak /thermo limiter protection circuit separately for woofer and tweeter
• Input / output level control
• Linear phase DSP crossover 8th order
• External 4-position acoustical controls for low-mid or internal automatic or manual room correction (Precision Alignment) with max. 8 IIR filters plus low / high shelf global filter balance
• 70-ms delay function for time and lipsync settings
• Self-generated noise <20 dB (A) at 10 cm
• Input: balanced XLR, magnetically shielded
• Network connection
• 2 x M6 threaded inserts for stands/mounts
• Dimensions (H x W x D): 233 x 154 x 194 mm
• Weight: 3.5 kg

Disponível desdeDezembro 2019

número de artigo481694

unidade de venda1peça(s)

Speaker Components1x 4″, 1x 1″

Satellite Power2x 140 W

Frequency range satellite57 Hz – 21000 Hz

Woofer Components1x 10″

Subwoofer Power256 W

Frequency range subwoofer18 Hz – 750 Hz

Satellite Dimensions233 x 154 x 194

Weight of the Satellite3,5 kg

Subwoofer Dimensions383 x 330 x 383

Subwoofer Weight19,5 kg
