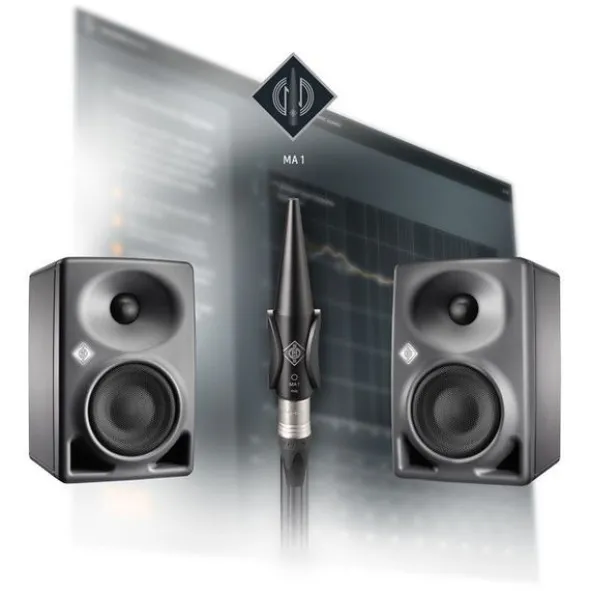

Neumann Monitor Alignment Kit 2

Bundle offer comprising

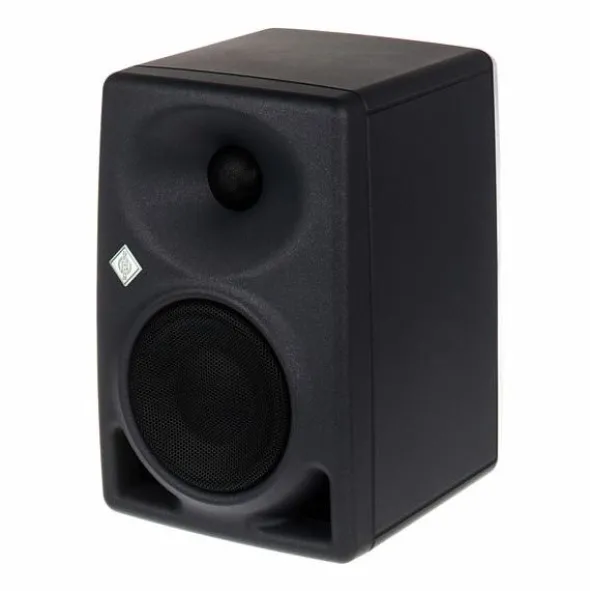

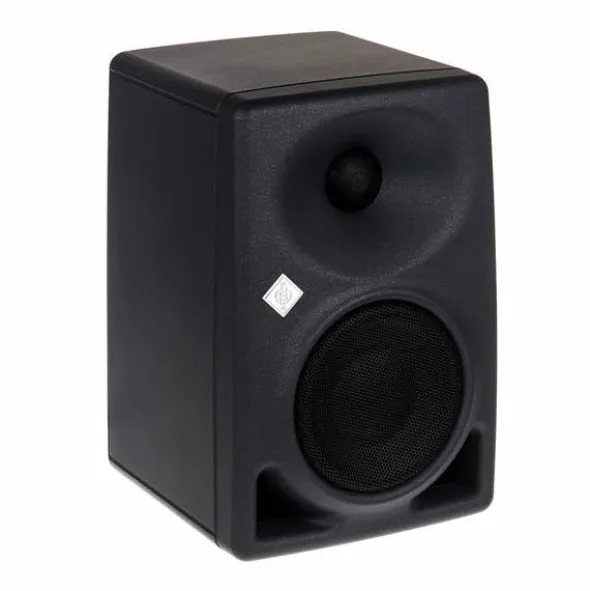

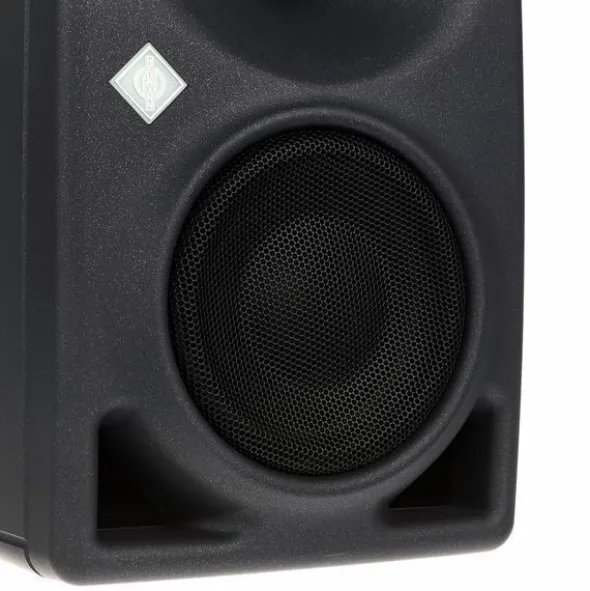

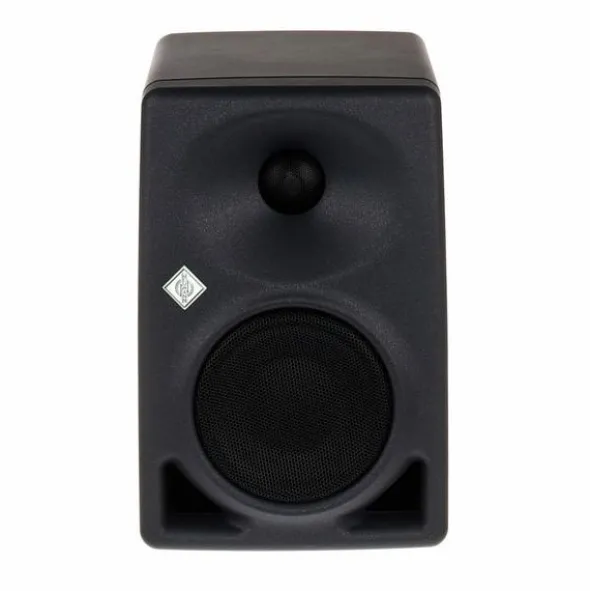

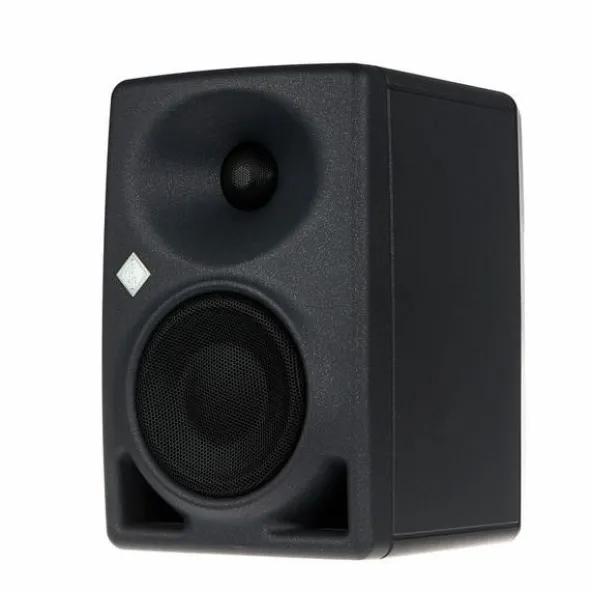

2x Neumann KH 80 DSP

Studio Monitor with DSP

• 24-Bit 48 kHz signal processing

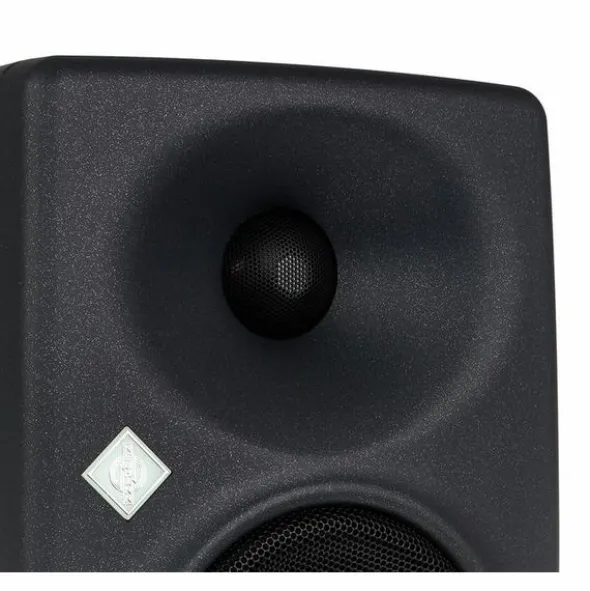

• Equipped with: 4″ woofer 1″ tweeter
• Frequency response (+/- 3 dB): 57 Hz – 21 kHz
• Maximum output level: 108.8 dB SPL
• Power: 90 W woofer and 50 W tweeter

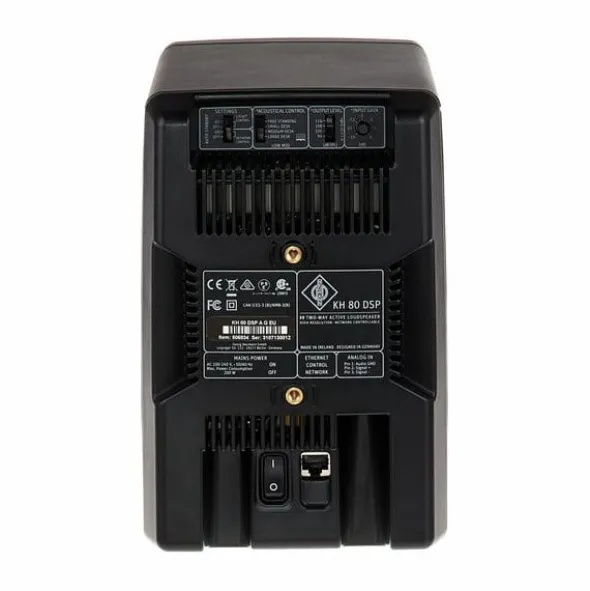

• Control panel for standby and acoustical control
• Electronic peak /thermo limiter protection circuit separately for woofer and tweeter
• Input / output level control
• Linear phase DSP crossover 8th order

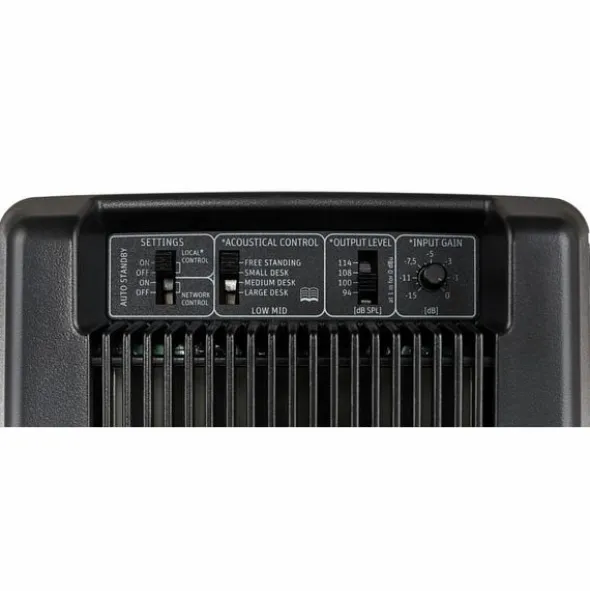

• External 4-position acoustical controls for low-mid or internal automatic or manual room correction (Precision Alignment) with max. 8 IIR filters plus low / high shelf global filter balance
• 70-ms delay function for time and lipsync settings
• Self-generated noise <20 dB (A) at 10 cm

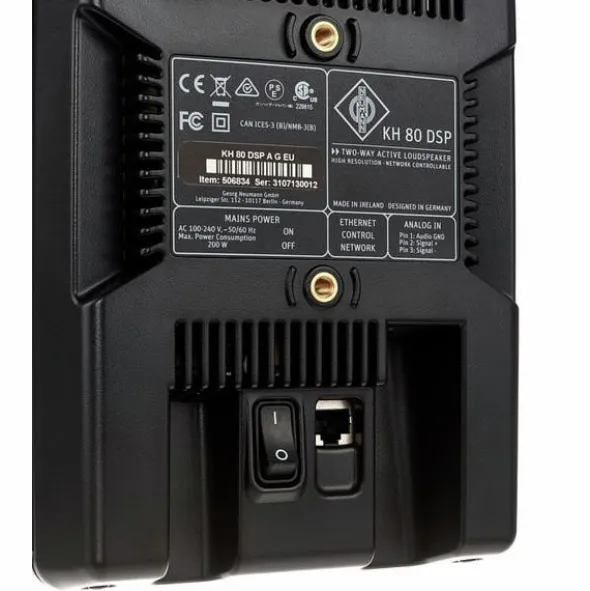

• Input: balanced XLR, magnetically shielded
• Network connection
• 2 x M6 threaded inserts for stands/mounts
• Dimensions (H x W x D): 233 x 154 x 194 mm
• Weight: 3.5 kg

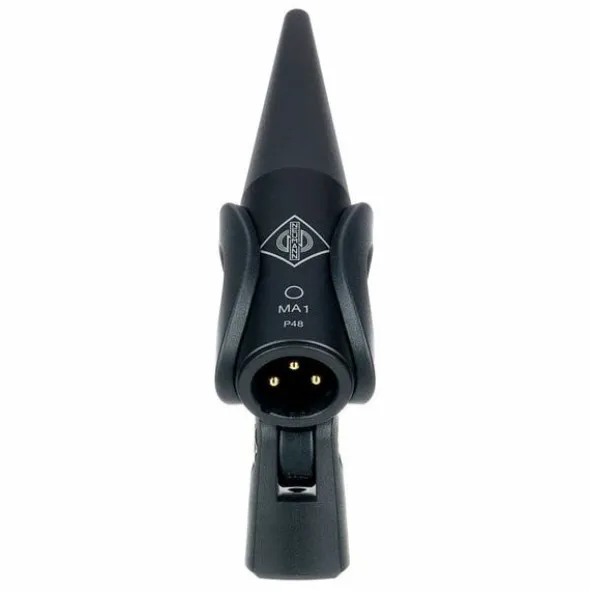

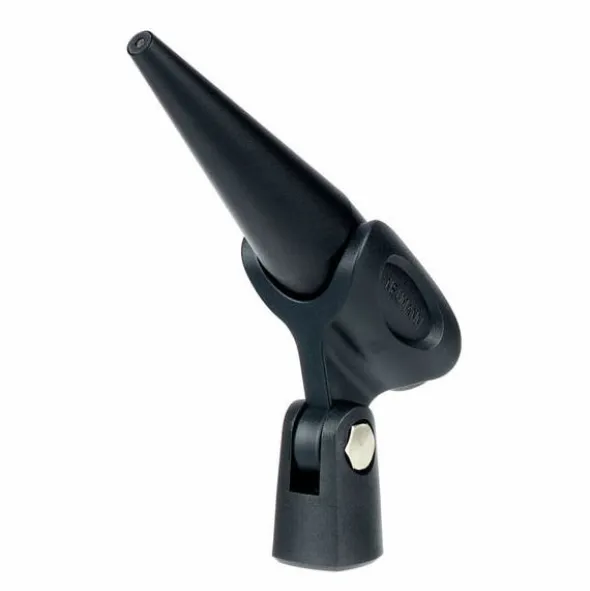

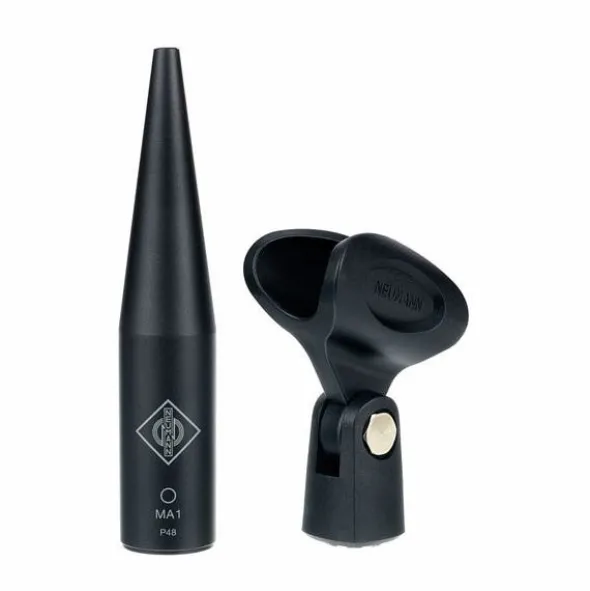

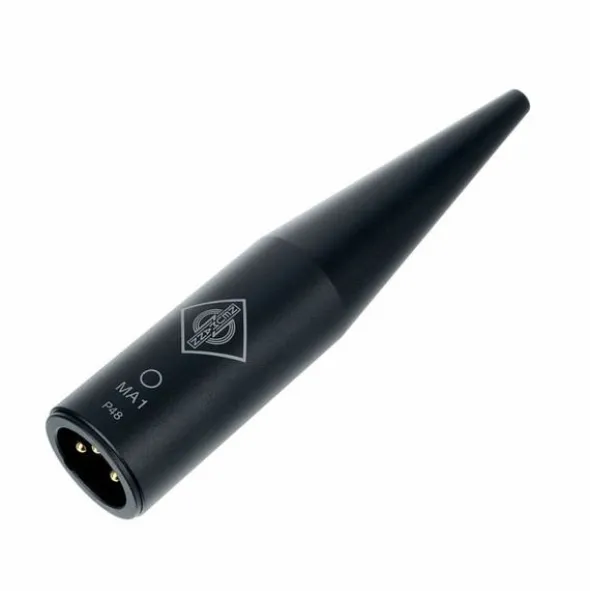

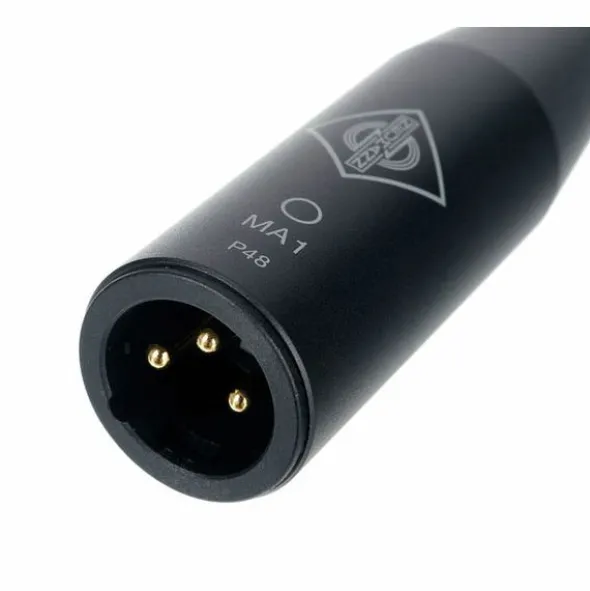

Neumann MA 1

Automatic Monitor Alignment

• Calibration system for stereo setups with Neumann KH 80 DSP and all analog (non-DSP-based) Neumann monitors in connection with the KH 750 DSP subwoofer
• Calibration algorithms developed together with Fraunhofer IIS

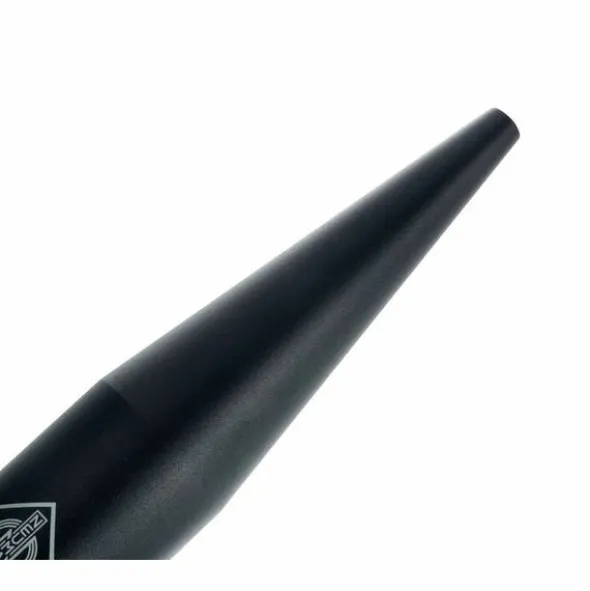

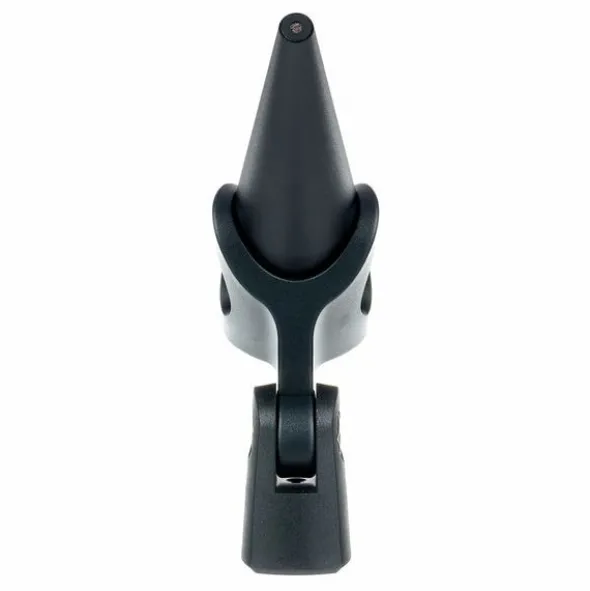

• Individually calibrated measurement microphone
• Space-adaptive target curve
• Phase and amplitude optimization for analog Neumann monitors
• Frequency range: 20 – 20000 Hz
• Polar pattern: Omnidirectional
• For MAC and PC
• Dimensions (L x Ø): 117 x 23 mm
• Weight: 37 g
• Optional Multichannel Extension – automatic reference alignment for multi-channel systems Quad, 5.1, 7.1, 5.1.4 and 7.1.4 with network-compatible monitors (KH 80, KH 120 II, KH 150 and KH 750) with up to four subwoofers, via separately available licence (optional, not included)

Disponível desdeJaneiro 2021

número de artigo512663

unidade de venda1peça(s)

Woofer Size Class4″

Number of Ways2

Speaker Housing – Woofer SystemBass reflex

Coaxial SystemNo

Power per Unit140 W

Frequency range57 Hz – 21000 Hz

Analogue XLR InputYes

Analogue Input(Jack)Yes

Analogue Input (Mini Jack)No

Analogue Input (RCA)No

Digital inputNo

Manual Sound AdjustmentYes

DSP Room Correctionincluding Neumann MA 1

Woofer4″

Tweeter1″

Height233 mm

Width154 mm

Depth194 mm

Weight3,5 kg
