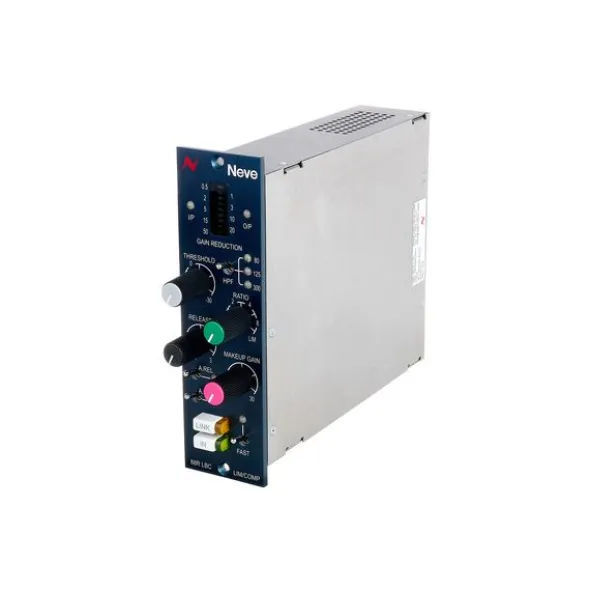

Neve 88R LBC B-Stock

Compressor / Limiter Module

• VCA circuitry modelled on the 88RS console
• LED meter for level and gain reduction
• Threshold adjustable from +20 dBu to -30 dBu
• Ratio: 1, 1.5, 2, 4, 8:1 and limiting
• Gain reduction up to 50 dB
• Adaptive attack time with additional fast attack circuit (0.1 ms)
• Release time manually adjustable between 0.03 seconds and 3 seconds
• Auto release
• Makeup gain adjustable from 0 to 30 dB and auto makeup gain
• Bypass switch
• Group compression via VCA linking
• Sidechain filter: Off / 80 Hz / 125 Hz / 300 Hz
• Headroom: +27.9 dBu @ 1 kHz (0.1% THD)
• Dynamic range: >114 dB
• THD+N: <0.008 %
• Frequency response: 20 Hz – 20,000 Hz
• Requires 500-series slot
• Format: 500-series module
