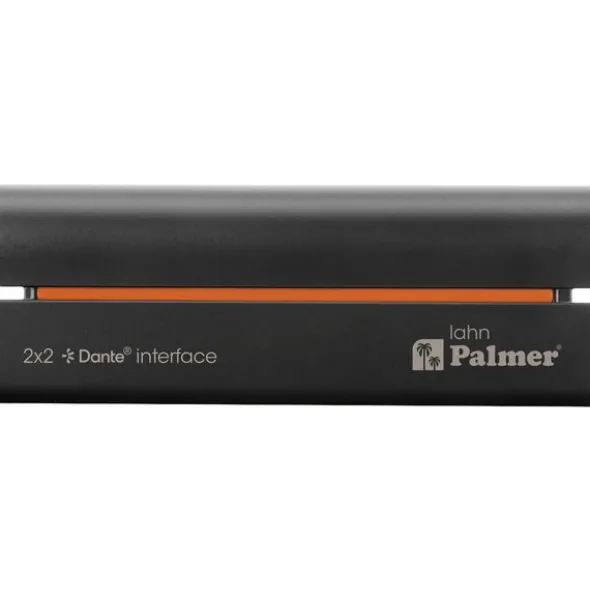

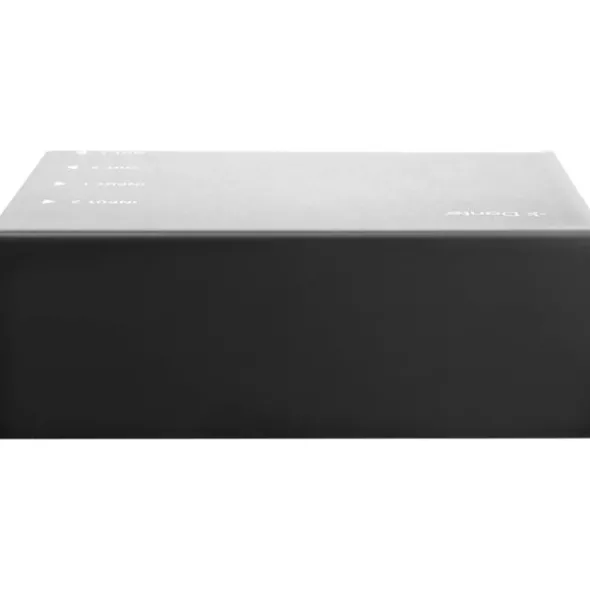

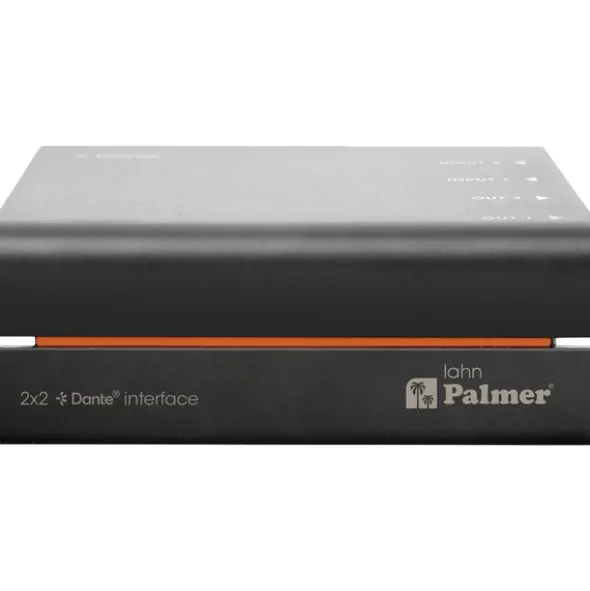

Palmer River Lahn

2 × 2 I/O Dante Interface

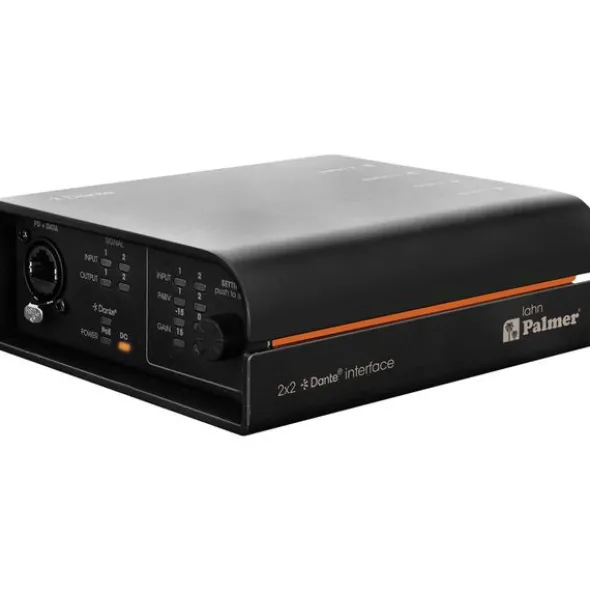

• Solid aluminium-steel housing

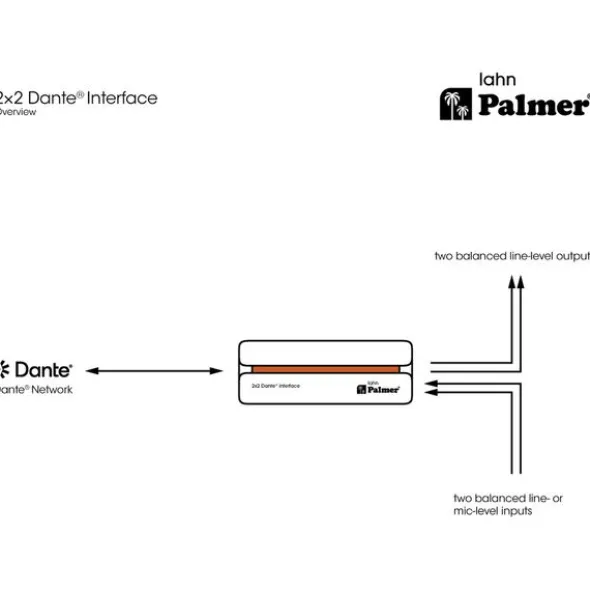

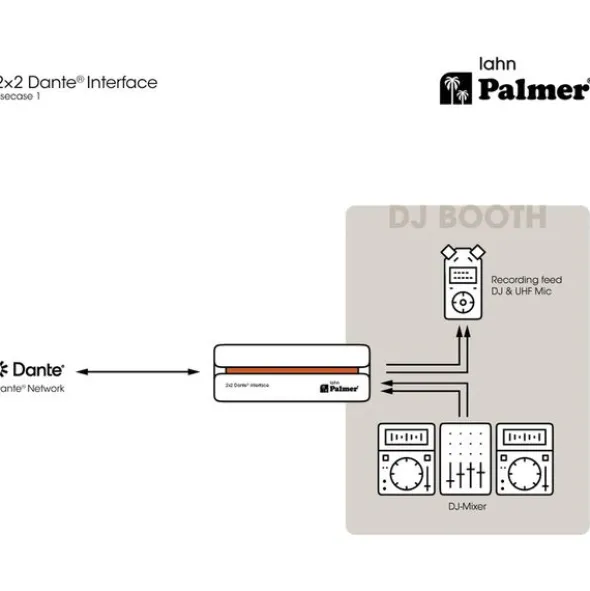

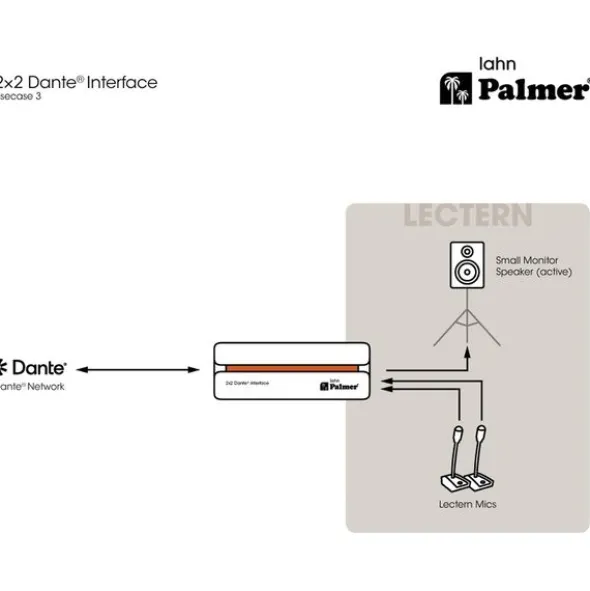

• For feeding two analogue microphone or line signals into Dante networks
• Conversion of Dante signals for mixing consoles, amplifiers, speakers, etc.
• Four-stage gain control and 48 V phantom power per channel

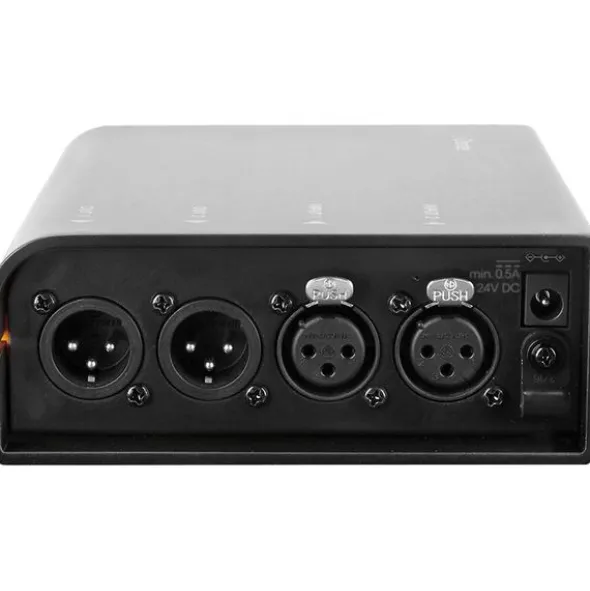

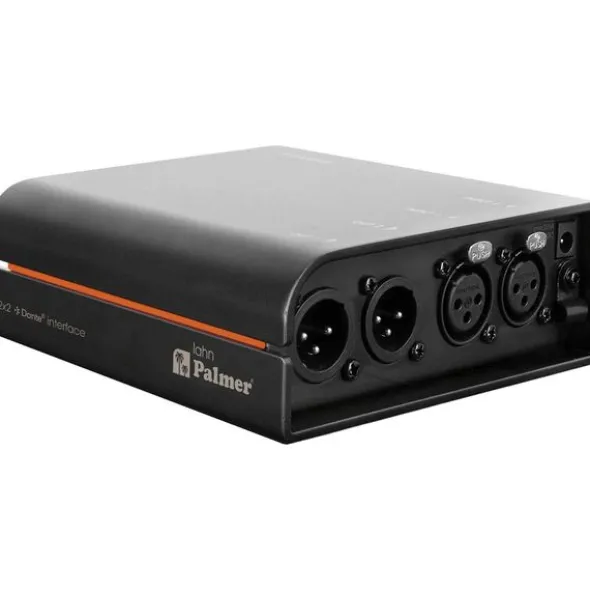

• Lockable XLR audio connections and etherCON network socket from Neutrik

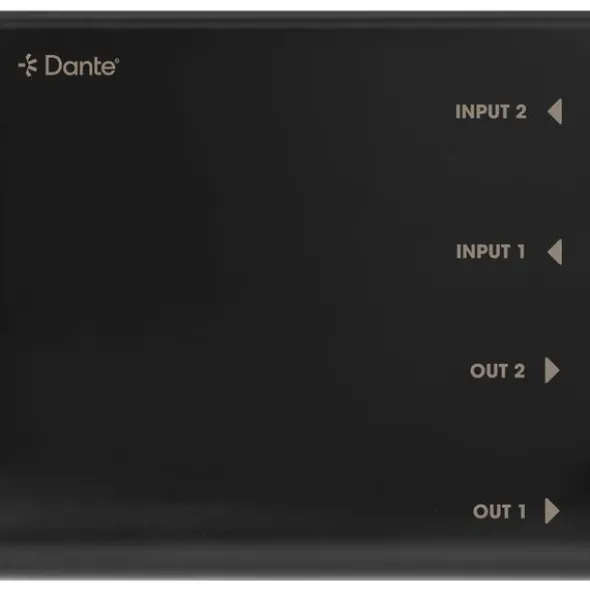

• Two switchable XLR inputs
• Two balanced XLR line outputs with automatic muting if the Dante / AES67 signal is lost

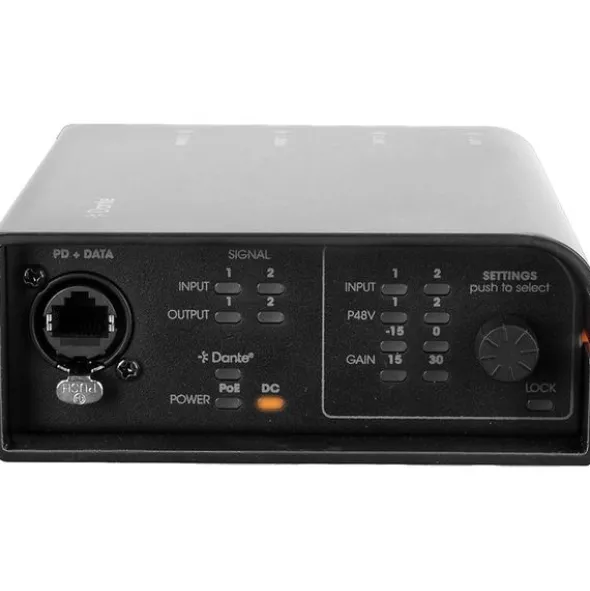

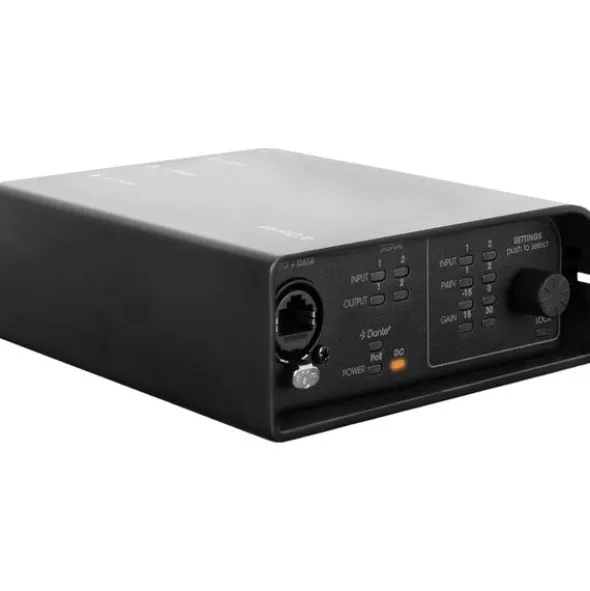

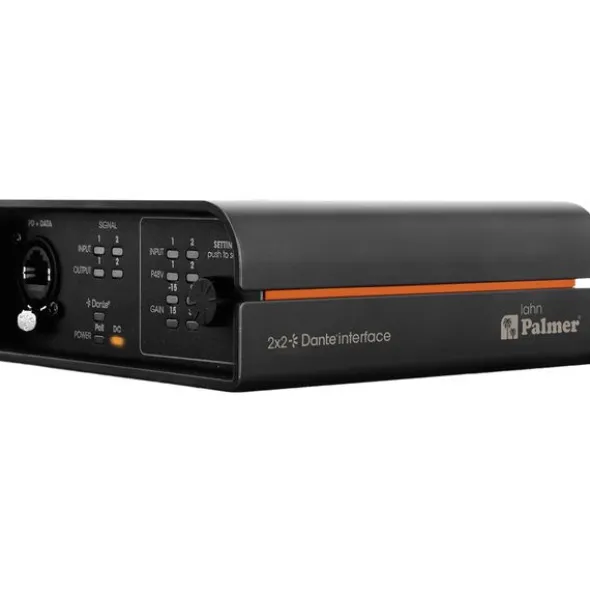

• Simple configuration on the front
• User lock, signal display for each channel
• Compatible with Dante Domain Manager and AES 67
• Power supply via supplied power supply unit (24V DC / 500 mA) or PoE
• Dimensions (W x H x D): 128 × 50 × 140 mm (height with rubber feet)
• Weight: 0.96 kg

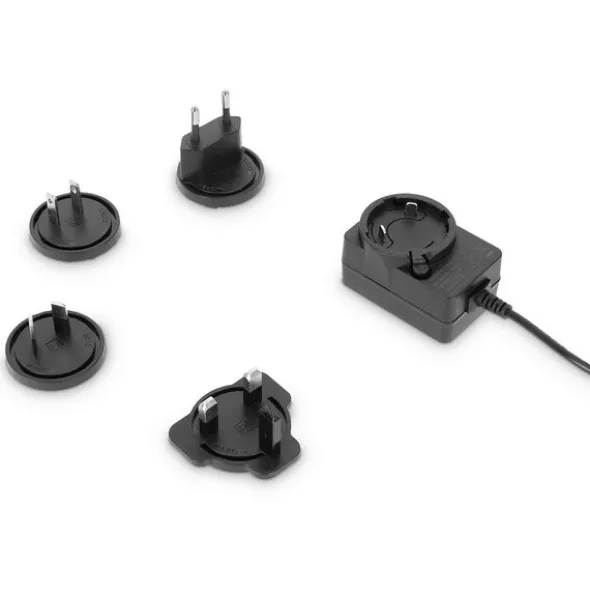

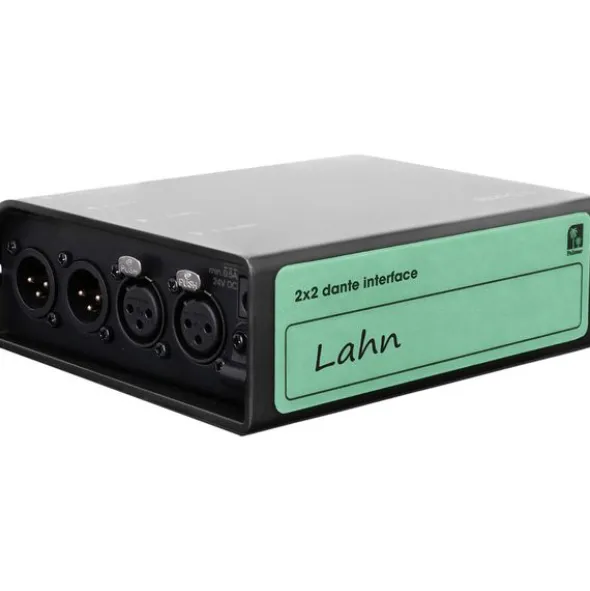

• Includes labelling plate (tour label), external power supply unit with interchangeable plugs
• Engineered in Germnay
